Product Details

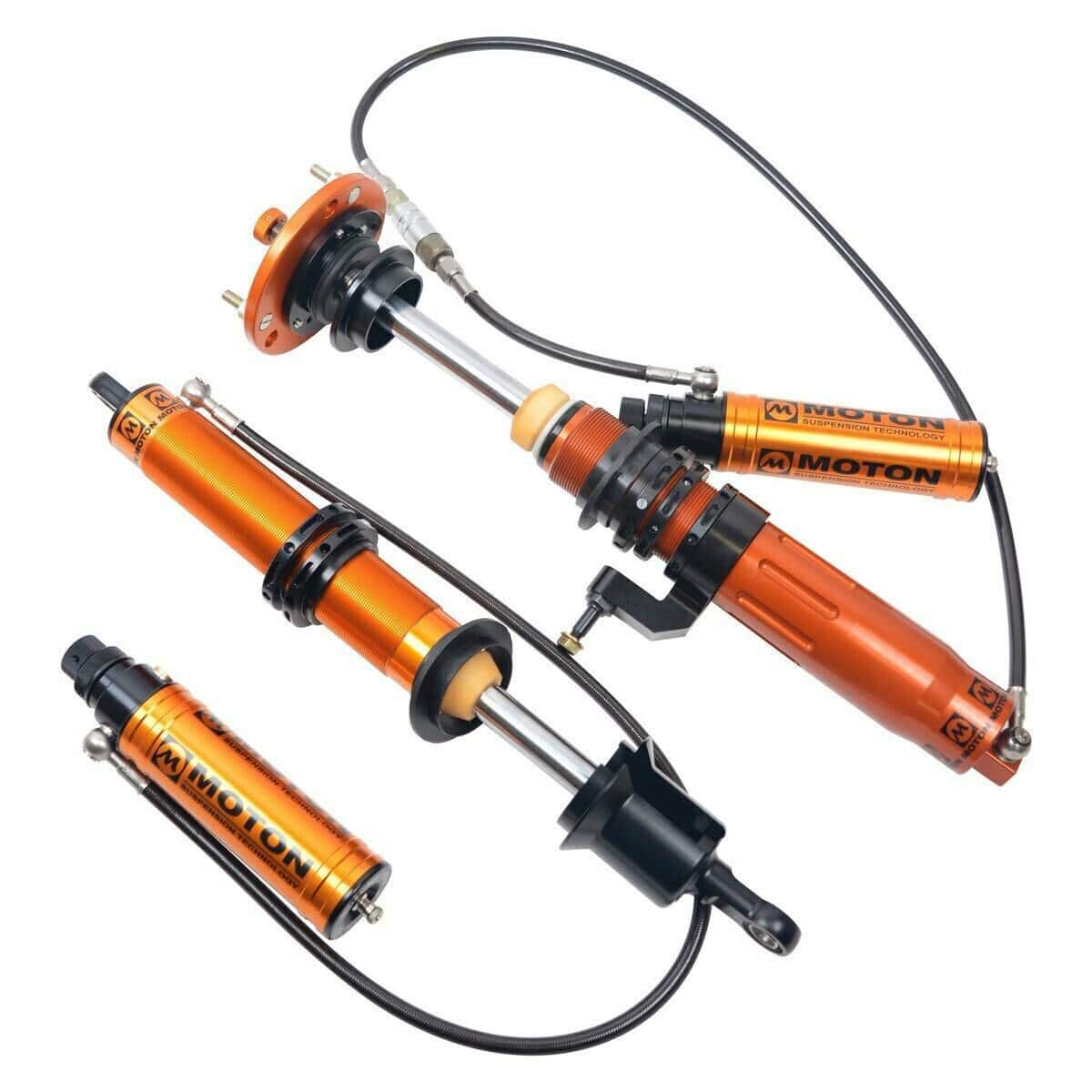

The Moton 3 Way Motorsport suspension for the 2021-2026 BMW M3 (G80/G81) is designed for the professional racer.

Remote reservoirs control fluid temperature, quick release hydraulic lines (on most models) make installation easier, and separate compression and rebound valving with height adjustable spring perches give you the ultimate in suspension tuning.

Features

  • Separate high speed bump (15 positions), low speed bump (6 positions) and rebound (15 positions) adjustments
  • Unique blow off valve system in canister to totally control curb stones and bumpy track conditions
  • Large piston rod diameter for more fluid displacement
  • Adjustable gas pressure for added lifting force
  • Large main piston for quick response
  • No preloaded valve stacks needed for low speed damping control
  • Swivel banjo hoses for easy installation of remote reservoirs
  • DDP (double digressive pistons) are available as an option
  • Improved platform stability
  • Improved traction, higher grip level
  • Improved curb stone and bumpy track control
  • Improved tire wear over the complete race distance
  • Easy to adjust and work with
  • Every single adjustment done is very noticeable to the driver
  • Proven reliability
  • Rebuildable/Revalveable
Specifications
Part Number M 505 189SD
Part Name Moton 3 Way Motorsport Coilovers
Vehicle 2021-2026 BMW M3
Placement Front & Rear
Chassis Code G80/G81
Drivetrain AWD
Damping Adjustment 3-Way
Ride-Height Adjustable Yes
Notes
  • Does your car have EDC, please order delete kit separately.
  • Moton adjustable droplink part numbers: front DLA-10-288-306.
  • Quick disconnect couplings are available for the front.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2021BMWM3AWD
2022BMWM3AWD
2023BMWM3AWD
2024BMWM3AWD
2025BMWM3AWD
2026BMWM3AWD
