Product Details

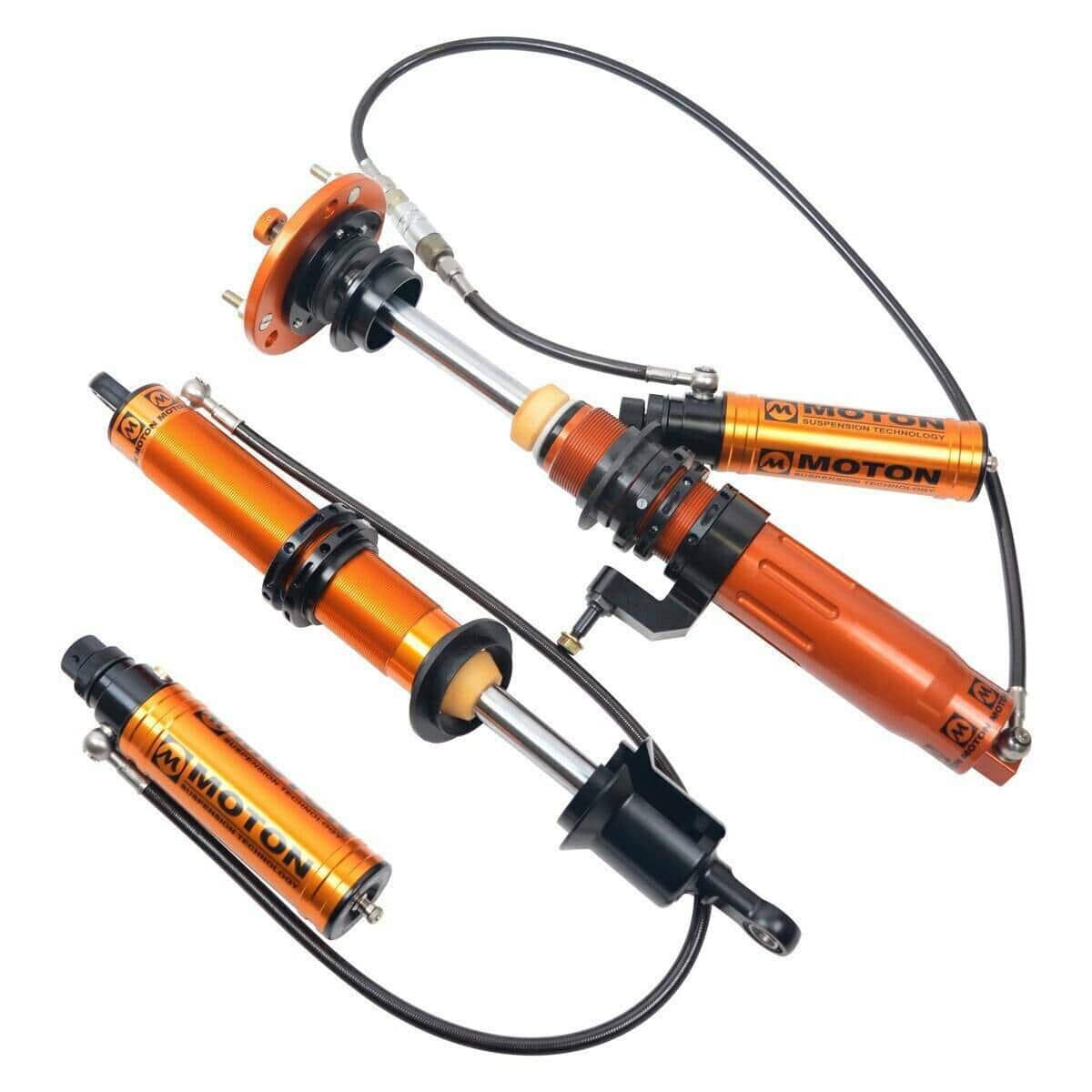

The Moton 3 Way Motorsport suspension for the 2015-2022 Audi R8 (4S3/4S9) is designed for the professional racer.

Remote reservoirs control fluid temperature, quick release hydraulic lines (on most models) make installation easier, and separate compression and rebound valving with height adjustable spring perches give you the ultimate in suspension tuning.

Features

  • Separate high speed bump (15 positions), low speed bump (6 positions) and rebound (15 positions) adjustments
  • Unique blow off valve system in canister to totally control curb stones and bumpy track conditions
  • Large piston rod diameter for more fluid displacement
  • Adjustable gas pressure for added lifting force
  • Large main piston for quick response
  • No preloaded valve stacks needed for low speed damping control
  • Swivel banjo hoses for easy installation of remote reservoirs
  • DDP (double digressive pistons) are available as an option
  • Improved platform stability
  • Improved traction, higher grip level
  • Improved curb stone and bumpy track control
  • Improved tire wear over the complete race distance
  • Easy to adjust and work with
  • Every single adjustment done is very noticeable to the driver
  • Proven reliability
  • Rebuildable/Revalveable
Specifications
Part Number M 532 111S
Part Name Moton 3 Way Motorsport Coilovers
Vehicle 2015-2022 Audi R8
Placement Front & Rear
Chassis Code 4S3/4S9
Drivetrain RWD/AWD
Damping Adjustment 3-Way
Ride-Height Adjustable Yes
Notes
  • Moton fitment note: For non noselift vehicle.
  • Quick disconnect couplings are available for the front.
  • Coil springs are included.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015AudiR8RWD
2015AudiR8AWD
2016AudiR8RWD
2016AudiR8AWD
2017AudiR8RWD
2017AudiR8AWD
2018AudiR8RWD
2018AudiR8AWD
2019AudiR8RWD
2019AudiR8AWD
2020AudiR8RWD
2020AudiR8AWD
2021AudiR8RWD
2021AudiR8AWD
2022AudiR8RWD
2022AudiR8AWD
