Product Details

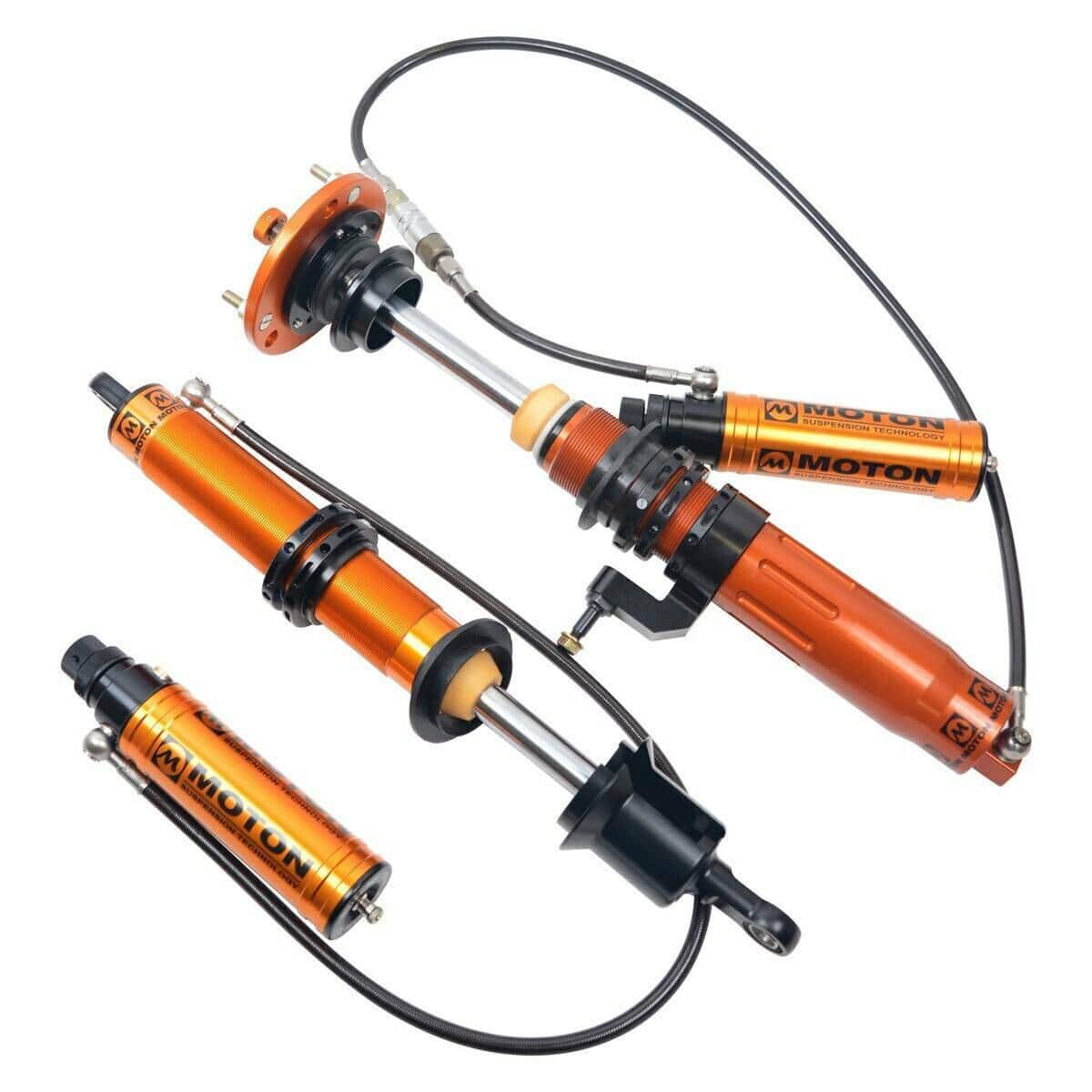

The Moton 3 Way Motorsport suspension for the 2014-2019 BMW 3 Series (F30) is designed for the professional racer.

Remote reservoirs control fluid temperature, quick release hydraulic lines (on most models) make installation easier, and separate compression and rebound valving with height adjustable spring perches give you the ultimate in suspension tuning.

Features

  • Separate high speed bump (15 positions), low speed bump (6 positions) and rebound (15 positions) adjustments
  • Unique blow off valve system in canister to totally control curb stones and bumpy track conditions
  • Large piston rod diameter for more fluid displacement
  • Adjustable gas pressure for added lifting force
  • Large main piston for quick response
  • No preloaded valve stacks needed for low speed damping control
  • Swivel banjo hoses for easy installation of remote reservoirs
  • DDP (double digressive pistons) are available as an option
  • Improved platform stability
  • Improved traction, higher grip level
  • Improved curb stone and bumpy track control
  • Improved tire wear over the complete race distance
  • Easy to adjust and work with
  • Every single adjustment done is very noticeable to the driver
  • Proven reliability
  • Rebuildable/Revalveable
Specifications
Part Number M 505 153SD
Part Name Moton 3 Way Motorsport Coilovers
Vehicle 2014-2019 BMW 3 Series
Placement Front & Rear
Chassis Code F30
Drivetrain RWD
Damping Adjustment 3-Way
Ride-Height Adjustable Yes
Notes
  • This model has a 5-bolt top mount.
  • Moton adjustable droplink part numbers: front DLA-10-233-251.
  • Quick disconnect couplings are available for the front.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2014BMW318iRWD
2014BMW320iRWD
2014BMW328dRWD
2014BMW328iRWD
2014BMW330eRWD
2014BMW330iRWD
2014BMW335iRWD
2014BMW340iRWD
2015BMW318iRWD
2015BMW320iRWD
2015BMW328dRWD
2015BMW328iRWD
2015BMW330eRWD
2015BMW330iRWD
2015BMW335iRWD
2015BMW340iRWD
2016BMW318iRWD
2016BMW320iRWD
2016BMW328dRWD
2016BMW328iRWD
