Product Details

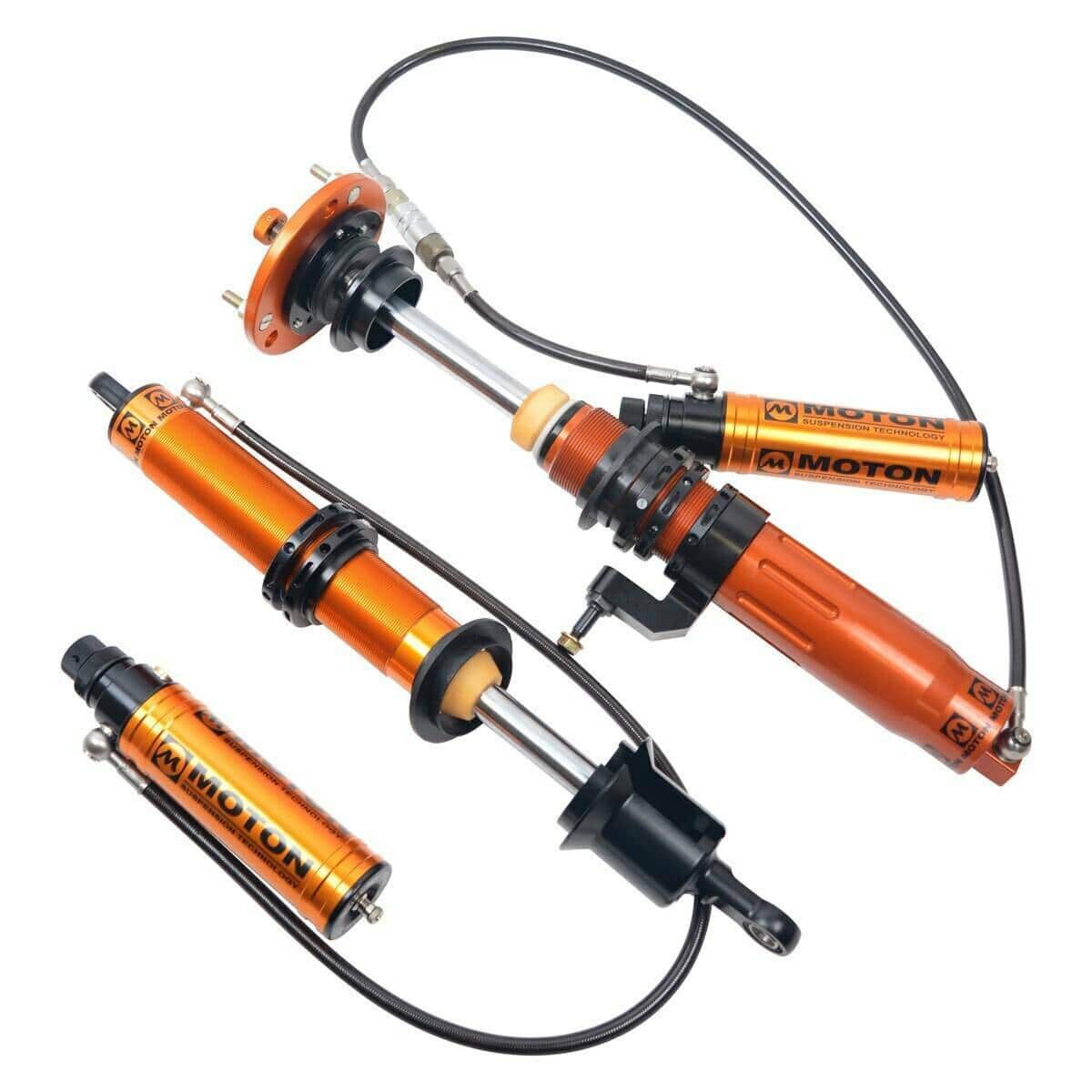

The Moton 3 Way Motorsport suspension for the 2010-2015 BMW 1 Series (F20/F21) is designed for the professional racer.

Remote reservoirs control fluid temperature, quick release hydraulic lines (on most models) make installation easier, and separate compression and rebound valving with height adjustable spring perches give you the ultimate in suspension tuning.

Features

  • Separate high speed bump (15 positions), low speed bump (6 positions) and rebound (15 positions) adjustments
  • Unique blow off valve system in canister to totally control curb stones and bumpy track conditions
  • Large piston rod diameter for more fluid displacement
  • Adjustable gas pressure for added lifting force
  • Large main piston for quick response
  • No preloaded valve stacks needed for low speed damping control
  • Swivel banjo hoses for easy installation of remote reservoirs
  • DDP (double digressive pistons) are available as an option
  • Improved platform stability
  • Improved traction, higher grip level
  • Improved curb stone and bumpy track control
  • Improved tire wear over the complete race distance
  • Easy to adjust and work with
  • Every single adjustment done is very noticeable to the driver
  • Proven reliability
  • Rebuildable/Revalveable
Specifications
Part Number M 505 152SD
Part Name Moton 3 Way Motorsport Coilovers
Vehicle 2010-2015 BMW 1 Series
Placement Front & Rear
Chassis Code F20/F21
Drivetrain RWD
Damping Adjustment 3-Way
Ride-Height Adjustable Yes
Notes
  • This model has a 3-bolt top mount.
  • Moton adjustable droplink part numbers: front DLA-10-233-251.
  • Quick disconnect couplings are available for the front.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010BMW118iRWD
2010BMW120iRWD
2010BMW125dRWD
2010BMW125iRWD
2010BMWM135iRWD
2010BMWM140iRWD
2011BMW118iRWD
2011BMW120iRWD
2011BMW125dRWD
2011BMW125iRWD
2011BMWM135iRWD
2011BMWM140iRWD
2012BMW118iRWD
2012BMW120iRWD
2012BMW125dRWD
2012BMW125iRWD
2012BMWM135iRWD
2012BMWM140iRWD
2013BMW118iRWD
2013BMW120iRWD
