Product Details

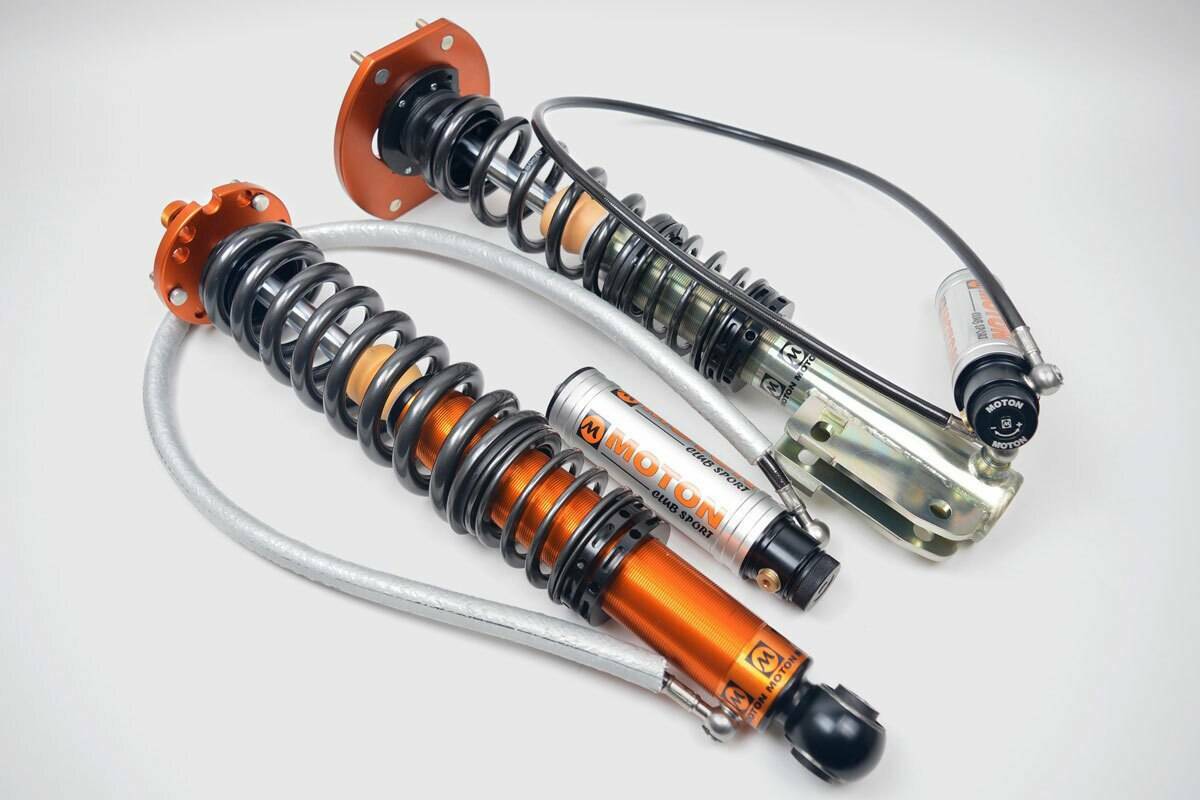

The Moton 2 Way Sport line for the 2015-2022 Audi R8 (4S3/4S9) is designed for the serious club racer and high performance street driver.

Remote reservoirs control fluid temperature, quick release hydraulic lines (on most models) make installation easier, and separate compression and rebound valving with height adjustable spring perches let you tune the car to the way you drive.

Features

  • Separate Bump (15) and rebound (15) control
  • Ride height adjustable
  • Unique blow off valve system in remote reservoirs
  • Large piston rod diameter for more fluid displacement
  • Adjustable gas pressure for added lifting force
  • Canister pressure can be varied between 6-16 BAR (100-300 psi)
  • Variable canister pressure helps support the car in high speed cornering with soft springs
  • Large main piston for quick response
  • No pre-loaded valve stacks needed for low speed damping control
  • Swivel banjo hoses for easy installation of remote reservoirs
  • DDP (double digressive pistons) are available as an option
  • Easy to adjust to a real race setup
  • Easy to work with
  • Minor adjustments are very noticeable to the driver
  • Proven reliability
  • Wide range of springs can be used
  • Shafts are induction hardened and chrome plated
  • Top camber mounts supplied where possible/available
  • Improved platform stability
  • Improved traction, higher grip level
  • Improved rumble strip and bumpy track control
  • Rebuildable/Revalveable
Specifications
Part Number M 532 110S
Part Name Moton 2 Way Sport Coilovers
Vehicle 2015-2022 Audi R8
Placement Front & Rear
Chassis Code 4S3/4S9
Drivetrain RWD/AWD
Damping Adjustment 2-Way
Ride-Height Adjustable Yes
Notes
  • Moton fitment note: For non noselift vehicle.
  • Quick disconnect couplings are available for the front.
  • Coil springs are included.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015AudiR8RWD
2015AudiR8AWD
2016AudiR8RWD
2016AudiR8AWD
2017AudiR8RWD
2017AudiR8AWD
2018AudiR8RWD
2018AudiR8AWD
2019AudiR8RWD
2019AudiR8AWD
2020AudiR8RWD
2020AudiR8AWD
2021AudiR8RWD
2021AudiR8AWD
2022AudiR8RWD
2022AudiR8AWD
