Product Details

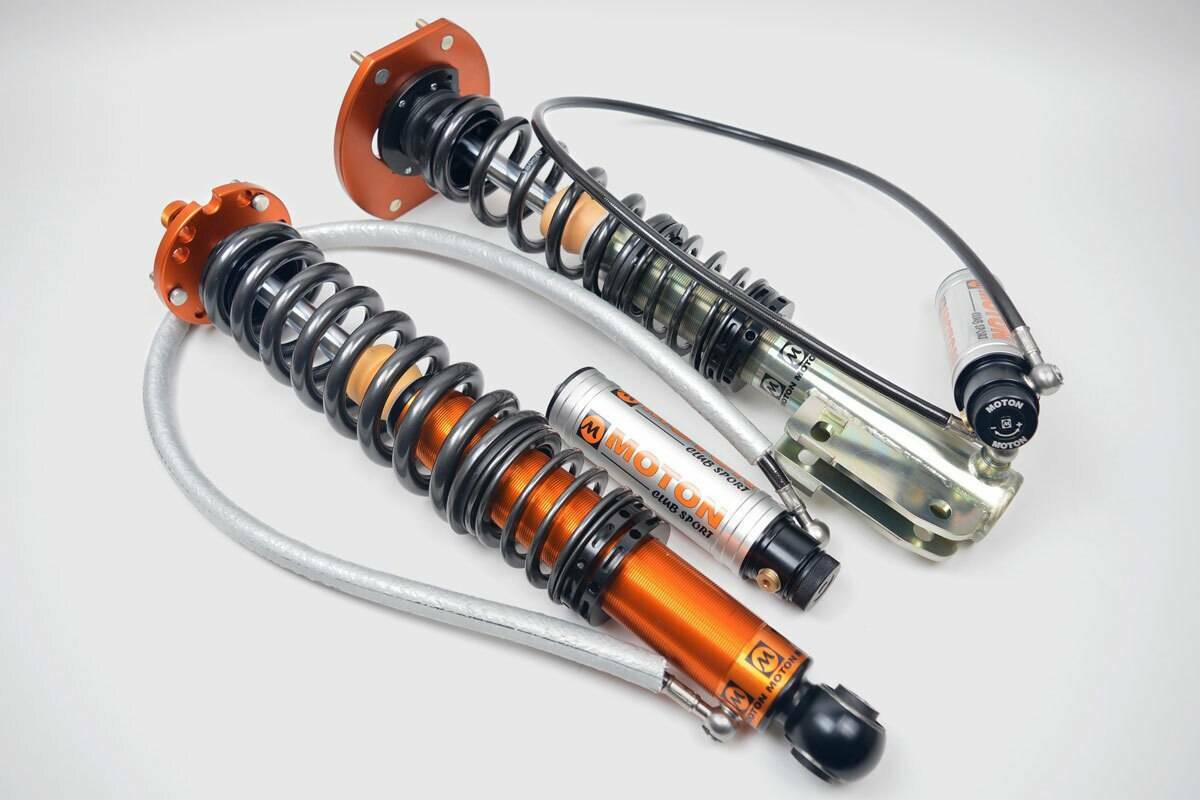

The Moton 2 Way Sport line for the 2014-2019 BMW 3 Series (F30) is designed for the serious club racer and high performance street driver.

Remote reservoirs control fluid temperature, quick release hydraulic lines (on most models) make installation easier, and separate compression and rebound valving with height adjustable spring perches let you tune the car to the way you drive.

Features

  • Separate Bump (15) and rebound (15) control
  • Ride height adjustable
  • Unique blow off valve system in remote reservoirs
  • Large piston rod diameter for more fluid displacement
  • Adjustable gas pressure for added lifting force
  • Canister pressure can be varied between 6-16 BAR (100-300 psi)
  • Variable canister pressure helps support the car in high speed cornering with soft springs
  • Large main piston for quick response
  • No pre-loaded valve stacks needed for low speed damping control
  • Swivel banjo hoses for easy installation of remote reservoirs
  • DDP (double digressive pistons) are available as an option
  • Easy to adjust to a real race setup
  • Easy to work with
  • Minor adjustments are very noticeable to the driver
  • Proven reliability
  • Wide range of springs can be used
  • Shafts are induction hardened and chrome plated
  • Top camber mounts supplied where possible/available
  • Improved platform stability
  • Improved traction, higher grip level
  • Improved rumble strip and bumpy track control
  • Rebuildable/Revalveable
Specifications
Part Number M 505 149SD
Part Name Moton 2 Way Sport Coilovers
Vehicle 2014-2019 BMW 3 Series
Placement Front & Rear
Chassis Code F30
Drivetrain RWD
Damping Adjustment 2-Way
Ride-Height Adjustable Yes
Notes
  • This model has a 5-bolt top mount.
  • Moton adjustable droplink part numbers: front DLA-10-233-251.
  • Quick disconnect couplings are available for the front.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2014BMW318iRWD
2014BMW320iRWD
2014BMW328dRWD
2014BMW328iRWD
2014BMW330eRWD
2014BMW330iRWD
2014BMW335iRWD
2014BMW340iRWD
2015BMW318iRWD
2015BMW320iRWD
2015BMW328dRWD
2015BMW328iRWD
2015BMW330eRWD
2015BMW330iRWD
2015BMW335iRWD
2015BMW340iRWD
2016BMW318iRWD
2016BMW320iRWD
2016BMW328dRWD
2016BMW328iRWD
