Product Details

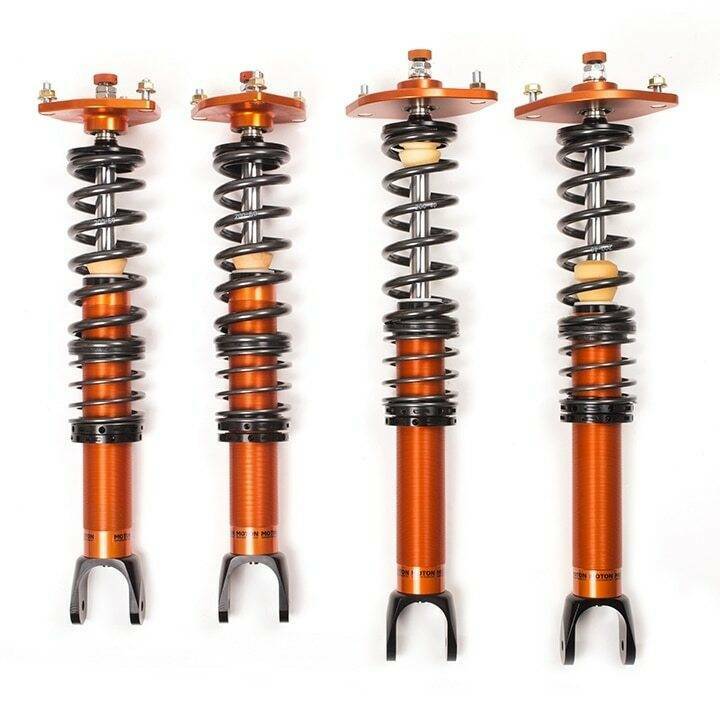

The Moton 1 Way system for the 2012-2026 Subaru BRZ (Z10/ZD8) is a single adjustable damper in the same quality mono tube design as the rest of the Moton line-up.

It is perfectly usable for racing, street or track days, and it is the answer for racers who are not allowed to run canisters or reservoirs in their class or who simply prefer a non-remote setup.

Features

  • 15 click rebound control
  • Height adjustable
  • Non reservoir setup
  • 22mm shaft diameter
  • Large main piston for quick response and wide adjustment range
  • Top camber mounts supplied where possible/available
  • All hardware included for installation
  • High tensile helper and main springs are available as an option
  • DDP (double digressive pistons) are available as an option
  • Custom setup for your goals
  • Easily adjustable with one knob
  • Track proven system
  • Wide range of springs can be used
  • Rebuildable/Revalveable
Specifications
Part Number M 531 009SD
Part Name Moton 1 Way Coilovers
Vehicle 2012-2026 Subaru BRZ
Placement Front & Rear
Chassis Code Z10/ZD8
Drivetrain RWD
Damping Adjustment 1-Way
Ride-Height Adjustable Yes
Notes
  • Moton adjustable droplink part numbers: front DLA-12-200-240.
  • Coil springs are included.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2012SubaruBRZRWD
2013SubaruBRZRWD
2014SubaruBRZRWD
2015SubaruBRZRWD
2016SubaruBRZRWD
2017SubaruBRZRWD
2018SubaruBRZRWD
2019SubaruBRZRWD
2020SubaruBRZRWD
2021SubaruBRZRWD
2022SubaruBRZRWD
2023SubaruBRZRWD
2024SubaruBRZRWD
2025SubaruBRZRWD
2026SubaruBRZRWD
