Product Details

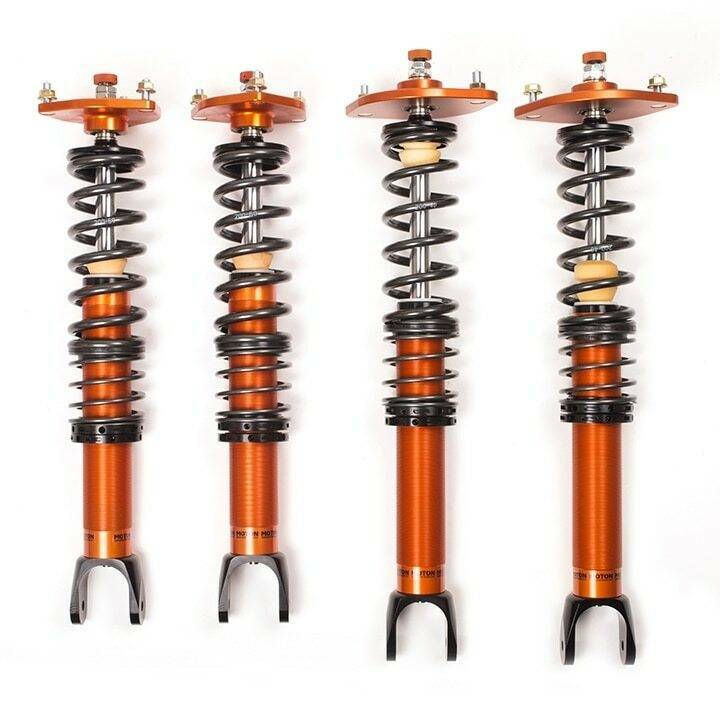

The Moton 1 Way system for the 1992-1995 BMW M3 (E36) is a single adjustable damper. It is the same quality mono tube damper system that you already know from our line-up.
This kit also includes the 22mm shaft and 44mm piston and is perfectly useable for racing, street or track days. The 22mm shaft together with our new low friction seals are set for fast responses and good feedback during massive side load.
This is the perfect answer for racers that are not allowed to run canisters/reservoirs in their class or for people that simply love the non-remote setup.
Benefits
- Custom setup for your goals
- Easily adjustable with one knob
- Track proven system
- Wide range of springs can be used
- Rebuildable/Revalveable
Features
- 15 click rebound control
- Height adjustable
- Non reservoir setup
- 22mm shaft diameter
- Large main piston for quick response and wide adjustment range
- Top camber mounts supplied where possible/available
- All hardware included for installation
- High tensile helper and main springs are available as an option
- DDP (double digressive pistons) are available as an option
- Double Digressive Pistons are recommended for use on the non-driven wheels
- 4WD/FWD vehicles: DDP for both rear axle struts/shocks
- RWD vehicles: DDP for both front axle struts/shocks
Specifications
| Part Number | M 505 172S |
| Part Name | Moton 1 Way Coilovers |
| Vehicle | 1992-1995 BMW M3 |
| Placement | Front & Rear |
| Chassis Code | E36 |
| Drivetrain | RWD |
| Damping Adjustment | 1-Way |
| Ride-Height Adjustable | Yes |
| Suspension Design - Rear | True Coilover |
| Top Mounts - Front | Camber adjustable |
| Top Mounts - Rear | Solid, no camber adjustment |
| Notes |
|
