Product Details

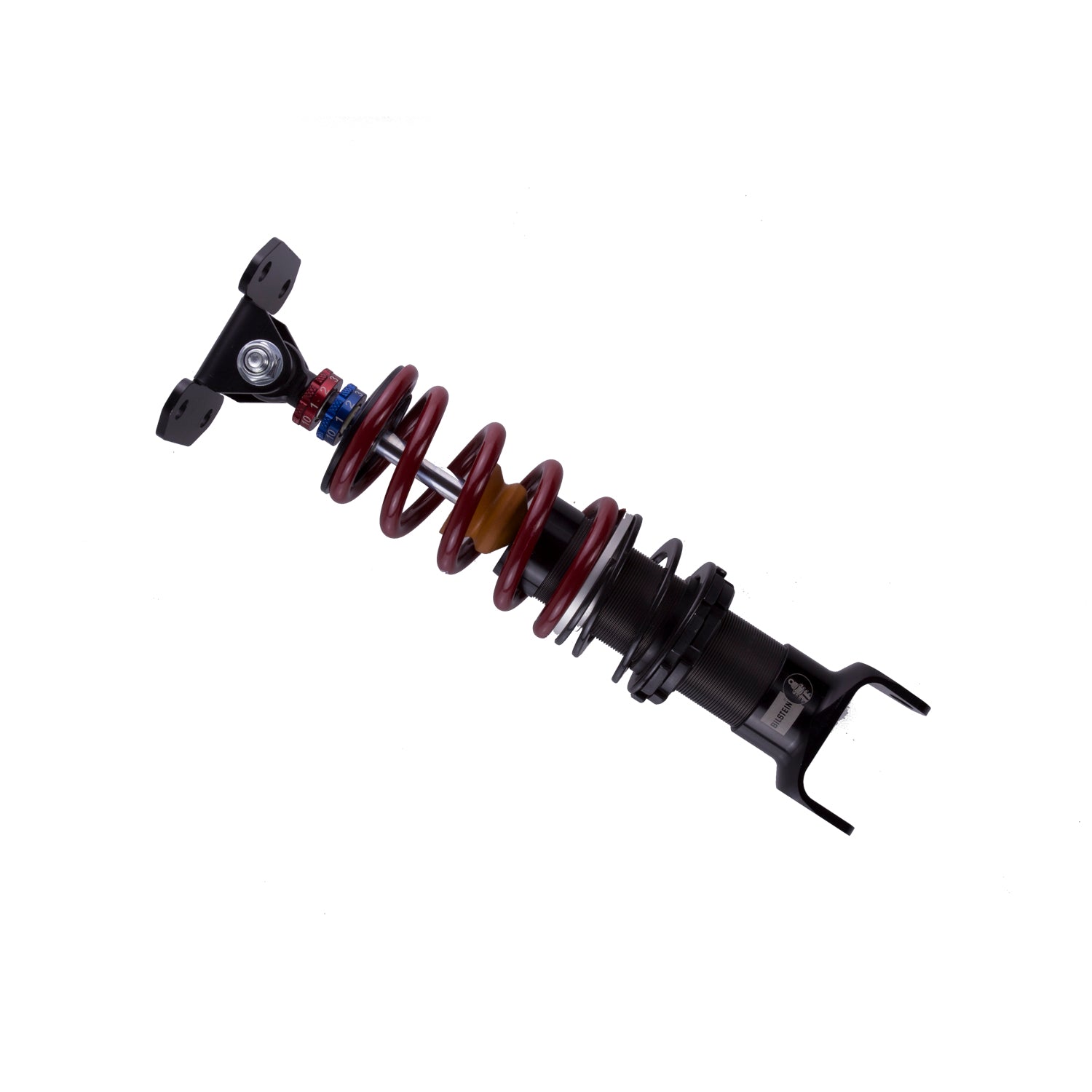

The Bilstein MDS shock absorber is sold for custom and motorsport builds, here at 12.78 in. collapsed. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.
Bilstein supplies suspension as original equipment to manufacturers worldwide and applies the same engineering here. Covered by a limited lifetime warranty.
Discontinued - Final Sale
Bilstein has discontinued this part. We are selling the remaining stock and it will not be restocked once it is gone. Because of that, all sales on this item are final: it cannot be returned or exchanged.
Features
- 2-way independent rebound and compression adjustment system
- In-line damping adjustment requires no external reservoir
- Easy Clip System (ECS) spring retainer maintains position in zero preload spring applications and allows rapid changes
Specifications
| Part Number | 26-253282 |
| Part Name | Shock Absorber |
| UPC | 651860751177 |
| Adjustable Damping | Double Adjustable - Compression and Rebound |
| Body Design | Threaded Body (Coilover) |
| Body Material | Aluminum |
| Boot Included | No |
| Collapsed Length | 12.78 in. (324.6mm) |
| Compression @ 0.52m/s | Adjustable |
| Extended Length | 14.96 in. (380mm) |
| Finish | Clear Anodized |
| Front Main Spring Type | Linear |
| Front Tender Spring Rate | 228 lbs/in |
| Internal Design | Monotube |
| Lower Mount Type | Clevis |
| Piston Diameter | 46mm |
| Piston Type | Linear |
| Vehicle Placement | Rear |
| Rebound @ 0.52m/s | Adjustable |
| Segment | Motorsports |
| Series | MDS |
| Shaft Diameter | 14mm |
| Spring Seat Included | Yes |
| Stroke/Travel Length | 2.18 in. (55.4mm) |
| Upper Mount Type | 15mm Heim |
