Product Details

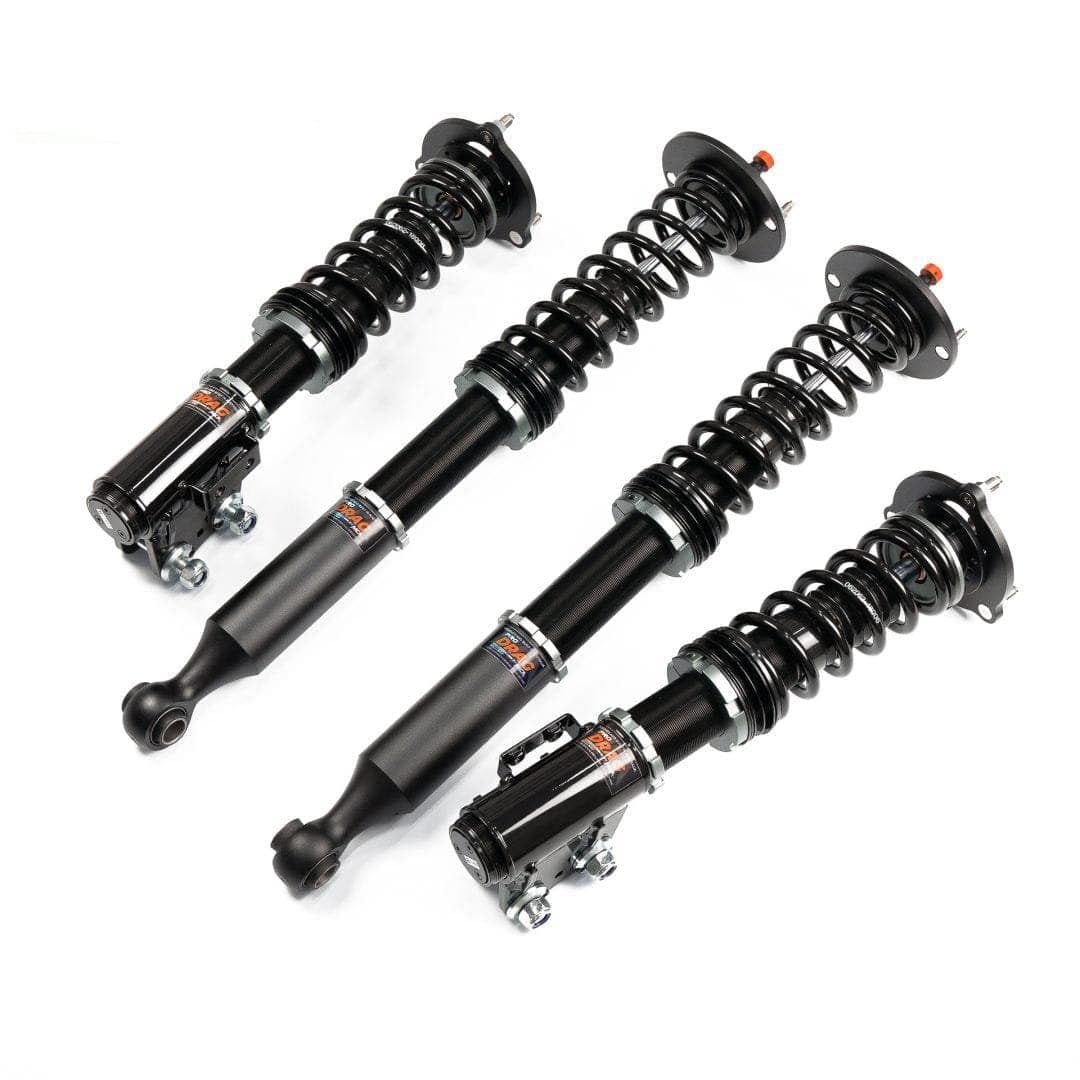

The MCA Pro Drag Coilovers for the 2004-2011 Mazda RX-8 (SE3P) plant the rear wheels of the Mazda RX-8 (SE3P) off the line, control the launch, and keep the chassis settled all the way through the trap. The valving handles prepped tracks, unprepped strips, and roll-racing without needing different setups, and it's adjustable on the trailer between rounds.
Every MCA coilover is hand-built and dyno-tested in MCA's Brisbane, Australia workshop, then shipped freshly assembled rather than pulled off a warehouse shelf. The serviceable monotube design lets MCA rebuild, revalve, or respring your kit years down the road — protecting your investment instead of forcing a full replacement. Backed by an industry-leading 3-year transferable warranty. Designed with input from teams running 6-second ETs, this is the suspension that lets the car put down the power instead of wasting it spinning the tires.
Features
- Designed, Developed, Assembled & Fully Supported in Australia.
- 3 Year Transferrable, Industry Leading Warranty program.
- Can be Repaired, Reconditioned, Revalved and Resprung.
- MCA Proprietary Fusion Valving Technology V3.0 Pre-selected valving and spring package.
- 12 Clicks of Hard/Soft Damper Adjuster (Bump & Rebound together).
- Camber Adjustment via top mount (check vehicle-specific specs for more info).
- Camber Washer Bottom Mounts(check vehicle-specific specs for more info).
- Damper Adjuster Extenders (where possible, see additional information).
- Wheel travel range adjustment via the bottom mount (pre-set by MCA).
- Height adjustment via spring seat position (base height adjustment is flawed).
- Suggested Height Range: between factory height and 20mm tire gap (depends on vehicle specifics).
- Reinforced double-gusseted lower mounts (where applicable, see additional information).
- Helper Springs to keep the main spring captive at all times.
- Latest Rugged Spec internal sealing designs and components.
- Superior Monotube design.
What's Included
- Complete Suspension System
- Height Adjustment Tools
- Setup Sheet
- Information Sheets
- MCA Stickers
- MCA Lanyard
Specifications
| Part Number | MAZRX8-PDRAG |
| Part Name | MCA Pro Drag Coilovers |
| Vehicle | 2004-2011 Mazda RX-8 |
| Chassis Code | SE3P |
| Adjustment Type | 1-Way |
| Damping Adjustable | Yes |
| Height Adjustable | Yes |
| Front Spring Rates (Default) | 13 kg/mm |
| Rear Spring Rates (Default) | 7 kg/mm |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | True Coilover |
Vehicle Fitment
- 2004 Mazda RX-8 (SE3P)
- 2005 Mazda RX-8 (SE3P)
- 2006 Mazda RX-8 (SE3P)
- 2007 Mazda RX-8 (SE3P)
- 2008 Mazda RX-8 (SE3P)
- 2009 Mazda RX-8 (SE3P)
- 2010 Mazda RX-8 (SE3P)
- 2011 Mazda RX-8 (SE3P)
