Product Details

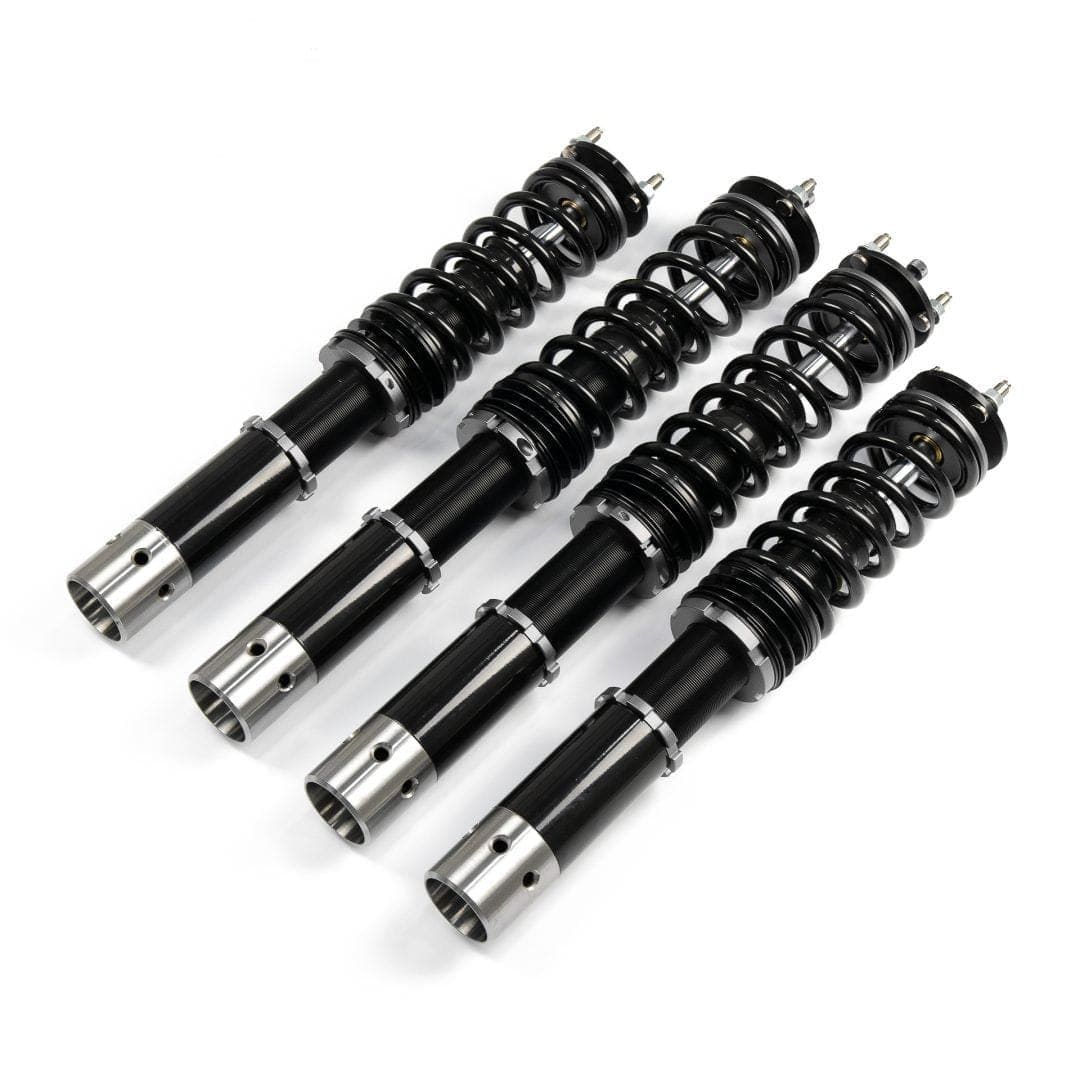

These MCA Pro Drag coilovers fit the 1969-1978 Nissan 260Z (S30).
The MCA Pro Drag coilovers for the S30 260Z plant the rear wheels at launch and keep the chassis settled through the trap. The valving works on prepped tracks, unprepped strips and roll racing without a setup change, and it adjusts between rounds.
Every MCA coilover is hand-built and dyno-tested in MCA's Brisbane, Australia workshop, then shipped freshly assembled. The serviceable monotube design lets MCA rebuild, revalve or respring the kit later. MCA backs it with a 3-year transferable warranty. MCA developed it with input from teams running 6-second ETs.
Features
- Designed, Developed, Assembled & Fully Supported in Australia.
- 3 year transferable warranty.
- Can be Repaired, Reconditioned, Revalved and Resprung.
- MCA Proprietary Fusion Valving Technology V3.0 Pre-selected valving and spring package.
- 12 Clicks of Hard/Soft Damper Adjuster (Bump & Rebound together).
- Camber Adjustment via top mount (check vehicle-specific specs for more info).
- Camber Washer Bottom Mounts(check vehicle-specific specs for more info).
- Damper Adjuster Extenders (where possible, see additional information).
- Wheel travel range adjustment via the bottom mount (pre-set by MCA).
- Height adjustment via spring seat position (base height adjustment is flawed).
- Suggested Height Range: between factory height and 20mm tire gap (depends on vehicle specifics).
- Reinforced double-gusseted lower mounts (where applicable, see additional information).
- Helper Springs to keep the main spring captive at all times.
- Latest Rugged Spec internal sealing designs and components.
- Monotube design.
What's Included
- Complete Suspension System
- Height Adjustment Tools
- Setup Sheet
- Information Sheets
- MCA Stickers
- MCA Lanyard
Specifications
| Part Number | DAT260Z-PDRAG |
| Part Name | MCA Pro Drag Coilovers |
| Vehicle | 1969-1978 Nissan 260Z |
| Chassis Code | S30 |
| Adjustment Type | 1-Way |
| Damping Adjustable | Yes |
| Height Adjustable | Yes |
| Front Spring Rates (Default) | 6 kg/mm |
| Rear Spring Rates (Default) | 5 kg/mm |
| Suspension Design - Front | Divorced |
| Suspension Design - Rear | Divorced |
| Notes | - |
