Product Details

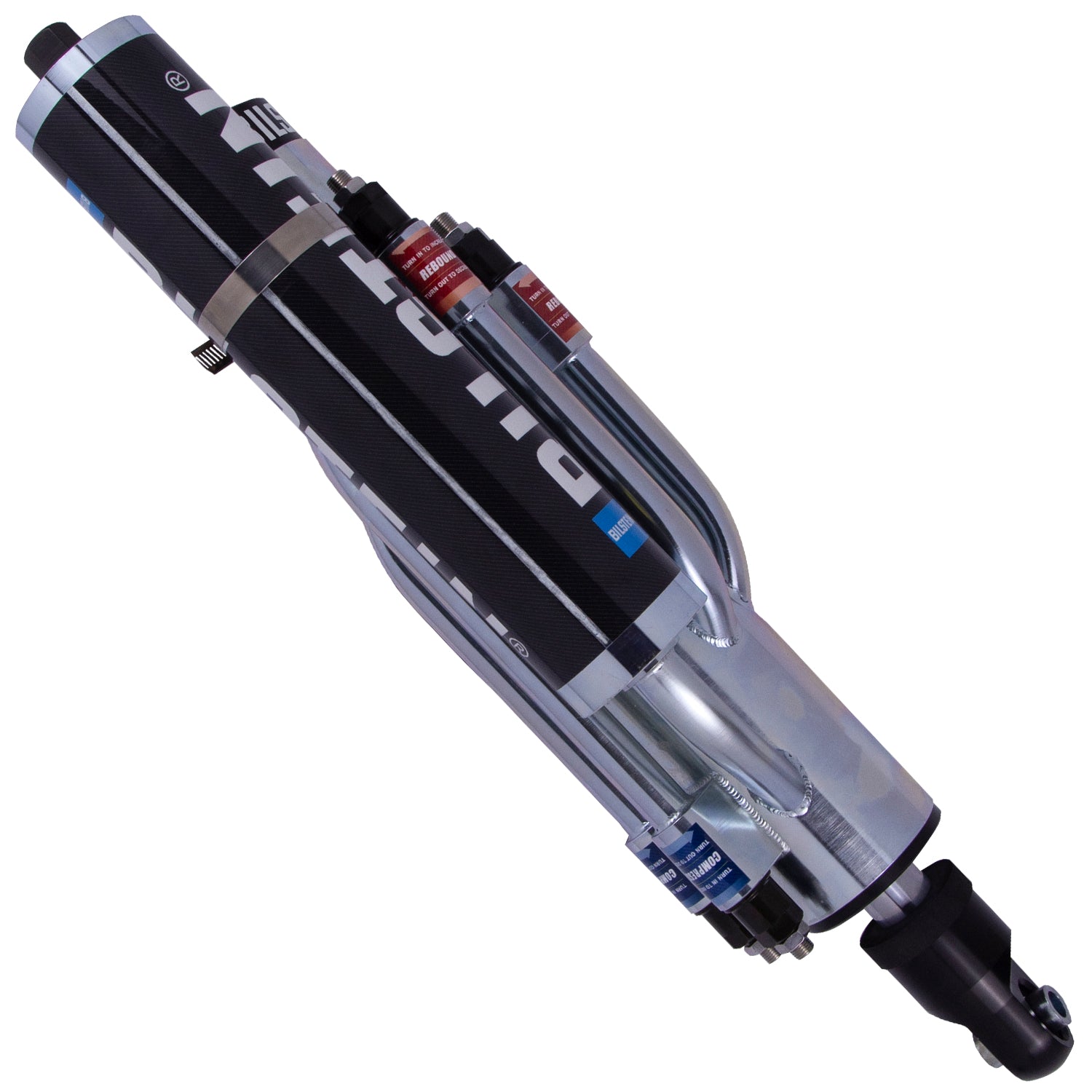

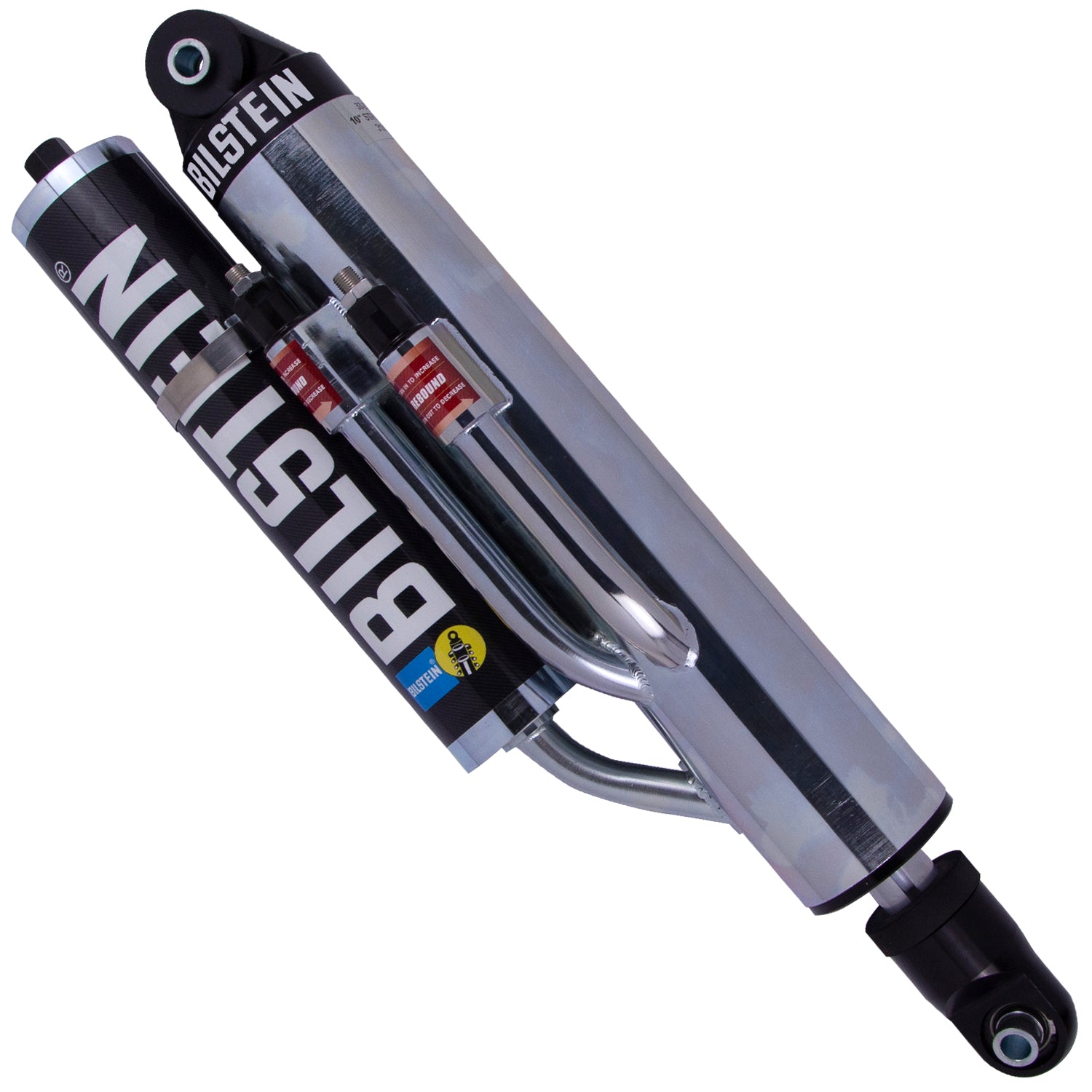

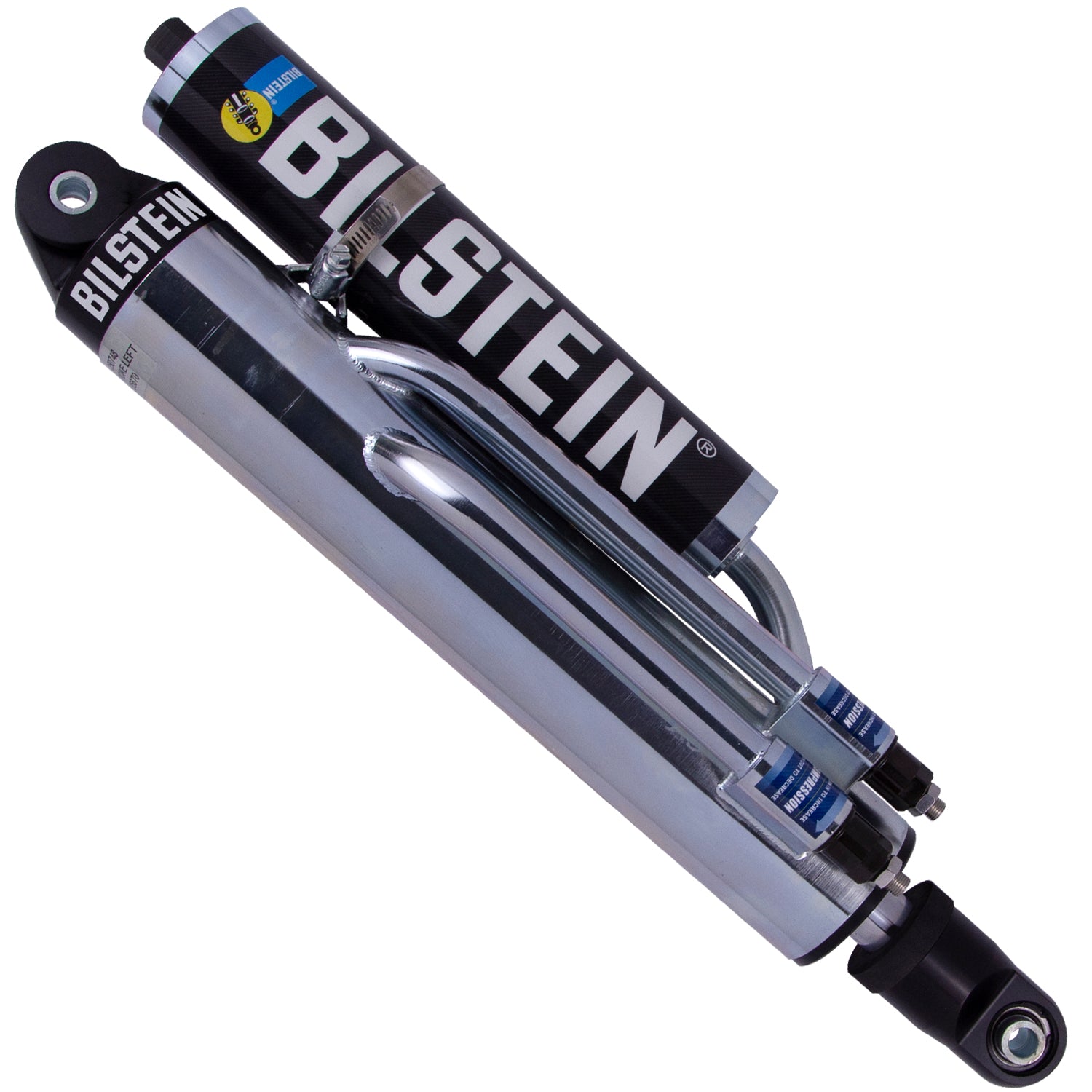

The Bilstein M 9200 shock absorber is specified by dimension rather than by vehicle, here at 19.5 in. collapsed. It is the part you reach for when the build does not match a catalog application and you need a damper sized to the car you actually have.
The monotube design is what separates these. A single high-pressure gas chamber keeps the oil from aerating, so damping stays consistent as the unit heats up instead of fading away.
Features
- Available in 60mm, 70mm and 83mm monotubes
- 4-tube, position sensitive with adjustable rebound and compression
- Multiple stroke lengths available ranging from 8" to 18"
Specifications
| Part Number | 33-250748 |
| Part Name | Shock Absorber |
| UPC | 651860766478 |
| Body Design | 4-Tube Bypass Screw Top |
| Collapsed Length | 19.5 in. (495.3mm) |
| Compression @ 0.52m/s | Custom |
| Extended Length | 29.5 in. (749.3mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye .5x1.5 in. |
| Mount Type | Eye-to-Eye |
| Piston Diameter | 70mm |
| Vehicle Placement | Left |
| Rebound @ 0.52m/s | Custom |
| Reservoir | Yes |
| Segment | Motorsports |
| Series | M 9200 (Bypass) |
| Shaft Diameter | 1-1/8 in. (28.6mm) |
| Spring Seat Included | No |
| Stroke/Travel Length | 10 in. (254mm) |
| Upper Mount Type | Eye .5x1.5 in. |
