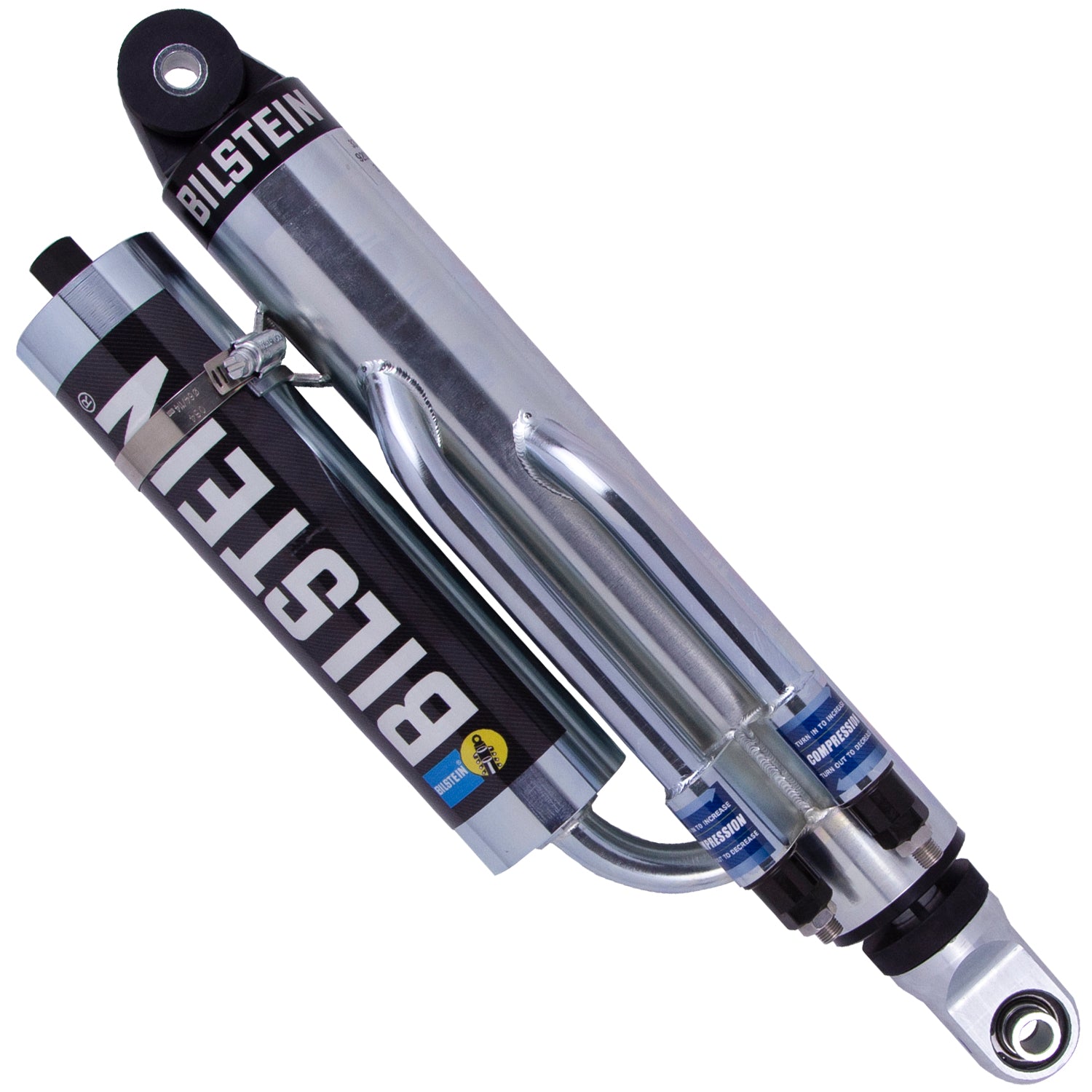

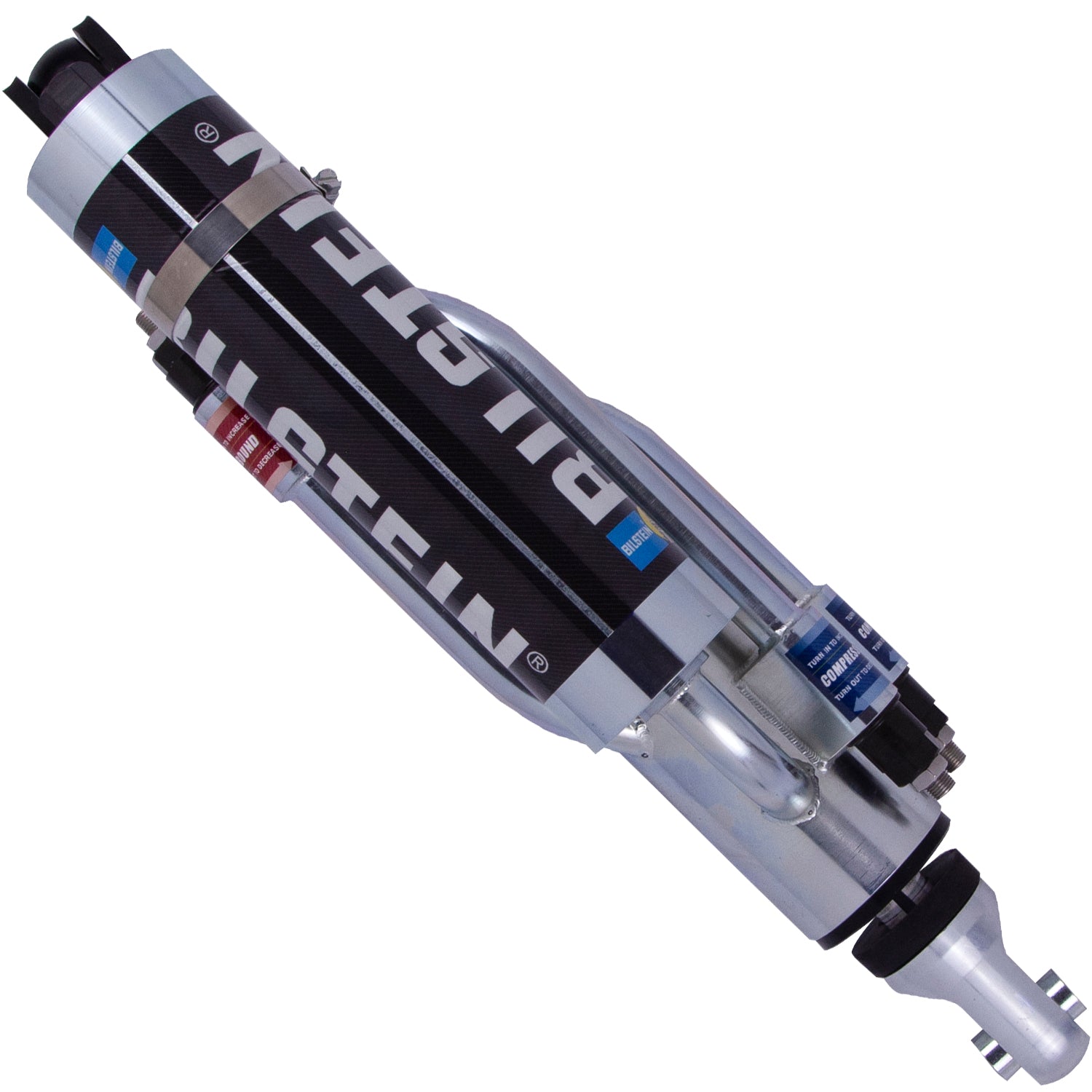

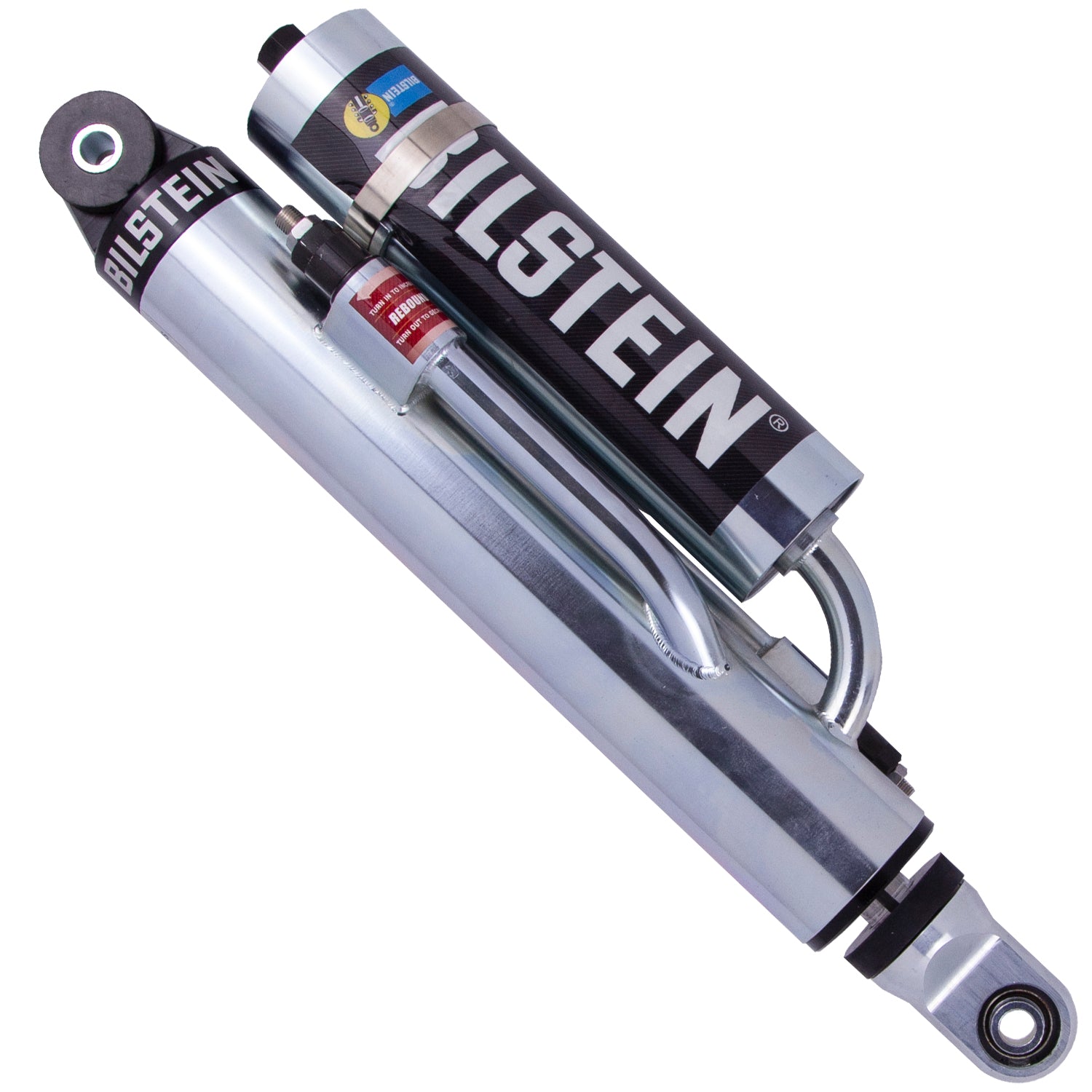

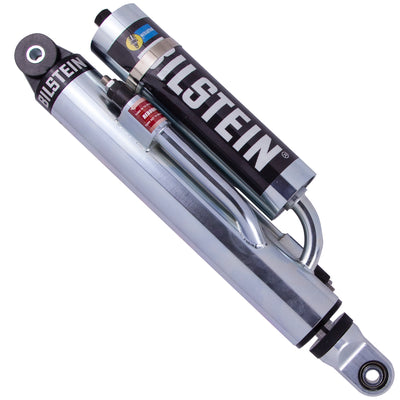

Bilstein M 9200 (Bypass) 60mm Monotube Suspension Right Shock Absorber - 17.5 in. Collapsed 33-269535
Bilstein M 9200 (Bypass) 60mm Monotube Suspension Right Shock Absorber - 17.5 in. Collapsed 33-269535
Bilstein M 9200 (Bypass) 60mm Monotube Suspension Right Shock Absorber - 17.5 in. Collapsed 33-269535

Bilstein

|

SKU: 33-269535

Bilstein M 9200 (Bypass) 60mm Monotube Suspension Right Shock Absorber - 17.5 in. Collapsed

$1,037.00
Ask a question
3 in stock

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In-Stock: 1 business day
  • Out of Stock: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

Lifetime Manufacturer Warranty

Most of the BILSTEIN products available in the North American aftermarket are backed by our LIMITED LIFETIME WARRANTY for as long as you own your BILSTEIN products, while certain product categories are backed by industry leading warranties ranging from 90 days to two (2) years. Please consult our BILSTEIN Warranty Promise to see which warranty is applicable to your product.

More Information

Product Details

The Bilstein M 9200 shock absorber is sold for custom and motorsport builds, here at 17.5 in. collapsed. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.

Inside is Bilstein's monotube design, gas and oil separated by a floating piston. That is what keeps the damping honest when the surface turns rough and the temperature climbs.

Features

  • Available in 60mm, 70mm and 83mm monotubes
  • 4-tube, position sensitive with adjustable rebound and compression
  • Multiple stroke lengths available ranging from 8" to 18"
Specifications
Part Number 33-269535
Part Name Shock Absorber
UPC 651860804491
Body Design 3-Tube Bypass Screw Top
Collapsed Length 17.5 in. (444.5mm)
Compression @ 0.52m/s Custom
Extended Length 25.5 in. (647.7mm)
Finish Zinc Plated
Internal Design Monotube
Lower Mount Type Eye .5x1.5 in.
Mount Type Eye-to-Eye
Piston Diameter 60mm
Vehicle Placement Right
Rebound @ 0.52m/s Custom
Reservoir Yes
Segment Motorsports
Series M 9200 (Bypass)
Shaft Diameter 22mm
Spring Seat Included No
Stroke/Travel Length 8 in. (203.2mm)
Upper Mount Type Eye .5x1.5 in.
