Product Details

Sporty handling combined with sleek design. Equipped with factory pre-configured damping.

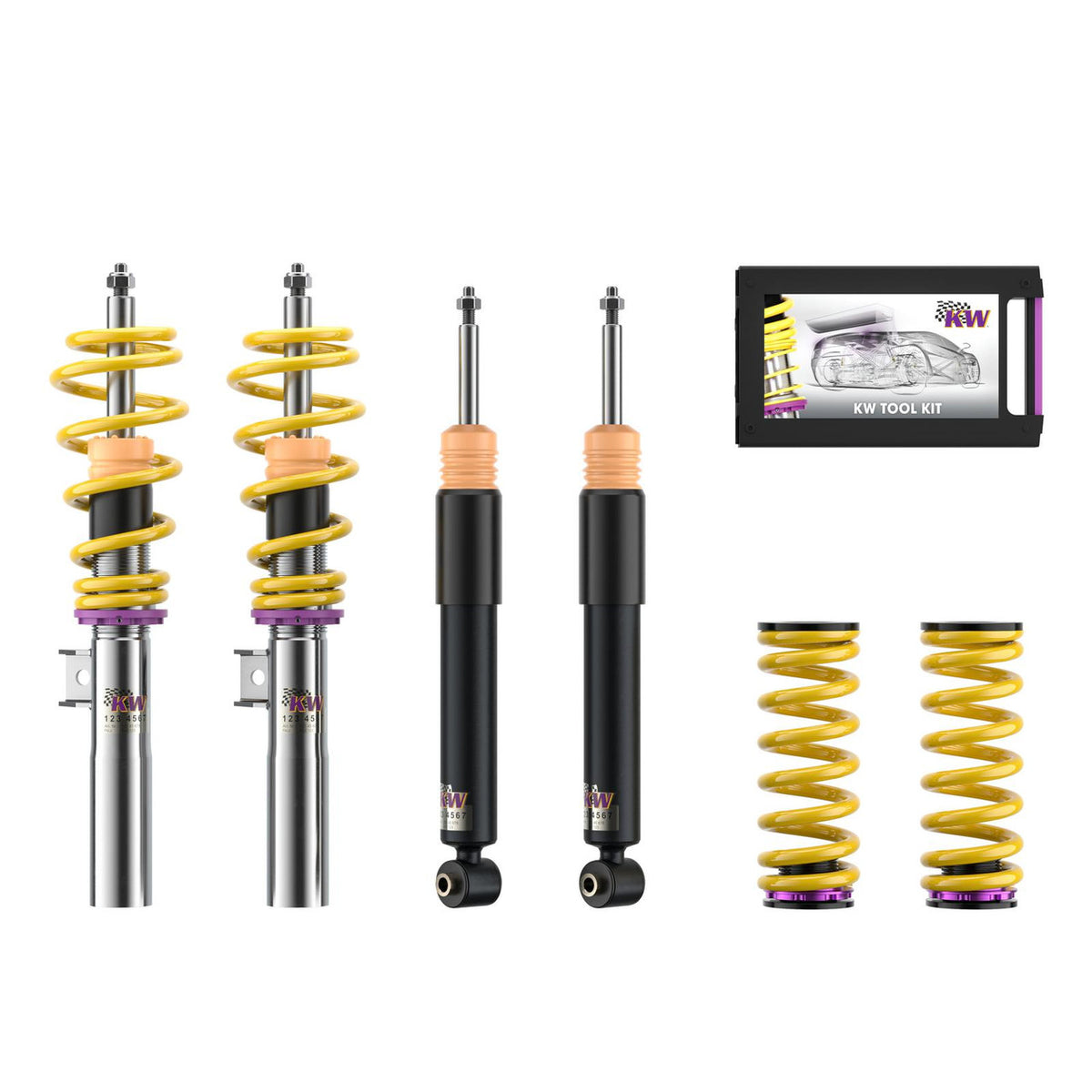

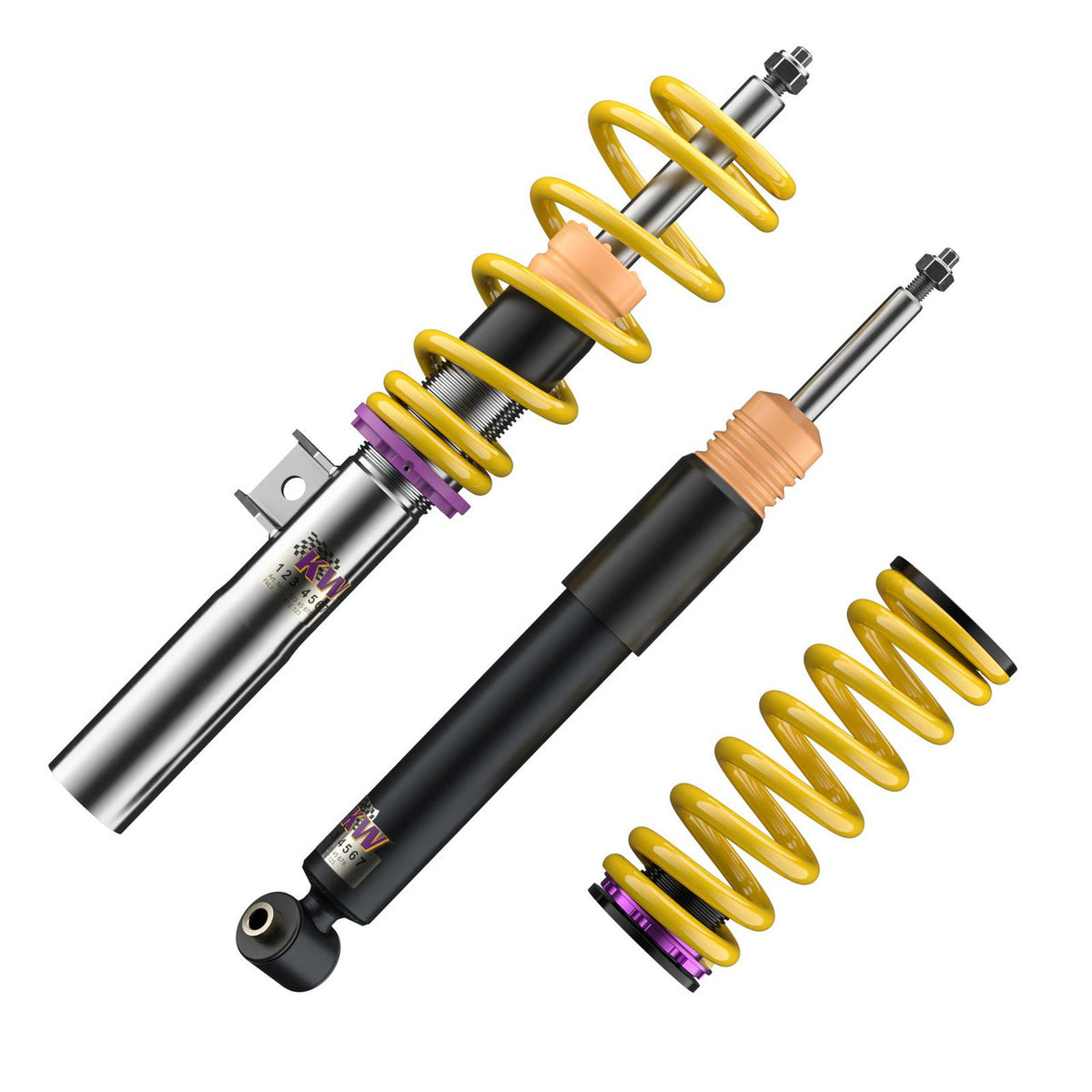

These KW Suspension Variant 1 coilovers fit the 1995-2001 BMW 750iL (E38) Up to 1135kg Front Axle Load.

The KW Variant 1 'inox-line' Coilover Kit for the E38 750iL is the KW entry model, with individually adjustable lowering. Stainless steel struts, corrosion resistant springs and bump stops are made for long use.

Continuous lowering

With the KW V1 coilover you can achieve maximum lowering in the TUV-tested adjustment range. Depending on the vehicle model variance ranges between 30 to 70mm or 50 to 90mm. Even after years of use you can easily adjust the height due to the dirt resistant trapezoid thread and composite collar.

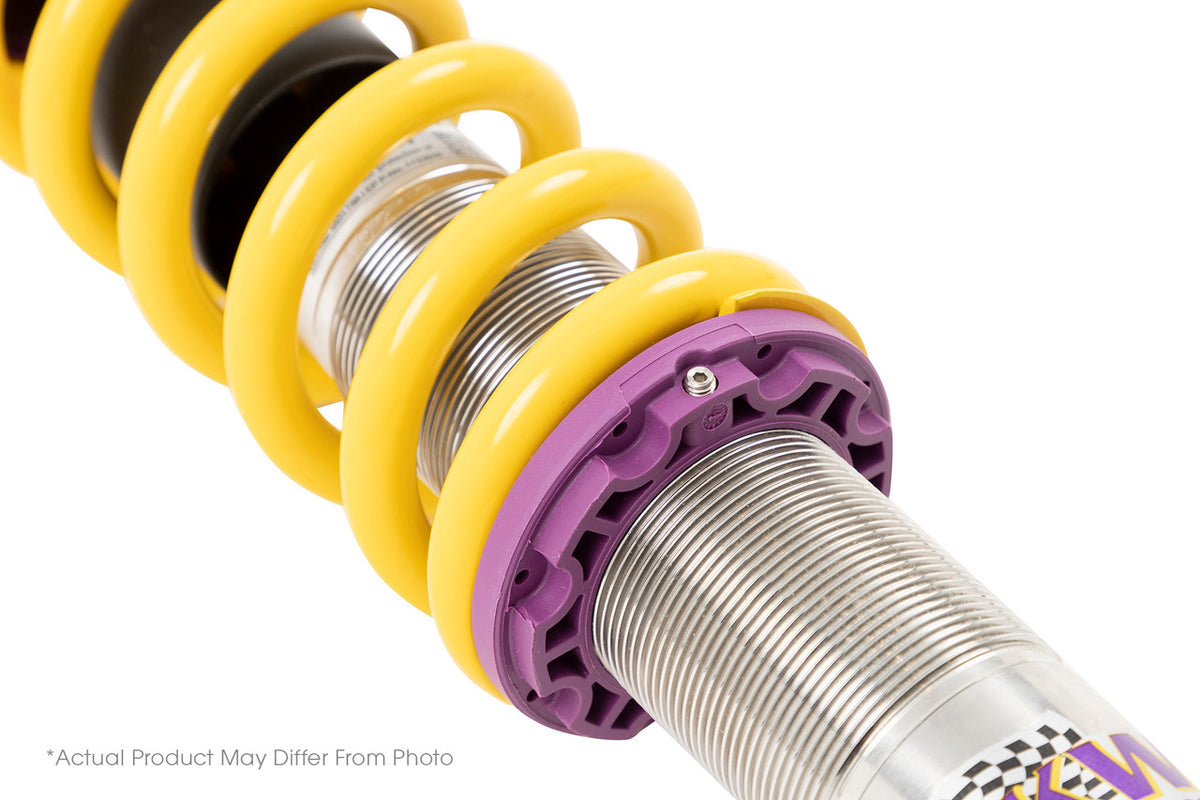

Lowering at the front axle is made using our one piece composite height adjuster, on the rear axle this is the same unless the car has a separate spring and shock absorber. The supplied rear height adjuster sits either above or below the rear spring.

The benchmark for tuning fans

KW V1 coilover satisfies the sporty driver with its harmonic basic setup. For each vehicle our engineers develop a specific damper setup and spring rate to increase the driving pleasure with optimal balance of sportiness and practicality. Each KW coilover is developed for the specific vehicle.

As a manufacturer, KW uses only its own resources, high quality components, and the same damper technology as high-volume manufacturers. With the KW coilovers Variant 1 'inox-line', rolling motions of the body will be reduced during compression giving you the benefit of genuine directness and sportier handling while driving.

Trust In Our Experience

KW coilovers are made in Germany. Each KW coilover kit, developed and manufactured in the Swabian town Fichtenberg, is subject to extensive stress tests during production to meet the high standards of our KW quality management.

As a German manufacturer we give a 2-year warranty on our more than 4600 applications suspension solutions, which exceed OEM quality. The warranty increases up to 5 years when the kit has been installed at one of our KW specialist dealers.

Standard Features

  • Optimally pre-adjusted
  • Sporty and comfortable dampening technology
  • Stainless steel technology 'inox-line'
  • Individually height adjustable
  • TUV-tested adjustment range
  • Ready to install complete solution
  • High quality components for a long durability

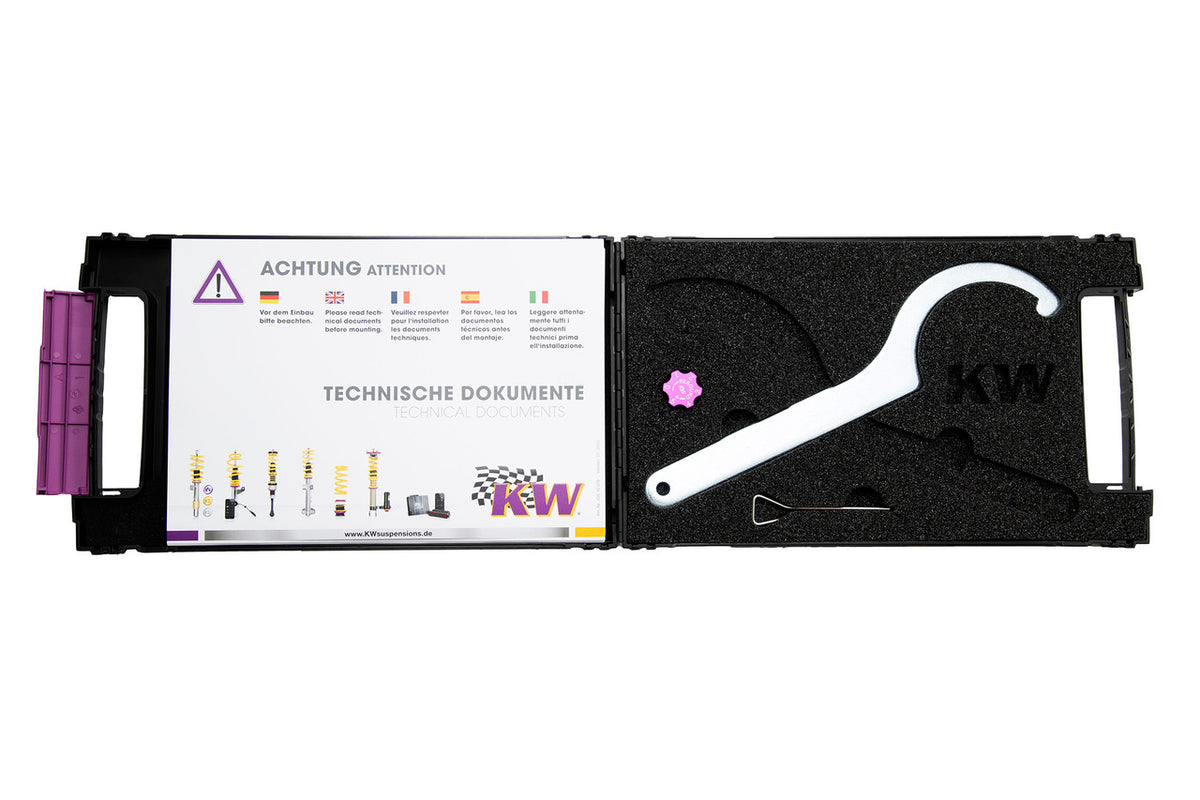

  • Complete documentation for easy handling

Setup - Factory pre-configured damping setup

The KW V1 coilover has a vehicle-specific, fixed configured damper setup. Spring and damper are matched for a balance of sportiness and comfort.

Even with full load and maximum axle loads, the dampers always work with a sporty characteristic.

Specifications
Part Number 10220028
Part Name V1 Coilover Kit
UPC 847691046463
Vehicle 1995-2001 BMW 750iL
Drivetrain RWD
Front Lowering Rate 1.0 - 2.2 in.
Rear Lowering Rate 1.0 - 2.6 in.
Ride-Height Adjustable Yes
Damping Adjustment Non-Adjustable
Spring Rate - Front Progressive
Spring Rate - Rear Progressive
Quantity Full Set (Front & Rear)
Notes
  • To 1135 kg front gross axle weight rating.
  • Height adjustable on the front and rear axles (threaded strut housings).
  • When using original tires, wheel offset spacers may be required.
  • Not for vehicles with automatic self leveling control.
  • Not for vehicles with electronic damping.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1995BMW750iLRWDTo 1135 kg front gross axle weight rating
1996BMW750iLRWDTo 1135 kg front gross axle weight rating
1997BMW750iLRWDTo 1135 kg front gross axle weight rating
1998BMW750iLRWDTo 1135 kg front gross axle weight rating
1999BMW750iLRWDTo 1135 kg front gross axle weight rating
2000BMW750iLRWDTo 1135 kg front gross axle weight rating
2001BMW750iLRWDTo 1135 kg front gross axle weight rating
