Product Details

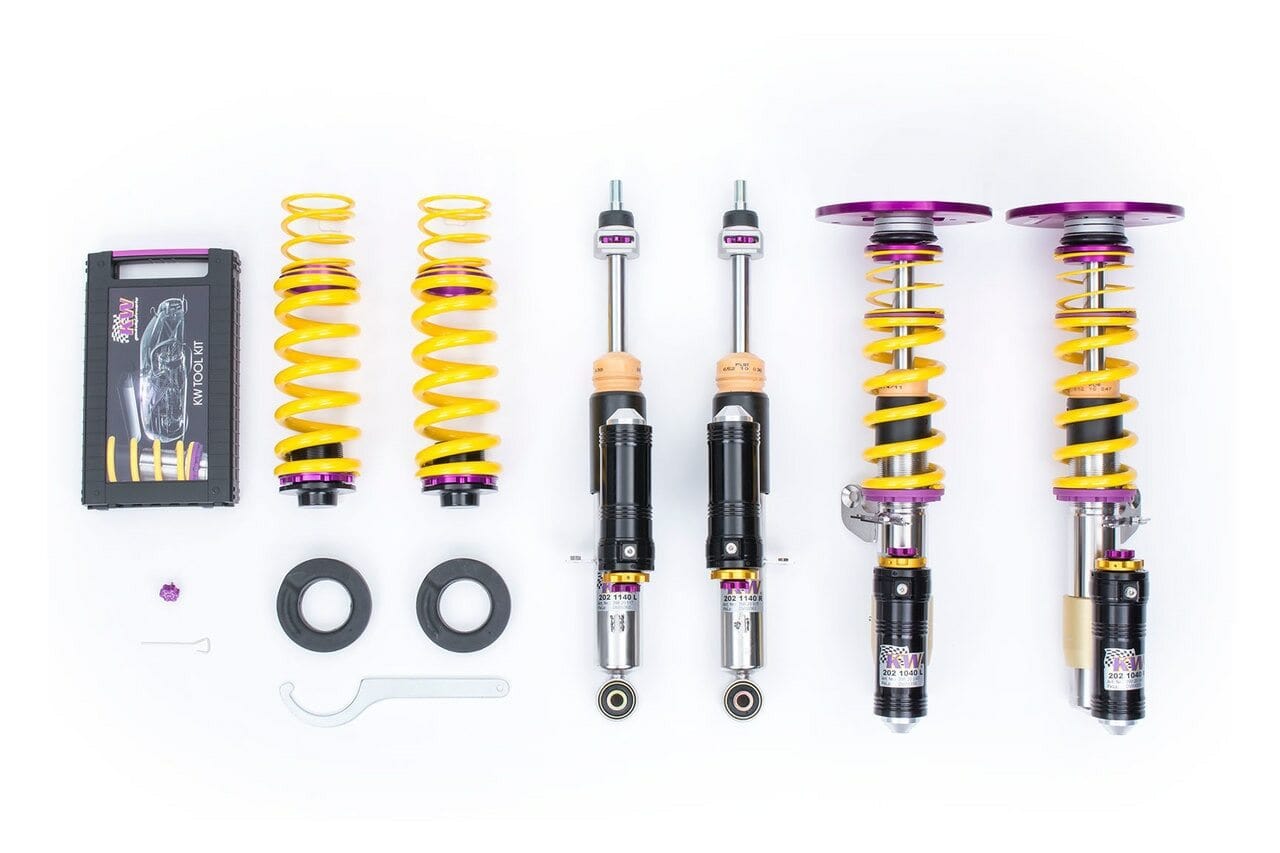

These KW Suspension Clubsport 2-Way coilovers fit the 2015-2018 Volkswagen Golf R.

KW Clubsport 2-Way Coilover Kit for the Volkswagen Golf R were developed for customers, who demand a better handling car when participating in track day events, but also require an official road approval to use their car every day. The setup was specifically designed for the Nordschleife using track day tires. By using the optional available adjustable top mounts, the suspension geometry can be adjusted to the requirements of tires and the intended use.

The mentioned adjustment options combined with the independently adjustable rebound and compression Dampening technology allow individual setup adjustments according to the vehicle load, tire characteristics and different track conditions. The W Clubsport 2 Way Coilover Kit meets every demand regarding a coilover for the usage on the road and the race track. KW Clubsport Coilovers guarantees excellent handling, best performance, highest agility and fantastic lap times.

Standard Features

  • KW suspensions clubsport coilovers are hand built by our expert team and given a uniquely individual serial number at our headquarters in Fichtenberg, Germany
  • Each damper is dyno tested to ensure accuracy and preset to our recommended shock settings before being released for delivery.
  • Solid aluminum unibal top mounts improve steering feedback by minimizing deflection while providing camber adjustability when applicable.
  • Road legal motorsports technology featuring independent rebound and compression adjustability with application specific track focused linear race springs and matched damper tuning.
  • TVR-A (Twin Valve Rebound - Adjustable) technology - allows oil to flow passed an adjustable, conical low-speed bypass during slow damper speeds, while at higher speed, the main rebound stage valve opens for maximum fluid displacement.
  • TVC-A (Twin Valve Compression - Adjustable) technology - patented compression valve allows fine tuning of low speed. During sudden high piston speeds, the low speed needle and main valve blow-off feature open to maximize flow.
  • Composite spring perch made from wear-resistant, friction-optimized polyamide composite encompassing a stainless-steel insert. The polyamide composite prevents oxidation while the stainless-steel insert maximizes strength.
  • Inox-Line Stainless Steel - Truly Permanent Corrosion Resistance. Inox-Line coatings will not wear off while adjusting the suspension making KW coilover struts 100 percent corrosion resistant with an unlimited lifespan.
Specifications
Part Number 3528080N
Part Name Clubsport 2-Way Coilover Kit
UPC 847691035474
Vehicle 2015-2018 Volkswagen Golf R
Drivetrain AWD
Front Lowering Rate 0.4 - 1.6 in.
Rear Lowering Rate 0.8 - 1.8 in.
Ride-Height Adjustable Yes
Damping Adjustment 2-Way
Front Spring Rates 10.18 Kg/mm (570 lbs/in)
Rear Spring Rates 8.12 Kg/mm (455 lbs/in)
Top Mounts - Front Camber-adjustable top mount
Quantity Full Set (Front & Rear)
Notes
  • For cars which have electronic dampers, make sure they are shut down.
  • Specific electronical damper shut-downs are available from KW.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015VolkswagenGolf RAWDFor cars which have electronic dampers, make sure they are shut down; specific electronical damper shut-downs are available from KW
2016VolkswagenGolf RAWDFor cars which have electronic dampers, make sure they are shut down; specific electronical damper shut-downs are available from KW
2017VolkswagenGolf RAWDFor cars which have electronic dampers, make sure they are shut down; specific electronical damper shut-downs are available from KW
2018VolkswagenGolf RAWDFor cars which have electronic dampers, make sure they are shut down; specific electronical damper shut-downs are available from KW
