Product Details

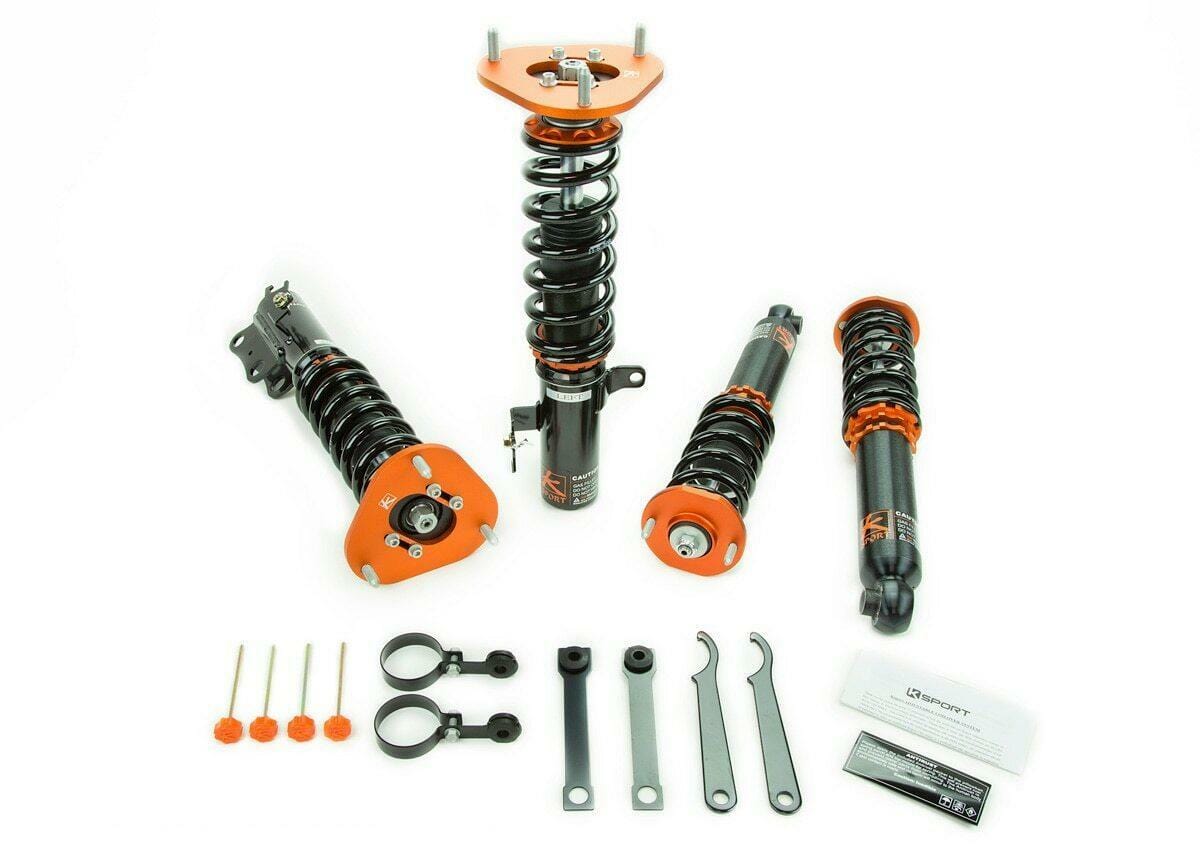

These KSport Version DR Drag Race coilovers fit the 2006-2011 Honda Civic FWD (FG1). The KSport Version DR Drag Race Coilover Kit is purpose-built to launch the 2006-2011 Honda Civic harder and straighter. Soft front spring rates and drag-specific damping let the nose lift to plant the rear tires, while stiffer rear valving controls squat and keeps power going through the contact patch β the difference between spinning and hooking when the tree turns green.
Full height adjustment lets you set pre-load and corner weights for your Honda Civic's driveline layout, and single-knob damping adjustment makes tuning between passes fast. If you're building a dedicated drag car or a street/strip Civic that still has to drive home, the Version DR is a coilover system designed to put power on the ground.
Features
- Spring rates and shock valving specific for Drag Racing
- 36 levels of damping which allow you the ability to perfectly dial in your coilover system
- Collars and upper mounts made from 6061 aluminum with T6 for increased hardness
- Adjustable spring perch for height adjustment
- All metal pillowball for added strength and responsiveness
- Adjustable lower mount allowing maximum suspension travel
- Monotube high pressure design for better performance and heat dissipation
- Electroplated body for added protection from corrosion and rust
Specifications
| Part Number | CHD191-DR |
| Damping Adjustment | 36-Way |
| Height Adjustable | Yes |
| Spring Rate (Front) | 6.7 kg/mm (375 lbs/in) |
| Spring Rate (Rear) | 8.7 kg/mm (487 lbs/in) |
| Spring Type | Linear |
| Top Mounts - Front | Pillowball Mount with camber adjustment |
| Top Mounts - Rear | Pillowball Mount no camber adjustment |
| Notes | True Rear Coilover |
