Product Details

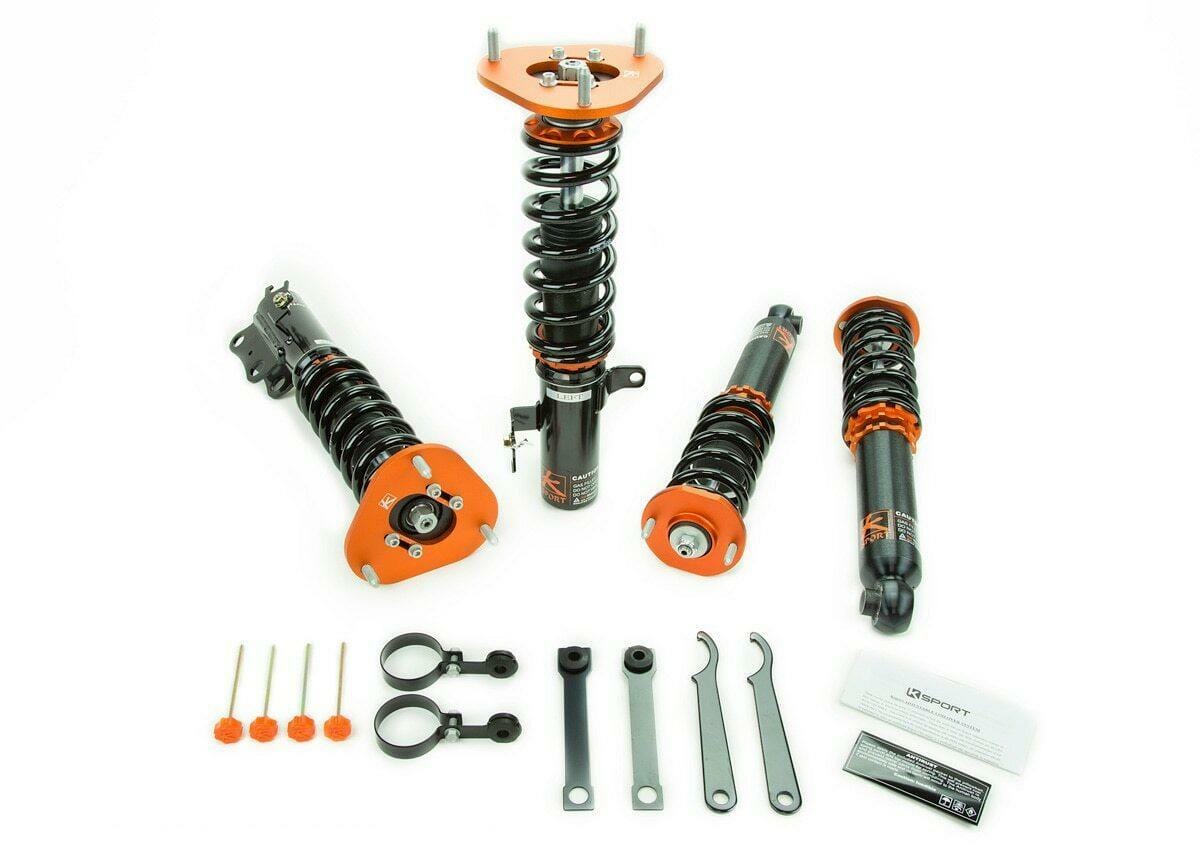

The KSport Version DR Drag Race Coilover Kit is purpose-built to launch the 1996-2000 Hyundai Elantra harder and straighter. Soft front spring rates and drag-specific damping let the nose lift to plant the rear tires, while stiffer rear valving controls squat and keeps power going through the contact patch — the difference between spinning and hooking when the tree turns green.

Full height adjustment lets you set pre-load and corner weights for your Hyundai Elantra's driveline layout, and single-knob damping adjustment makes tuning between passes fast. If you're building a dedicated drag car or a street/strip Elantra that still has to drive home, the Version DR is a coilover system designed to put power on the ground.

Features

  • Spring rates and shock valving specific for Drag Racing
  • 36 levels of damping which allow you the ability to perfectly dial in your coilover system
  • Collars and upper mounts made from 6061 aluminum with T6 for increased hardness
  • Adjustable spring perch for height adjustment
  • All metal pillowball for added strength and responsiveness
  • Adjustable lower mount allowing maximum suspension travel
  • Monotube high pressure design for better performance and heat dissipation
  • Electroplated body for added protection from corrosion and rust

Specifications

Part Number CHY010-DR
Damping Adjustment 36-Way
Height Adjustable Yes
Spring Rate (Front) 5.3 kg/mm (297 lbs/in)
Spring Rate (Rear) 6.1 kg/mm (342 lbs/in)
Spring Type Linear
Top Mount (Front) Pillowball Mount with camber adjustment
Top Mount (Rear) Pillowball Mount no camber adjustment

Vehicle Fitment

  • 1996 Hyundai Elantra
  • 1997 Hyundai Elantra
  • 1998 Hyundai Elantra
  • 1999 Hyundai Elantra
  • 2000 Hyundai Elantra
