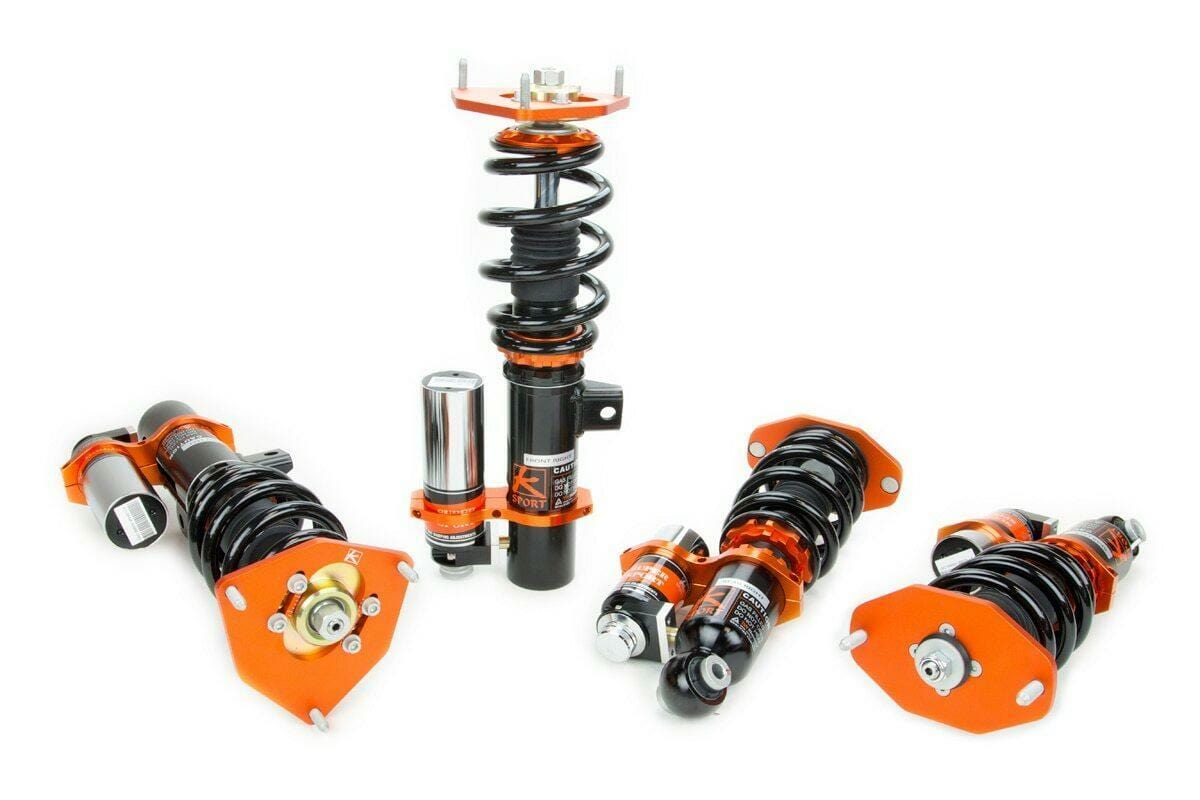

KSport Kontrol Plus 2 Way Adjustable Coilovers - 2012-2018 BMW 3 Series xDrive AWD Wagon Only (F31) CBM251-P2

KSport

|

SKU: CBM251-P2

KSport Kontrol Plus 2 Way Adjustable Coilovers for 2012-2018 BMW 3 Series AWD (F31)

$1,916.75

MSRP $2,255.00 You save $338.25

Ask a question
Out of stock

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In Stock: 1 business day
  • Out of Stock: 3-4 weeks
  • Custom-Builds: 3-4 weeks
  • Special Order: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

1-Year Manufacturer Warranty

Autoline Industries warrants the shock absorbers and steering stabilizers to the original retail consumer against defects and workmanship for 12 months from the original purchase date when used on light truck and car applications under normal operating conditions. This warranty does not apply to shocks and steering stabilizers that have been improperly installed.

Our warranty does not cover shock absorbers that are to be used in racing applications. Exterior finish on all Ksport products is not considered a valid warrantee; consumers are responsible for the maintenance of paint and/or chrome or plated finish.

Autoline Industries reserves the right to refuse any and all warrantee claims from any Distributor which has not purchased the original Ksport product directly from Autoline Industries. Autoline Industries also reserves the right to refuse any Return Goods Authorization of said merchandise in which it is believed to be fraudulent or distressed merchandise not purchased originally from Autoline Industries.

More Information

Product Details

The KSport Kontrol Plus 2 Way Adjustable Coilover Kit opens up pro-level setup options for the 2012-2018 BMW 3 Series. Remote reservoirs give you separate compression and rebound knobs — so you can dial out understeer on a fast sweeper, free up the rear on corner exit, or soften the ride for a street drive without rewriting your entire setup. This is the kit to buy when one-knob damping has stopped being enough.

Added oil volume from the remotes keeps damper temperatures down through long sessions on track, while 55mm monotube shocks hold consistent force hour after hour. Pair the Kontrol Plus 2 Way with your BMW 3 Series for time attack, endurance laps, or serious canyon work where you need a chassis that behaves the same on lap twelve as it did on lap two.

Features

  • Kontrol Plus 2 Way coilover kit is its utilization of remote reservoirs that provide separate adjustments for rebound and compression
  • Over 864 possible shock settings
  • Remote reservoirs increase the kit’s ability to dissipate heat
  • Pillowball Top Mounts on most models
  • Adjustable lower mount allowing maximum suspension travel
  • Electroplated body for added protection from corrosion and rust
  • Monotube high pressure design for better heat dissipation
  • 36 levels of damping adjustment via the top of the assembly and an additional 24 levels of nitrogen adjustments via the bottom of the reservoir
  • Collars and upper mounts made from 6061 aluminum with T6 for increased hardness
  • Camber adjustment on most models
  • Pillowball top mount for increased steering feel on most models
  • Monotube high pressure design for better performance and heat dissipation

Specifications

Part Number CBM251-P2
Damping Adjustment 2-Way (864 settings via compression/rebound/pressure)
Height Adjustable Yes
Spring Rate (Front) 9.0 kg/mm (504 lbs/in)
Spring Rate (Rear) 14.0 kg/mm (784 lbs/in)
Spring Type Linear
Top Mounts - Front Pillowball Mount with camber adjustment
Top Mounts - Rear Reuses OEM Top Mount
Notes Ksport Electronic Damping Cancellation Kit EDCBM251 available for this application

Important Fitment Note

xDrive AWD Wagon Only

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2012BMW328dAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2012BMW328iAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2012BMW330iAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2013BMW328dAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2013BMW328iAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2013BMW330iAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2014BMW328dAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2014BMW328iAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2014BMW330iAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2015BMW328dAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2015BMW328iAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2015BMW330iAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2016BMW328dAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2016BMW328iAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2016BMW330iAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2017BMW328dAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2017BMW328iAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2017BMW330iAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2018BMW328dAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
2018BMW328iAWDKsport Electronic Damping Cancellation Kit EDCBM251 available for this application
