Product Details

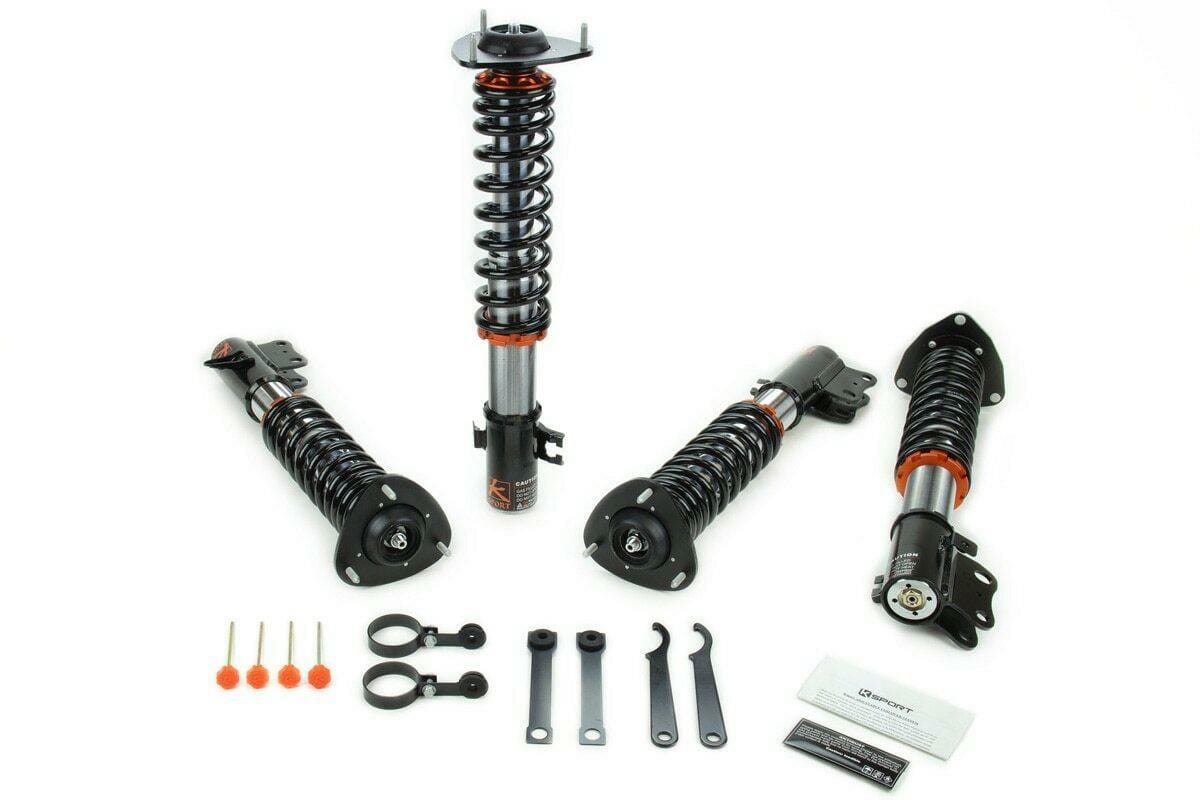

The KSport Gravel Rally GR Coilover Kit is designed to let the 2001-2006 Hyundai Elantra soak up gravel stages, rough forest roads, and the compression hits that destroy street-tuned dampers. Extended stroke, heavy-duty internals, and rally-specific damping curves keep the wheels planted over dirt, ruts, and jumps so you can carry speed on surfaces where most coilover kits simply can't survive.
Large shock bodies handle the sustained heat of long stages, and the adjustable lower mount lets you run the taller, more compliant ride height rally driving demands without losing suspension travel. For Hyundai Elantra owners building a gravel car — or just wanting a coilover tough enough for roads most kits weren't designed for — the Gravel Rally GR is the KSport choice.
Features
- Specially designed extended length springs for rally racing
- Extended cylinder length and piston stroke, which greatly improved handling over uneven and bumpy roads.
- Inverted design for McPherson type suspension
- Large 55mm shock bodies and increased shock fluid volume for better cooling
- Heavy duty strengthened steel top mounts
- Heavy duty steel lower mounts for stronger protection under aggressive track driving
- 36-way adjustable damping
- Adjustable spring perch for height adjustment
- Monotube high pressure design for better performance and heat dissipation
- Electroplated body for added protection from corrosion and rust
- Integrated Bump stop and Dust boot to protect damper seal
Specifications
| Part Number | CHY070-GR |
| Damping Adjustment | 36-Way |
| Height Adjustable | Yes |
| Spring Rate (Front) | 6.0 kg/mm (336 lbs/in) |
| Spring Rate (Rear) | 5.0 kg/mm (280 lbs/in) |
| Spring Type | Linear |
| Top Mount (Front) | Steel/Hard Rubber Mount no camber adjustment |
| Top Mount (Rear) | Steel/Hard Rubber Mount no camber adjustment |
Vehicle Fitment
- 2001 Hyundai Elantra
- 2002 Hyundai Elantra
- 2003 Hyundai Elantra
- 2004 Hyundai Elantra
- 2005 Hyundai Elantra
- 2006 Hyundai Elantra
