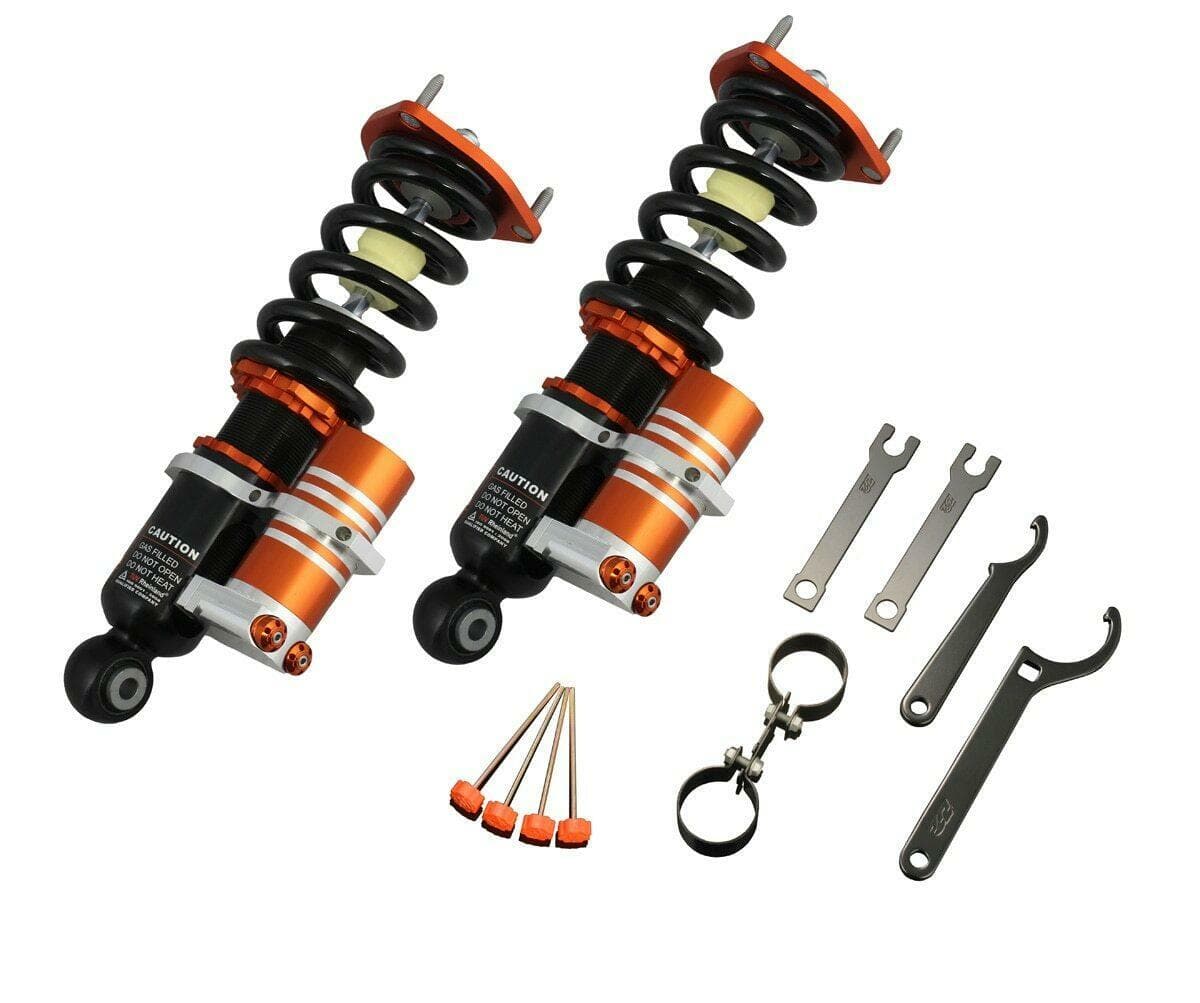

KSport Circuit Pro 3 Way Adjustable Coilovers - 2009-2018 Nissan GT-R (R35) CNS400-C3

KSport

|

SKU: CNS400-C3

KSport Circuit Pro 3 Way Adjustable Coilovers for 2009-2018 Nissan GT-R AWD (R35)

$3,740.00

MSRP $4,400.00 You save $660.00

Ask a question
Out of stock

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In Stock: 1 business day
  • Out of Stock: 3-4 weeks
  • Custom-Builds: 3-4 weeks
  • Special Order: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

1-Year Manufacturer Warranty

Autoline Industries warrants the shock absorbers and steering stabilizers to the original retail consumer against defects and workmanship for 12 months from the original purchase date when used on light truck and car applications under normal operating conditions. This warranty does not apply to shocks and steering stabilizers that have been improperly installed.

Our warranty does not cover shock absorbers that are to be used in racing applications. Exterior finish on all Ksport products is not considered a valid warrantee; consumers are responsible for the maintenance of paint and/or chrome or plated finish.

Autoline Industries reserves the right to refuse any and all warrantee claims from any Distributor which has not purchased the original Ksport product directly from Autoline Industries. Autoline Industries also reserves the right to refuse any Return Goods Authorization of said merchandise in which it is believed to be fraudulent or distressed merchandise not purchased originally from Autoline Industries.

More Information

Product Details

These KSport Circuit Pro 3 Way Adjustable coilovers fit the 2009-2018 Nissan GT-R AWD. The KSport Circuit Pro 3 Way Adjustable Coilover Kit is the top of the KSport track-day ladder for the 2009-2018 Nissan GT-R. Three independent knobs separate high-speed compression, low-speed compression, and rebound — so you can control how the chassis reacts to curbs, how it settles through a fast sweeper, and how it recovers from a hard braking zone, all without touching the other two axes.

For serious Nissan GT-R track drivers and race teams, the Circuit Pro delivers the setup flexibility you need to get the absolute last tenth out of a lap. Remote reservoirs provide the oil volume and heat capacity required for long sessions, and the monotube design gives the consistent performance that makes your data meaningful. This is a full race coilover you can still dial back for the drive home.

Features

  • Built for racing
  • External reservoirs for independent rebound and compression adjustment
  • 11,664 possible tuning combinations
  • Stiffer spring rates and shock valving combined with 20-30mm shorter shock stroke
  • Upgraded bumpstops to prevent the shock from bottoming out over uneven pavement or harsh road conditions.
  • 36 levels of damping which allow you the ability to perfectly dial in your coilover system
  • Collars and upper mounts made from 6061 aluminum with T6 for increased hardness
  • Adjustable spring perch for height adjustment
  • All metal pillowball for added strength and responsiveness
  • Adjustable lower mount allowing maximum suspension travel
  • Monotube high pressure design for better performance and heat dissipation
  • Electroplated body for added protection from corrosion and rust

Specifications

Part Number CNS400-C3
Damping Adjustment 3-Way (High-Speed Compression, Low-Speed Compression, Rebound)
Height Adjustable Yes
Spring Rate (Front) 26.0 kg/mm (1456 lbs/in)
Spring Rate (Rear) 22.0 kg/mm (1232 lbs/in)
Spring Type Linear
Top Mounts - Front Aluminum Mount no camber adjustment
Top Mounts - Rear Aluminum Mount no camber adjustment
Notes Ksport Electronic Damping Cancellation Kit EDCNS400 available for this application

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009NissanGT-RAWDKsport Electronic Damping Cancellation Kit EDCNS400 available for this application
2010NissanGT-RAWDKsport Electronic Damping Cancellation Kit EDCNS400 available for this application
2011NissanGT-RAWDKsport Electronic Damping Cancellation Kit EDCNS400 available for this application
2012NissanGT-RAWDKsport Electronic Damping Cancellation Kit EDCNS400 available for this application
2013NissanGT-RAWDKsport Electronic Damping Cancellation Kit EDCNS400 available for this application
2014NissanGT-RAWDKsport Electronic Damping Cancellation Kit EDCNS400 available for this application
2015NissanGT-RAWDKsport Electronic Damping Cancellation Kit EDCNS400 available for this application
2016NissanGT-RAWDKsport Electronic Damping Cancellation Kit EDCNS400 available for this application
2017NissanGT-RAWDKsport Electronic Damping Cancellation Kit EDCNS400 available for this application
2018NissanGT-RAWDKsport Electronic Damping Cancellation Kit EDCNS400 available for this application
