Product Details

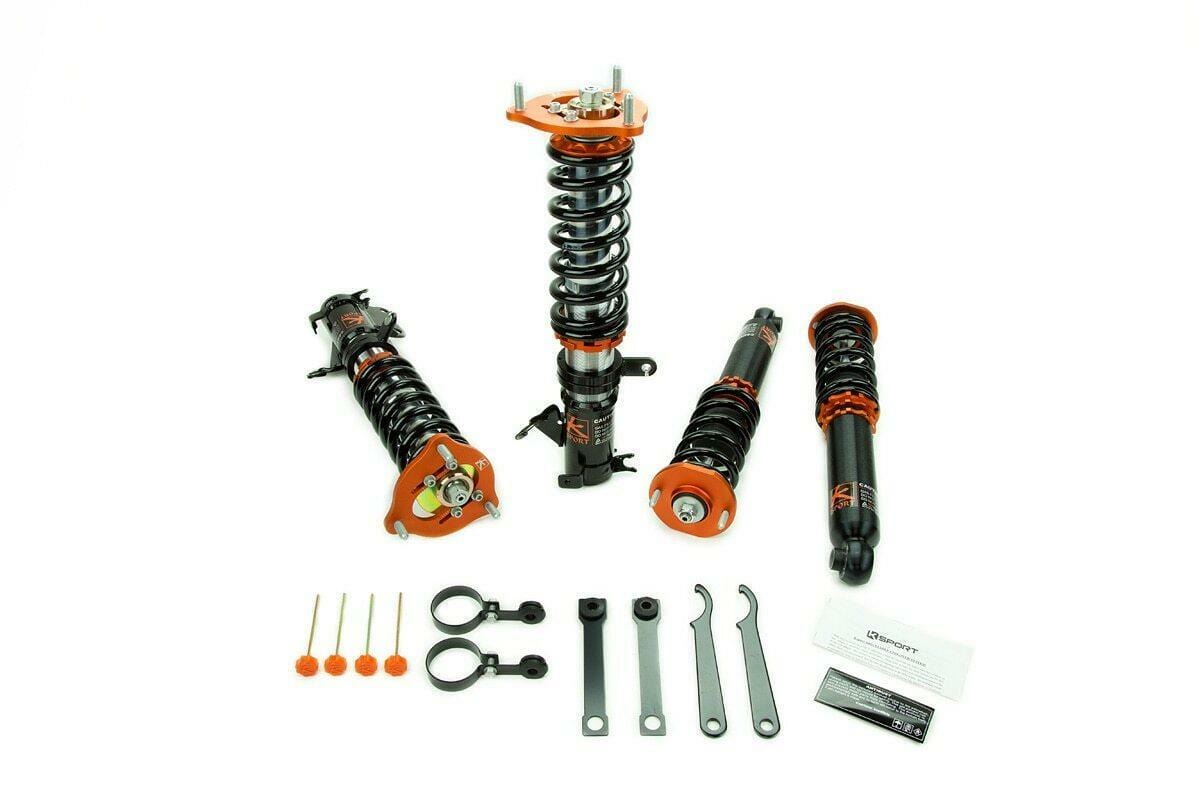

The KSport Asphalt Rally AR Coilover Kit is engineered for the abuse of tarmac rally stages and hard-driven back roads — exactly the conditions that break softer street coilovers on the 2009-2017 Volkswagen CC. Inverted monotube shocks, extended stroke, heavy-duty internals, and large shock bodies mean more oil volume, better heat dissipation, and the kind of durability that survives a weekend of stage driving.

For Volkswagen CC owners chasing points on tarmac or just wanting a coilover that doesn't fade after a spirited drive, the Asphalt Rally AR delivers the consistency real competition demands. Full ride-height adjustment and fine damping control give you the range to build a setup around your tires, your tarmac, and your driving style.

Features

  • Rally AR Spec coilover kits are designed specifically for asphalt rally competition.
  • Inverted steel shock absorber for increased response and heat dissipation
  • Large 55mm shock bodies and increased shock fluid volume for better cooling
  • Heavy duty steel lower mounts for stronger protection under aggressive track driving
  • All metal pillowball for added strength and responsiveness
  • 36-way adjustable damping
  • Collars and upper mounts made from 6061 aluminum with T6 for increased hardness
  • Adjustable spring perch for height adjustment
  • Camber adjustment on many
  • Monotube high pressure design for better performance and heat dissipation
  • Electroplated body for added protection from corrosion
  • Dust boot to protect damper seal

Specifications

Part Number CVW230-AR
Damping Adjustment 36-Way
Height Adjustable Yes
Spring Rate (Front) 12.0 kg/mm (672 lbs/in)
Spring Rate (Rear) 9.5 kg/mm (532 lbs/in)
Spring Type Linear
Top Mount (Front) Pillowball Mount with camber adjustment
Top Mount (Rear) Reuses OEM Top Mount
Notes Ksport Electronic Damping Cancellation Kit EDCVW230 available for this application

Vehicle Fitment

  • 2009 Volkswagen CC
  • 2010 Volkswagen CC
  • 2011 Volkswagen CC
  • 2012 Volkswagen CC
  • 2013 Volkswagen CC
  • 2014 Volkswagen CC
  • 2015 Volkswagen CC
  • 2016 Volkswagen CC
  • 2017 Volkswagen CC
