Product Details
This KSport Airtech Pro Plus air suspension kit fits the 1992-2002 Mazda RX-7 RWD.

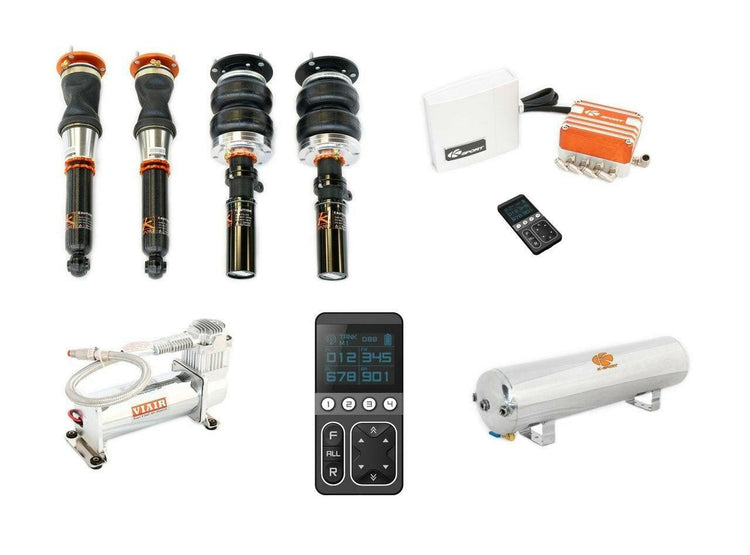

The KSport Airtech Pro Plus Air Suspension Kit is the top-tier air-ride system for the 1992-2002 Mazda RX-7. Combine tucked-wheel static height with a drivable, composed ride using full damping adjustment at every corner — the same tunability you'd expect from a real coilover system, now paired with bags. Aired up, your Mazda RX-7 rides like you remember stock feeling. Aired out, it sits on the ground.
Engineered for stress and abuse from daily driving to drift and event use, the Airtech Pro Plus uses high-quality air bags, adjustable lower mounts, and KSport's monotube damper design to deliver the most dialed-in air-ride experience in the lineup. For Mazda RX-7 owners who refuse to compromise ride quality for stance, the Pro Plus is the system that finally lets you have both.
Features
- High Performance Shock Absorbers
- Airtech Systems feature high quality air bags, proven to handle the stress and abuse of daily driving as well as light track use
- Height adjustability ranges from (0-120/200mm depending on vehicle)
- OLED Digital Remote Control
- Digital screen that displays tank and spring pressures
- 4x memory ride high presets
- Automatic Load leveling based on bag pressures
- Key on programmable ride height memory
- Blue Tooth Phone receiver available for IOS at an additional small fee
- Pro Plus kits offer automatic load leveling that operates solely on the monitoring and adjustment of air spring pressure
- No modifications to OEM shock absorbers, or OEM top mounts is required
- 36 levels of damping which allow you the ability to perfectly dial in your Air Ride System
- Adjustable lower mounts allow for maximum suspension travel
- 5-gallon lightweight polished air tank w/carpeted mounting board
- chose to use the upgraded Viair 444c compressor for their reliability and performance.
- All components are included to have a properly functioning Air Ride System
- control unit offers as simple an installation as possible. Simply run your air lines to the box and connect 4 wires to quick disconnect plug, wire up the compressors and relay and you’re done.
- 12 Month Limited Warranty
Specifications
| Part Number | CMZ100-APP |
| Damping Adjustment | 36-Way Per Corner (1-Way damping) |
| Height Adjustable | Yes |
| Air Tank | 5 gallon polished tank |
| Compressor | VIAIR 444c compressor (single, 2nd optional) |
| Control | OLED color display remote, auto-level, 4-user presets, engine-start memory |
| Corners Controlled | 4-corner independent control |
| Top Mounts - Front | Aluminum Mount |
| Top Mounts - Rear | Aluminum Mount |
| Notes | - |
