Product Details

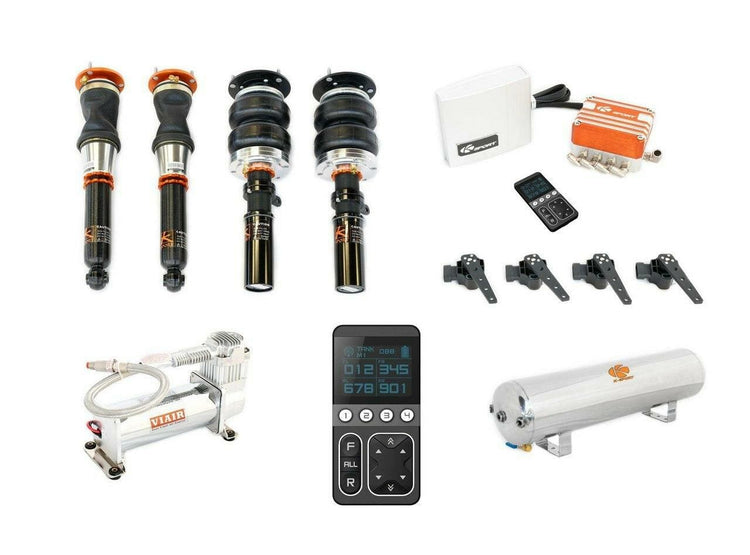

The KSport Airtech Executive Air Suspension Kit brings adjustable damping and full on-the-fly ride height control to the 1982-1988 BMW 5 Series. Dial the ride from firm to comfortable with a turn of the knob and drop your BMW 5 Series from daily-driver stance down to laid-out in seconds — all without leaving the driver's seat once your management is installed.
Heavy-duty air bags and KSport's tested monotube damper design deliver the ride quality show-car owners expect and the durability street drivers demand. If you want more personality than a base air-ride kit without stepping all the way to the Pro Plus, the Executive is the air suspension the BMW 5 Series deserves.
Features
- High Performance Shock Absorbers
- Airtech Systems feature high quality air bags, proven to handle the stress and abuse of daily driving as well as light track use
- Height adjustability ranges from (0-120/200mm depending on vehicle)
- OLED Digital Remote Control
- Digital screen that displays tank and spring pressures
- Key on programmable ride height memory
- Blue Tooth Phone receiver available for IOS at an additional small fee
- 4x memory ride high presets
- Executive kits add ride height sensors on each corner of the vehicle for more precise control
- Automatic Load leveling based on height sensors
- No modifications to OEM shock absorbers, or OEM top mounts is required
- 36 levels of damping which allow you the ability to perfectly dial in your Air Ride System
- Adjustable lower mounts allow for maximum suspension travel
- 5-gallon lightweight polished air tank w/carpeted mounting board
- chose to use the upgraded Viair 444c compressor for their reliability and performance.
- All components are included to have a properly functioning Air Ride System
- control unit offers as simple an installation as possible. Simply run your air lines to the box and connect 4 wires to quick disconnect plug, wire up the compressors and relay and you’re done.
- 12 Month Limited Warranty
Specifications
| Part Number | CBM180-AEX |
| Damping Adjustment | 36-Way Per Corner (1-Way damping) |
| Height Adjustable | Yes |
| Air Tank | 5 gallon polished tank |
| Compressor | VIAIR 444c compressor (single, 2nd optional) |
| Control | 4-button remote with 4-corner independent control |
| Corners Controlled | Adjustable damping per corner |
| Top Mounts - Front | Pillowball Mount |
| Top Mounts - Rear | Rubber Mount |
| Notes | Requires welding |
Important Fitment Note
524td, 528e, 533i, 535i w/52mm Front Strut
