Product Details

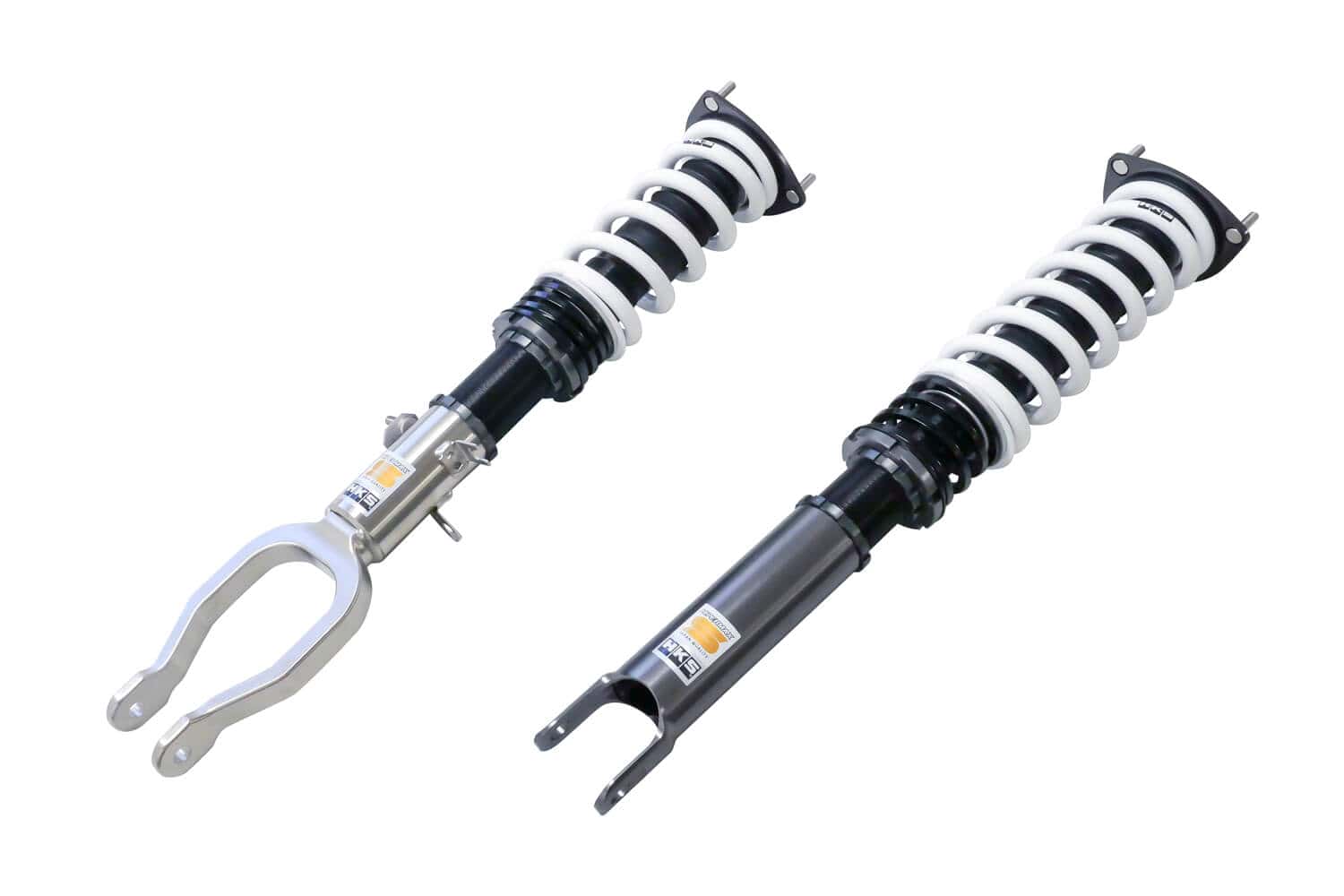

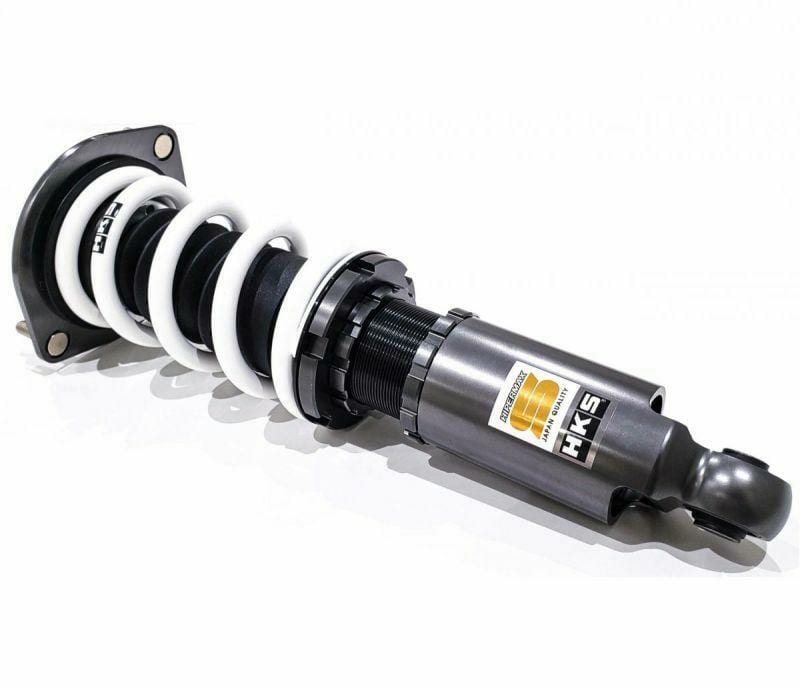

HKS Hipermax S coilovers for the 2009-2024 Nissan GT-R (R35) are engineered for drivers who want genuine performance gains without giving up daily-driver comfort. Built around HKS's FLAT RIDE CONCEPT, the Hipermax S smooths out low-speed harshness while keeping the Nissan GT-R planted under hard cornering — delivering the refined, controlled ride quality that makes a coilover worth owning on the street.
30-level damping adjustment, a large-diameter monotube damper, Dual PVS, and DURA BOOTS give the Hipermax S its signature mix of long-life durability and tunability. Length-adjustable shock bodies let you lower the Nissan GT-R without pre-loading the spring, and every kit is backed by HKS's class-leading 3-year / 60,000 km warranty — validated over 60,000 km of real-world testing before it ever leaves Japan.
Features
- Monotube damper construction — separates gas/oil for stable damping under heat
- 30-level damping adjustment via the WR Needle valve system
- FLAT RIDE CONCEPT tuning — absorbs low-speed road harshness, controls body roll
- Dual Preload Valve System (Dual PVS) — tuned per chassis
- DURA BOOTS — new-spec dust boots with improved heat, weather, and ozone resistance
- Advanced Bump Rubber Plus — progressive, early engagement
- Reinforced rubber upper mounts (pillowball optional on select SKUs)
- HKS in-house cold-formed springs with printed spring rates
- PNE corrosion coating on threaded surfaces
- Length-adjustable shock body — preload-independent height adjustment
- 3-year / 60,000 km warranty (validated through real-world driving)
- Rebuildable — dust boots and stabilizer links now covered
- Made in Japan

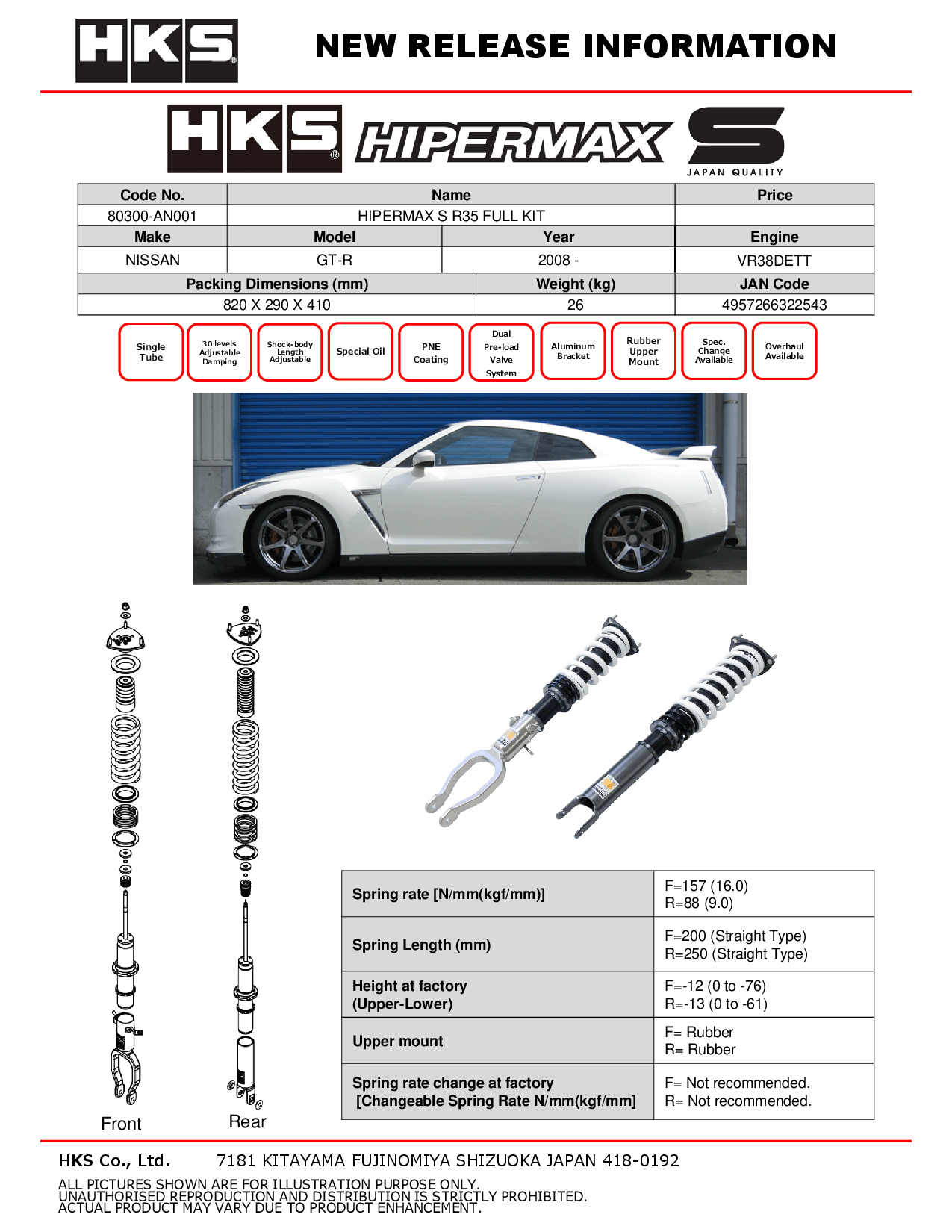

Specifications
| Part Number | 80300-AN001 |
| Part Name | HKS Hipermax S Coilovers |
| Vehicle | 2009-2024 Nissan GT-R |
| Chassis Code | R35 |
| Country of Origin | Japan |
| Damping Adjustment | 30-Level 1-Way |
| Height Adjustable | Yes |
| Spring Rate - Front | 16.0 Kg/mm |
| Spring Rate - Rear | 9.0 Kg/mm |
| Spring Length - Front | 200mm (Straight Type) |
| Spring Length - Rear | 250mm (Straight Type) |
| Upper Mount - Front | Rubber |
| Upper Mount - Rear | Rubber |
| Ride Height Range - Front | -12mm (0mm to -76mm) |
| Ride Height Range - Rear | -13mm (0mm to -61mm) |
| Warranty | 3-year / 60,000 km |
Vehicle Fitment
- 2009 Nissan GT-R (R35)
- 2010 Nissan GT-R (R35)
- 2011 Nissan GT-R (R35)
- 2012 Nissan GT-R (R35)
- 2013 Nissan GT-R (R35)
- 2014 Nissan GT-R (R35)
- 2015 Nissan GT-R (R35)
- 2016 Nissan GT-R (R35)
- 2017 Nissan GT-R (R35)
- 2018 Nissan GT-R (R35)
- 2019 Nissan GT-R (R35)
- 2020 Nissan GT-R (R35)
- 2021 Nissan GT-R (R35)
- 2022 Nissan GT-R (R35)
- 2023 Nissan GT-R (R35)
- 2024 Nissan GT-R (R35)
