Product Details

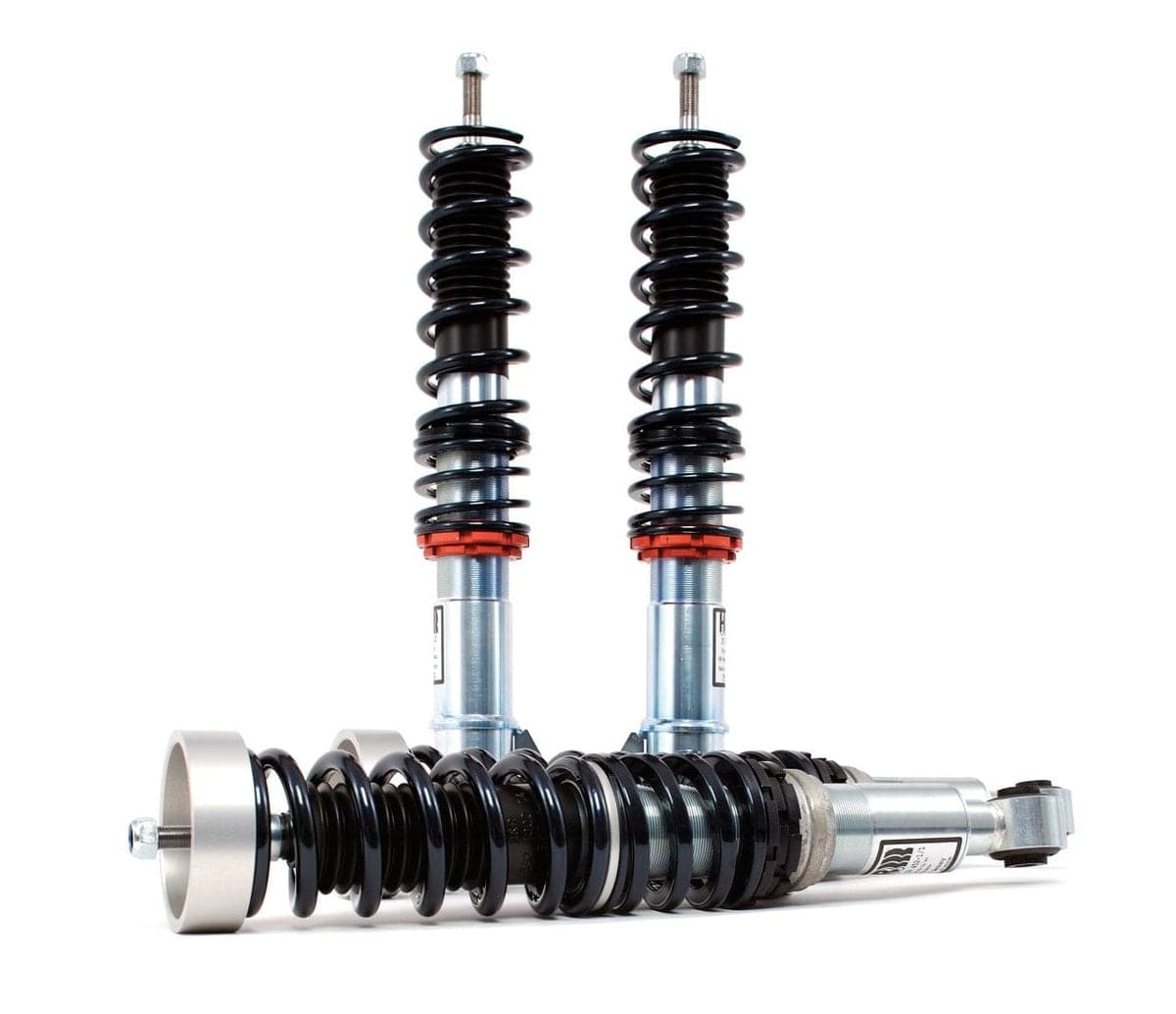

H&R RSS Coilovers for your 2011-2014 Ford Mustang GT500 V8 (S197) are designed and tested on the famous Nurburgring, and are for the performance minded driver that requires the most vehicle feedback. The result is flat cornering and supreme directional control - a perfect choice for the high performance driver. RSS Coilovers lower the center of gravity and reduce body roll for better handling.
Like all H&R coilovers, RSS Coilovers feature H&R exclusive dynamic damper technology and a fully threaded shock body.
Standard Features
- Height adjustable to 1.0 - 2.3 inches on average
- More spring rate and shock valving
- Fully threaded body
- Tuned spring rates and dampers for the performance driver.
- The most feedback, flat cornering, and supreme directional control
- Made in Germany
Specifications
| Part Number | RSS29170 |
| Part Name | Coilovers |
| Country of Origin | Germany |
| Vehicle | 2011-2014 Ford Mustang GT500 V8 |
| Chassis Code | S197 |
| Damping Adjustment | Non-Adjustable |
| Ride-Height Adjustable | Yes |
| Front Lowering | 1.2 - 2.6 inches |
| Rear Lowering | 1.2 - 2.5 inches |
| Front Spring Rates | 630 lb/in | 11.2 kg/mm |
| Rear Spring Rates | 515 lb/in | 9.2 kg/mm |
| Part Note 1 | Damping Adjustable Front |
| Part Note 2 | Springs upgrade with different spring rates available: Requires part number 29170CS3 |
| Part Note 3 | Optional Spring Rates: Front 715 lb/in | 12.8 kg/mm - Rear: 600 lb/in | 10.7 kg/mm |
| Part Note 4 | Includes Convertible |
| Quantity | Full Set (Front & Rear) |
| Fitment Note 1 | Lowering varies by engine size, battery package, and model options. |
Vehicle Fitment
- 2011 Ford Mustang GT500 V8 (S197)
- 2012 Ford Mustang GT500 V8 (S197)
- 2013 Ford Mustang GT500 V8 (S197)
- 2014 Ford Mustang GT500 V8 (S197)
