Product Details

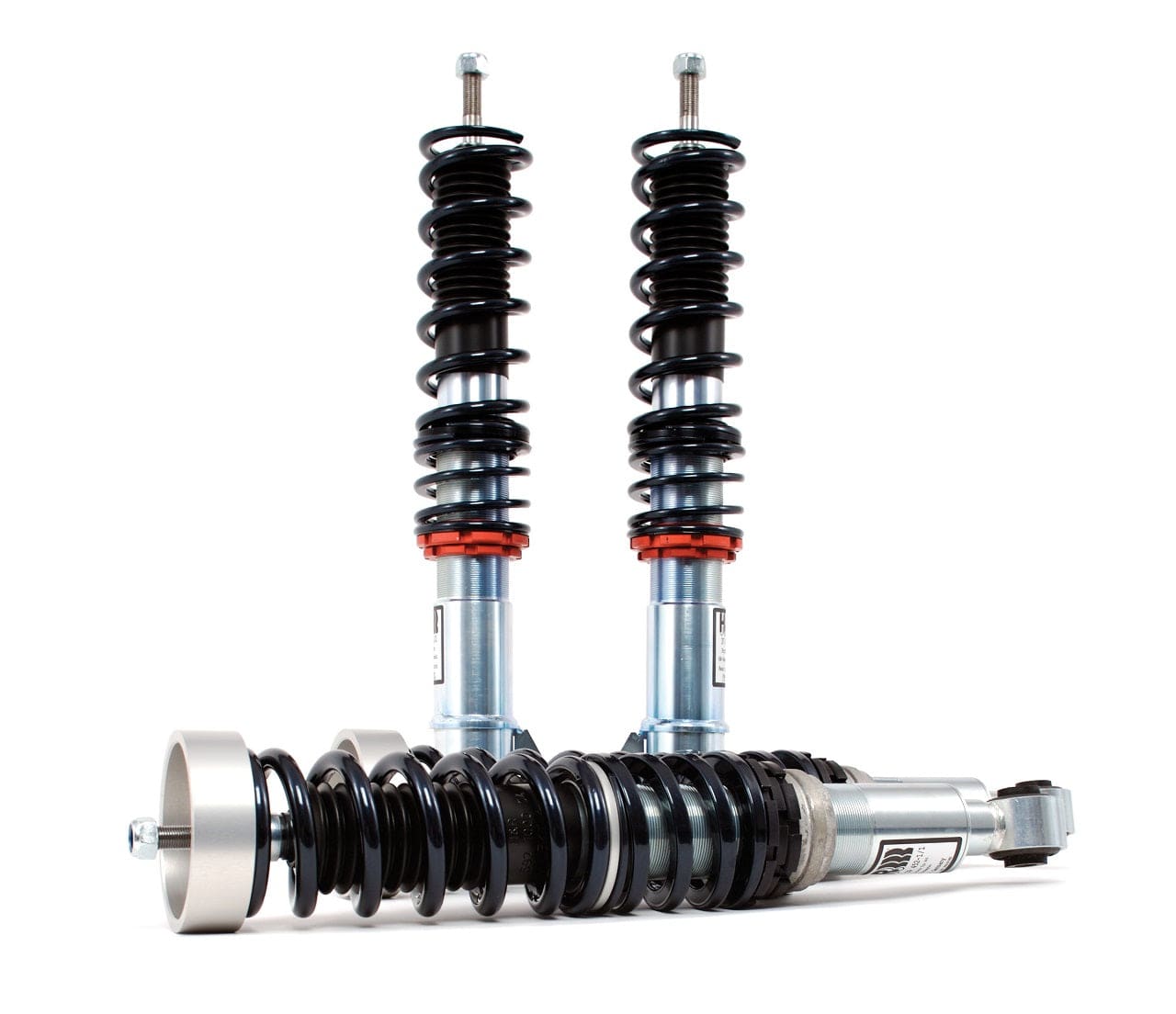

H&R RSS Coilovers for your 2010 Ford Mustang Convertible V6/V8 (S197) are designed and tested on the famous Nurburgring, and are for the performance minded driver that requires the most vehicle feedback. The result is flat cornering and supreme directional control - a perfect choice for the high performance driver. RSS Coilovers lower the center of gravity and reduce body roll for better handling.

Like all H&R coilovers, RSS Coilovers feature H&R exclusive dynamic damper technology and a fully threaded shock body.

Standard Features

  • Height adjustable to 1.0 - 2.3 inches on average
  • More spring rate and shock valving
  • Fully threaded body
  • Tuned spring rates and dampers for the performance driver.
  • The most feedback, flat cornering, and supreme directional control
  • Made in Germany
Specifications
Part Number RSS29170
Part Name Coilovers
Country of Origin Germany
Vehicle 2010 Ford Mustang Convertible V6/V8
Chassis Code S197
Damping Adjustment Non-Adjustable
Ride-Height Adjustable Yes
Front Lowering 1.2 - 2.7 inches
Rear Lowering 1.2 - 2.5 inches
Front Spring Rates 630 lb/in | 11.2 kg/mm
Rear Spring Rates 515 lb/in | 9.2 kg/mm
Part Note 1 Damping Adjustable Front
Part Note 2 Springs upgrade with different spring rates available: Requires part number 29170CS3
Part Note 3 Optional Spring Rates: Front 715 lb/in | 12.8 kg/mm - Rear: 600 lb/in | 10.7 kg/mm
Quantity Full Set (Front & Rear)
Fitment Note 1 Lowering varies by engine size, battery package, and model options.
Vehicle Fitment
  • 2010 Ford Mustang Convertible V6/V8 (S197)
