Function and Form

|

SKU: 45200105

Function and Form Type 4 Coilovers for 2005-2013 BMW 3 Series RWD/4WD (E90)

$2,180.00
Ask a question
Out of stock

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In Stock: 1-2 business days
  • Out of Stock: 3-4 weeks
  • Custom Builds: 3-4 weeks
  • Special Order: 3-4 weeks
  • Type 3 Coilovers: 45 days
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

1-Year Manufacturer Warranty

Limited Warranty covers products against factory defects in material and workmanship, other than coatings, when used on passenger cars and light duty (class 1‐3) trucks under normal use and operating conditions. Claims should be made through the authorized Distributor from whom the equipment was purchased.  Warranty obligations for products are limited to the terms set forth below:

This warranty extends to the original retail purchaser (the “Buyer”) who retains ownership of the vehicle and is not transferable. Warranty valid only in the United States of America.  F2 warrants this product against defects in material or workmanship for a period of one (1) year from the date of original sale except the following:

  • Coilover Sets: 2 years for Type 1, Type 2, and Type 3
  • Function Performance Springs (FPS): Eibach Limited Lifetime Warranty
  • Replacement Parts: 90-days from the date of purchase

More Information

Product Details

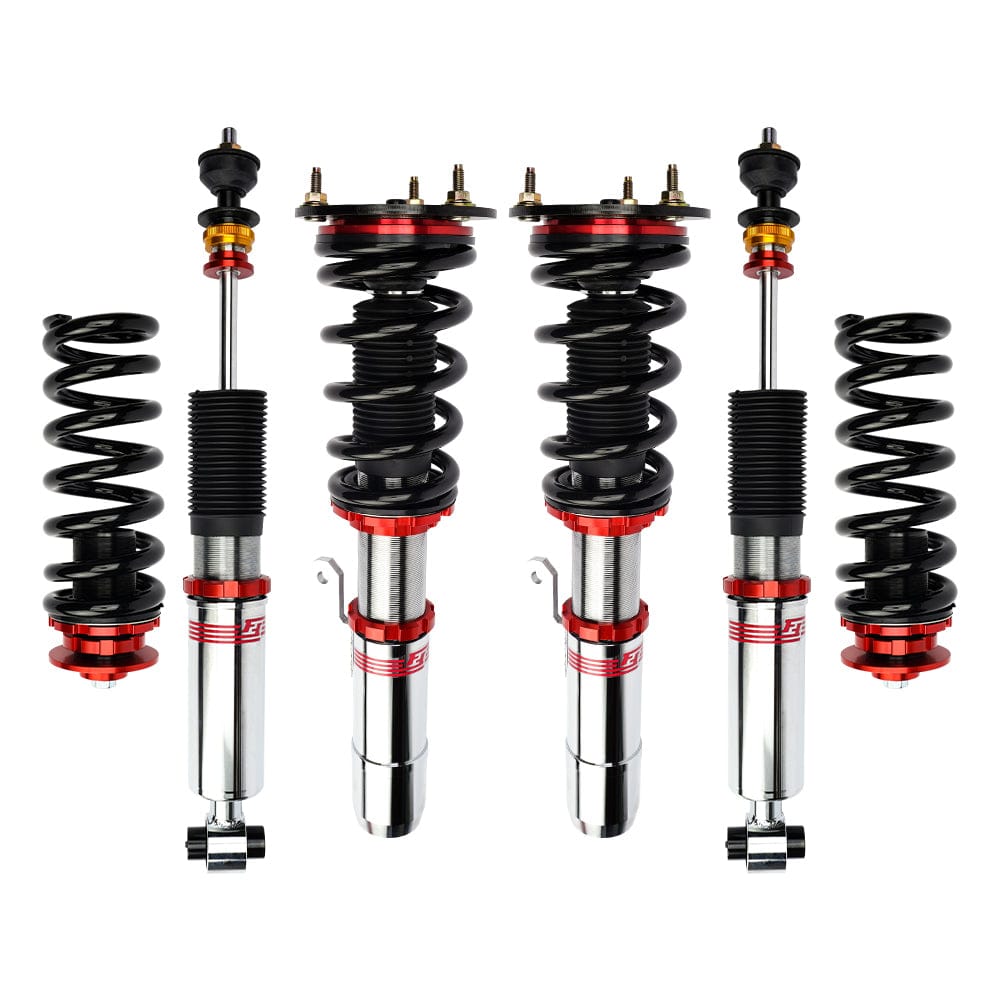

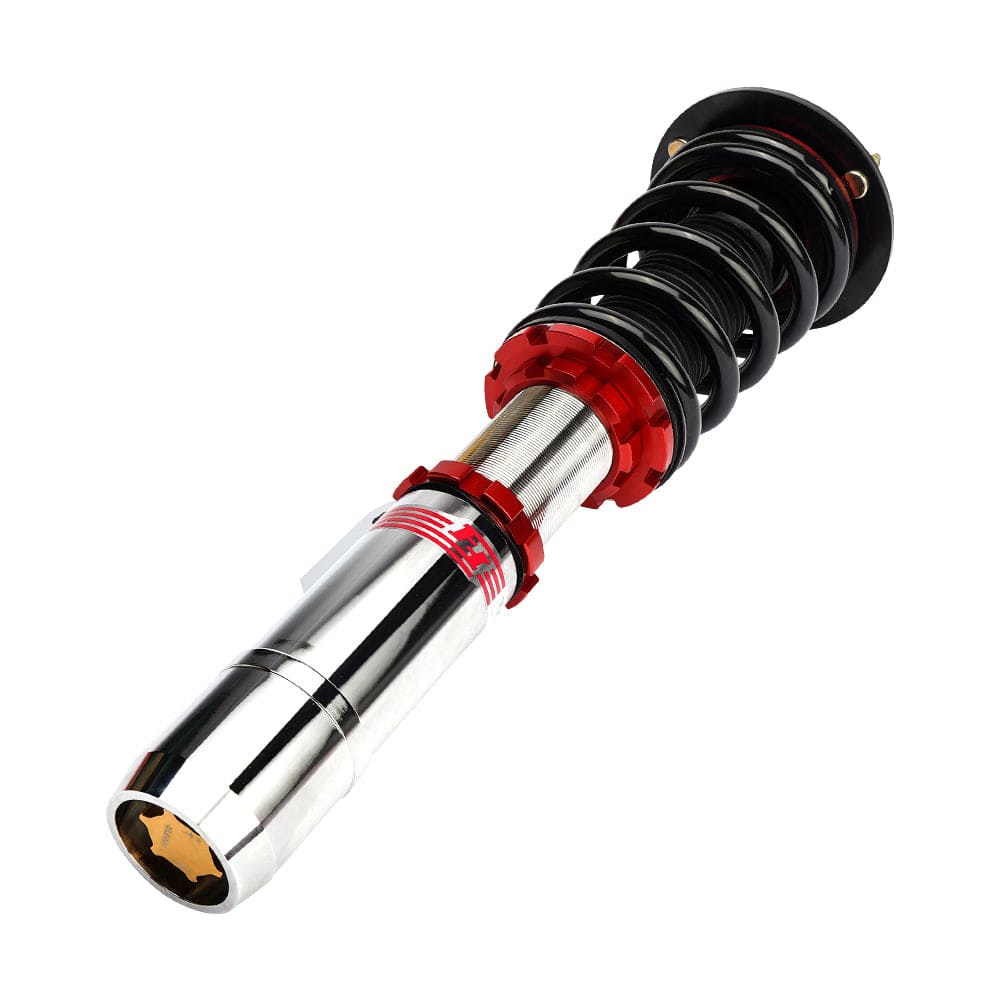

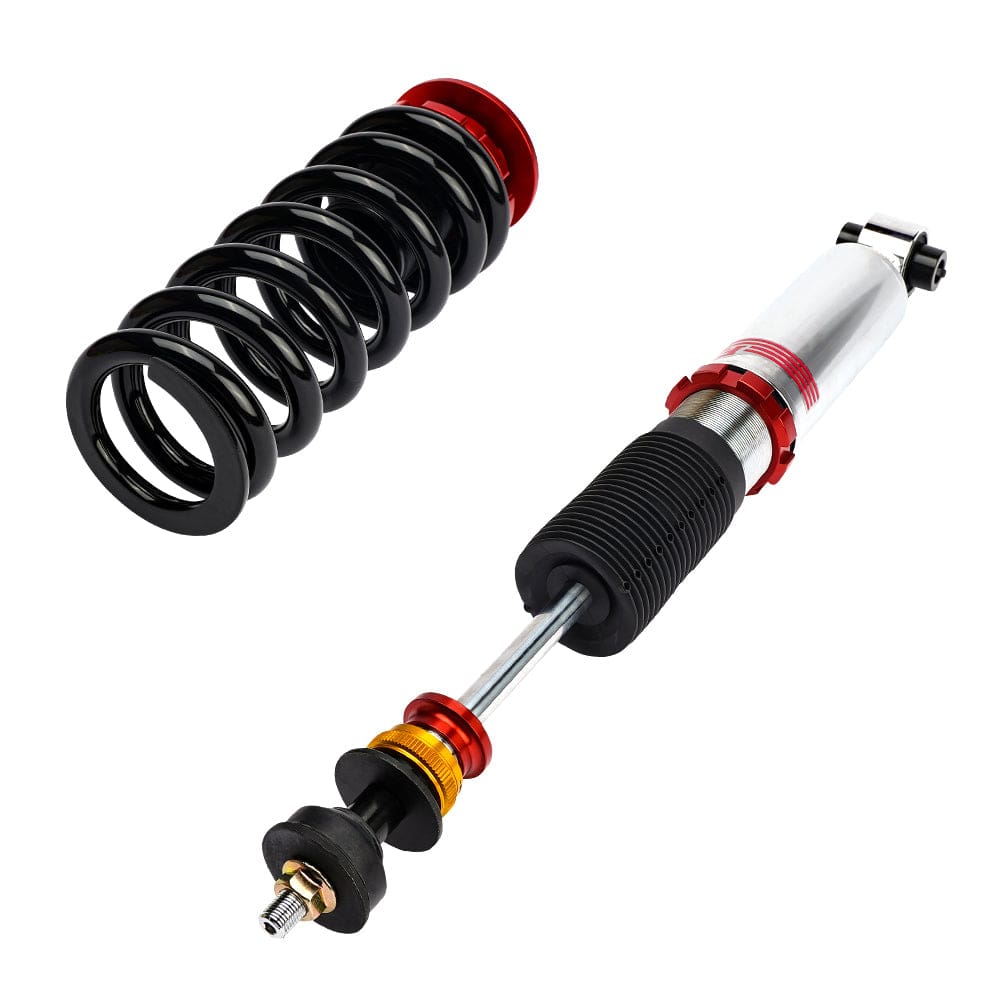

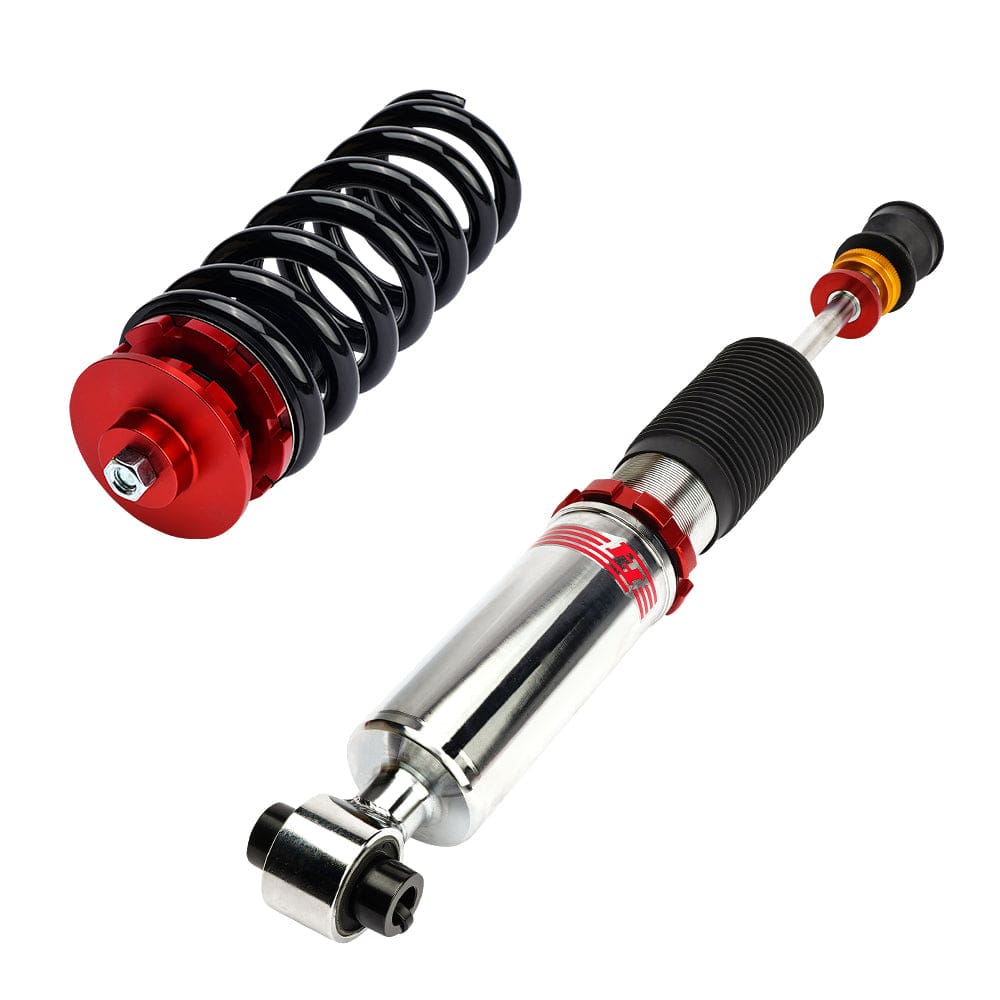

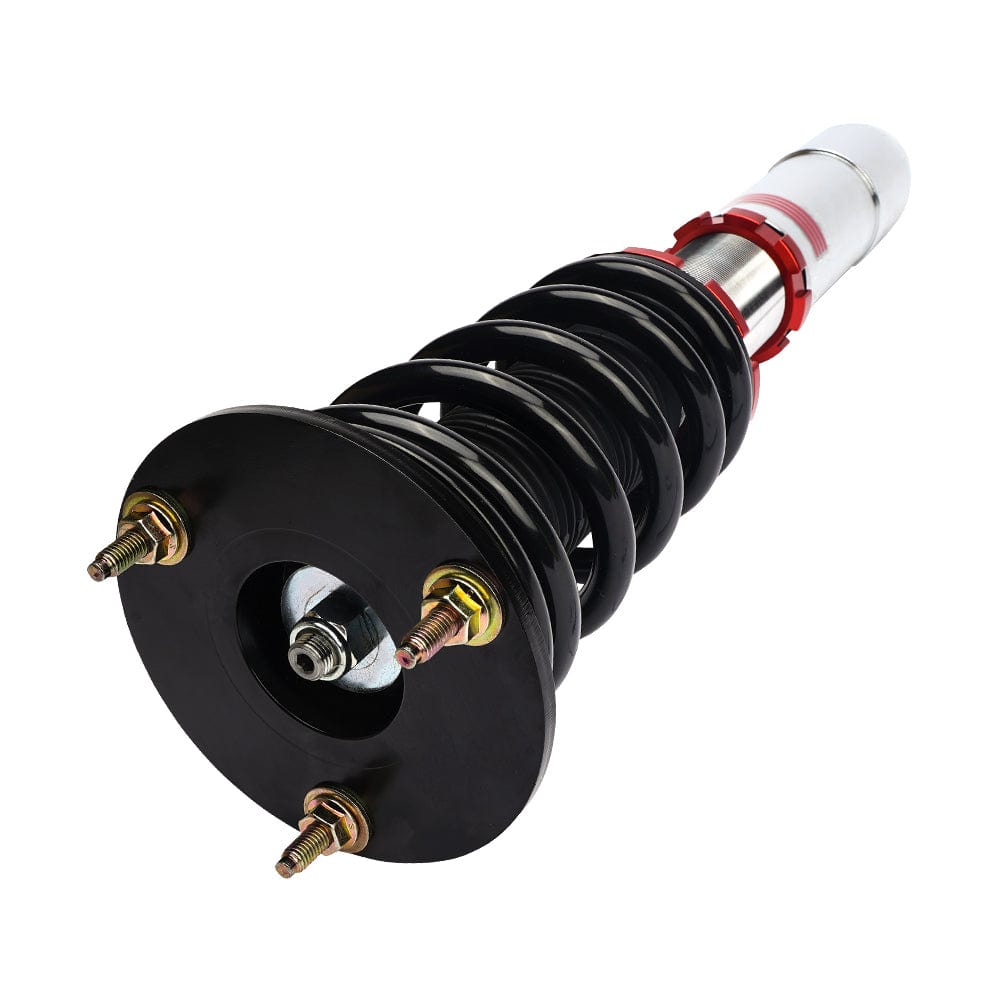

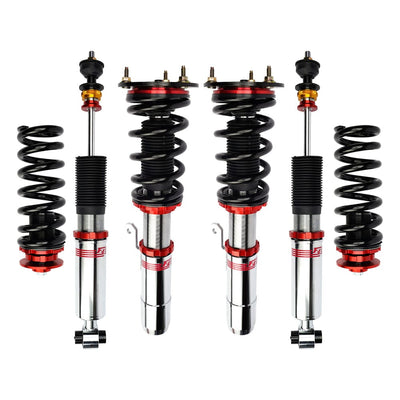

The Function and Form Type 4 Coilovers for the 2005-2013 BMW 3 Series RWD/4WD (E90) are the brand's premium coilover system, built around an inverted monotube damper for OE-plus refinement and high-end ride control. Engineered to give your BMW 3 Series RWD/4WD a planted, composed feel, these 3 Series RWD/4WD coilovers combine a clean lowered stance with the smooth, controlled damping that makes the 3 Series RWD/4WD E90 feel composed on any road.

Also branded Function & Form / F2 Suspension, the Type 4 uses a large inverted piston and long-stroke design to add travel, cut unsprung weight, and keep damping consistent when you drive hard. One-way adjustable rebound and compression plus full ride-height adjustment let you tailor exactly how the E90 3 Series RWD/4WD sits and responds, in a bolt-on, preload-ready kit. Backed by a 24-month warranty with free U.S. shipping on orders over $250.

Features

  • Premium full-bodied coilover kit built around an inverted monotube damper for OE-plus refinement
  • Large 40mm inverted piston increases damper strength and reduces unsprung weight for crisper response
  • Long-stroke design adds suspension travel for a smooth, controlled ride in any condition
  • One-way adjustable rebound and compression to match your vehicle, road and driving style
  • Optimized heat dissipation keeps damping consistent during hard or sustained driving
  • Ride height adjustable from the lower mount, independent of spring preload
  • Camber top plates available or included for select MacPherson-strut vehicles
  • Hardware included; backed by a 24-month limited warranty against manufacturer defect
Specifications
Part Number 45200105
Part Name Function and Form Type 4 Coilovers
Vehicle 2005-2013 BMW 3 Series RWD/4WD
Chassis Code E90
Adjustment Type 1-Way
Ride-Height Adjustable Yes
Custom Spring Rates No
Top Mounts - Front Included
Top Mounts - Rear Included
Suspension Design - Front True Coilover
Notes Finish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2005BMW325iFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2005BMW325xiFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2005BMW328iFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2005BMW328xiFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2005BMW330iFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2005BMW330xiFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2005BMW335dFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2005BMW335iFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2005BMW335xiFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2006BMW325iFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2006BMW325xiFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2006BMW328iFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2006BMW328xiFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2006BMW330iFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2006BMW330xiFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2006BMW335dFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2006BMW335iFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2006BMW335xiFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2007BMW325iFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2007BMW325xiFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
