Product Details

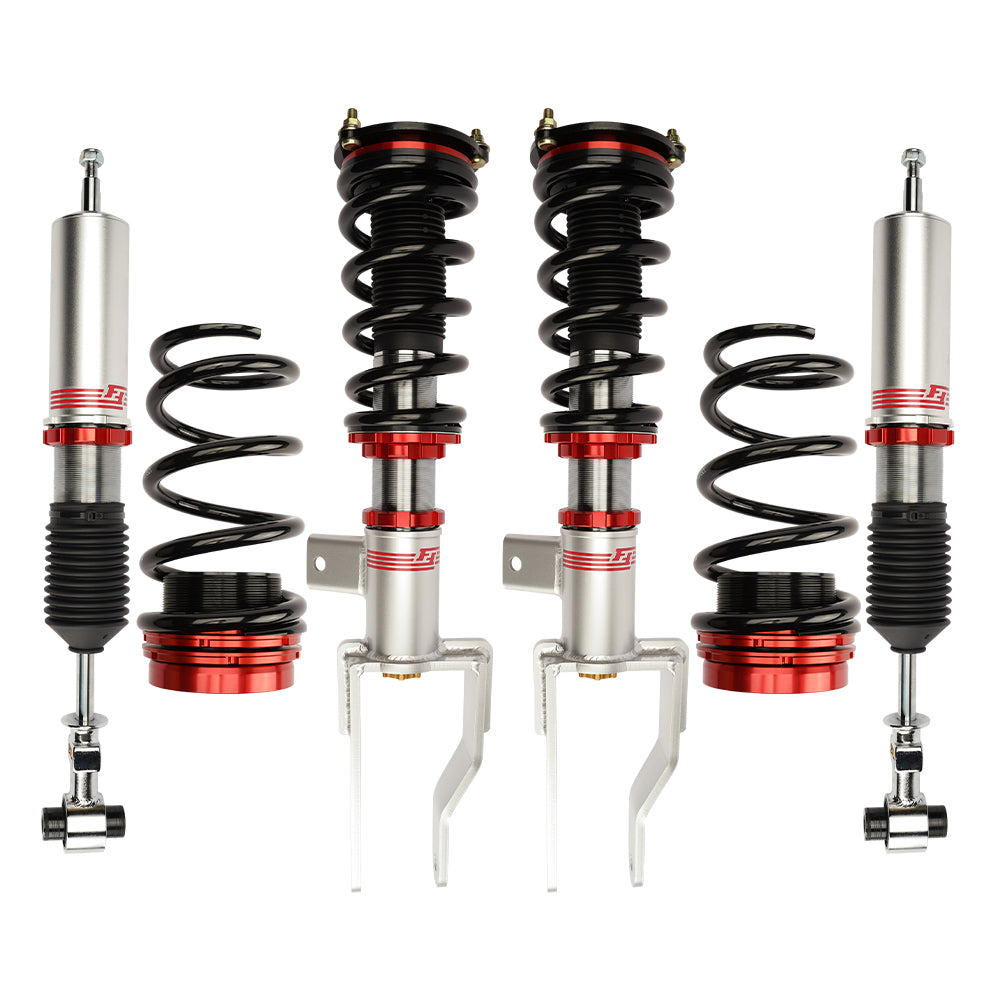

The Function and Form Type 4 Coilovers for the 2001-2006 Lexus LS430 (XF30) are the brand's premium coilover system, built around an inverted monotube damper. These XF30 LS430 coilovers lower the car and keep the damping smooth and controlled.

Also branded Function & Form / F2 Suspension, the Type 4 uses a large inverted piston and long-stroke design to add travel, cut unsprung weight, and keep damping consistent when you drive hard. 1-Way adjustable rebound and compression and full ride height adjustment come in a bolt-on, preload-ready kit. Backed by a 24-month warranty with free U.S. shipping on orders over $250.

Features

  • Premium full-bodied coilover kit built around an inverted monotube damper for OE-plus refinement
  • Large 40mm inverted piston increases damper strength and reduces unsprung weight for crisper response
  • Long-stroke design adds suspension travel for a smooth, controlled ride in any condition
  • 1-Way adjustable rebound and compression to match your vehicle, road and driving style
  • Optimized heat dissipation keeps damping consistent during hard or sustained driving
  • Ride height adjustable from the lower mount, independent of spring preload
  • Camber top plates available or included for select MacPherson-strut vehicles
  • Hardware included. Backed by a 24-month limited warranty against manufacturer defect
Specifications
Part Number 48300501
Part Name Function and Form Type 4 Coilovers
Vehicle 2001-2006 Lexus LS430
Chassis Code XF30
Adjustment Type 1-Way
Ride-Height Adjustable Yes
Top Mounts - Front Included
Top Mounts - Rear Included
Suspension Design - Front True Coilover
Notes Finish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2001LexusLS430RWDFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2002LexusLS430RWDFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2003LexusLS430RWDFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2004LexusLS430RWDFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2005LexusLS430RWDFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2006LexusLS430RWDFinish: Chrome/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
