Function and Form Type 3 Coilovers for 2003-2010 BMW 5 Series AWD Sedan (E60) 35200203-4W

Function and Form

|

SKU: 35200203-4W

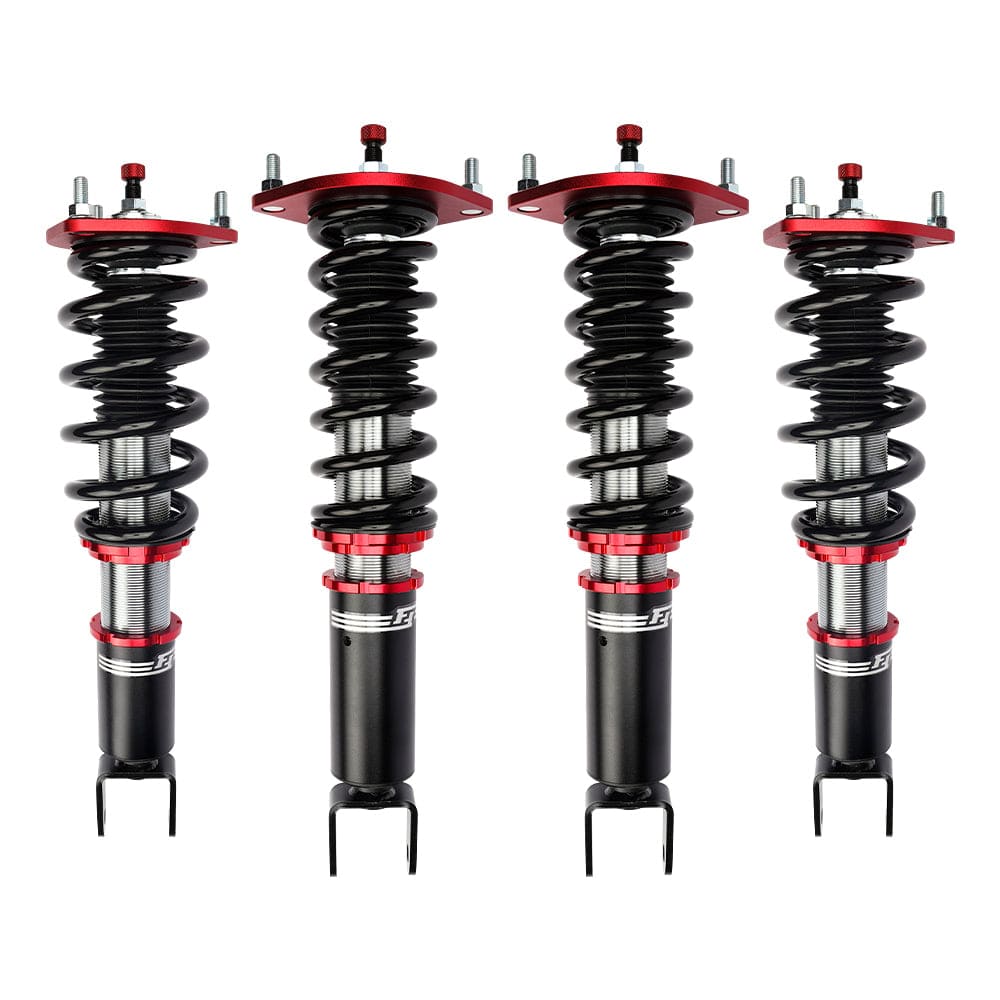

Function and Form Type 3 Coilovers for 2003-2010 BMW 5 Series AWD Sedan (E60)

$1,590.00
Ask a question
Out of stock

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In Stock: 1-2 business days
  • Out of Stock: 3-4 weeks
  • Custom Builds: 3-4 weeks
  • Special Order: 3-4 weeks
  • Type 3 Coilovers: 45 days
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

1-Year Manufacturer Warranty

Limited Warranty covers products against factory defects in material and workmanship, other than coatings, when used on passenger cars and light duty (class 1‐3) trucks under normal use and operating conditions. Claims should be made through the authorized Distributor from whom the equipment was purchased.  Warranty obligations for products are limited to the terms set forth below:

This warranty extends to the original retail purchaser (the “Buyer”) who retains ownership of the vehicle and is not transferable. Warranty valid only in the United States of America.  F2 warrants this product against defects in material or workmanship for a period of one (1) year from the date of original sale except the following:

  • Coilover Sets: 2 years for Type 1, Type 2, and Type 3
  • Function Performance Springs (FPS): Eibach Limited Lifetime Warranty
  • Replacement Parts: 90-days from the date of purchase

More Information

Product Details

The Function and Form Type 3 Coilovers for the 2003-2010 BMW 5 Series AWD Sedan (E60) are the brand's track-focused performance coilover, designed for BMW 5 Series AWD Sedan drivers who push hard at the track but still drive the car on the street. These 5 Series AWD Sedan coilovers are built around a digressive monotube damper and world-famous Eibach ERS Motorsport springs, giving the 5 Series AWD Sedan E60 race-bred body control with the flexibility to set it up your way.

Known to enthusiasts as Function & Form or F2 Suspension, the Type 3 offers customizable spring rates so you can run a comfortable street setup one weekend and a stiffer track alignment the next. One-way adjustable damping and full-length ride-height adjustment let you fine-tune how the E60 5 Series AWD Sedan rides and handles, all in a rebuildable, preload-ready kit. Backed by a 24-month warranty with free U.S. shipping on orders over $250.

Features

  • Track-focused, full-bodied coilover kit with 24 levels of one-way damping adjustment
  • Digressive valving delivers higher damping forces at low shaft speeds for sharper cornering, braking and turn-in
  • World-famous Eibach ERS Motorsport springs with a wide range of available spring rates
  • High-strength JIS G3445 carbon steel monotube shock bodies
  • Customizable spring rates so you can set up for the street or dial in a track alignment
  • Ride height adjustable from the lower mount, independent of spring preload
  • Camber top plates available or included for select MacPherson-strut vehicles
  • Hardware included; backed by a 24-month limited warranty against manufacturer defect
Specifications
Part Number 35200203-4W
Part Name Function and Form Type 3 Coilovers
Vehicle 2003-2010 BMW 5 Series AWD Sedan
Chassis Code E60
Drivetrain AWD
Adjustment Type 1-Way
Ride-Height Adjustable Yes
Spring Rate - Front 14 Kg/mm
Spring Rate - Rear 10 Kg/mm
Custom Spring Rates Yes
Top Mounts - Front Included
Top Mounts - Rear Included
Suspension Design - Front True Coilover
Notes Finish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2003BMW525iAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2003BMW525xiAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2003BMW528iAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2003BMW528xiAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2003BMW530iAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2003BMW530xiAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2003BMW535iAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2003BMW535xiAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2004BMW525iAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2004BMW525xiAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2004BMW528iAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2004BMW528xiAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2004BMW530iAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2004BMW530xiAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2004BMW535iAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2004BMW535xiAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2005BMW525iAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2005BMW525xiAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2005BMW528iAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
2005BMW528xiAWDFinish: Black/Red; Hardware included; Camber top plates available or included for select MacPherson-strut vehicles
