Product Details

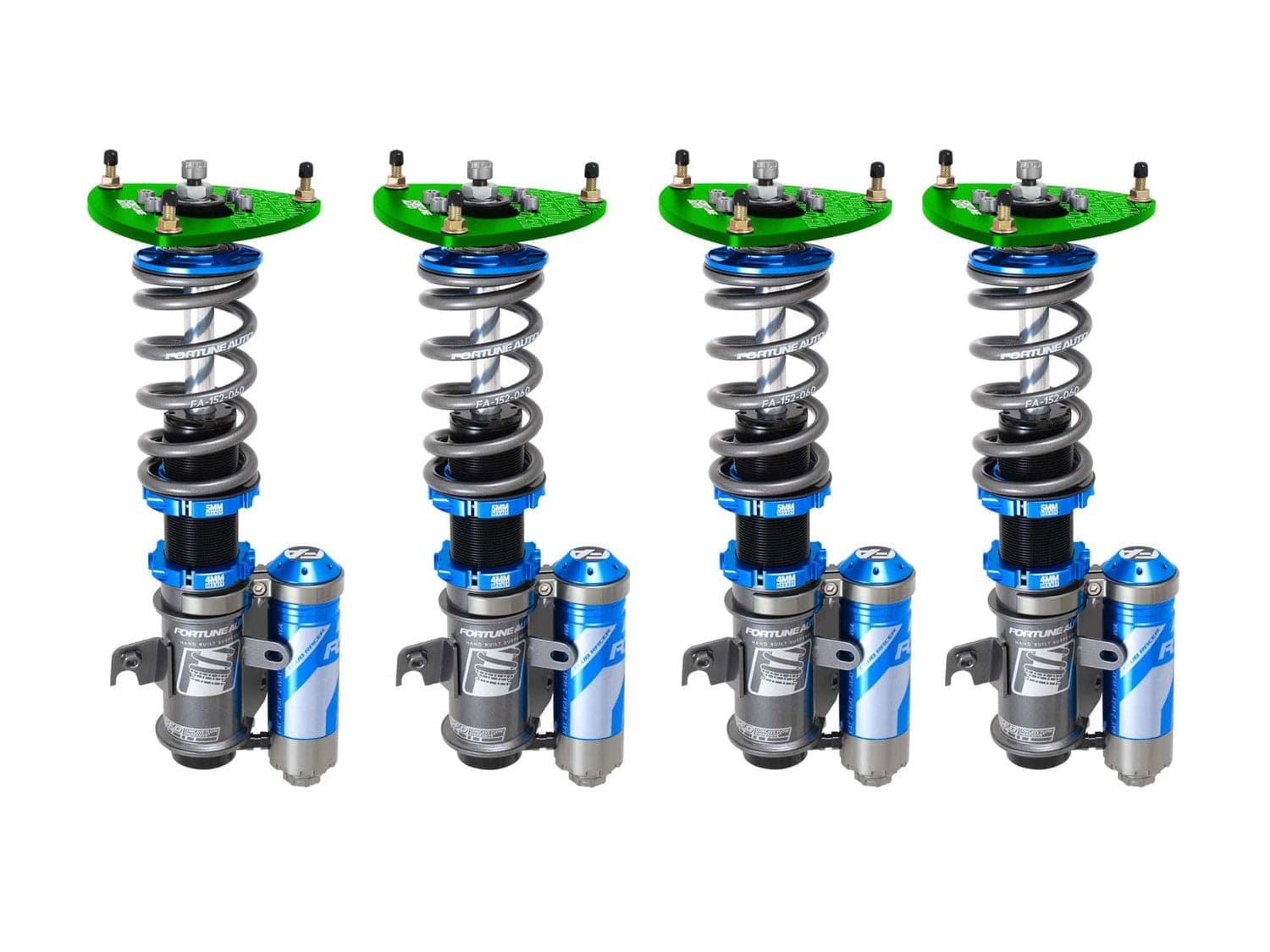

The Fortune Auto 520CR Club Racer Coilovers for the 2023+ Toyota GR Corolla (GZEA14) deliver the perfect balance of daily driving comfort and track-ready performance. These GZEA14 GR coilovers feature Fortune Auto's Generation 8 monotube damper technology with independent compression and rebound adjustment via a remote reservoir canister, giving you full control over your Toyota GR Corolla suspension setup. Custom-built and dyno-tested in the USA, every set is matched specifically for your GZEA14 and backed by a 5-year limited warranty.
Generation 8 Technology
- Concave Flow Digressive™ (CFD) Pistons — 6XXX alloy series with optimized high flow valves for maximum damper sensitivity and an incredibly dynamic adjustment range

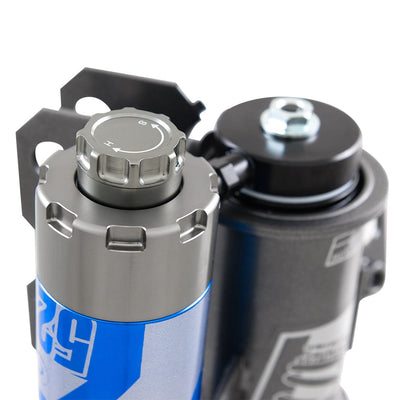

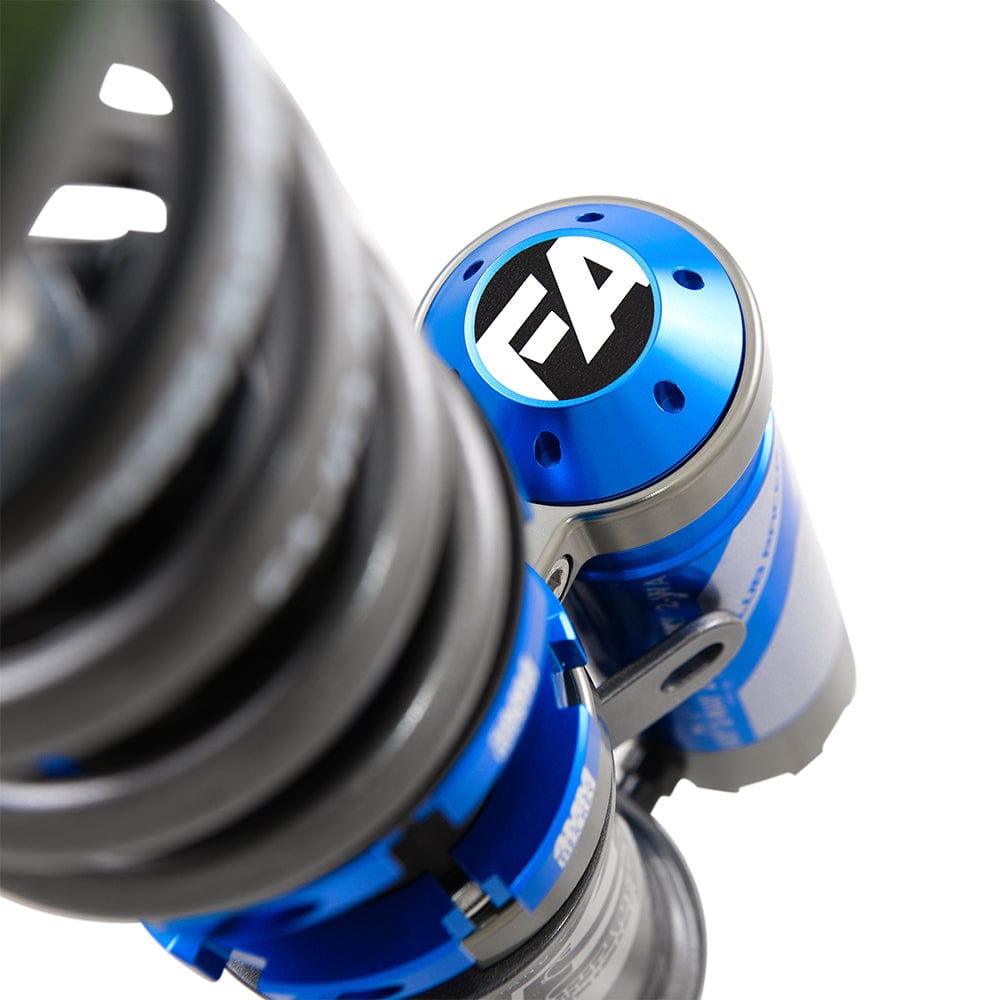

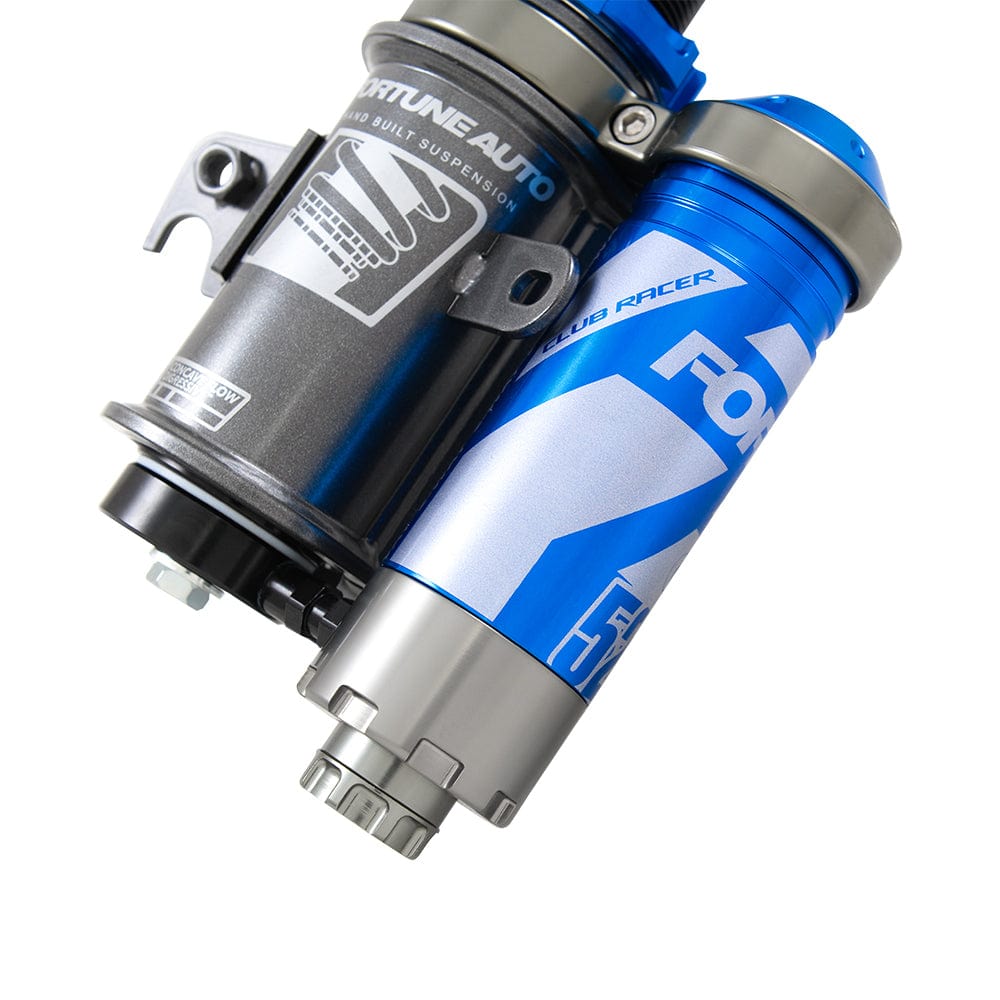

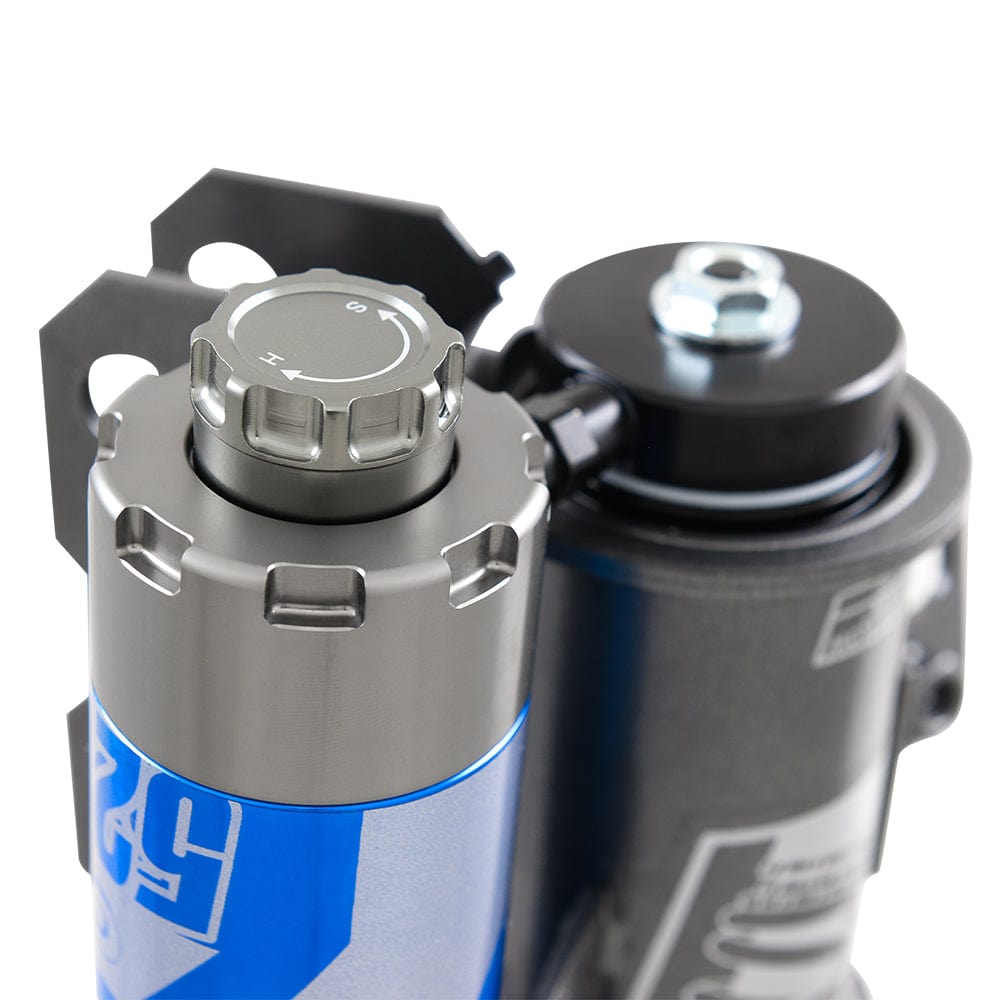

- Remote Reservoir Canister — Independently adjustable compression and rebound damping for precise suspension tuning
- Radial Bearing Mounts — Koyo Japan bearings for noise-free operation and smoother steering response (MacPherson applications)
- Premium Chrome Silicon Springs — Superior alloy for better performance, longevity, and ride quality
- Bright Dip Anodized Components — Chemical polishing process that protects against corrosion and oxidation

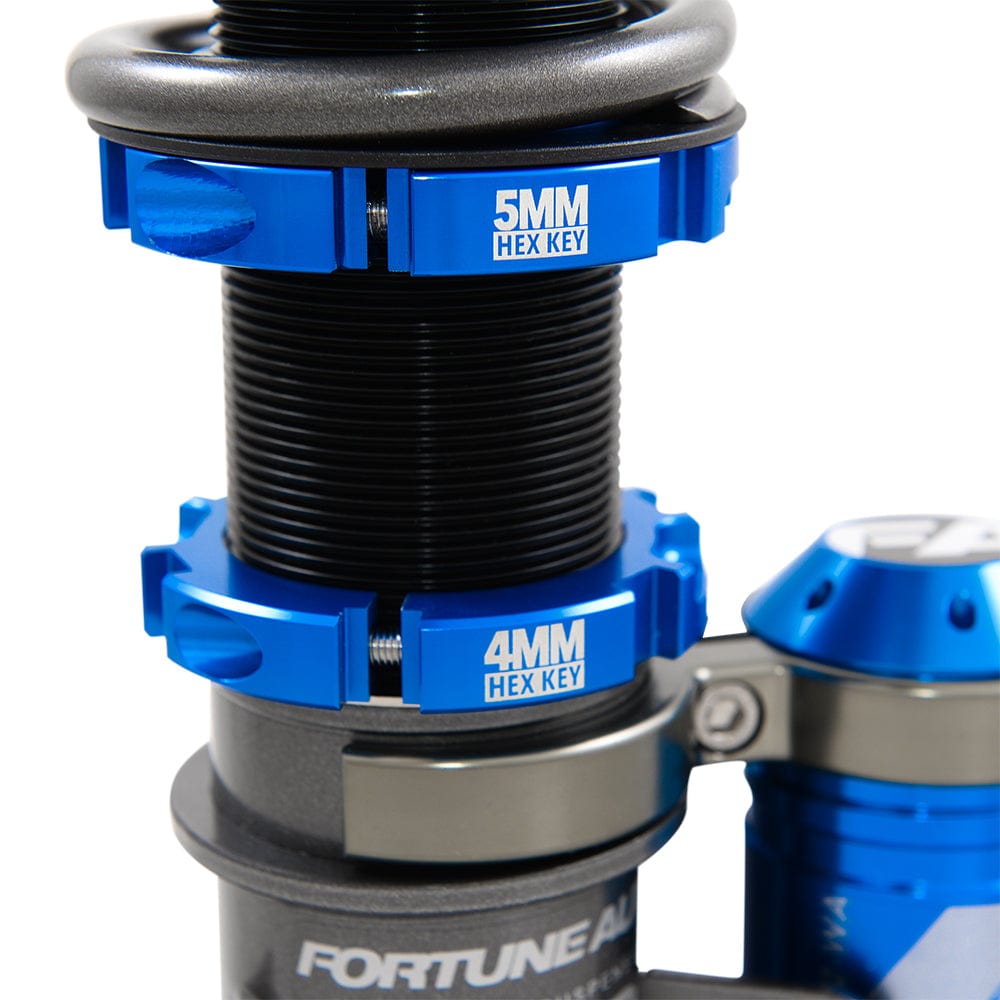

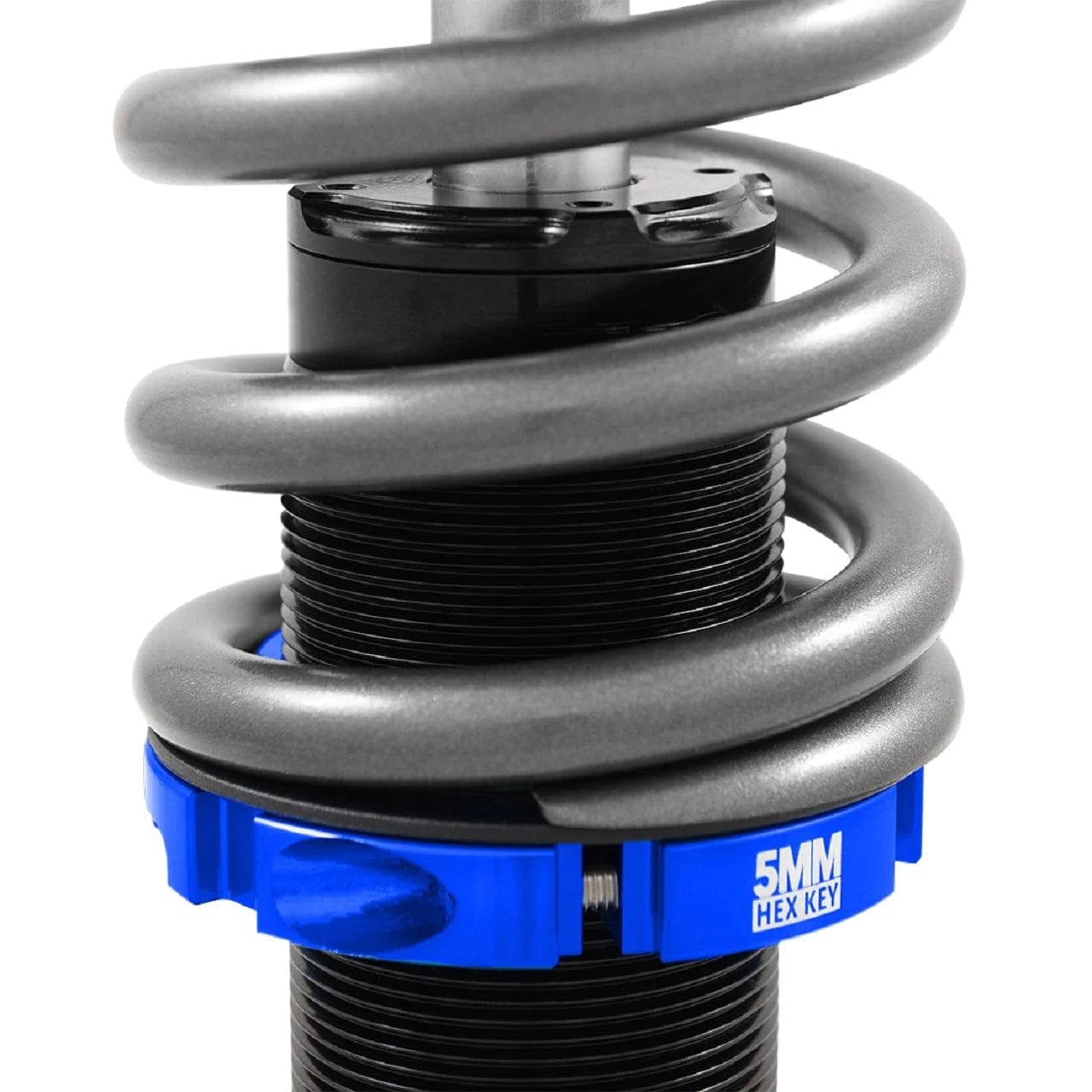

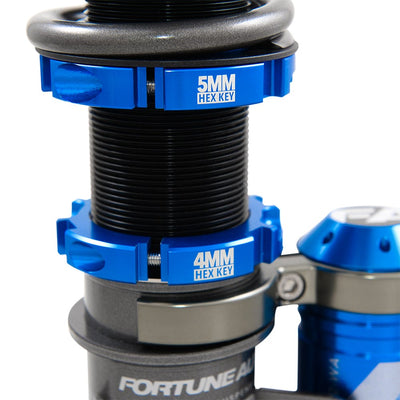

- Laser Etched Hardware — Top plates, spring perches, and locking rings labeled with hex key sizes for easy setup
- Lower Mount Locking Ring Clamps — Now standard for easier adjustment and less prone to coming loose in high mechanical grip applications
Features
- FA Synthetic Shock Oil
- Concave Flow Digressive Piston Technology™
- Remote Reservoir Canister with Independent Compression and Rebound Adjustment
- Lower Mount Locking Ring Clamps
- Radial Bearing Mounts Standard on MacPherson Applications
- Premium Chrome Silicon Springs
- Custom Built and Dyno Tested
- 5 Year Limited Manufacturer's Warranty
- Monotube Damper with High Pressure Nitrogen
- T6 6061 Aluminum Mounts and Camber Plates
- Rebuildable and Revalveable at our Facility in the USA
Specifications
| Part Number | FA520CR-GZEA14 |
| Part Name | 520CR Club Racer Coilovers |
| Vehicle | 2023+ Toyota GR Corolla |
| Chassis Code | GZEA14 |
| Spring Rate - Front | 8 Kg/mm |
| Spring Rate - Rear | 9 Kg/mm |
| Custom Spring Rates Available? | Y - Fortune Auto Brand rear springs are only available in 9K or 11K |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | Divorced |
| Damping Adjustment | 2-Way (Remote Reservoir) |
| Ride-Height Adjustable | Yes |
| Spring Type | Chrome Silicon |
| Camber Plates Included | Yes - Front |
| Notes | Includes Front Endlinks |
