Product Details
These Fortune Auto 510 Series coilovers fit the 2004 Subaru WRX STI.

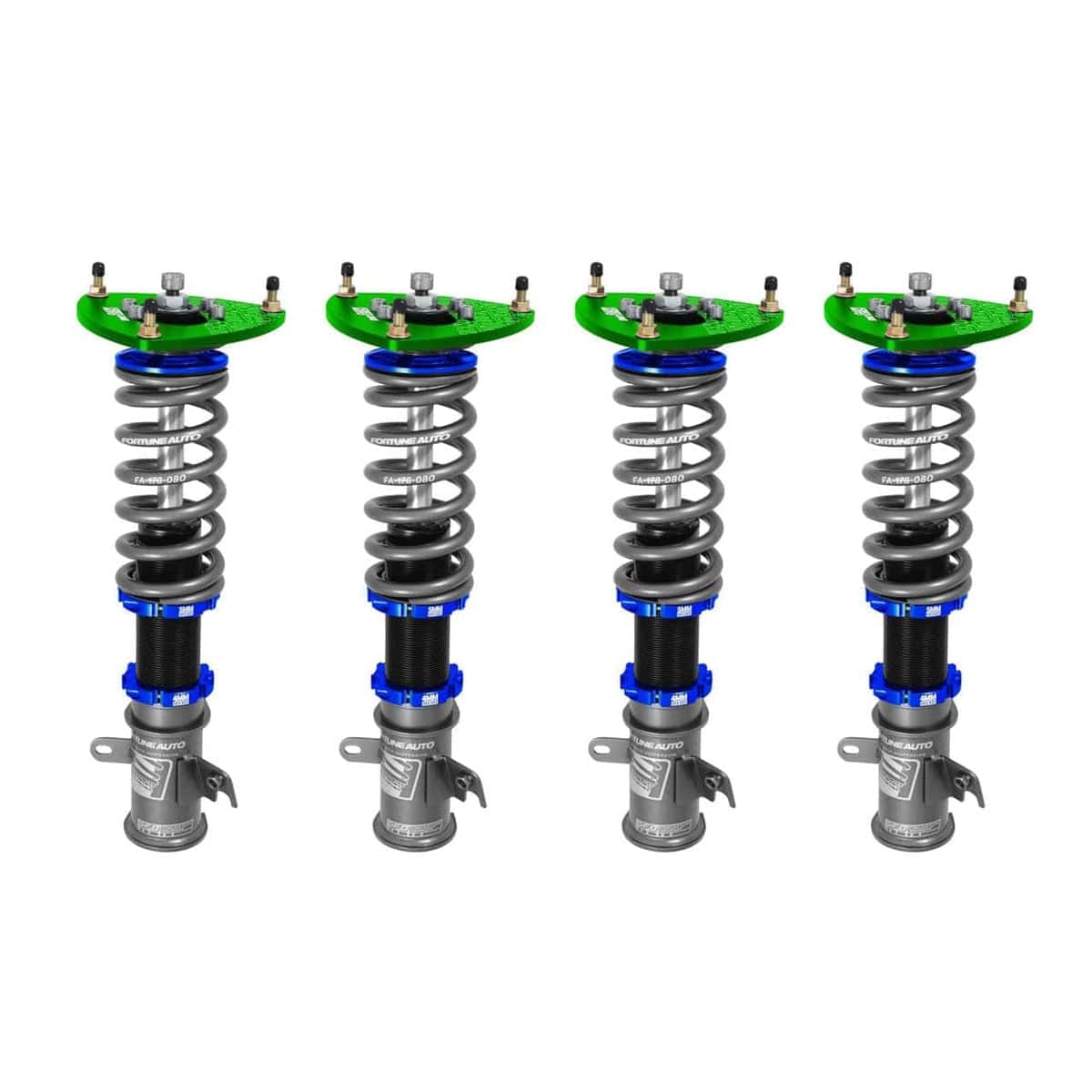

The Fortune Auto 510 Series Coilovers for the 2004 Subaru WRX STI (GDB) deliver the perfect balance of daily driving comfort and track-ready performance. These GDB WRX coilovers feature Fortune Auto's Generation 8 monotube damper technology with 24-step adjustable damping, giving you full control over your Subaru WRX STI suspension setup. Custom-built and dyno-tested in the USA, every set is matched specifically for your GDB and backed by a 5-year limited warranty.
Generation 8 Technology
- Concave Flow Digressive™ (CFD) Pistons — 6XXX alloy series with optimized high flow valves for maximum damper sensitivity and an incredibly dynamic adjustment range

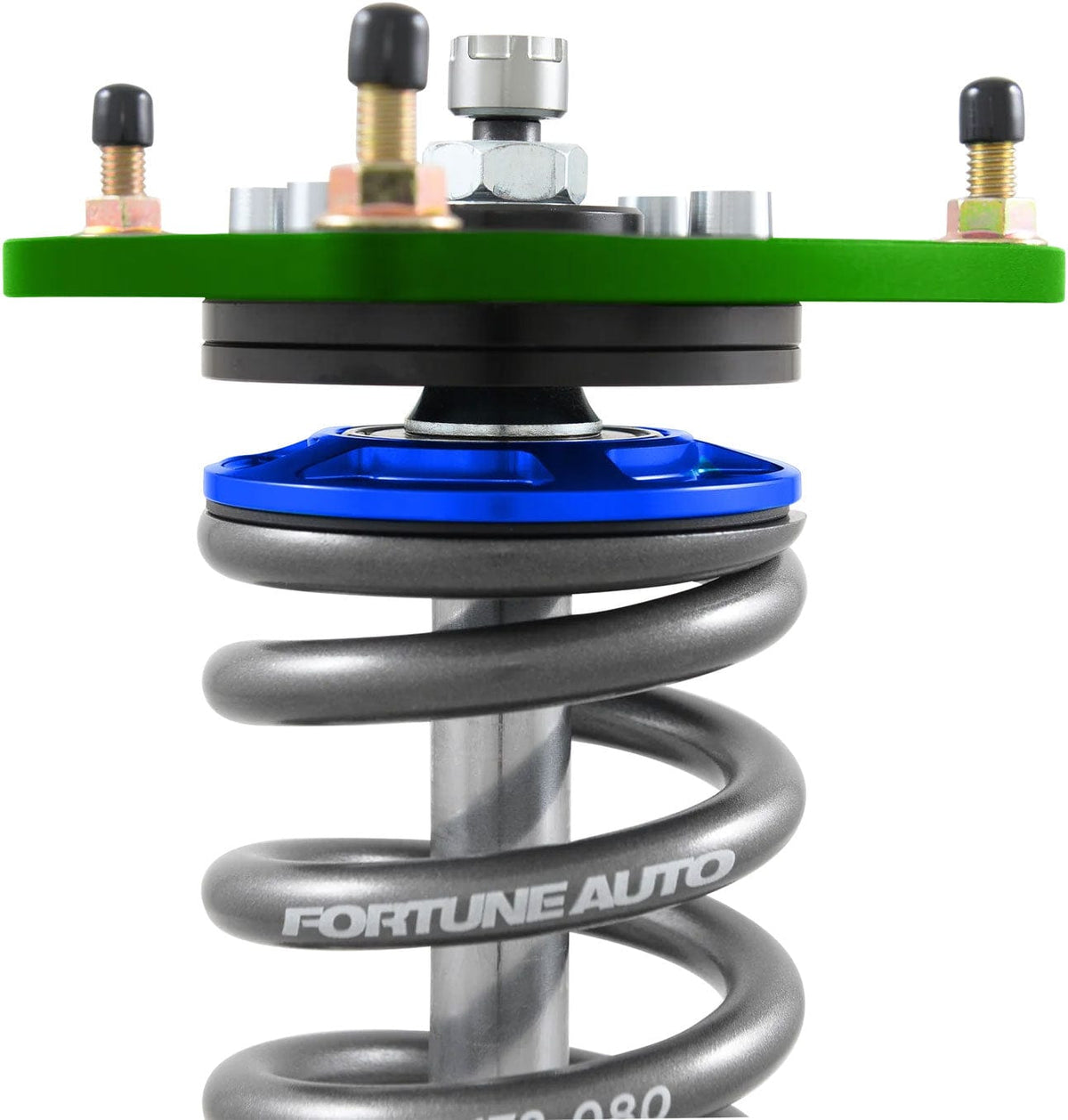

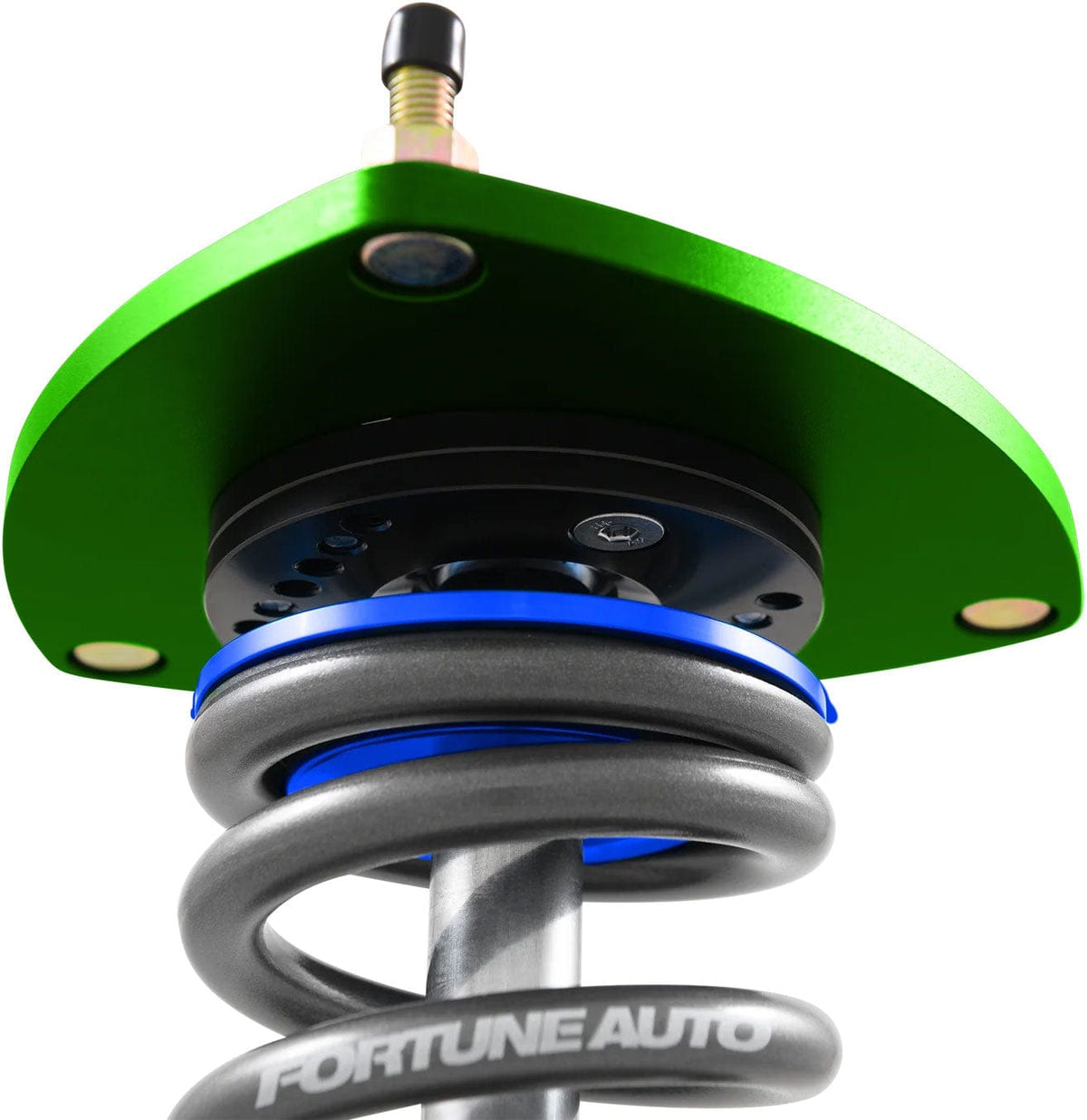

- Radial Bearing Mounts — Koyo Japan bearings for noise-free operation and smoother steering response (MacPherson applications)
- Premium Chrome Silicon Springs — Superior alloy for better performance, longevity, and ride quality
- Bright Dip Anodized Components — Chemical polishing process that protects against corrosion and oxidation

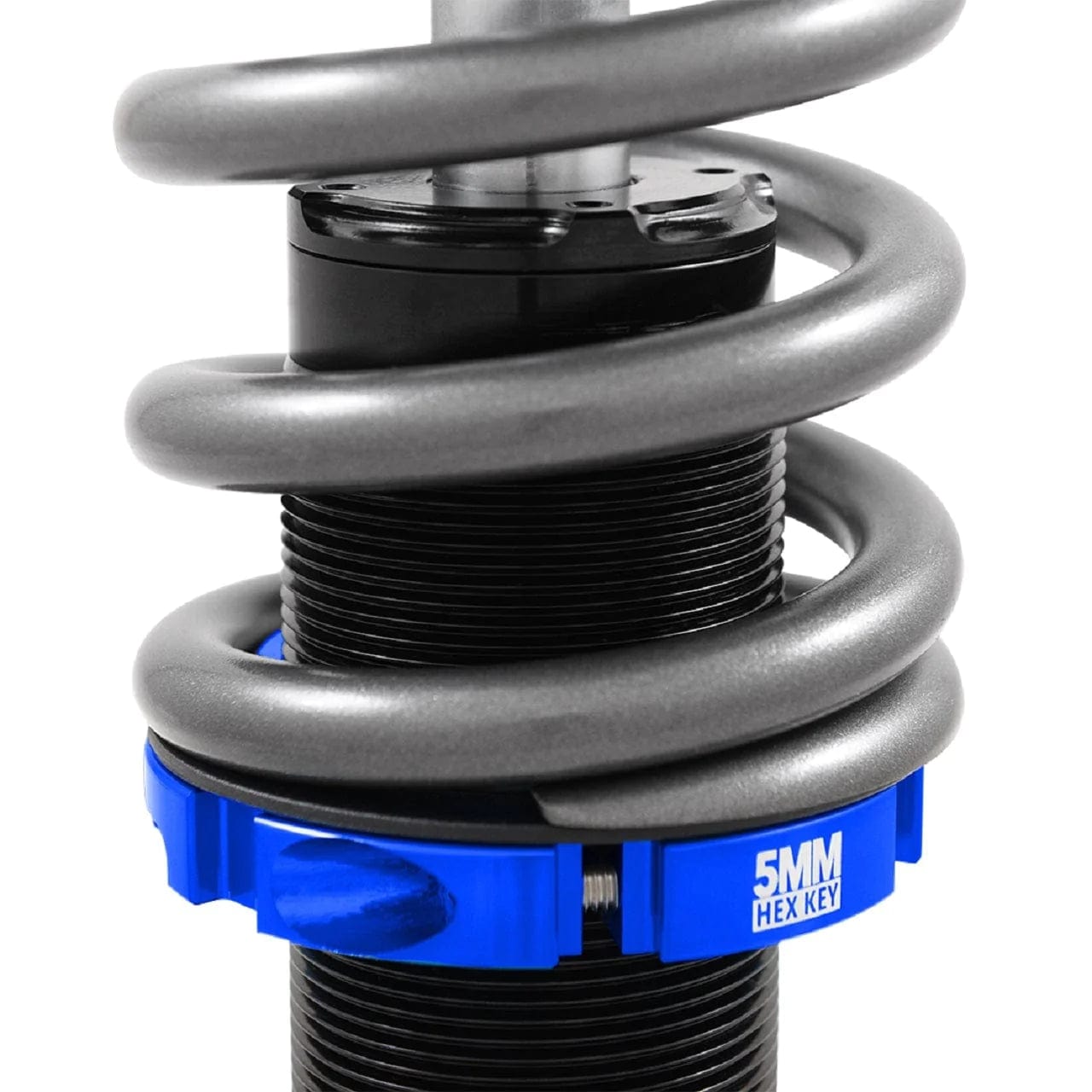

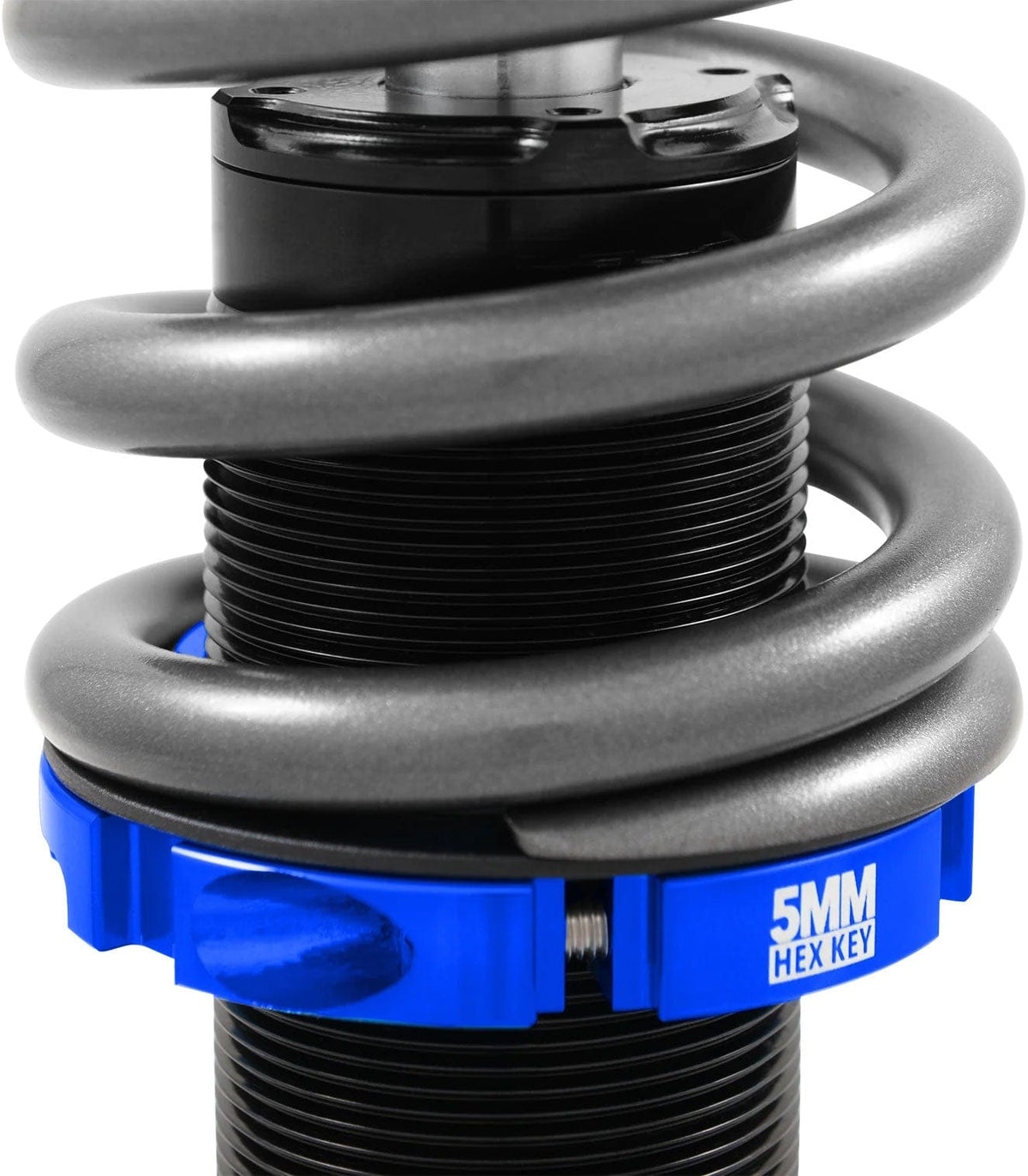

- Laser Etched Hardware — Top plates, spring perches, and locking rings labeled with hex key sizes for easy setup

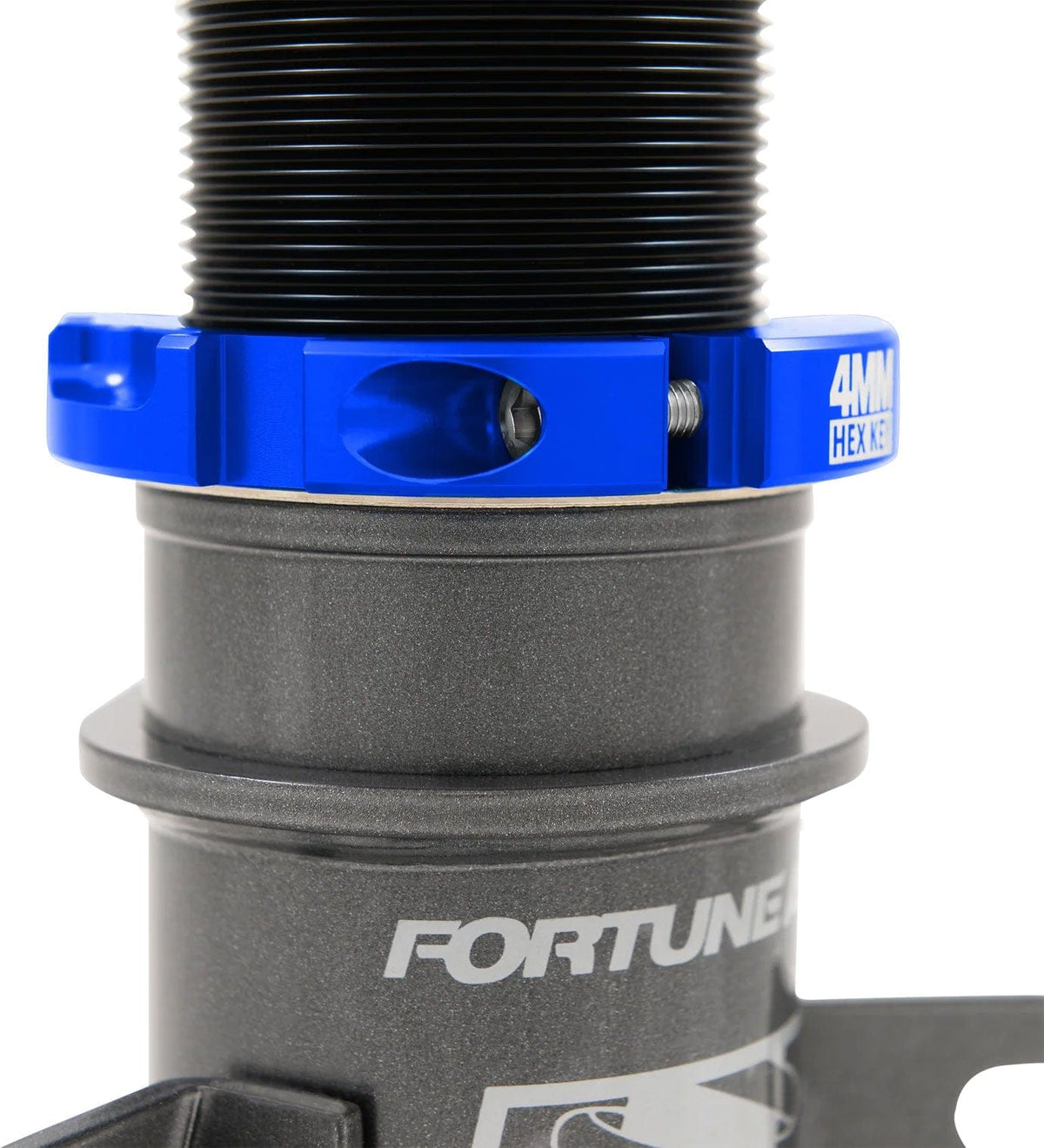

- Lower Mount Locking Ring Clamps — Now standard for easier adjustment and less prone to coming loose in high mechanical grip applications
Features
- FA Synthetic Shock Oil
- Concave Flow Digressive Piston Technology™
- Lower Mount Locking Ring Clamps
- Radial Bearing Mounts Standard on MacPherson Applications
- Premium Chrome Silicon Springs
- Custom Built and Dyno Tested
- 5 Year Limited Manufacturer's Warranty
- 24-Step Adjustable Dampers
- Monotube Damper with High Pressure Nitrogen

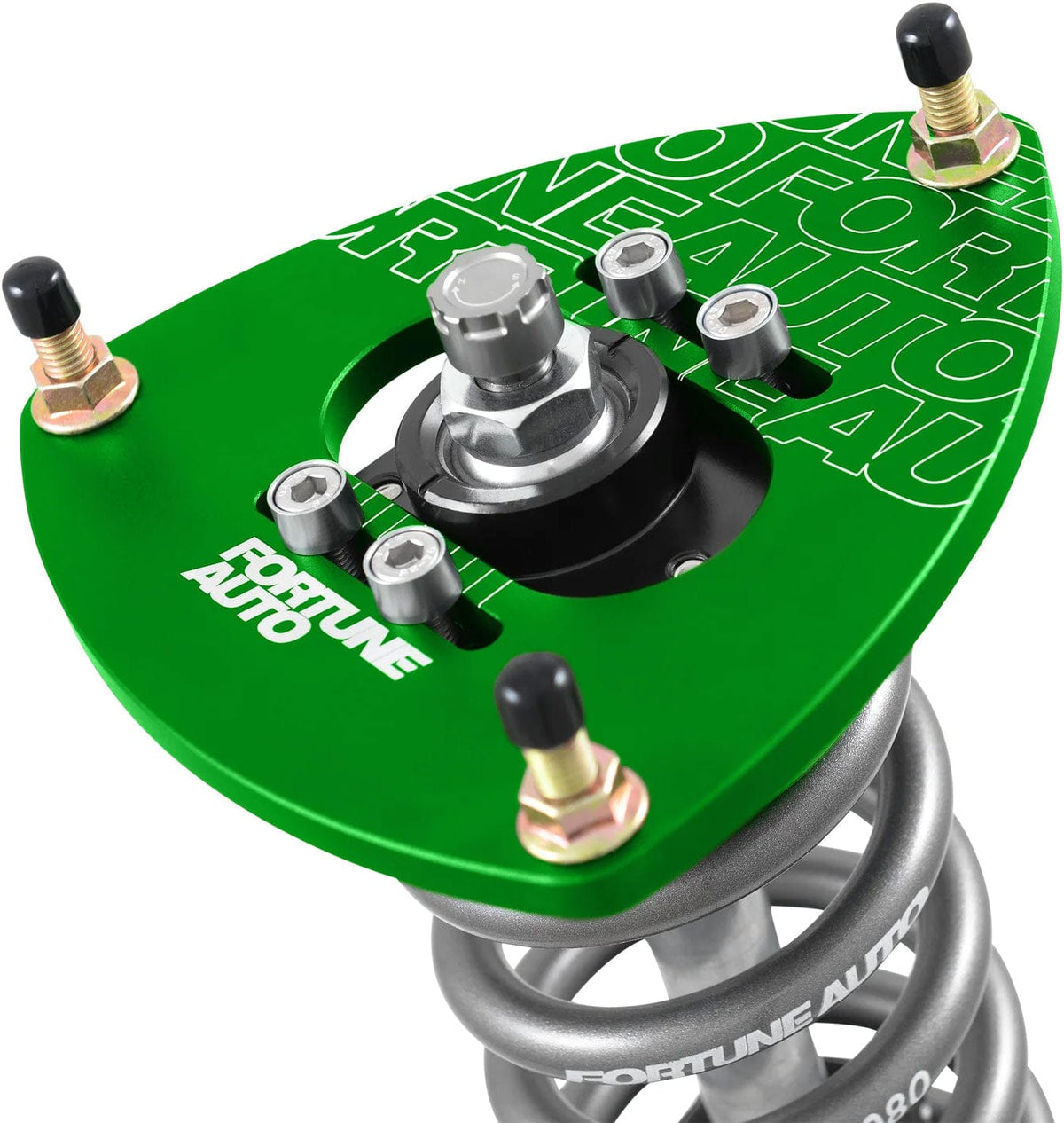

- T6 6061 Aluminum Mounts and Camber Plates
- Rebuildable and Revalveable at our Facility in the USA
- Modularity – Upgradeable to 2-Way or 3-Way Canister
Specifications
| Part Number | FA510CFD-GDB |
| Part Name | 510 Series Coilovers |
| Vehicle | 2004 Subaru WRX STI |
| Chassis Code | GDB |
| Spring Rate - Front | 8 Kg/mm |
| Spring Rate - Rear | 6 Kg/mm |
| Custom Spring Rates Available? | Yes |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | True Coilover |
| Damping Adjustment | 1-Way (24-Step) |
| Ride-Height Adjustable | Yes |
| Spring Type | Chrome Silicon |
| Camber Plates Included | Yes - Front |
| Notes | - |
