Product Details
The D2 Racing VERA Element Management system for the 2017-2022 Volkswagen Tiguan AWD provides the reliability of a manual air management system with functionality of a three sensor digital gauge allowing for easy access to vital air pressure information (front, rear and tank) with LCD display, user defined font and background colors, high/low pressure alerts and voltmeter. Air Suspension is ideal for the car enthusiasts looking for the best of both worlds the ability to have a slammed car look and raise it back to stock height when needed for normal everyday driving.
D2 Racing Air Struts allow for adjustment through both the lower mount and inflatable sleeve or double bellow style air bellow which allows for ultimate range of ride height adjustment. Each air shock features a 36-way damping adjustable design for fine tuning of ride quality and responsiveness.
Standard Features
- D2 Racing Air Suspension systems enables users to change air pressure and can also adjust the maximum and minimum ride height freely to match up to a body kit to get the desired ride height.
- This system is designed for easy bolt-on installation.
- D2 Racing Air Suspension systems have 36 levels of adjustable dampening as well as ride height adjustable.
- The adjustment range of ride height is between 0 and 120/200mm. (based on different applications)
- The speed of lowering and raising vehicle ride height is 4-7 seconds.

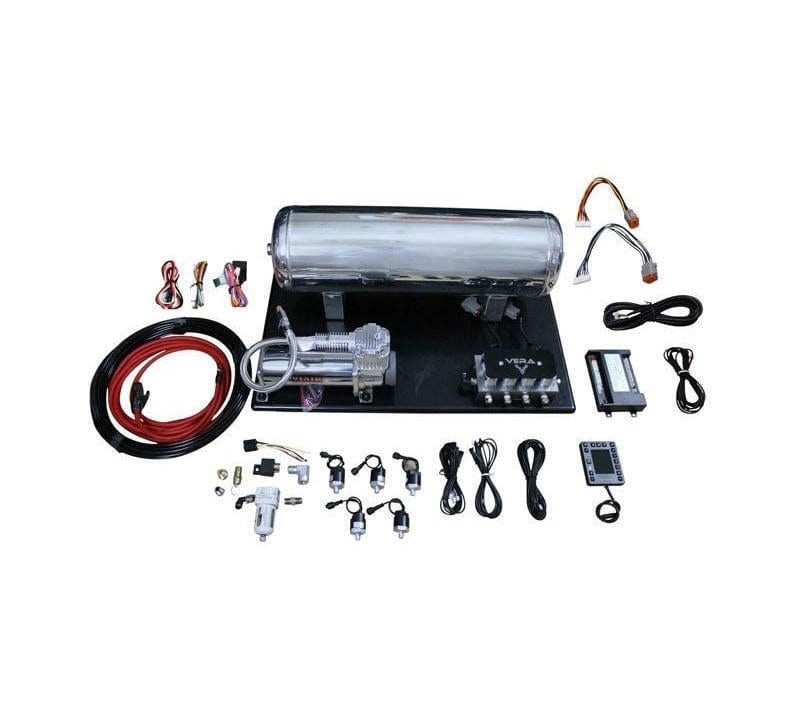

Kit Includes
- D2 Racing Air Struts
- Dual pneumatic paddle valve controllers (Front and Rear)
- 3 pressure sensor digital gauge (Front, Rear and Tank) with LCD display
- Powder coated Silver 4 gallon steel tank
- Chrome VIAIR 444C
- 60' DOT 1/4 inch air line
- All necessary fittings, power cables and plugs
Product Notes
- This product is made to order. Once the order is placed, it cannot be modified or canceled.
- Pillowball mounts are included for select vehicle applications.
- Camber plates are not included.
Specifications
| Part Number | D-VO-48-1-ARVEL |
| Part Name | Air Struts with VERA Element Management |
| Vehicle | 2017-2022 Volkswagen Tiguan |
| Chassis Code | |
| Drivetrain | AWD |
| Damping Adjustable | Yes - 36 Way |
| Height Adjustable | Yes |
| Top Mounts - Front | Yes |
| Top Mounts - Rear | No |
| Camber Plates - Front | No |
| Camber Plates - Rear | Not Applicable |
Vehicle Fitment
- 2017 Volkswagen Tiguan AWD
- 2018 Volkswagen Tiguan AWD
- 2019 Volkswagen Tiguan AWD
- 2020 Volkswagen Tiguan AWD
- 2021 Volkswagen Tiguan AWD
- 2022 Volkswagen Tiguan AWD
