D2 Racing Air Struts with VERA Element Management - 1990-1994 Mazda 323

Name: D2 Racing Air Struts with VERA Element Management - 1990-1994 Mazda 323
Brand: D2 Racing
Price: 3017.5 USD
Availability: InStock

$3,017.50 ~~$3,550.00~~ On Sale

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description
Specifications
Vehicle Fitment
Warranty
Important Notes

Description

The D2 Racing VERA Element Management system for the 1990-1994 Mazda 323 provides the reliability of a manual air management system with functionality of a three sensor digital gauge allowing for easy access to vital air pressure information (front, rear and tank) with LCD display, user defined font and background colors, high/low pressure alerts and voltmeter. Air Suspension is ideal for the car enthusiasts looking for the best of both worlds the ability to have a slammed car look and raise it back to stock height when needed for normal everyday driving.

D2 Racing Air Struts allow for adjustment through both the lower mount and inflatable sleeve or double bellow style air bellow which allows for ultimate range of ride height adjustment. Each air shock features a 36-way damping adjustable design for fine tuning of ride quality and responsiveness.

Product Notes

This product is made to order. Once the order is placed, it cannot be modified or canceled.
Pillowball mounts are included for select vehicle applications.
Camber plates are not included.

Features

D2 Racing Air Suspension systems enables users to change air pressure and can also adjust the maximum and minimum ride height freely to match up to a body kit to get the desired ride height.
This system is designed for easy bolt-on installation.
D2 Racing Air Suspension systems have 36 levels of adjustable dampening as well as ride height adjustable.
The adjustment range of ride height is between 0 and 120/200mm. (based on different applications)
The speed of lowering and raising vehicle ride height is 4-7 seconds.

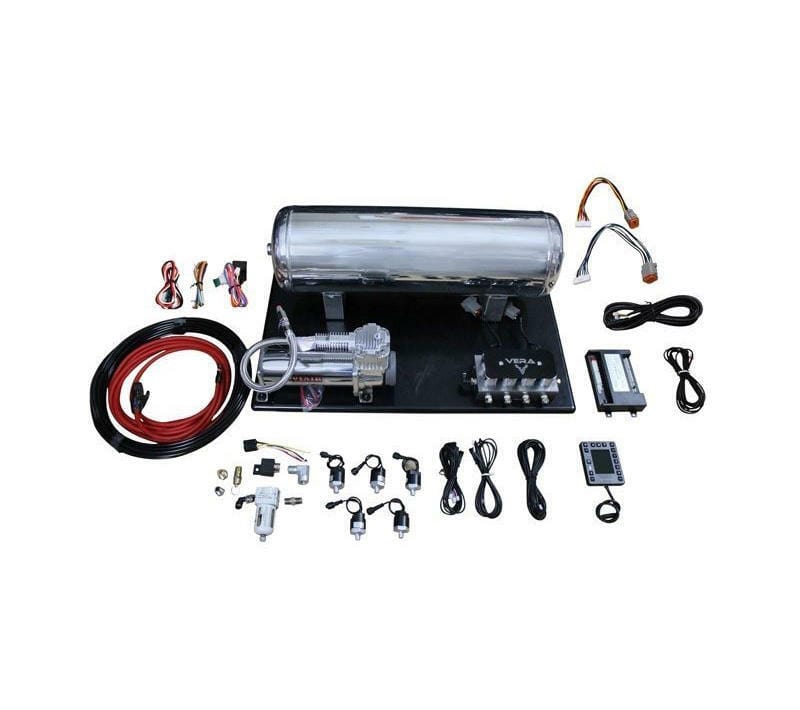

Kit Includes

D2 Racing Air Struts
Dual pneumatic paddle valve controllers (Front and Rear)
3 pressure sensor digital gauge (Front, Rear and Tank) with LCD display
Powder coated Silver 4 gallon steel tank
Chrome VIAIR 444C
60' DOT 1/4 inch air line
All necessary fittings, power cables and plugs

Specifications

Part Number	D-MA-22-ARVEL
Part Name	D2 Racing Air Struts with VERA Element Management
Vehicle	1990-1994 Mazda 323
Chassis Code
Damping Adjustable	Yes - 36 Way
Height Adjustable	Yes
Front Top Mounts	Yes
Rear Top Mounts	Yes
Front Camber Plates	No
Rear Camber Plates	No

Vehicle Fitment

1990 Mazda 323
1991 Mazda 323
1992 Mazda 323
1993 Mazda 323
1994 Mazda 323

Warranty

One Year Wear and Tear Warranty

Wear and tear items such as bushings, ball joints, shock dampening properties/leakage are covered for the original purchaser for one year from date of purchase on the originally installed vehicle.

D2 Racing Warranty Links

Important Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.
