D2 Racing Air Struts with VERA Basic Management - 1990-1993 Toyota Celica AWD All-Trac

Name: D2 Racing Air Struts with VERA Basic Management - 1990-1993 Toyota Celica AWD All-Trac
Brand: D2 Racing
Price: 2805.0 USD
Availability: InStock

$2,805.00 ~~$3,300.00~~ On Sale

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description
Specifications
Vehicle Fitment
Warranty
Important Notes

Description

The D2 Racing VERA Basic Management system for the 1990-1993 Toyota Celica AWD All-Trac is a step up from our VERA Essential management system, adding a brushed 4 gallon Specialty Suspension Seamless tank and ABS baseboard. Air Suspension is ideal for the car enthusiasts looking for the best of both worlds the ability to have a slammed car look and raise it back to stock height when needed for normal everyday driving. This manual air management system includes everything needed for a simple install when paired with D2 Air Struts.

D2 Racing Air Struts allow for adjustment through both the lower mount and inflatable sleeve or double bellow style air bellow which allows for ultimate range of ride height adjustment. Each air shock features a 36-way damping adjustable design for fine tuning of ride quality and responsiveness.

Product Notes

This product is made to order. Once the order is placed, it cannot be modified or canceled.
Pillowball mounts are included for select vehicle applications.
Camber plates are not included.

Features

D2 Racing Air Suspension systems enables users to change air pressure and can also adjust the maximum and minimum ride height freely to match up to a body kit to get the desired ride height.
This system is designed for easy bolt-on installation.
D2 Racing Air Suspension systems have 36 levels of adjustable dampening as well as ride height adjustable.
You can adjust the ride height with such ease while in the car. The ride height can be adjusted all the time to reach your desired height depending on the load of your vehicle.
The adjustment range of ride height is between 0 and 120/200mm. (based on different applications)
The speed of lowering and raising vehicle ride height is 4-7 seconds.

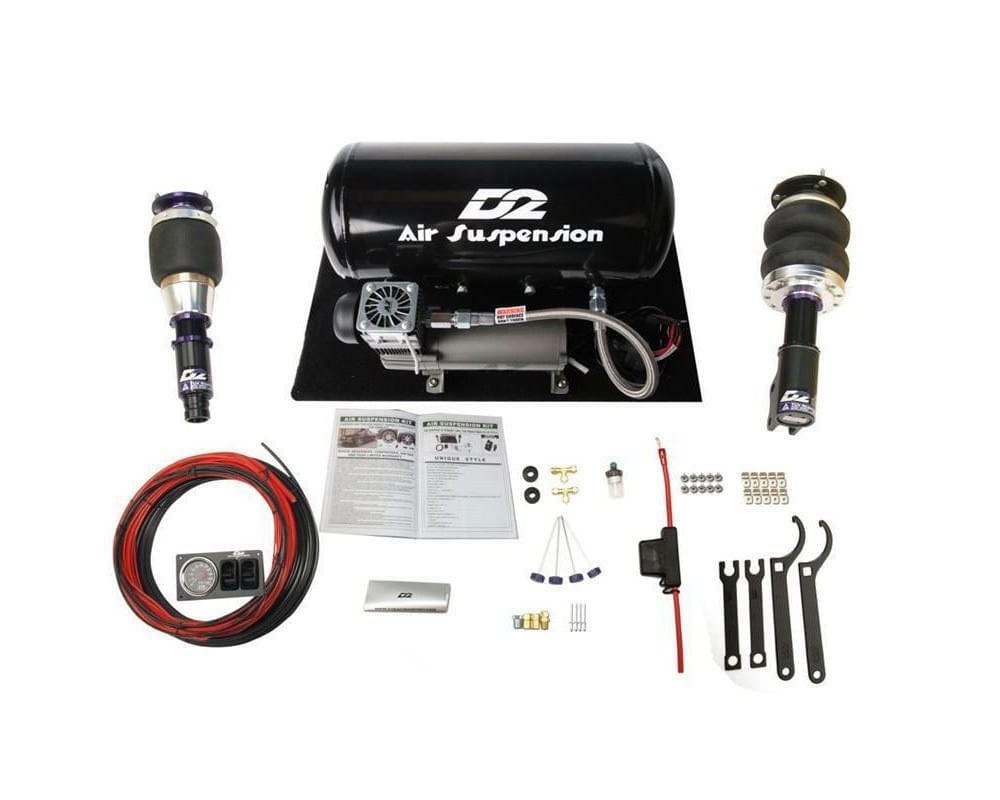

Kit Includes

D2 Racing Air Struts
Dual pneumatic paddle valve controllers (Front and Rear)
Dual needle 220 PSI pressure gauge with backlit display
4 Gallon Specialty Suspension Seamless Air Tank
ABS Basebord
Chrome VIAIR 444C
150-175 PSI pressure switch
60' DOT 1/4 inch air line
All necessary fittings, power cables and plugs

Specifications

Part Number	D-TO-18-ARB
Part Name	D2 Racing Air Struts with VERA Basic Management
Vehicle	1990-1993 Toyota Celica AWD All-Trac
Chassis Code
Damping Adjustable	Yes - 36 Way
Height Adjustable	Yes
Front Top Mounts	Yes
Rear Top Mounts	Yes
Front Camber Plates	No
Rear Camber Plates	No

Vehicle Fitment

1990 Toyota Celica AWD All-Trac
1991 Toyota Celica AWD All-Trac
1992 Toyota Celica AWD All-Trac
1993 Toyota Celica AWD All-Trac

Warranty

One Year Wear and Tear Warranty

Wear and tear items such as bushings, ball joints, shock dampening properties/leakage are covered for the original purchaser for one year from date of purchase on the originally installed vehicle.

D2 Racing Warranty Links

Important Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.
