Product Details

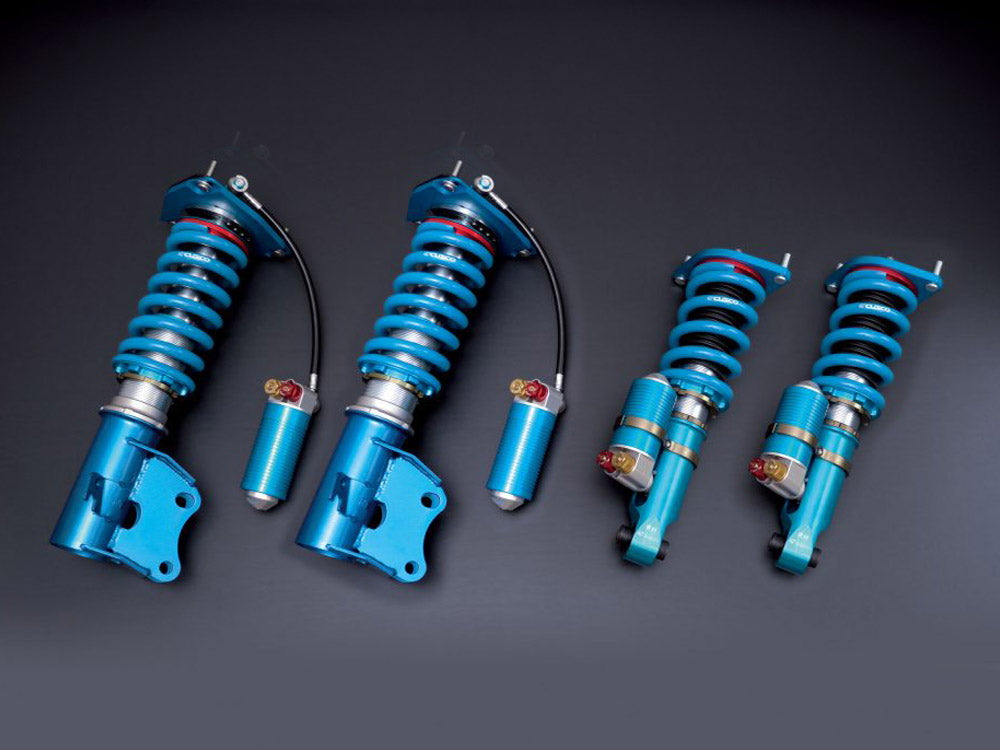

The Cusco Sport X Coilovers for the 2008-2015 Mitsubishi Lancer Evolution (CZ4A) are a mono-tube coilover kit with three-way damping adjustment through an external reservoir and full-length ride height adjustment.
Cusco lists this kit under part number 566 64X CP for the CZ4A chassis. Made in Japan.
Features
- Mono-tube damper
- Damping adjustment: 3-Way (24 levels)
- Full-length ride height adjustment on both axles
- Upper mounts: front Pillowball (camber adjustable), rear Pillowball (fixed)
- Made in Japan
Specifications
| Part Number | 566 64X CP |
| Part Name | Cusco Sport X Coilovers |
| Vehicle | 2008-2015 Mitsubishi Lancer Evolution |
| Quantity | 4 Coilovers |
| Placement | Front & Rear |
| Chassis Code | CZ4A |
| Engine | 4B11 |
| Drivetrain | AWD |
| Damping Adjustment | 3-Way (24 levels) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 14 Kg/mm (optional 10, 11, 12, 16, 18) |
| Spring Rate - Rear | 9 Kg/mm (optional 7, 8, 10, 11, 12) |
| Top Mounts - Front | Pillowball (camber adjustable) |
| Top Mounts - Rear | Pillowball (fixed) |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | True Coilover |
| Notes | - |
