Product Details

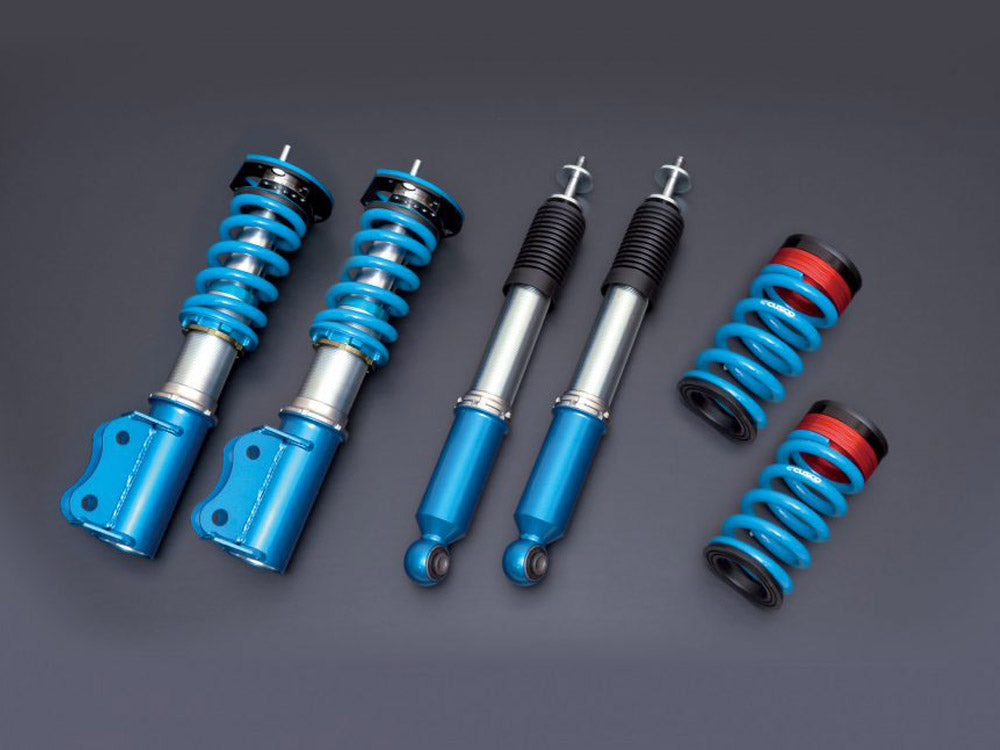

The Cusco Sport R Coilovers for the 1992-2002 Mazda RX-7 (FD3S) are a mono-tube coilover kit with adjustable damping and full-length ride height adjustment.
Cusco lists this kit under part number 422 64R CP for the FD3S chassis. Made in Japan.
Features
- Mono-tube damper
- Damping adjustment: 1-Way (24 levels)
- Full-length ride height adjustment on both axles
- Upper mounts: front Pillowball (fixed), rear Pillowball (fixed)
- Made in Japan
Specifications
| Part Number | 422 64R CP |
| Part Name | Cusco Sport R Coilovers |
| Vehicle | 1992-2002 Mazda RX-7 |
| Quantity | 4 Coilovers |
| Placement | Front & Rear |
| Chassis Code | FD3S |
| Engine | 13B-REW |
| Drivetrain | RWD |
| Damping Adjustment | 1-Way (24 levels) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 16 Kg/mm (optional 12, 14, 18, 20, 22, 24) |
| Spring Rate - Rear | 16 Kg/mm (optional 12, 14, 18, 20, 22, 24) |
| Top Mounts - Front | Pillowball (fixed) |
| Top Mounts - Rear | Pillowball (fixed) |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | True Coilover |
| Notes | - |
