Product Details

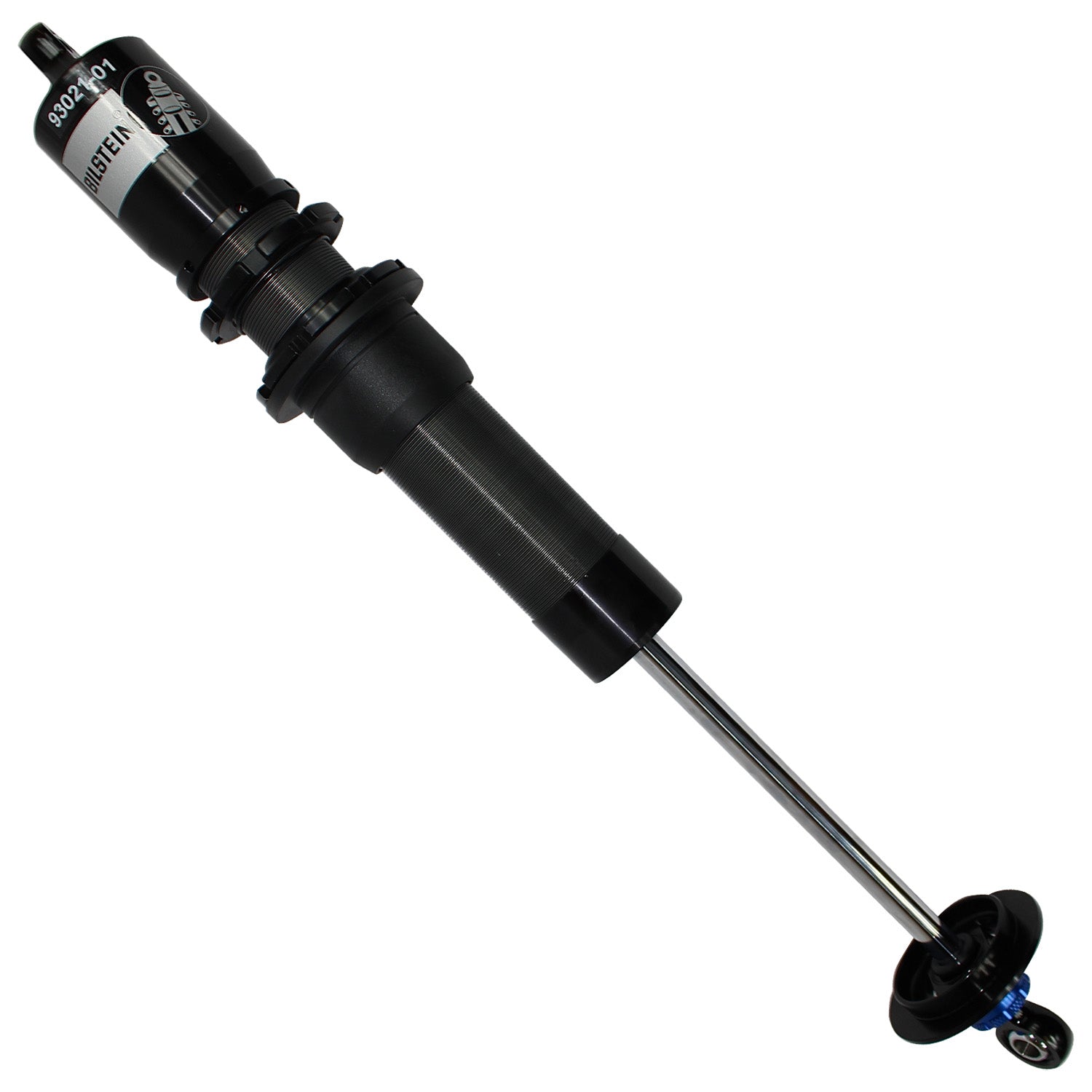

Bilstein XVA Series Shock Absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These Shock Absorbers are available in non-single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series Shock Absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
XVA Series shocks are aluminum threaded body race shocks with a large dual zone nitrogen bulb, offered non-adjustable, single or double adjustable. Pistons, piston bands and heims are sold separately.
Note: Product Images may not represent the actual Sku
Features
- 46mm extruded aluminum threaded body improves durability and heat dissipation
- Dual-zone gas bulb decreases gas pressure while increasing grip levels
- Optimized floating piston improves driver feel and response
Specifications
| Part Number | 33-339344 |
| Part Name | Shock Absorber |
| UPC | 651860915845 |
| Segment | Motorsports |
| Series | XVA Series |
| Quantity | Sold Individually |
| Collapsed Length | 17.59 in. |
| Extended Length | 27.43 in. (696.7mm) |
| Stroke | 9.84 in. (249.9mm) |
| Body Design | Threaded Body Large Bulb Screw Top (Coilover) |
| Internal Design | Monotube |
| Piston Diameter | 46mm |
| Shaft Diameter | 14mm |
| Upper Mount Type | 1/2in Heim |
| Lower Mount Type | 1/2in Heim |
| Boot Included | No |
| Spring Seat Included | No |
| Damping Adjustable | Single Adjustable - Open Jet |
| Finish | Clear Anodized |
