Product Details

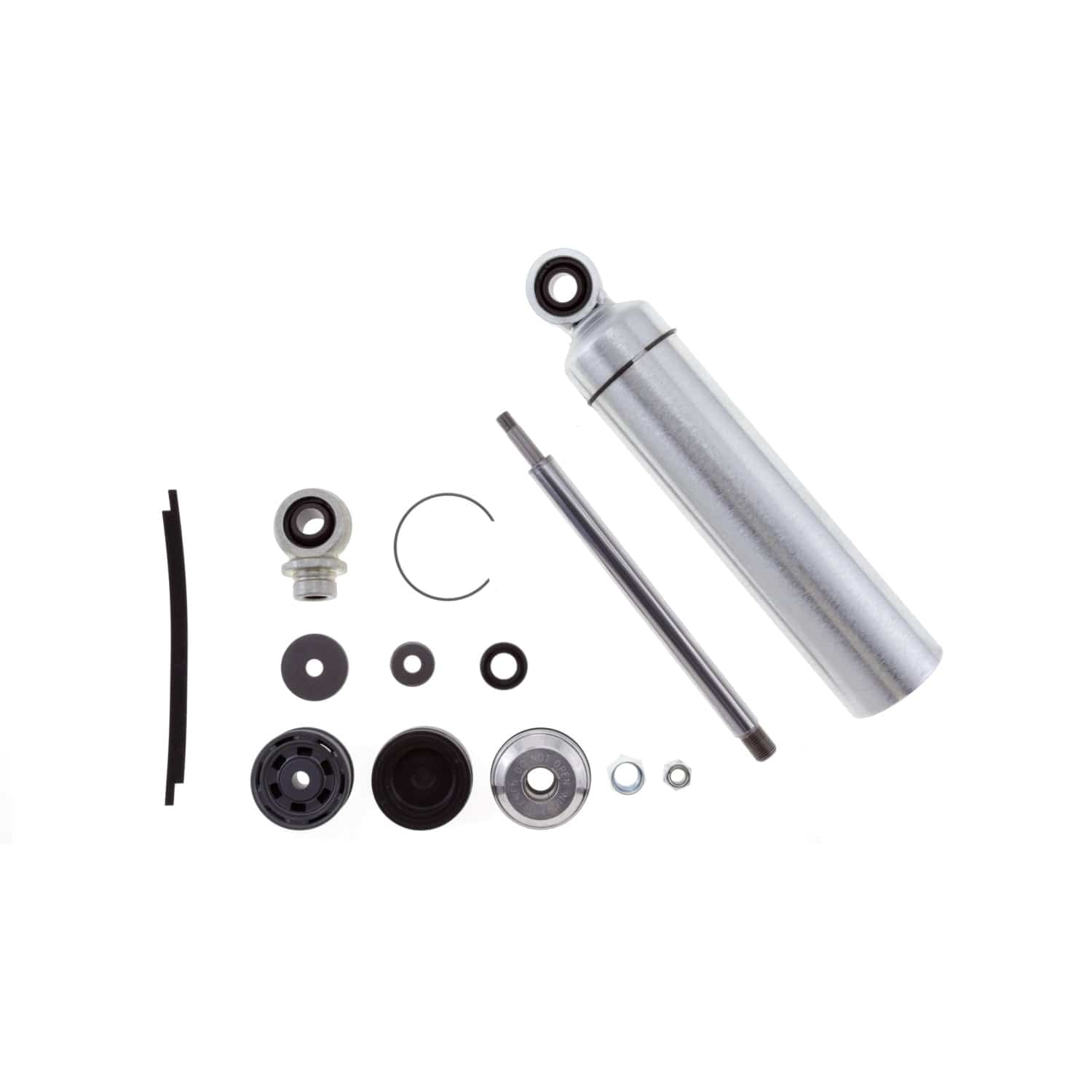

Bilstein SZ Series Shock Absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These Shock Absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled with no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series Shock Absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
Standard Features
- Plated steel body for durability and superior heat dissipation
- 46mm piston design for maximum damping control
- Standard 1/2 graphite heims
Specifications
| Part Number | 33-243429 |
| Part Name | Shock Absorber |
| UPC | 651860750309 |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 46 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 11.08 in. |
| Collapsed Length | 281.5 mm |
| Damping Adjustable | No |
| Extended Length | 16.28 in. |
| Extended Length | 413.5 mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Piston Type | Digressive |
| Segment | Motorsports |
| Series | SZ Series |
| Spring Seat Included | No |
| Upper Mount Type | 1/2 in. Heim |
| Valving Identifier | Digressive Dry Kit (No Valving) |
| Quantity | Sold Individually |
