Product Details

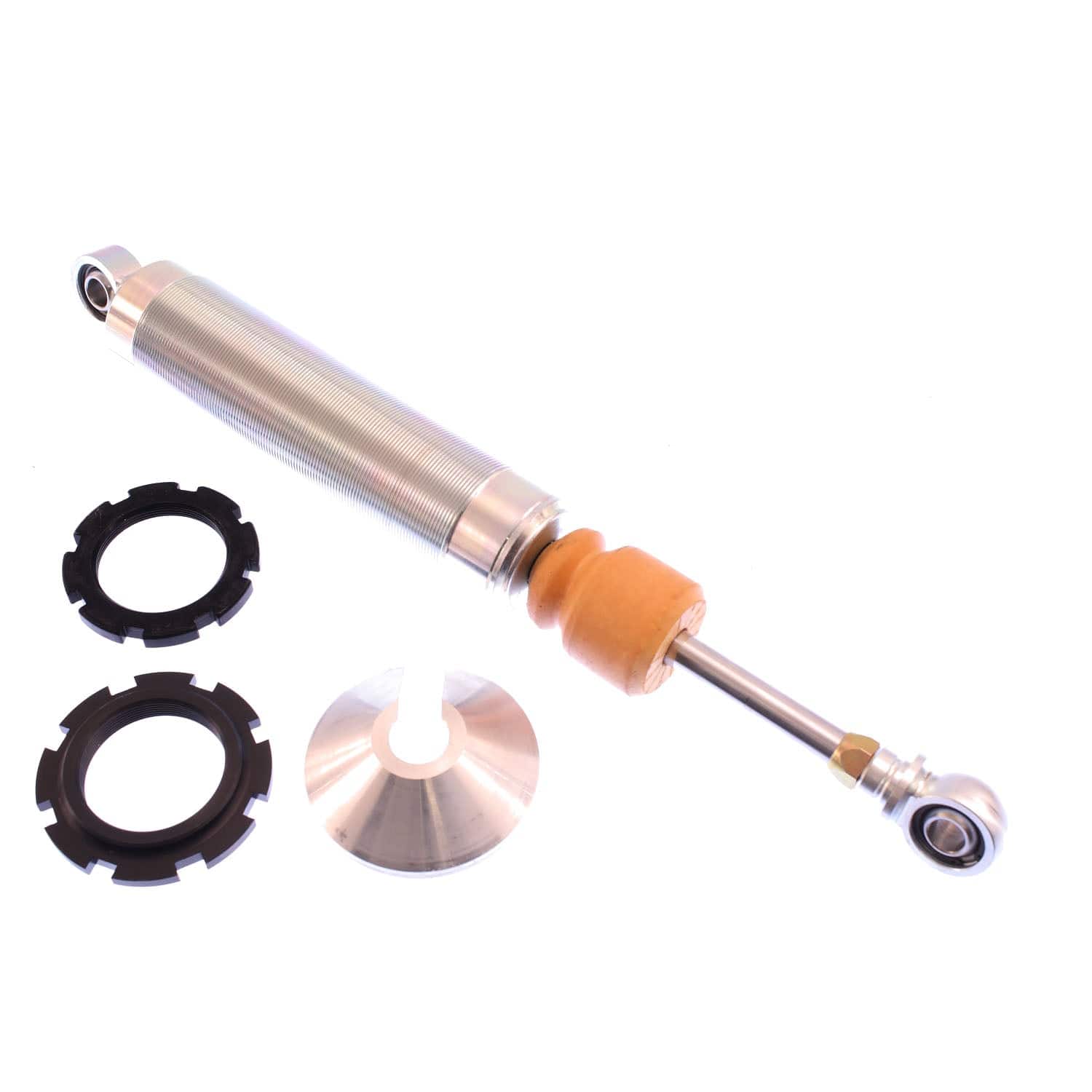

At 14.00 in. collapsed: The Bilstein M 7100 shock absorber is a universal-fit part, chosen on collapsed and extended length rather than a year-make-model lookup. Fabricators, restorers, and race teams buy these to suit a custom setup.
Inside is Bilstein's monotube design, gas and oil separated by a floating piston. That is what keeps the damping honest when the surface turns rough and the temperature climbs.
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Available for standard and coilover applications in a wide variety of lengths
- Self-adjusting deflective disc valving
Specifications
| Part Number | B46-0206W |
| Part Name | Shock Absorber |
| UPC | 790832511729 |
| Body Design | Threaded Body (Coilover) |
| Body Diameter (ID) | 46 mm |
| Collapsed Length (Rounded) | 14 in. |
| Collapsed Length | 14.00 in. (355.6 mm) |
| Compression @ 0.52m/s | Custom |
| Extended Length (Rounded) | 22 in. |
| Extended Length | 22.25 in. (565.2 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Mount Type | Eye-to-Eye |
| Rebound @ 0.52m/s | Custom |
| Reservoir | No |
| Segment | Motorsports |
| Series | M 7100 Classic (Coilover) |

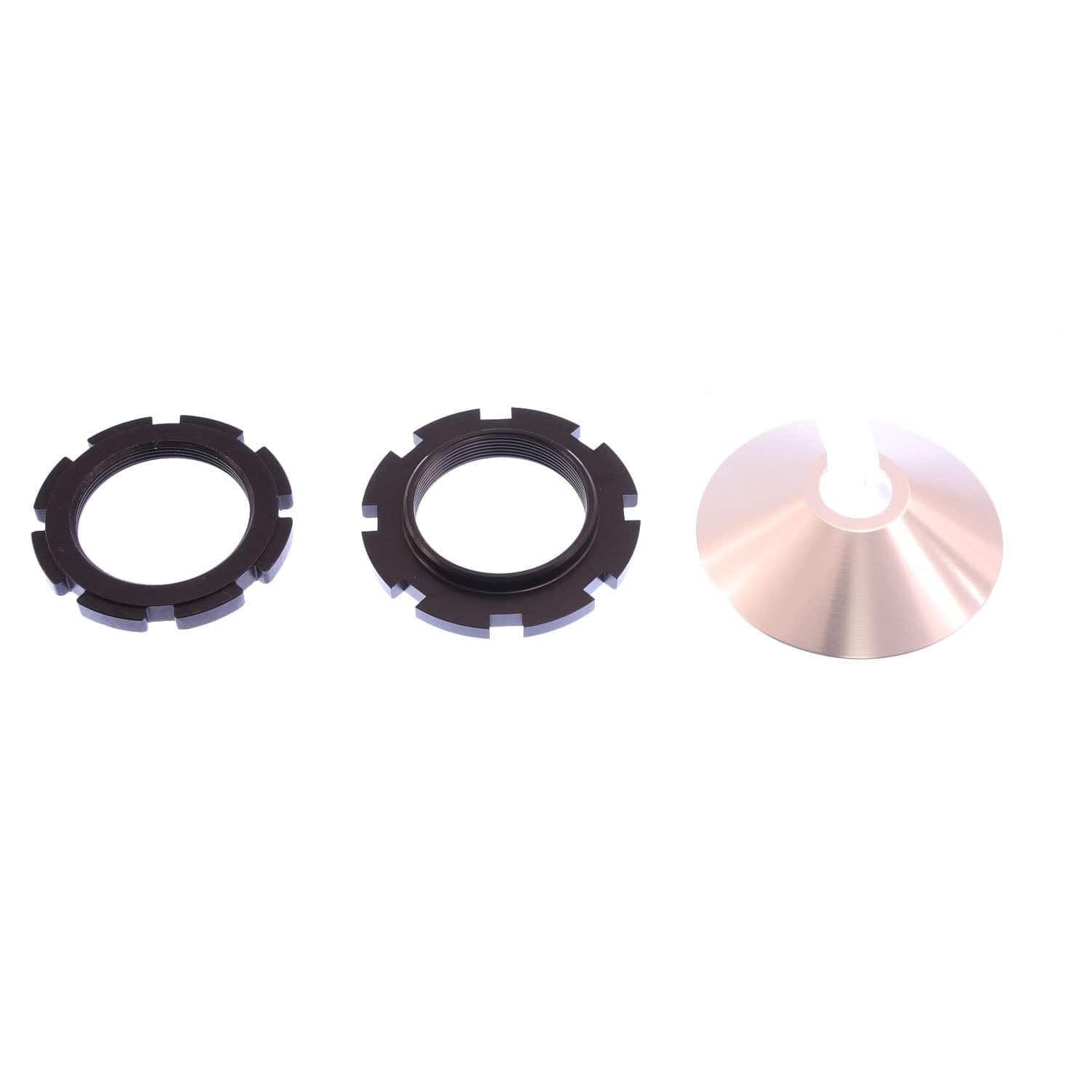

| Spring Seat Included | Yes |
| Upper Mount Type | 1/2 in. Heim |
| Quantity | Sold Individually |
