Product Details

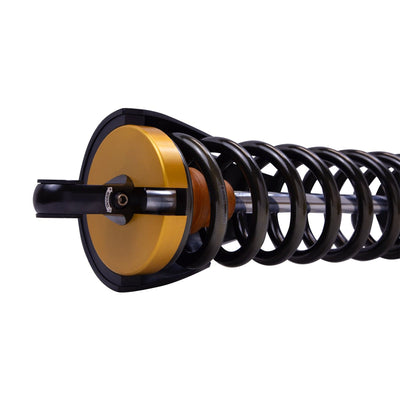

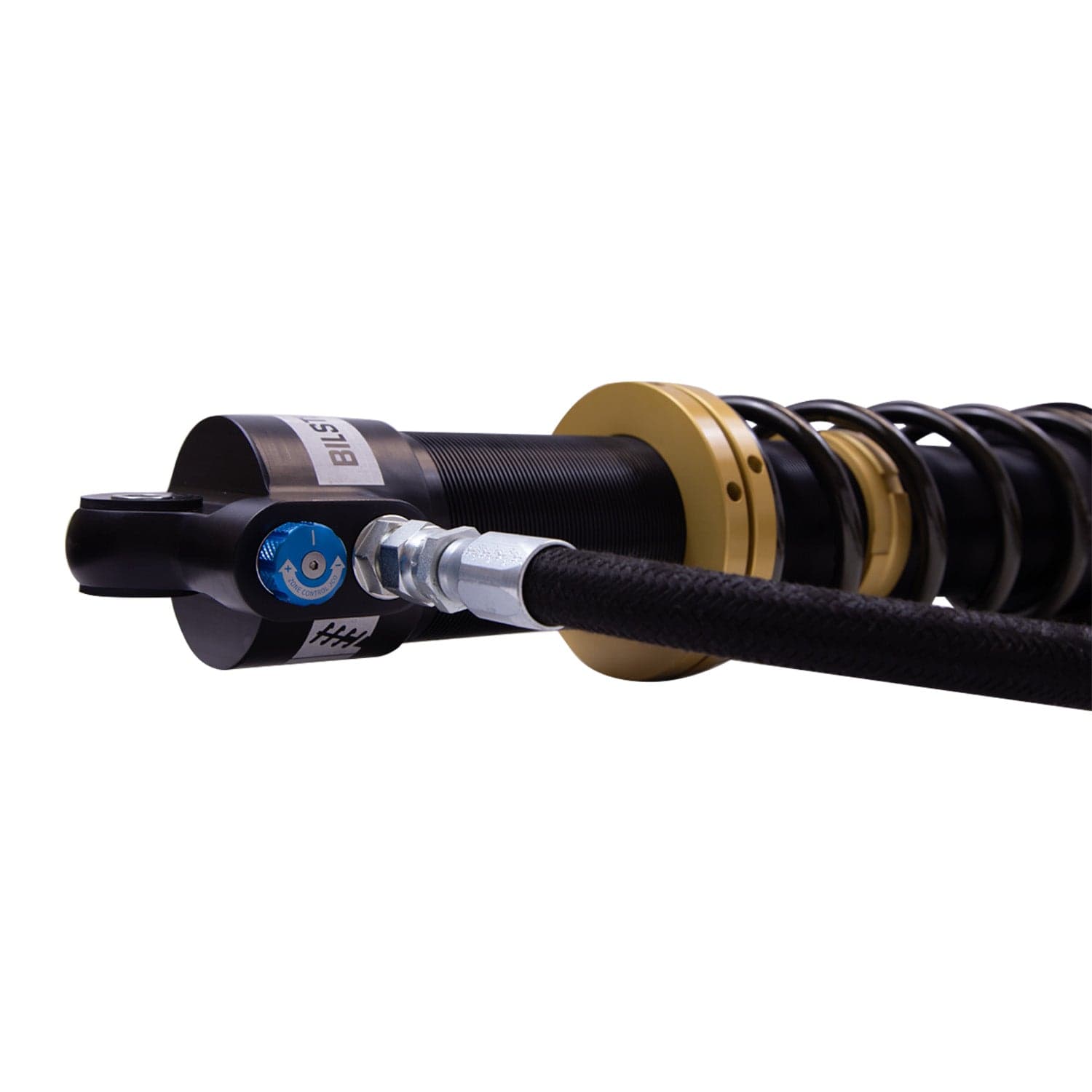

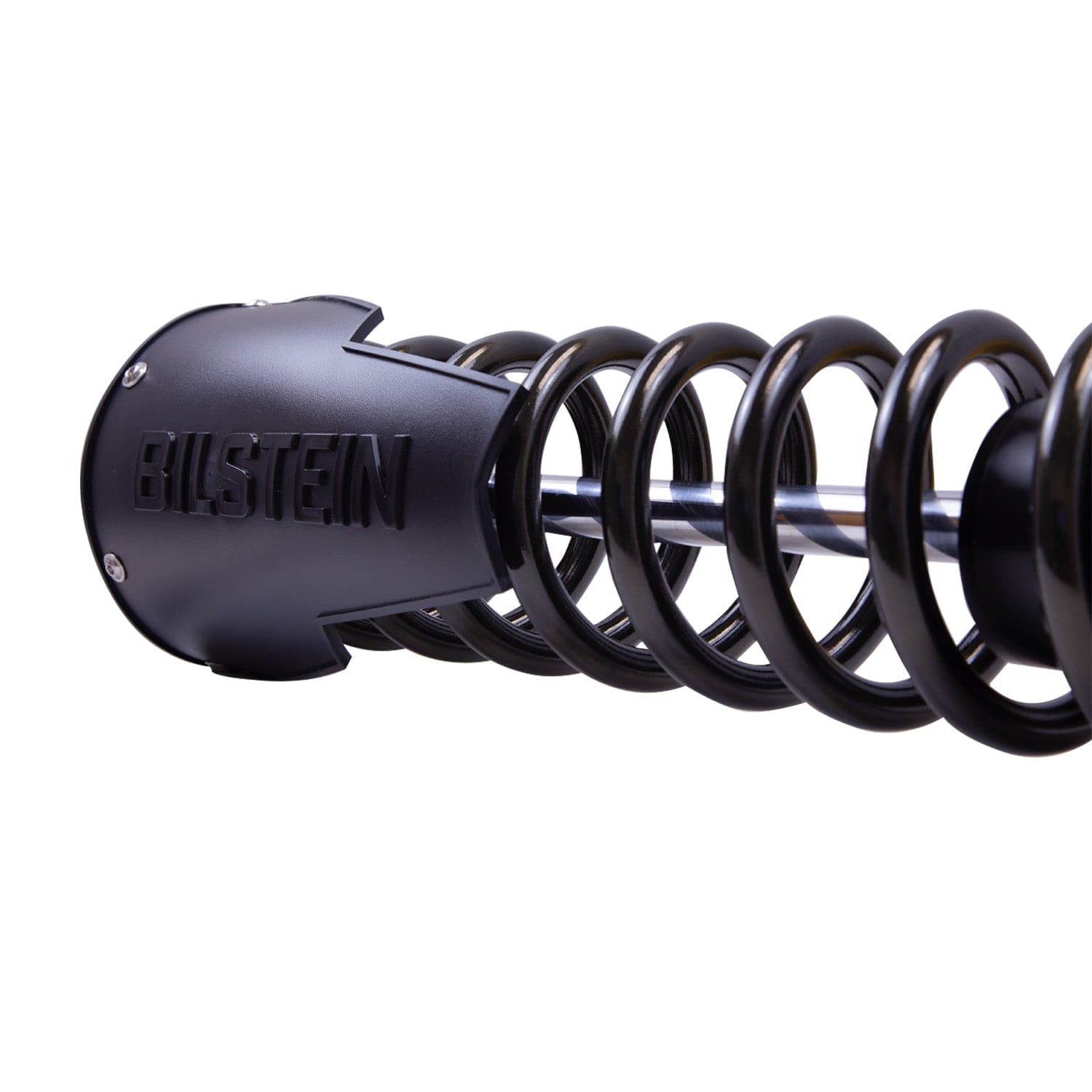

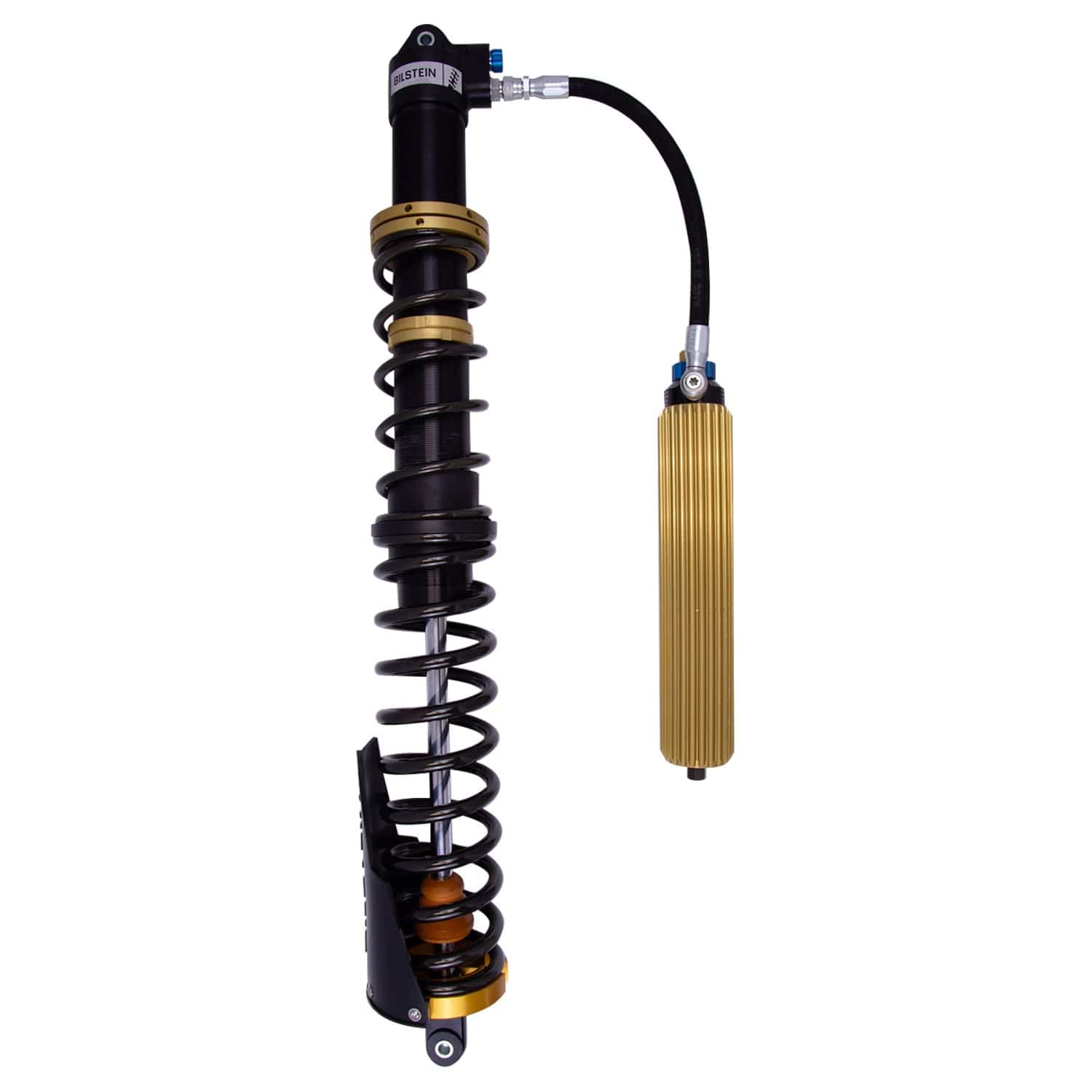

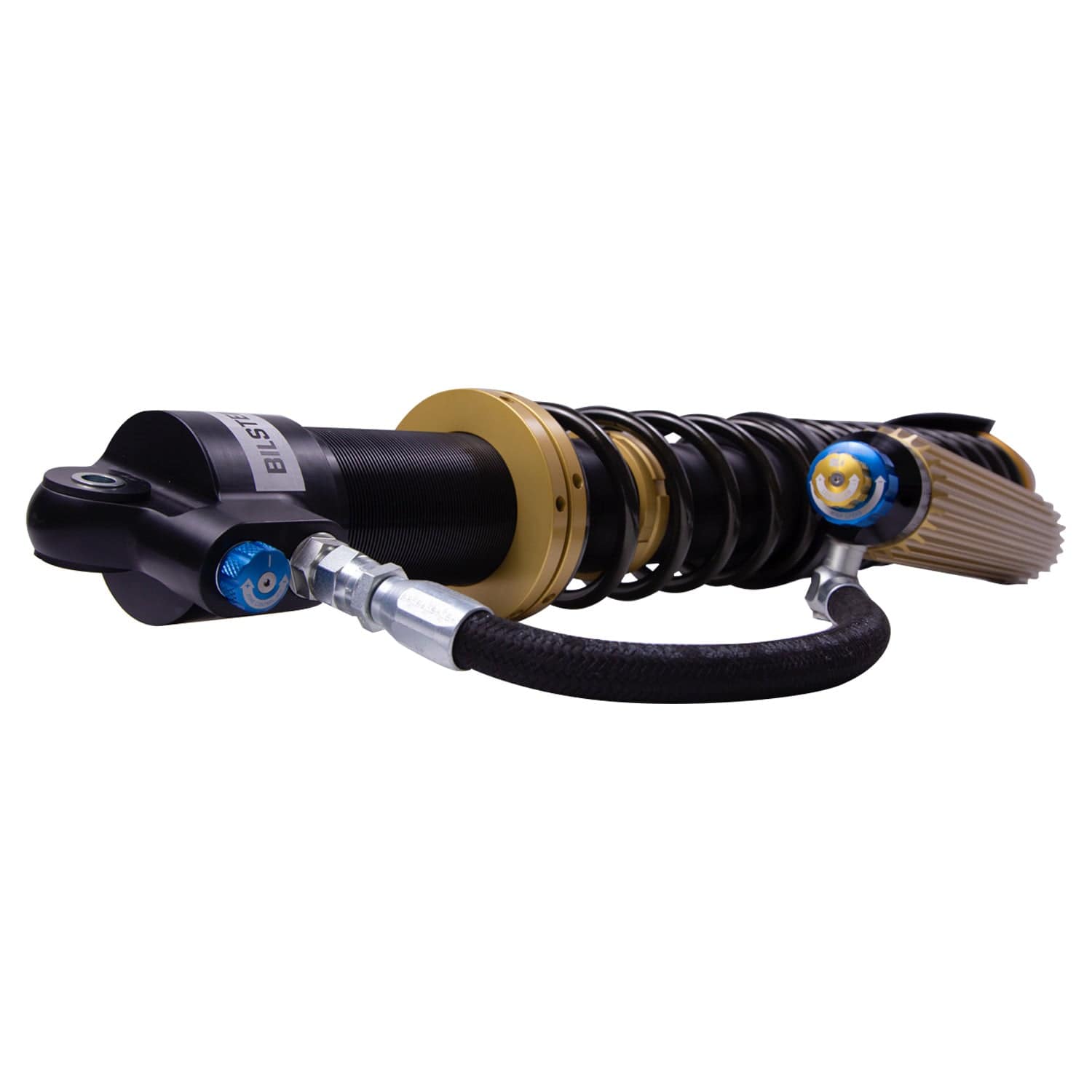

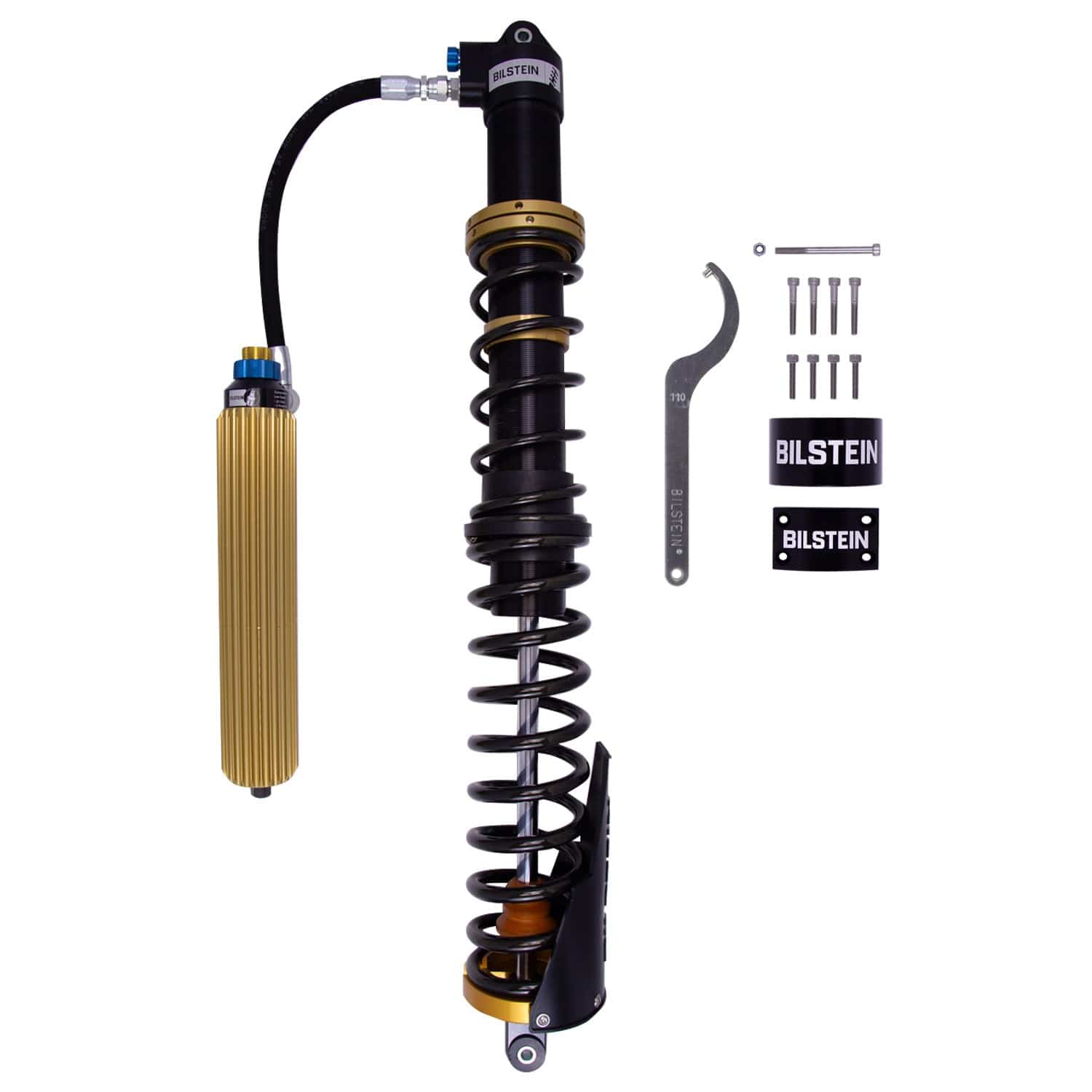

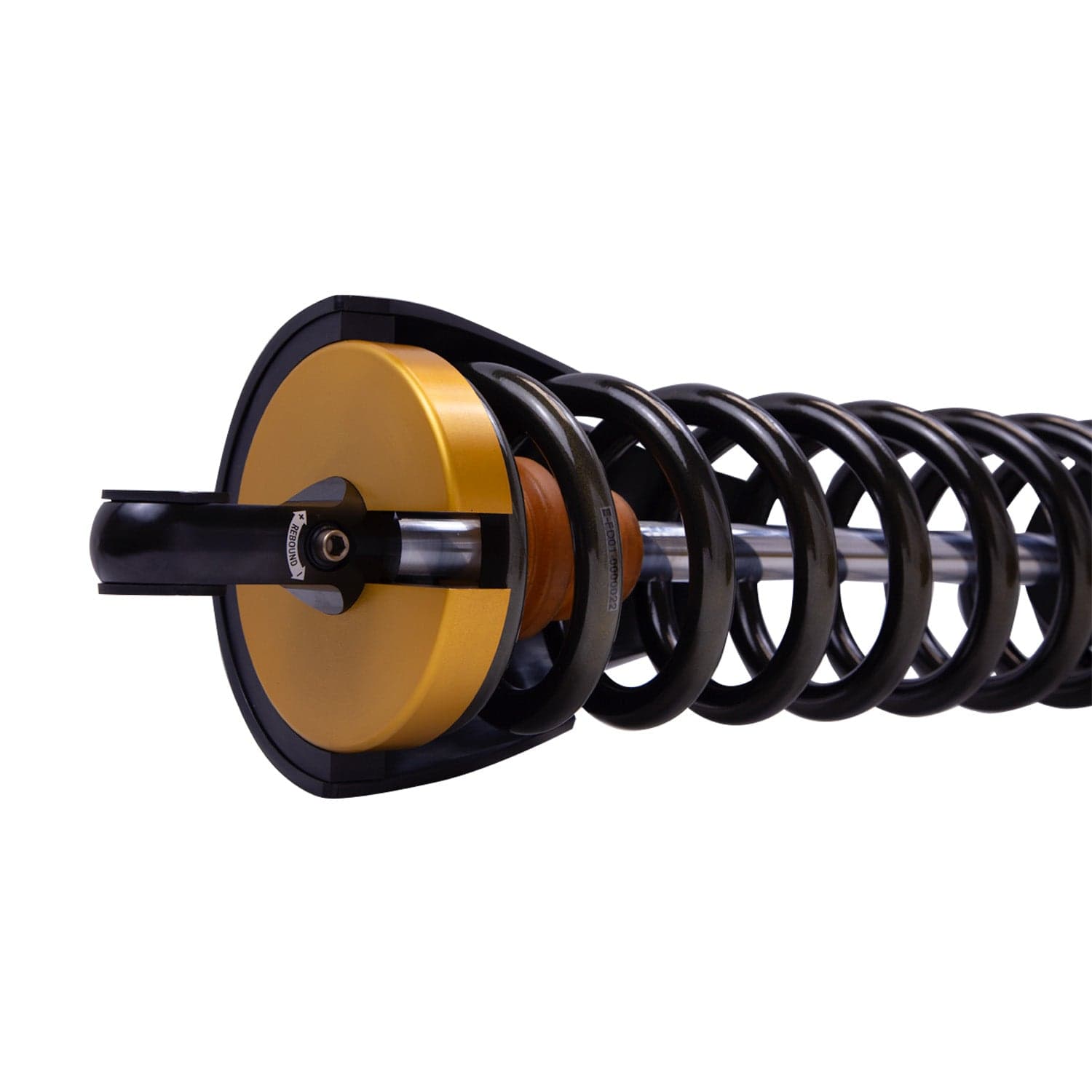

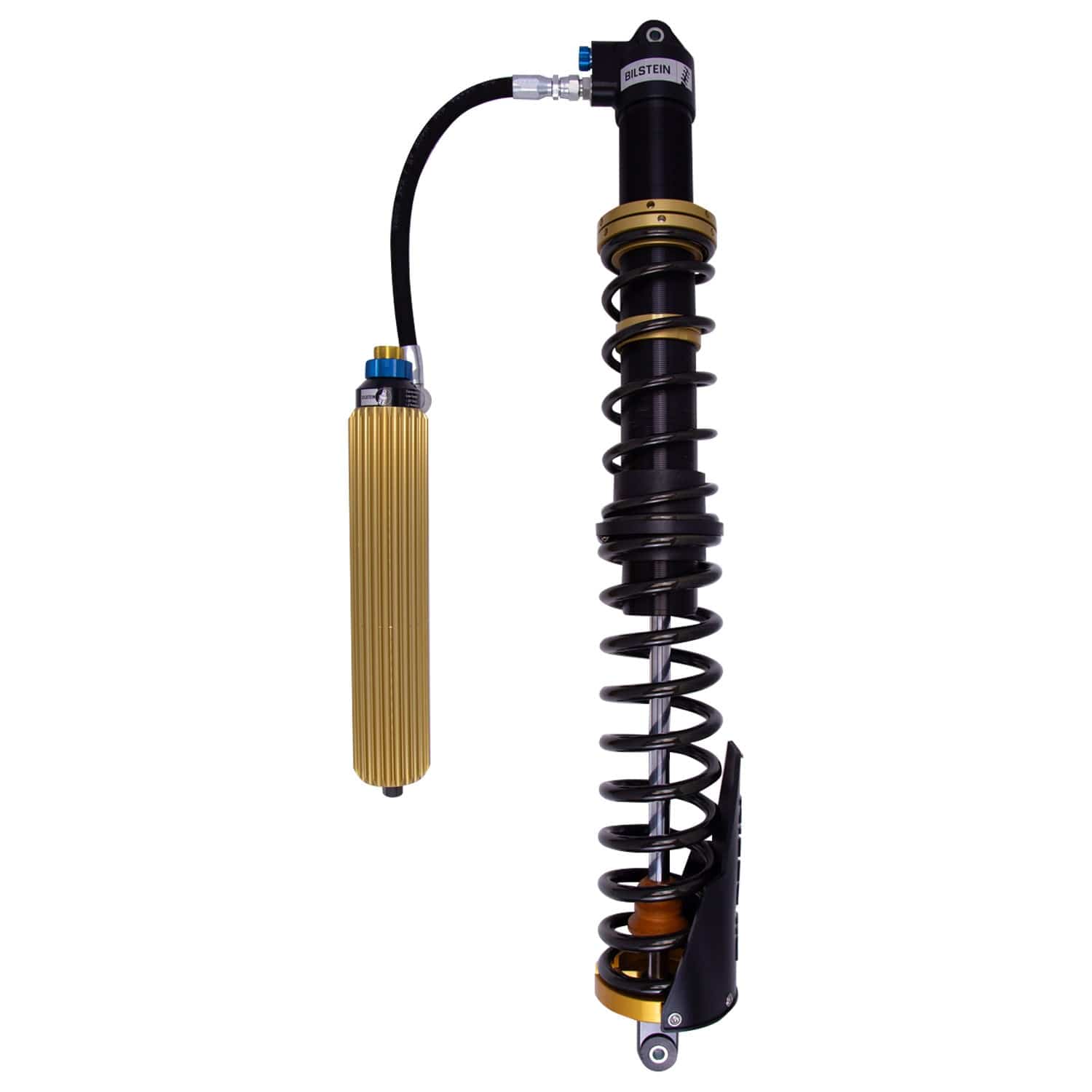

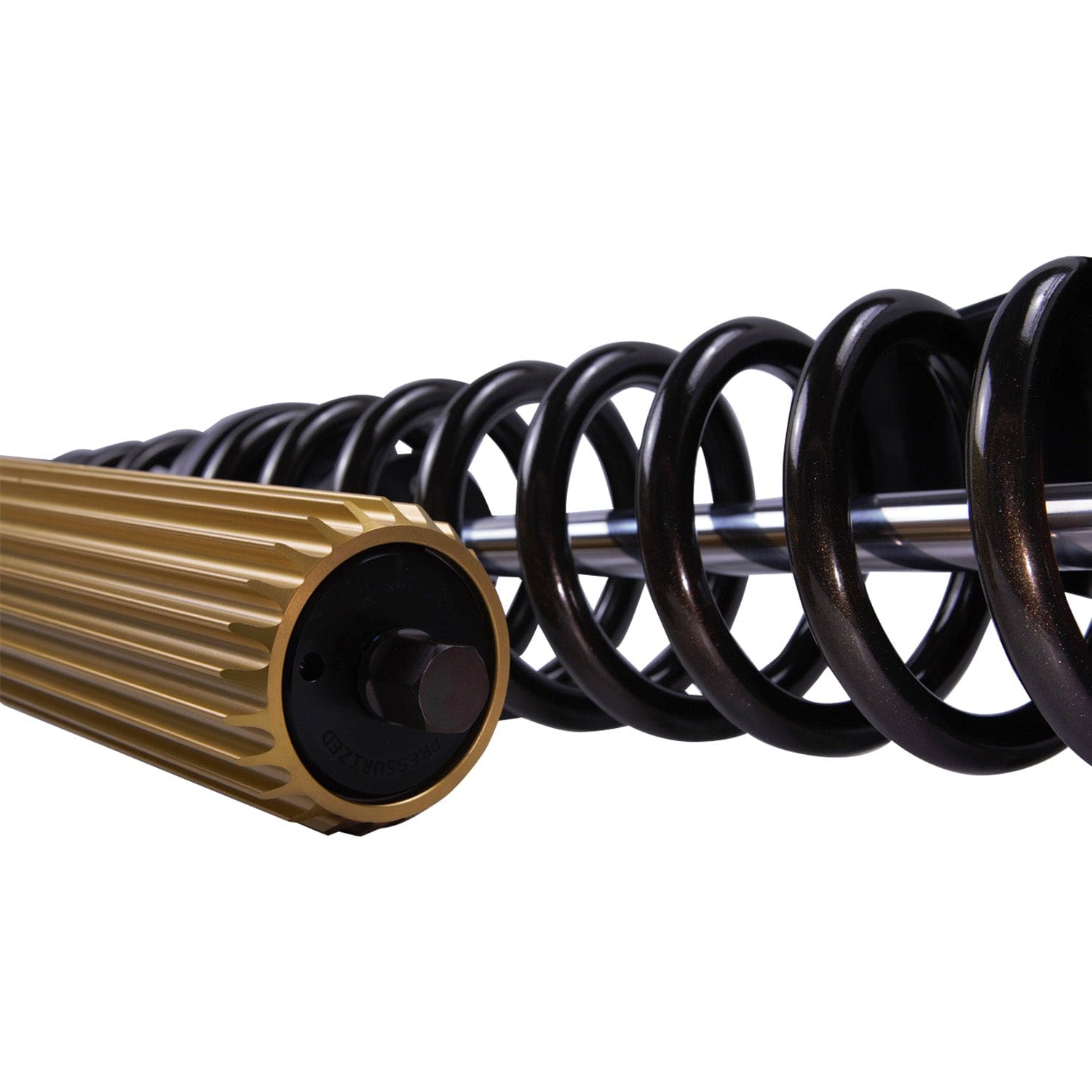

This Bilstein Black Hawk rear right shock and spring assembly fits the 2022-2023 Can-Am Maverick X3 RS Turbo RR. Bilstein Black Hawk Powersports Coilovers for the Can-Am Maverick X3 RS Turbo RR are specifically engineered to vastly improve the performance of your UTV. These direct fit coilovers offer position sensitive damping and 4-way adjustability. Black Hawk Powersports feature Bilstein's patented ZoneControl position sensitive technology that contains 5 independently tuned damping zones: 3 Compression and 2 Rebound. ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-Stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine tune bottom out control. For Rebound, ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper, eliminating the need for a limit strap. Black Hawk Powersports offer 4 unique external adjustments: High/Low speed compression, rebound, and JCO. All easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk powersports are an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments.
Black Hawk Powersports coilovers are direct fit UTV coilovers with Bilstein ZoneControl position sensitive damping and 4-way adjustment, including a 10-position internal hydraulic bump stop.
Black Hawk Powersports are completely serviceable and designed to withstand race conditions right out of the box. This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom out control. Experience a unique bottomless ride with Bilstein's new Black Hawk Powersports coilover packages.
Features
- Zone Control CR - Position Sensitive Damping

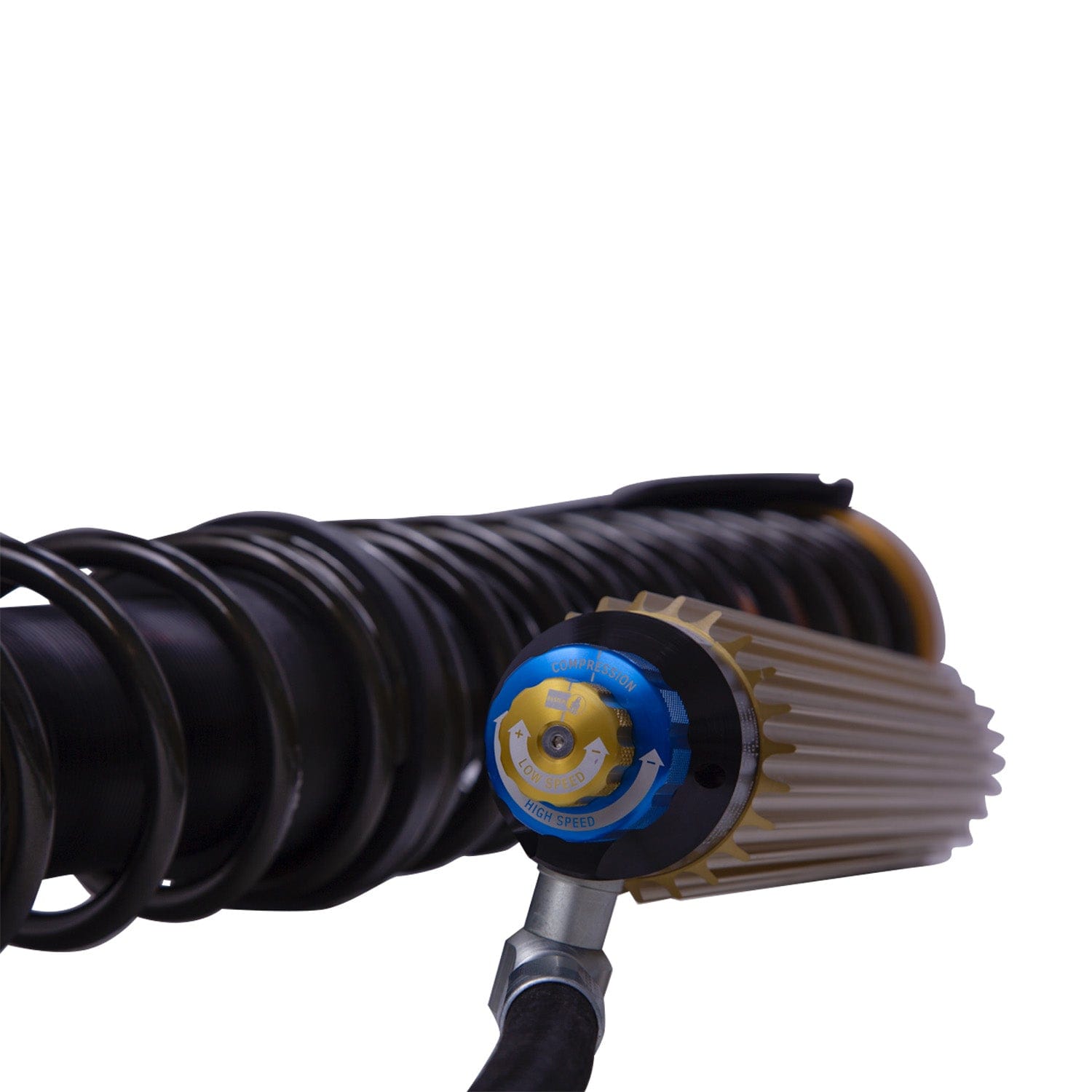

- 4-Way Adjustable Damping: Dual Speed Compression Adjustable Reservoir (High-Low Speed), Adjustable Internal Hydraulic Bump Stop (JCO), Adjustable Rebound
- Direct Fit Motorsports Package
Matching Left Side
Bilstein pairs this part with 41-325001 for the left side. See 41-325001 for the same vehicle.
Matching Front Parts
The Black Hawk Powersports front parts for the same vehicle: left 41-324998 and right 41-330579.
Specifications
| Part Number | 41-330623 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2022-2023 Can-Am Maverick X3 RS Turbo RR |
| UPC | 651860913582 |
| Adjustment Type | 4-Way |

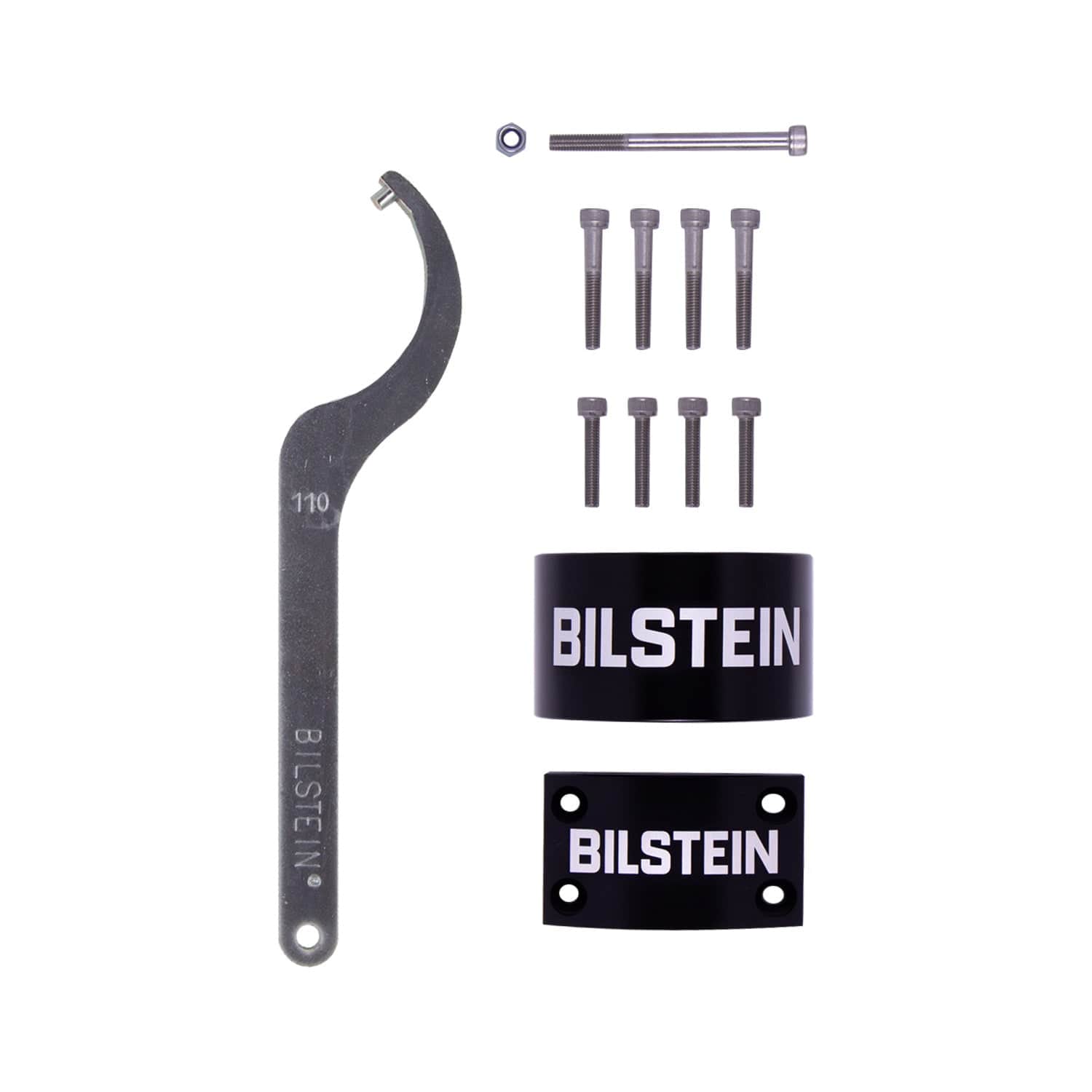

| Billet Reservoir Clamp Included | Yes |
| Body Design | Threaded Body |
| Body Material | 6061 Aluminum Alloy |
| Boot Included | No |
| Collapsed Length | 28.77 in. (730.8 mm) |
| Compression @ 0.52m/s | Adjustable |
| Damping Adjustable | Yes |
| Extended Length | 41.80 in. (1061.8 mm) |
| Finish | Type III Hard Anodized |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12 mm (ID) |
| Position | Rear Right |
| Rebound @ 0.52m/s | Adjustable |
| Reservoir | Yes |
| Segment | Motorsports |
| Series | Black Hawk Powersports |
| Upper Mount Type | Eye 12 mm (ID) |
| Stroke | 13.03 in. (331mm) |
| Piston Diameter | 70mm |
| Notes | 2 Seats |
