Product Details

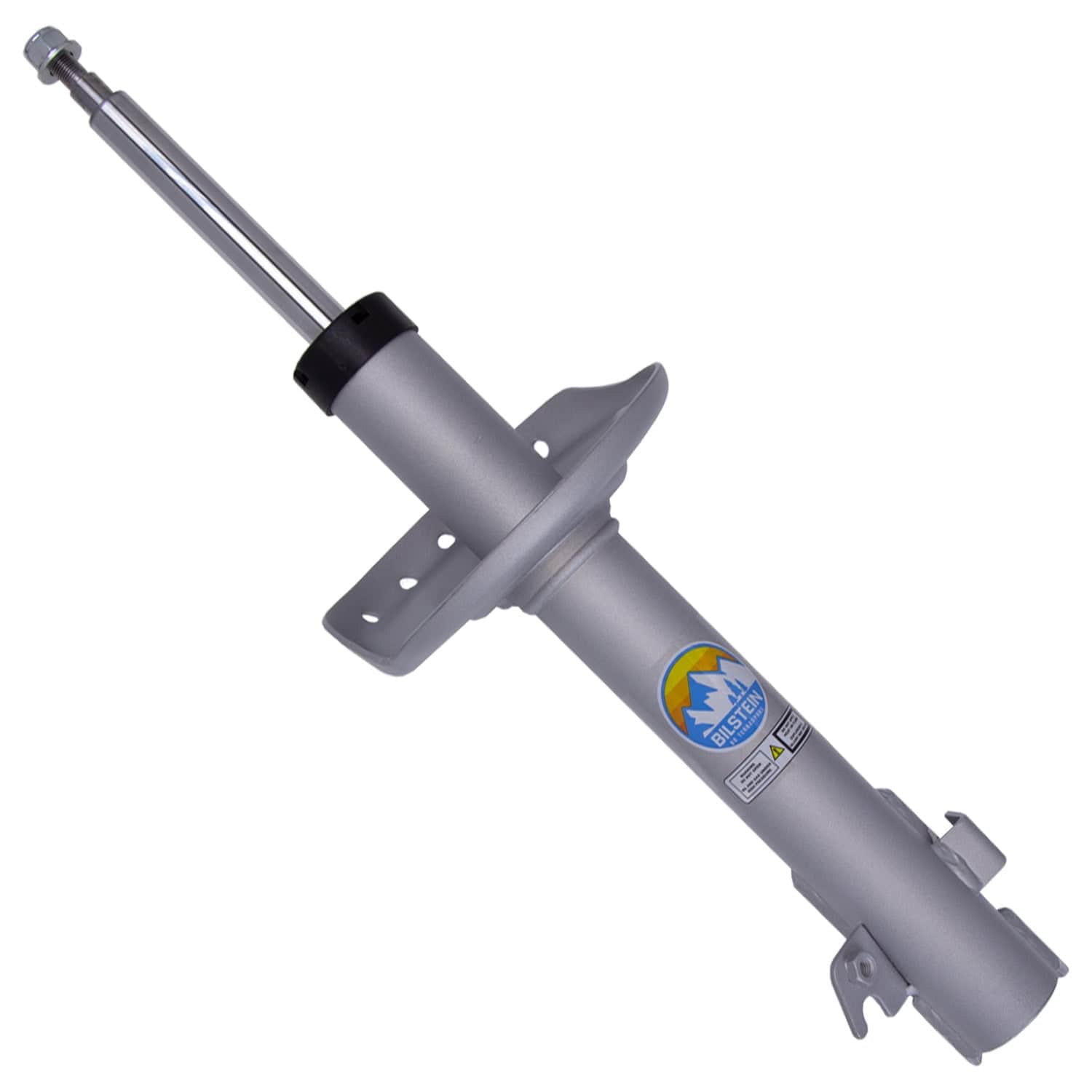

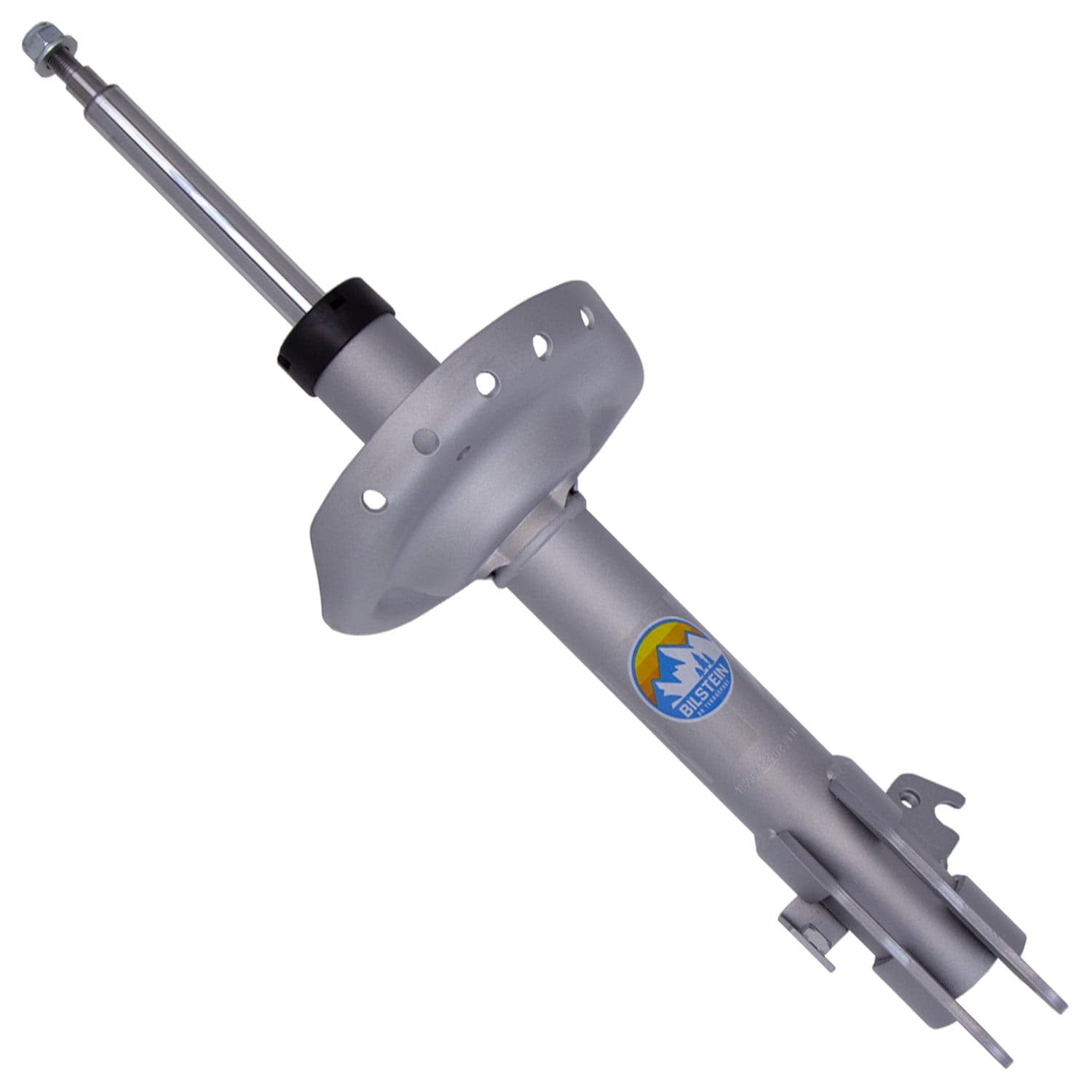

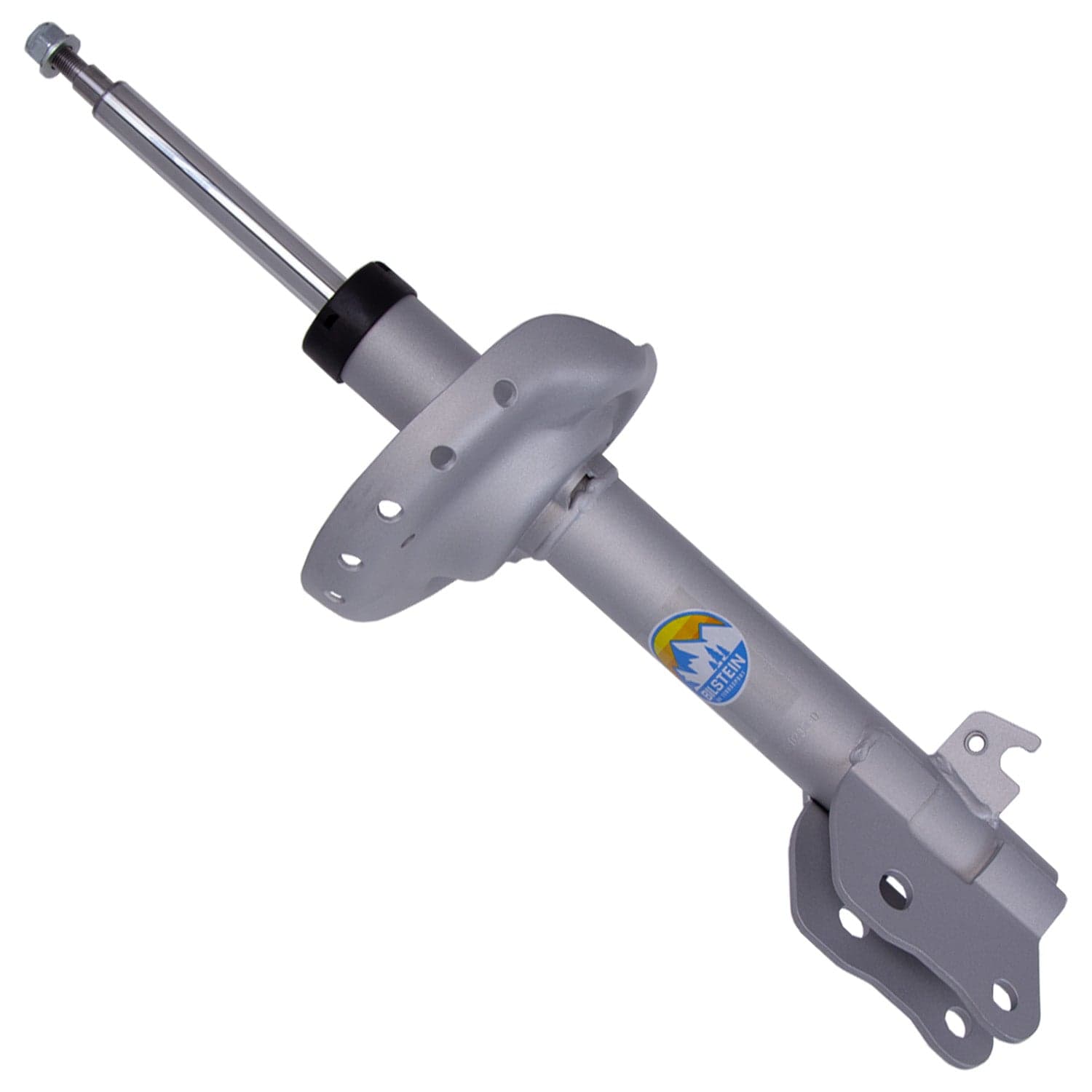

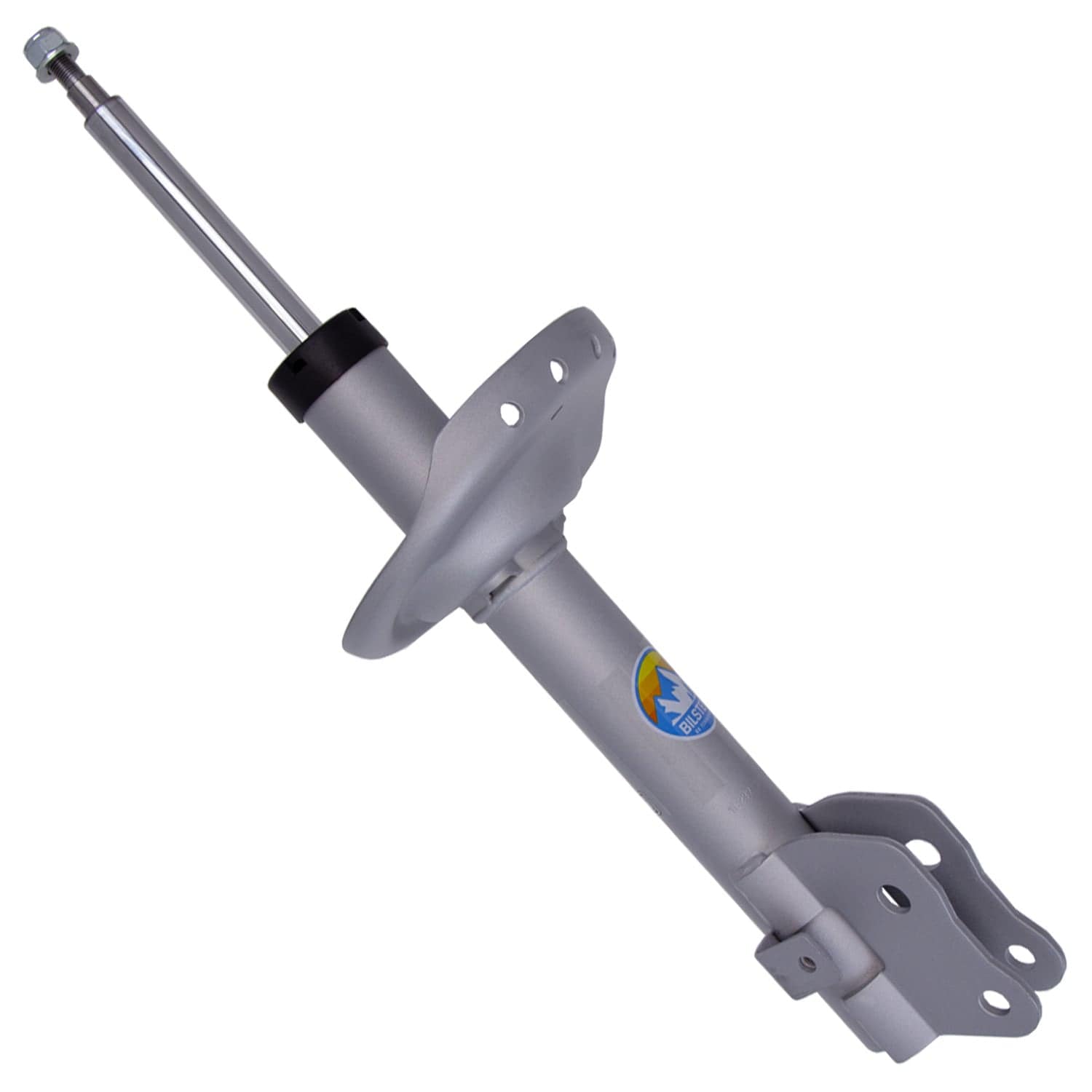

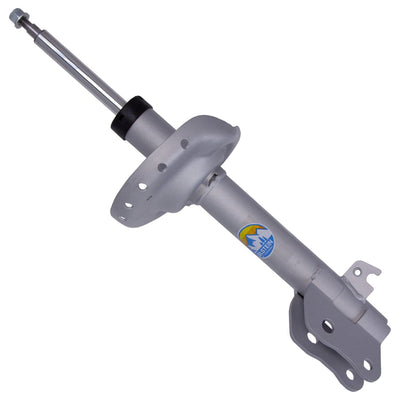

This Bilstein B8 TerraSport front left strut fits the 2009-2013 Subaru Forester. Lifts the front 1.5 in. It uses the factory coil springs and OEM mounting locations.

B8 TerraSport shocks are direct fit shocks for crossovers that add ground clearance, about 1-2 in. of lift depending on the vehicle, with tuning for each application.

This is a direct-fit part. It mounts in the original locations with the original hardware, so nothing needs modifying, and it carries Bilstein's limited lifetime warranty.

Features

  • Direct fit shocks are designed to increase ground clearance and improve off-road capabilities
  • No spacers required. Shocks lift vehicle 1-2 inches, depending on application
  • Utilizes vehicle's factory coil springs and OEM mounting locations, for a direct fit, easy installation

Matching Right Side

Bilstein pairs this part with 22-320247 for the right side. See 22-320247 for the same vehicle.

Matching Rear Part

The B8 TerraSport rear part for the same vehicle: 24-320252.

Specifications
Part Number 22-320230
Part Name Strut Assembly
Vehicle 2009-2013 Subaru Forester
Drivetrain AWD
UPC 651860917214
Front Lift Height 1.5 in.
Boot Included No
Damping Adjustable No
Finish Silver Paint
Internal Design Twintube
Lower Mount Type Bracket
Reservoir No
Segment Tuning
Series B8 TerraSport
Spring Seat Included Yes - Fixed
Upper Mount Type Stem
Quantity Sold Individually
Collapsed Length 16.52 in.
Extended Length 22.20 in. (564mm)
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009SubaruForesterAWD
2010SubaruForesterAWD
2011SubaruForesterAWD
2012SubaruForesterAWD
2013SubaruForesterAWD
