Product Details
Lifting or leveling a 2010-2024 Toyota 4Runner (N280) changes what the dampers have to do. The Bilstein B8 shock and spring assemblies are built for that taller stance and stay composed on rough ground.
Bilstein supplies suspension as original equipment to manufacturers around the world, and applies the same engineering here. It fits the factory mounting points exactly and is covered by a limited lifetime warranty.
Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs

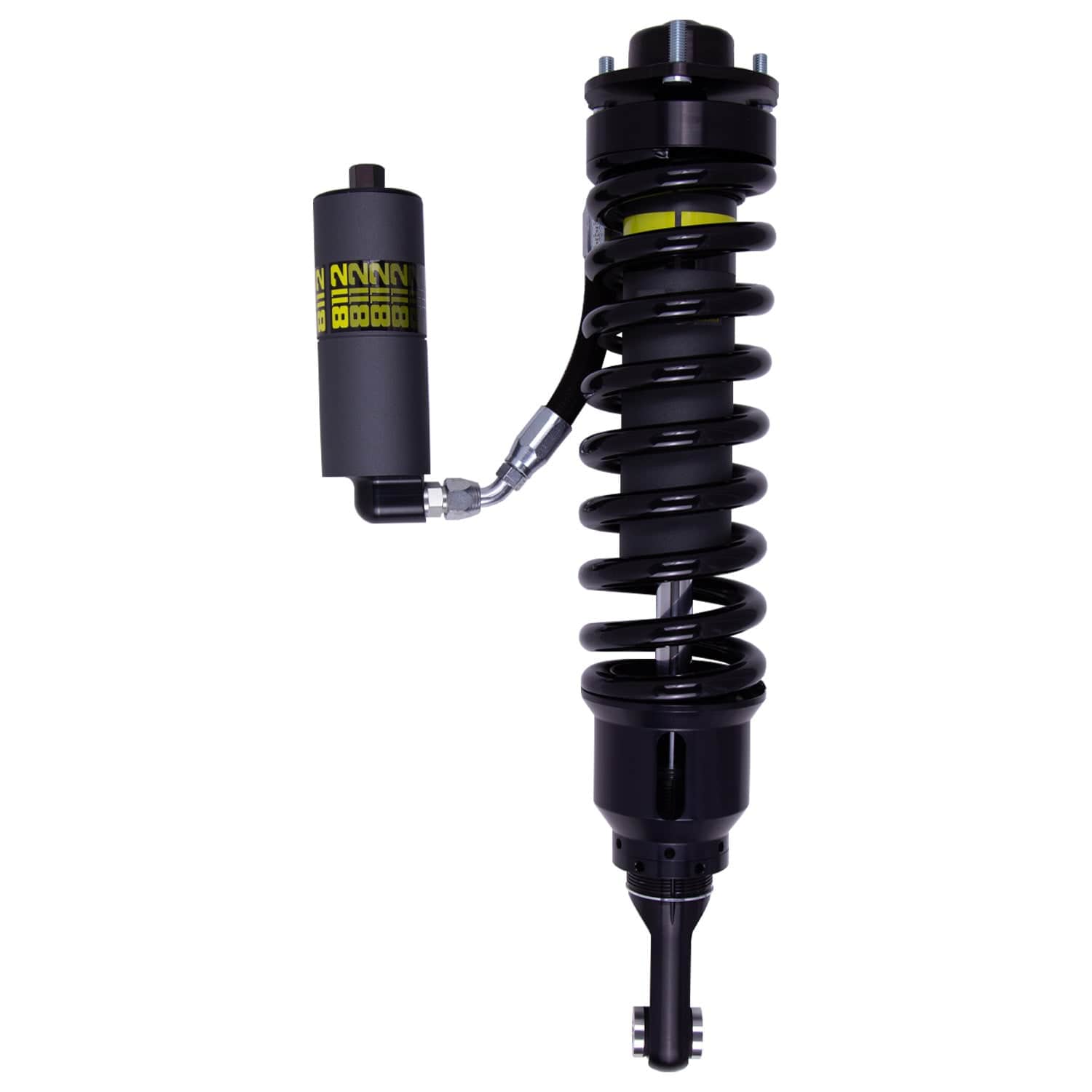

- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-324363 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2010-2024 Toyota 4Runner |
| Chassis Code | N280 |
| Drivetrain | 4WD |
| UPC | 651860915685 |
| Front Lift Height | 1.5 - 3 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.99 in. (456.9 mm) |
| Damping Adjustable | No |
| Extended Length | 22.80 in. (579.1 mm) |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
| Notes | Without Kinetic Dynamic Suspension System (KDSS) |
