Product Details

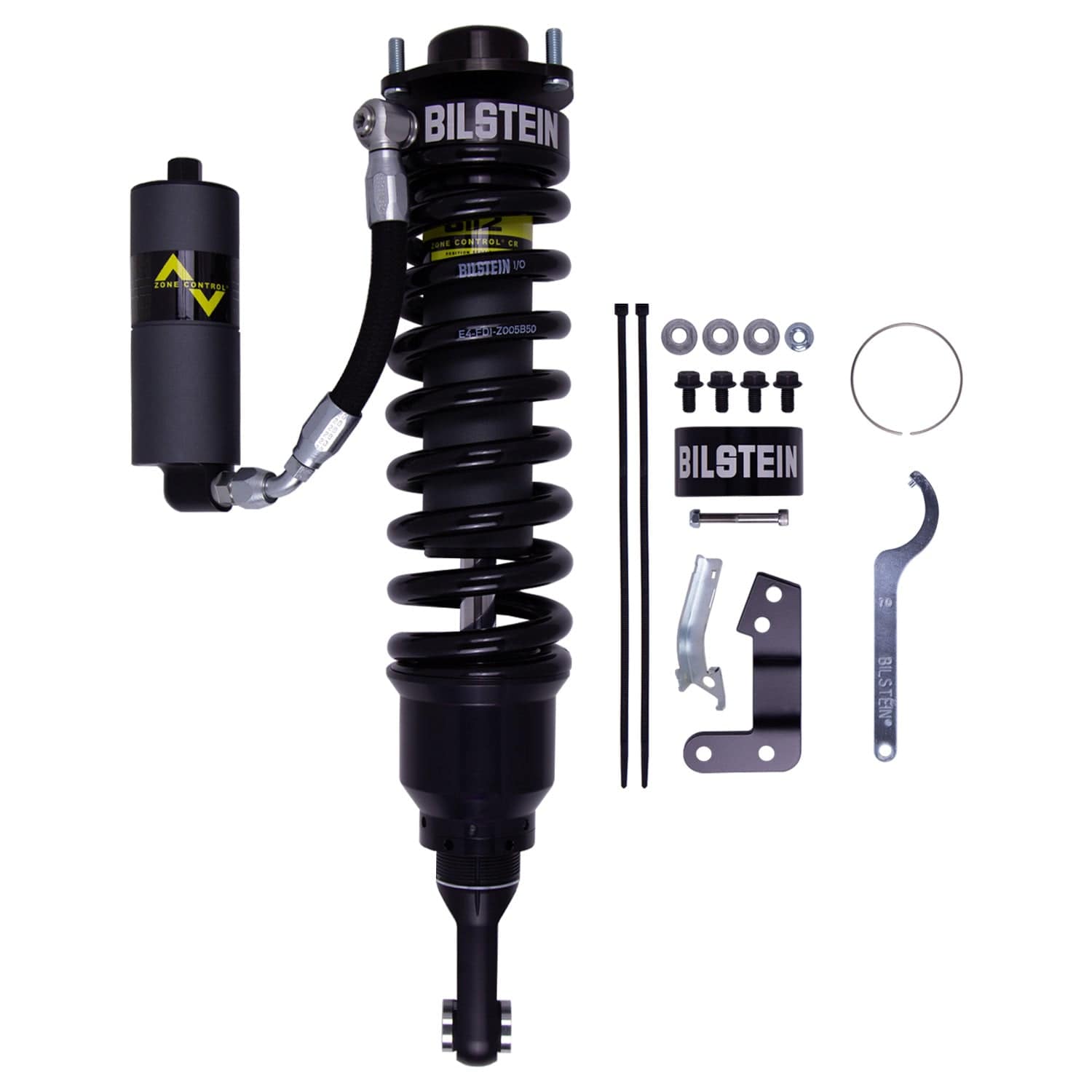

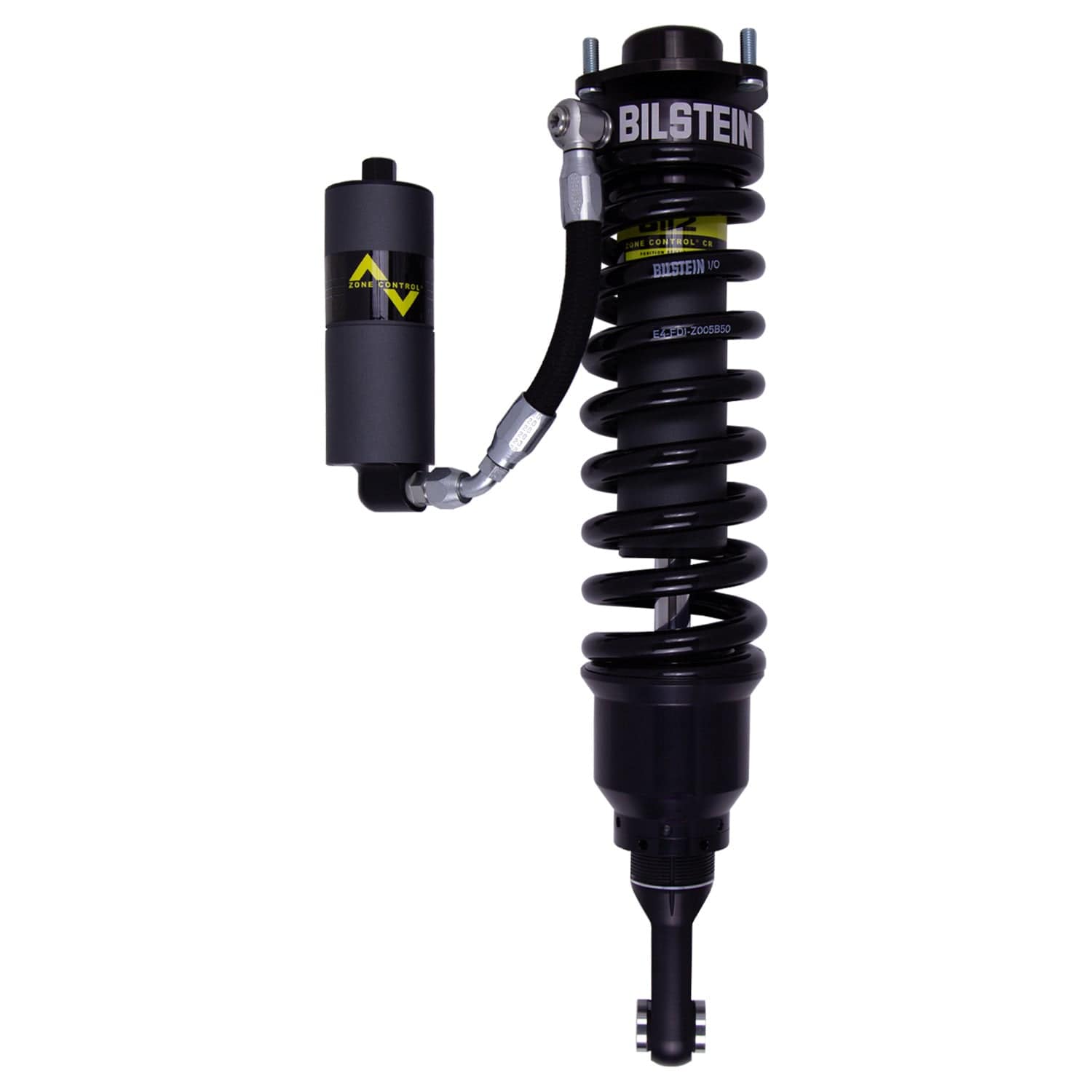

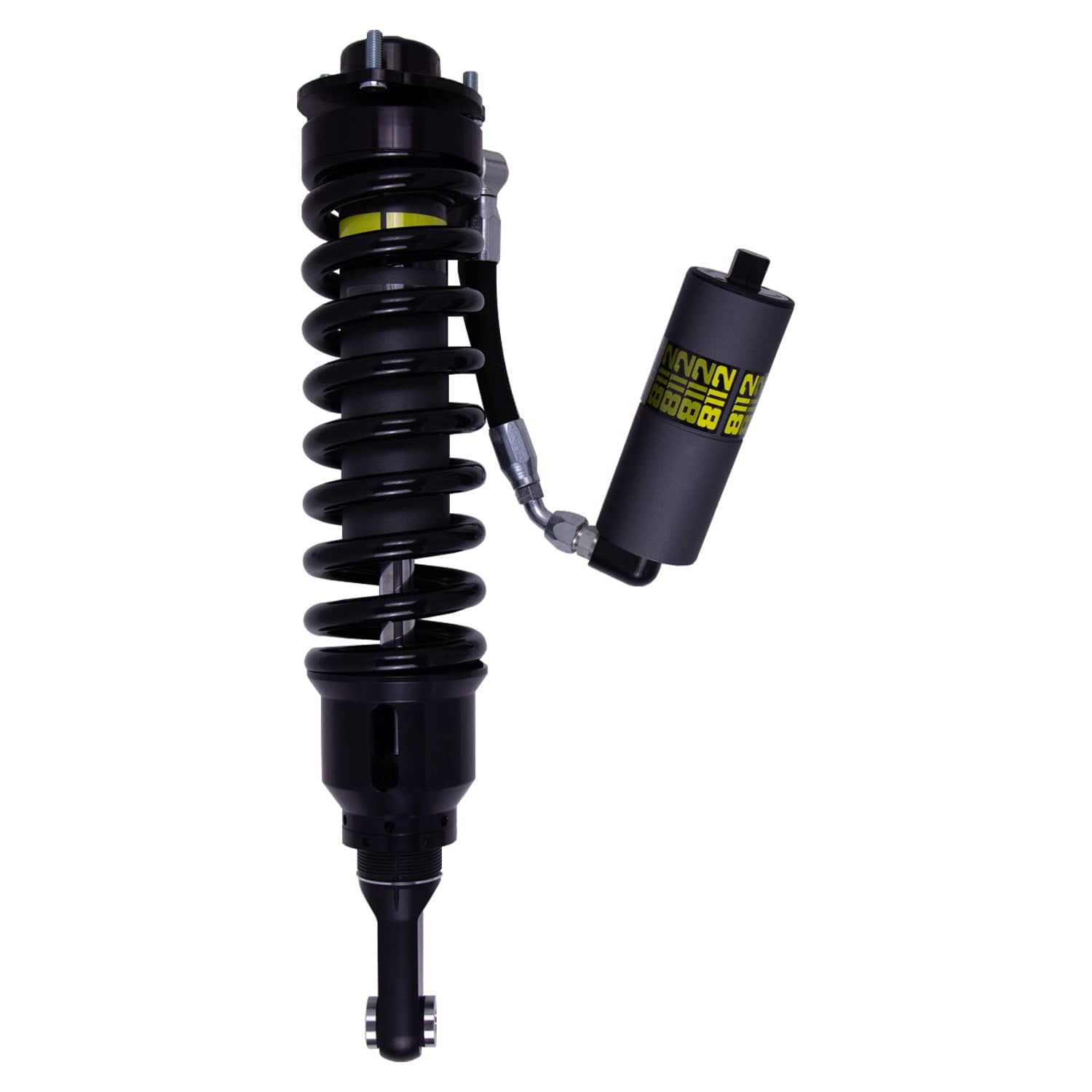

The Bilstein B8 shock and spring assemblies are built for a 2010-2023 Lexus GX460 that has been lifted or leveled, valved for the taller ride height rather than fighting it.
Inside is Bilstein's monotube design, with the gas and oil separated by a floating piston. That keeps damping consistent when the road turns rough and the unit gets hot, where a lesser damper would go soft.
Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-324158 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2010-2023 Lexus GX460 |
| Drivetrain | 4WD |
| UPC | 651860915760 |
| Front Lift Height | 1.2 - 3.5 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 17.99 in. (456.9 mm) |
| Damping Adjustable | No |
| Extended Length | 22.80 in. (579.1 mm) |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
| Notes | With Kinetic Dynamic Suspension System (KDSS) |
Vehicle Fitment
- 2010 Lexus GX460
- 2011 Lexus GX460
- 2012 Lexus GX460
- 2013 Lexus GX460
- 2014 Lexus GX460
- 2015 Lexus GX460
- 2016 Lexus GX460
- 2017 Lexus GX460
- 2018 Lexus GX460
- 2019 Lexus GX460
- 2020 Lexus GX460
- 2021 Lexus GX460
- 2022 Lexus GX460
- 2023 Lexus GX460
