Product Details

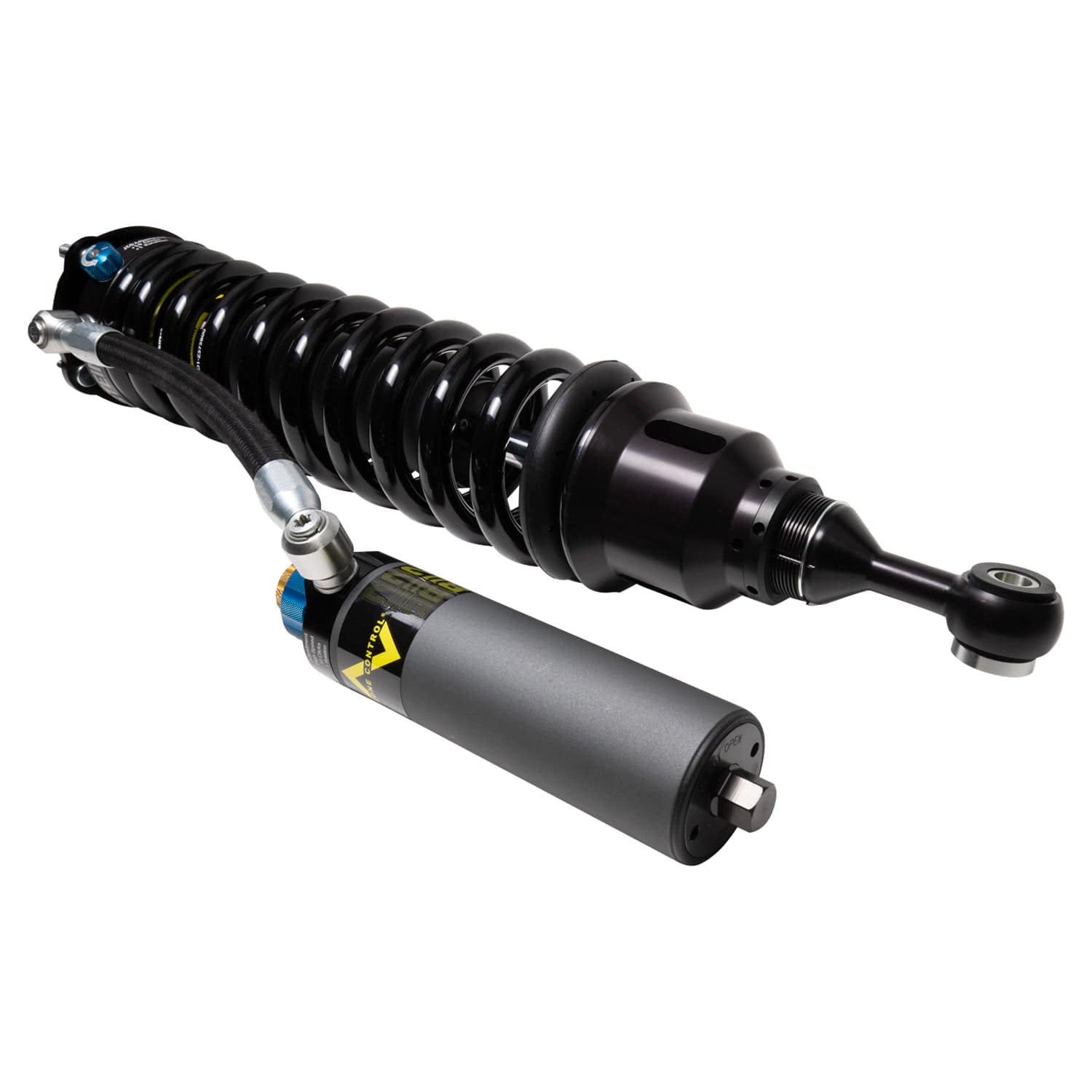

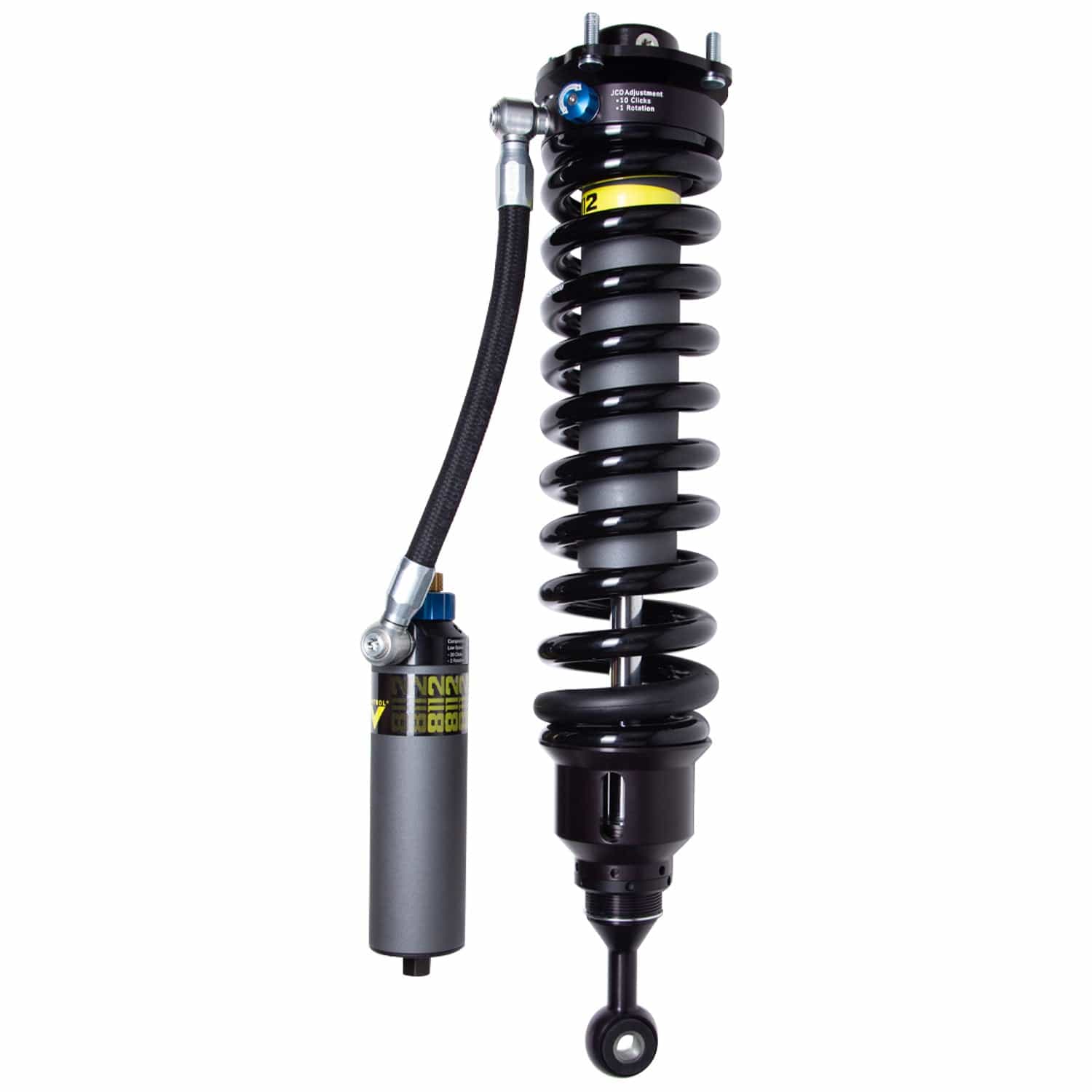

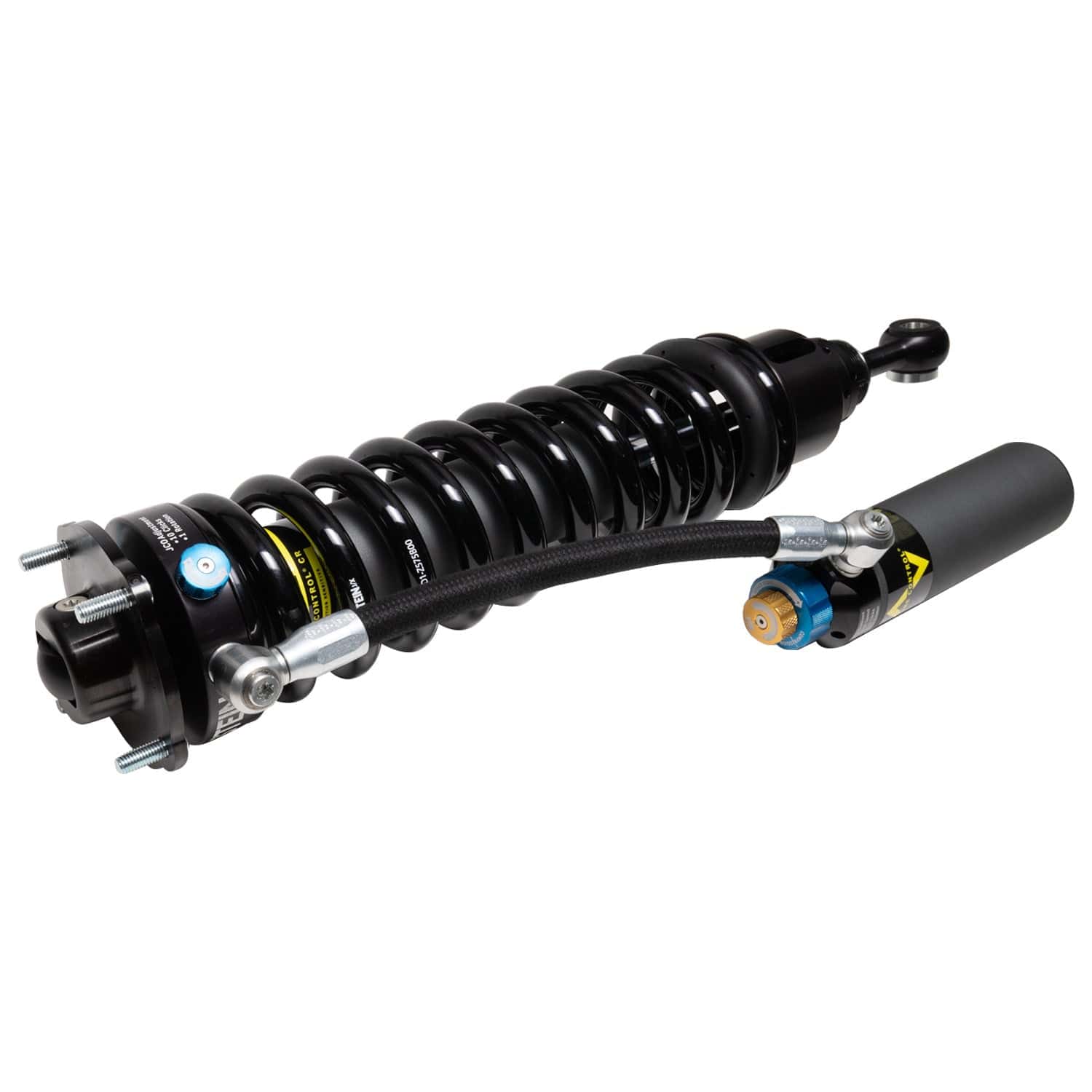

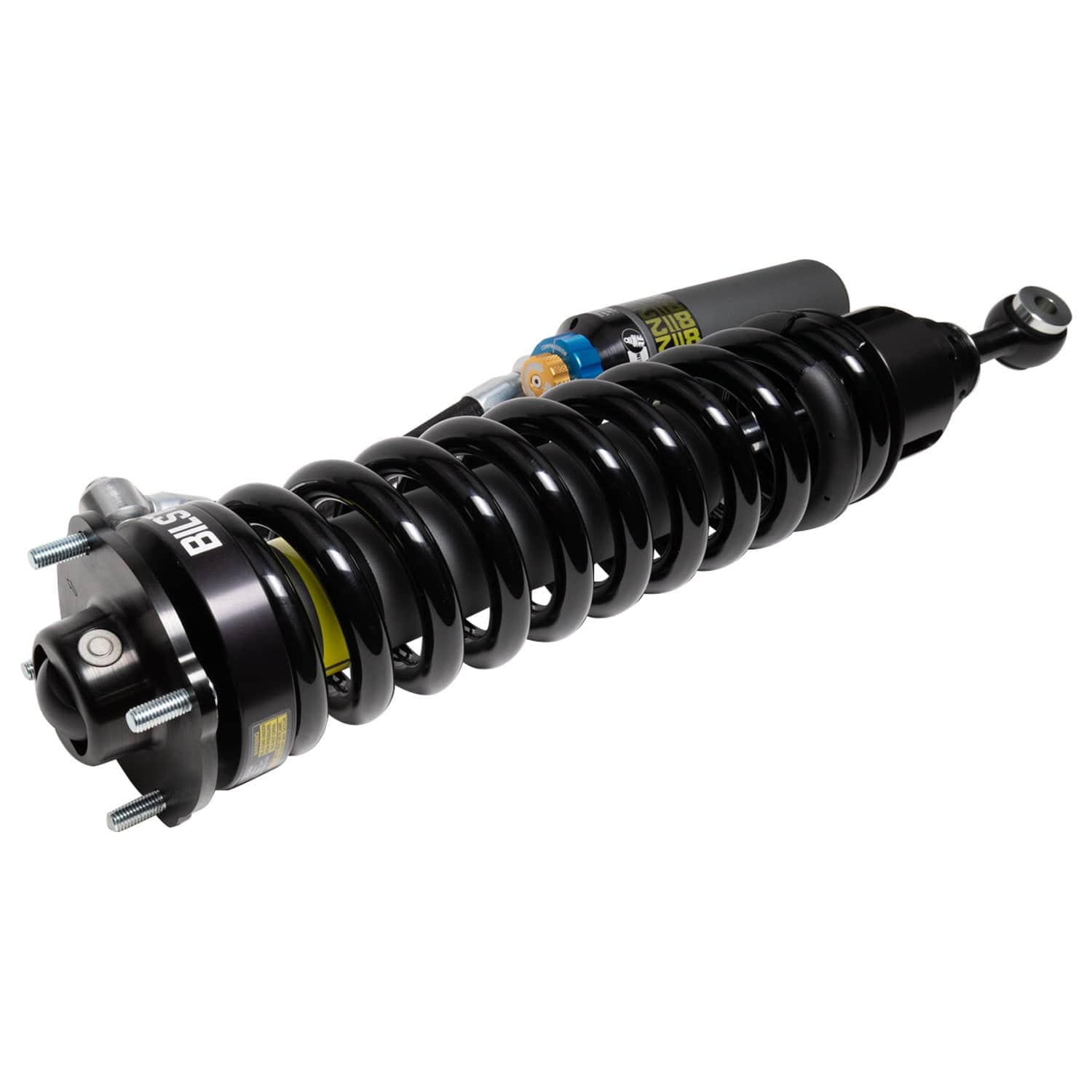

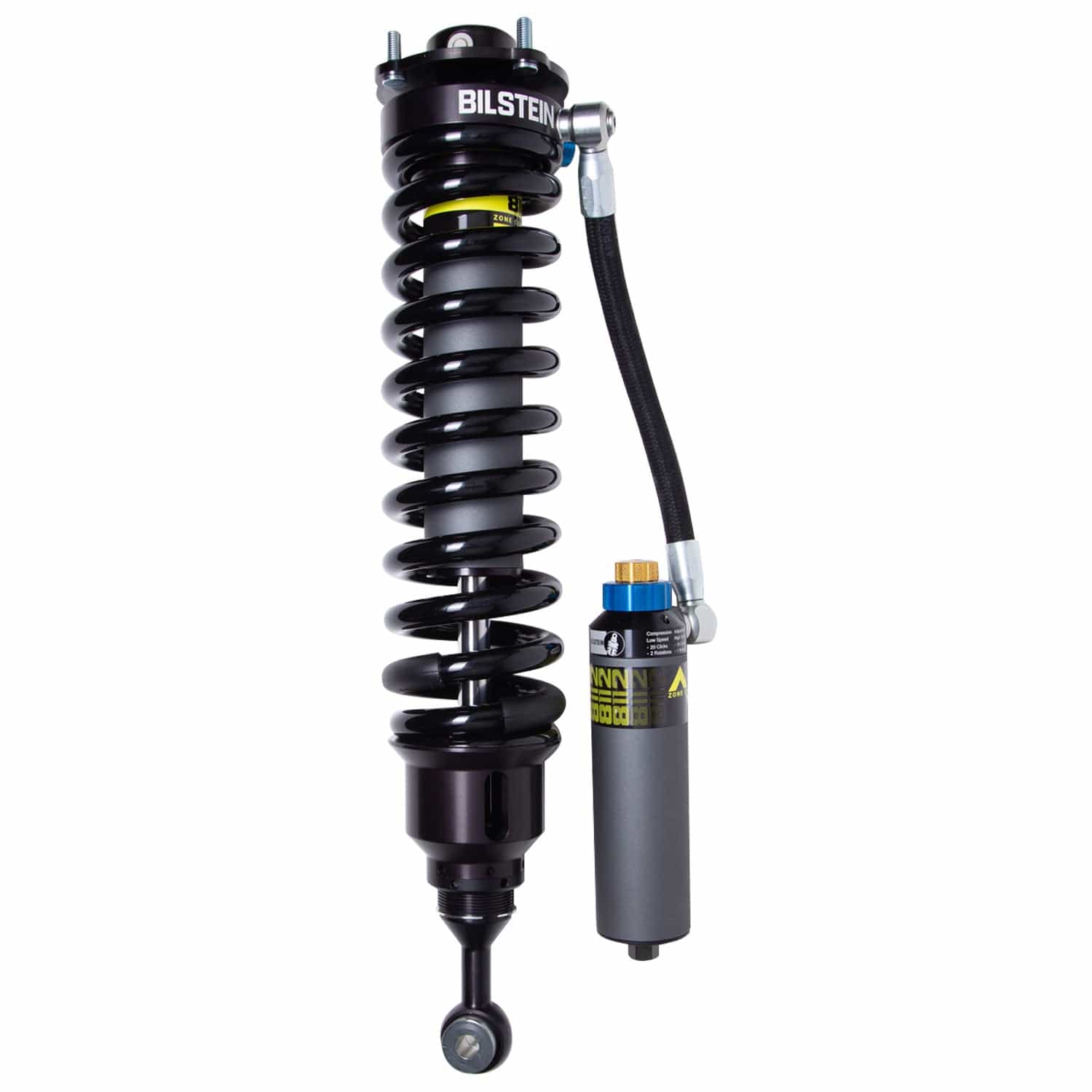

Bilstein B8 8112 (ZoneControl CR DSA+) for the 2007-2021 Toyota Tundra is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUV's. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop).

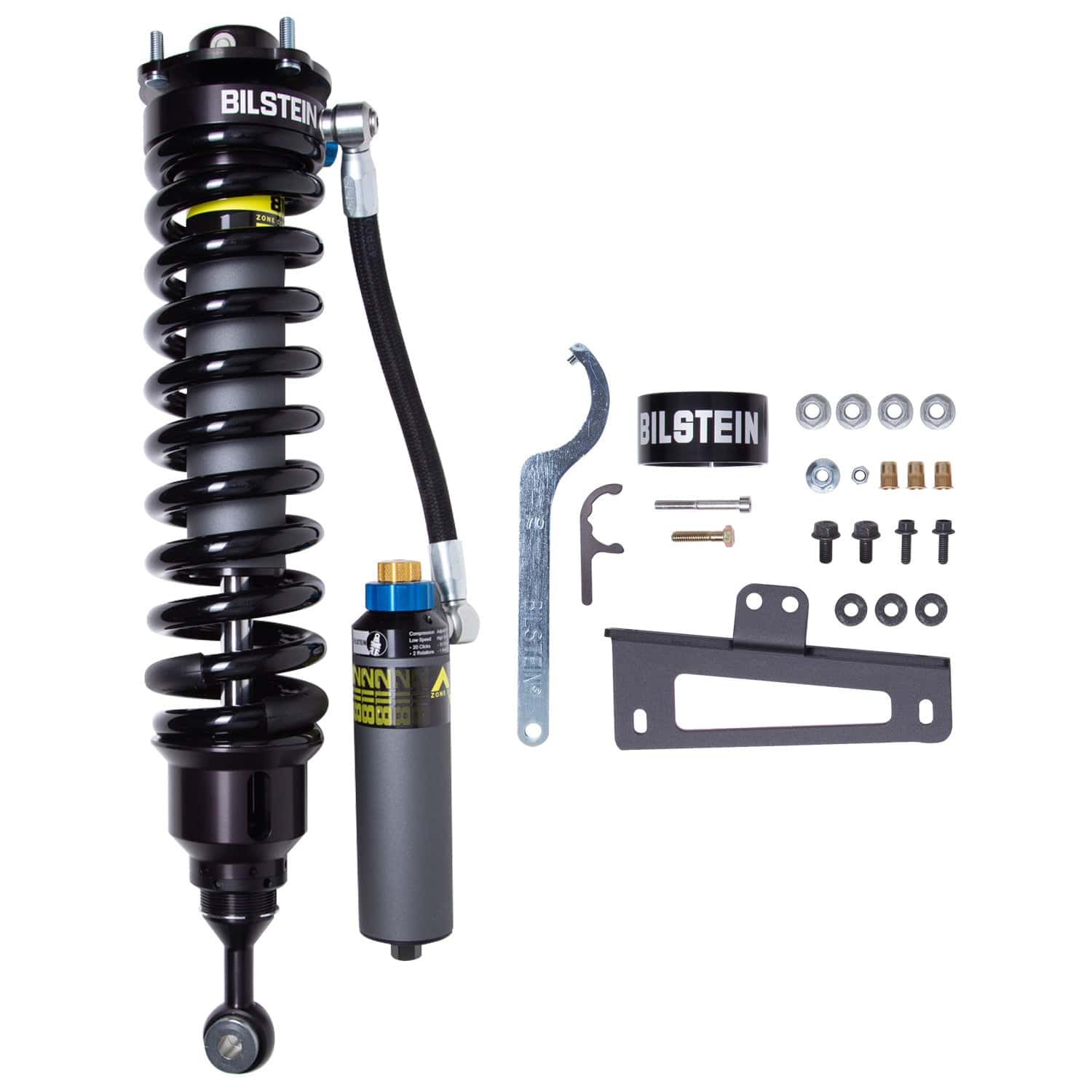

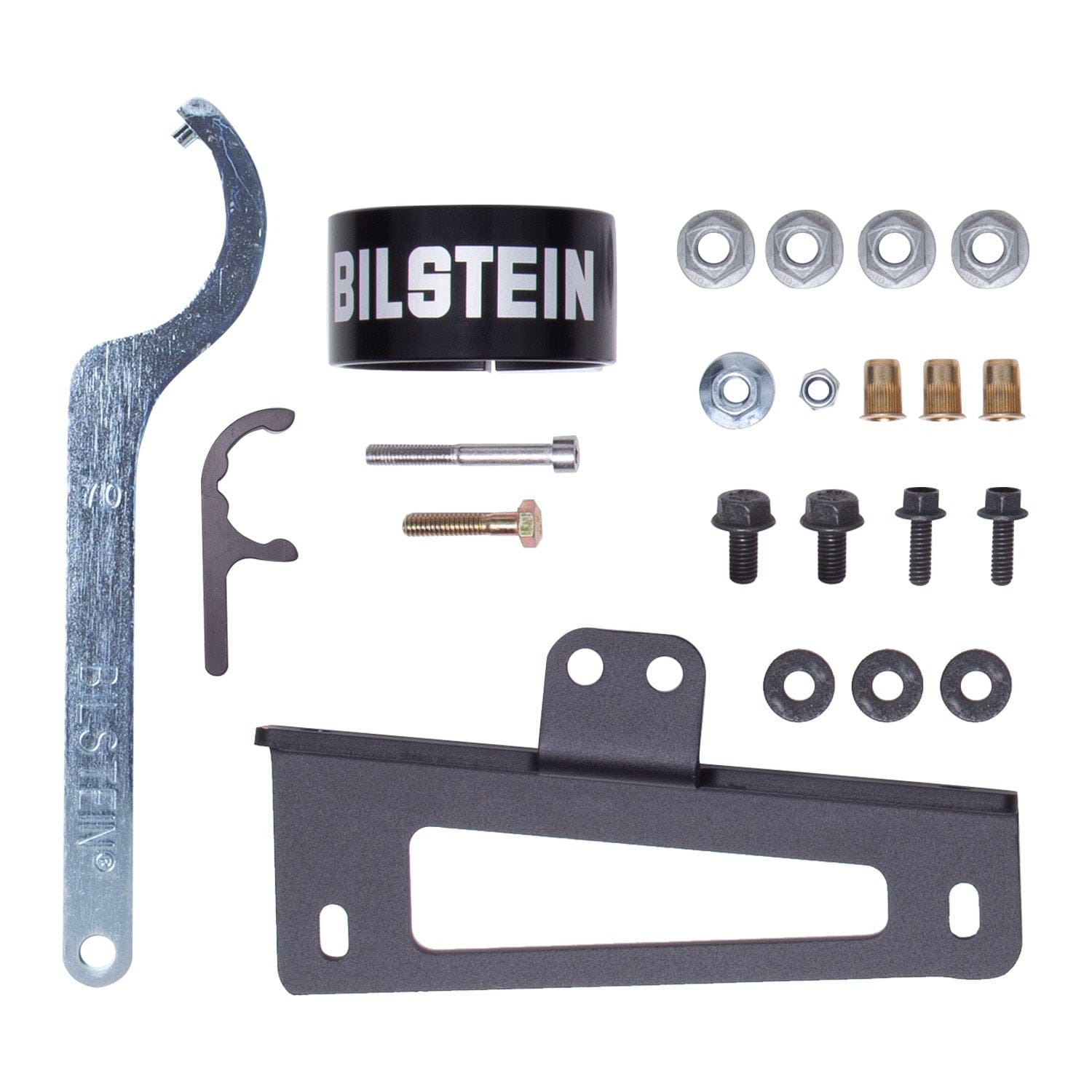

The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3 (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.
Features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons

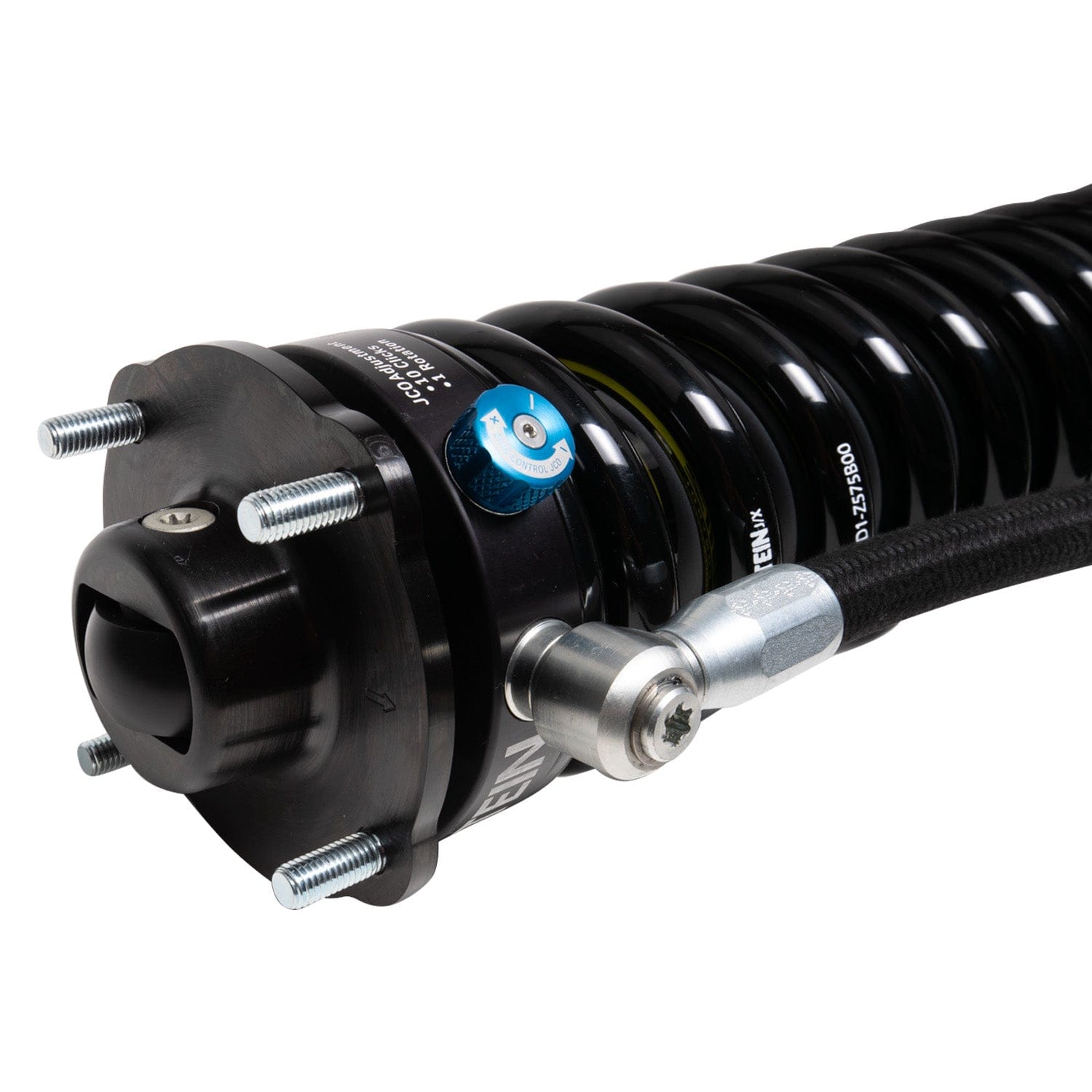

- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)

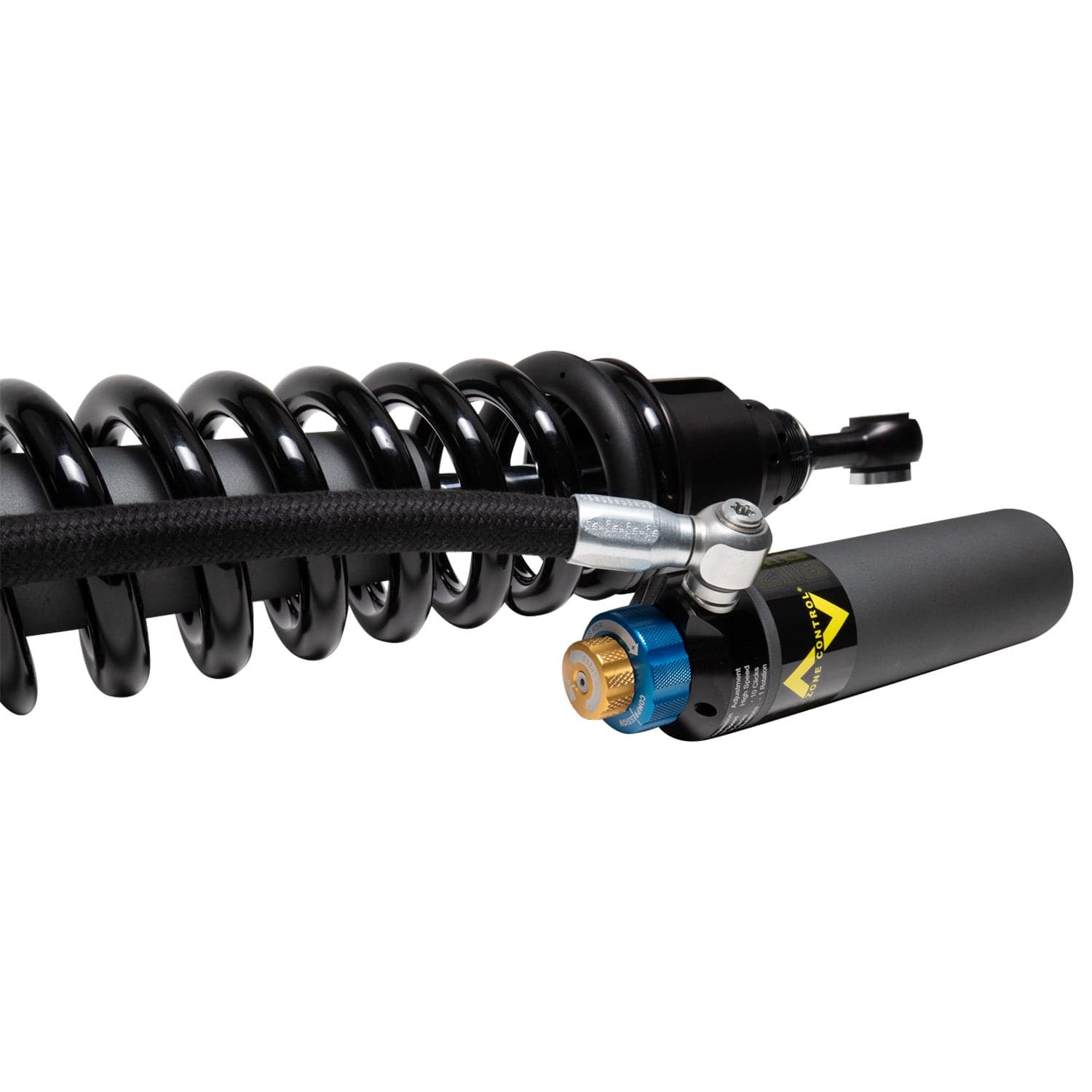

- 60mm remote reservoir for increased oil capacity and cooling
Specifications
| Part Number | 41-326084 |
| Part Name | Shock Absorber and Coil Spring Assembly |
| Vehicle | 2007-2021 Toyota Tundra |
| Drivetrain | RWD |
| UPC | 651860941196 |
| Front Lift Height | 2.25 - 3.25 in. |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 18.90 in. (479.3 mm) |
| Damping Adjustable | Yes |
| Extended Length | 25.20 in. (640.8 mm) |
| Finish | Dampers: EVO Grey / Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 19.05 mm |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8112 (ZoneControl CR DSA+) |
| Spring Seat Included | Yes |
| Upper Mount Type | Special |
| Notes | Aftermarket Upper Control Arms required - Bilstein B8 Control Arm Kit # 51-304706 recommended |
