Product Details

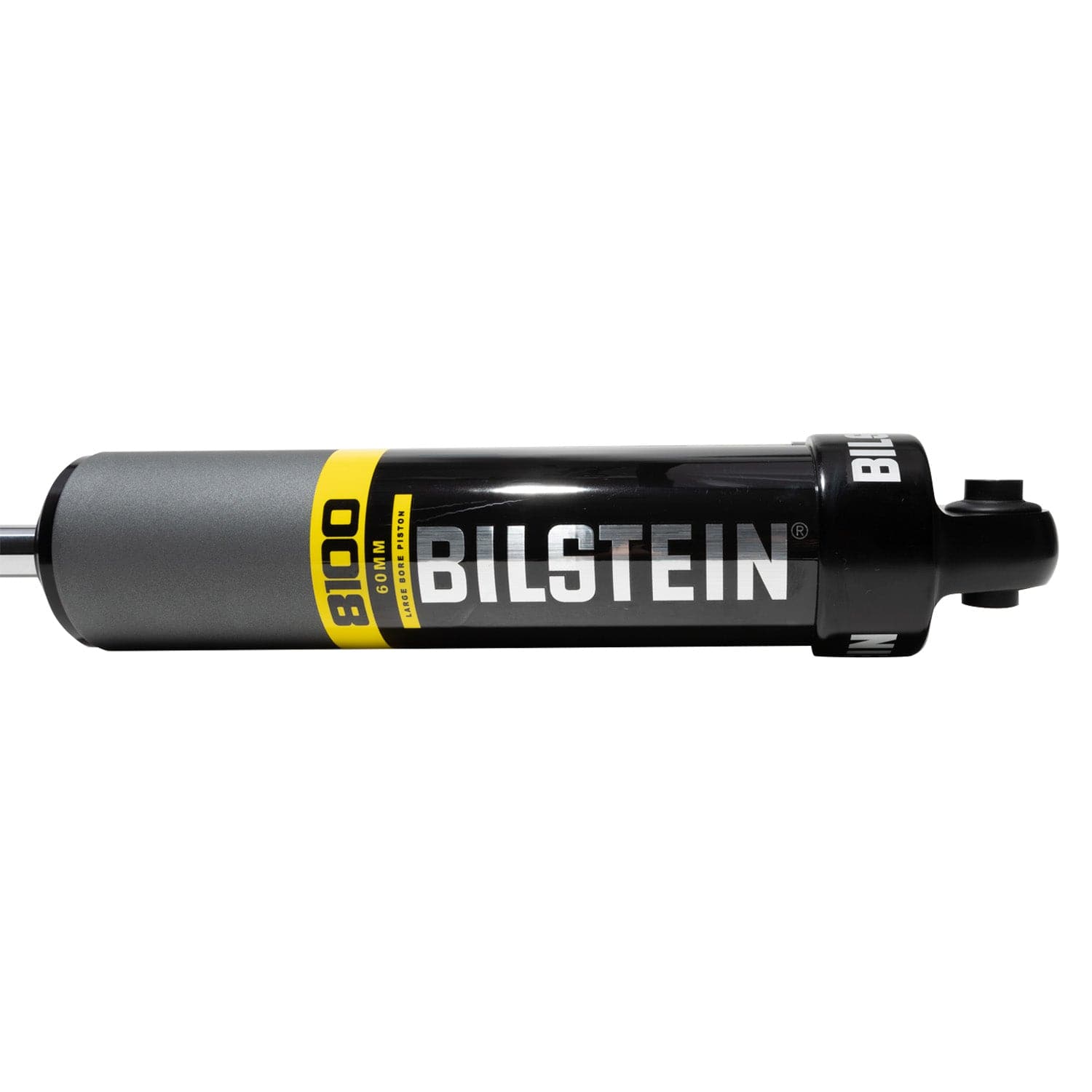

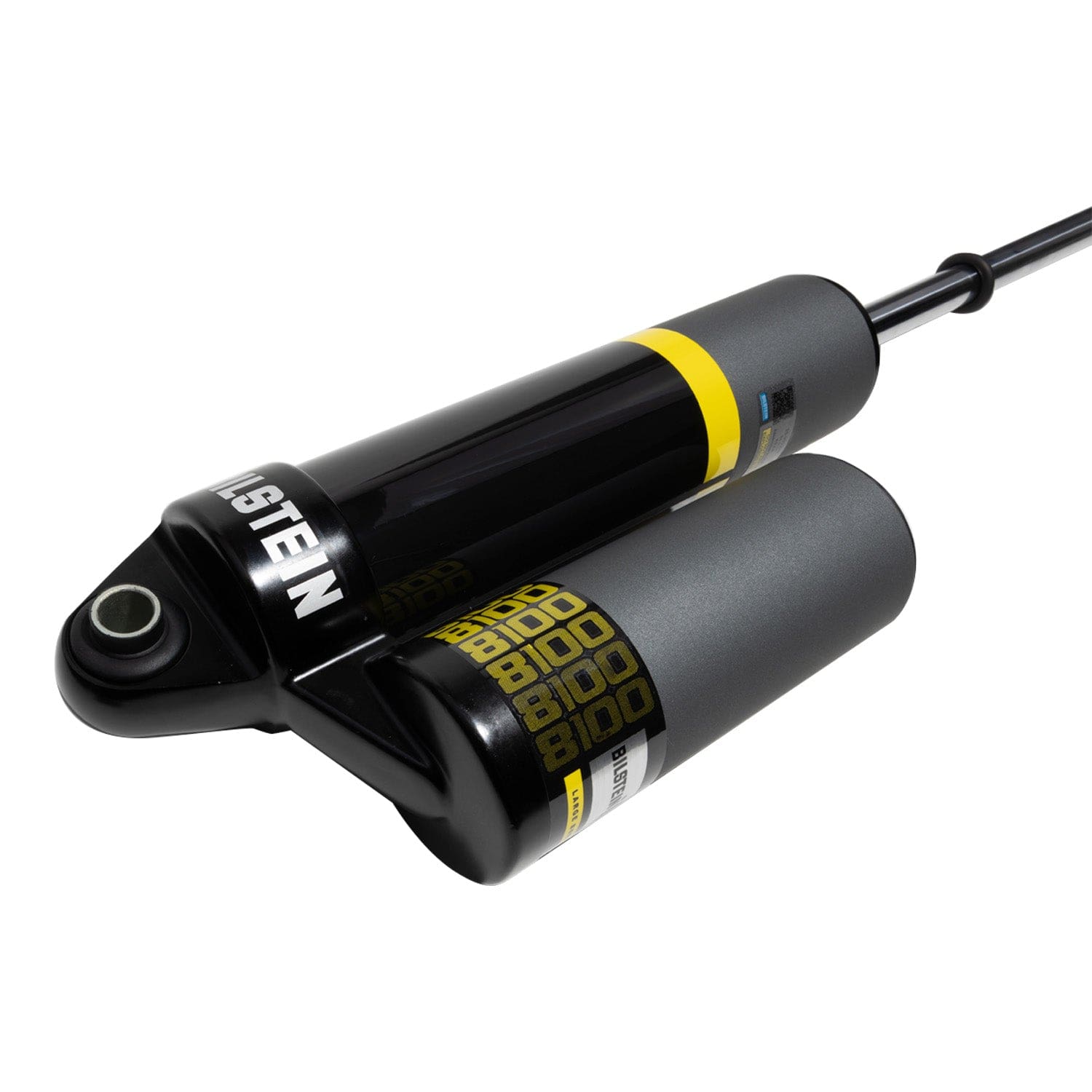

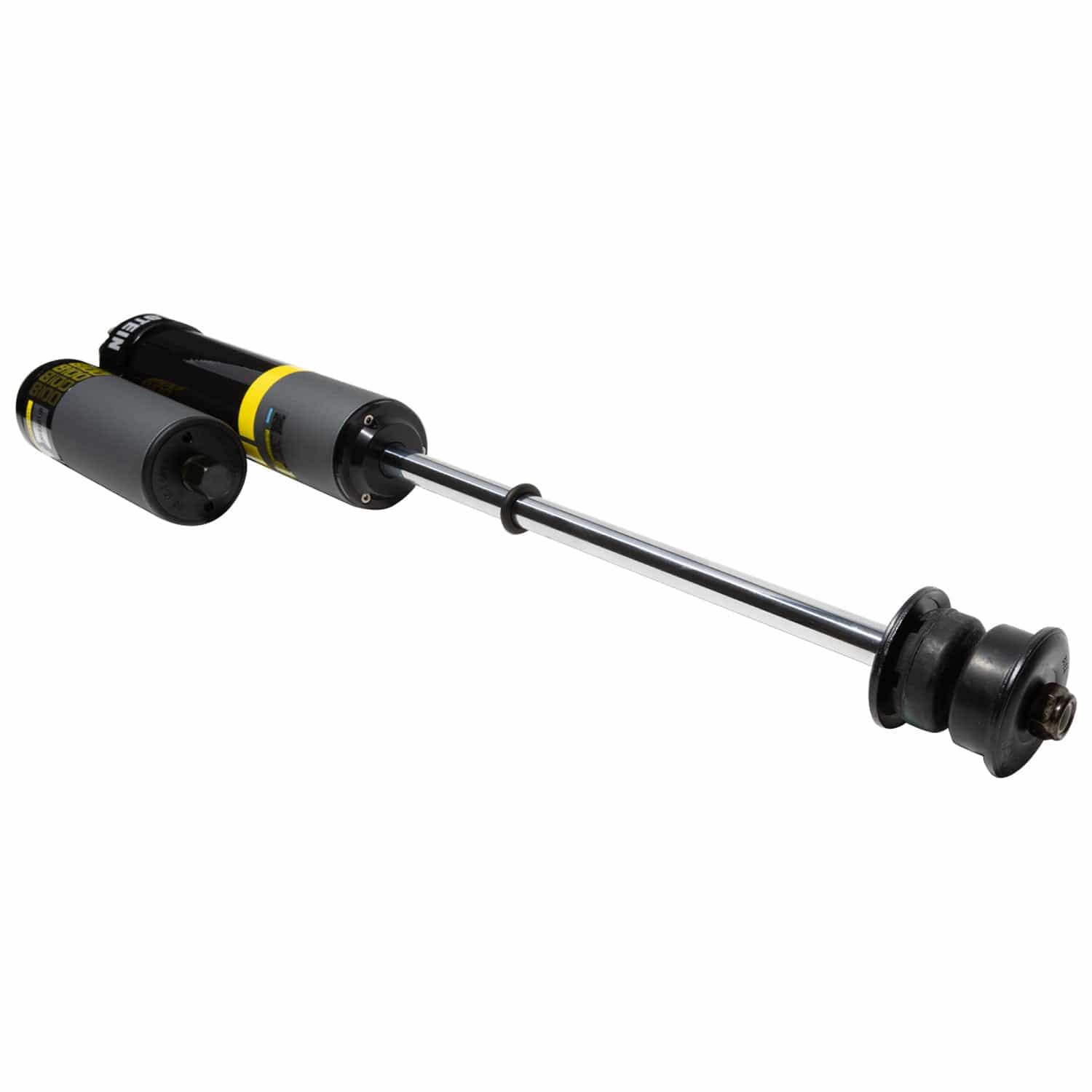

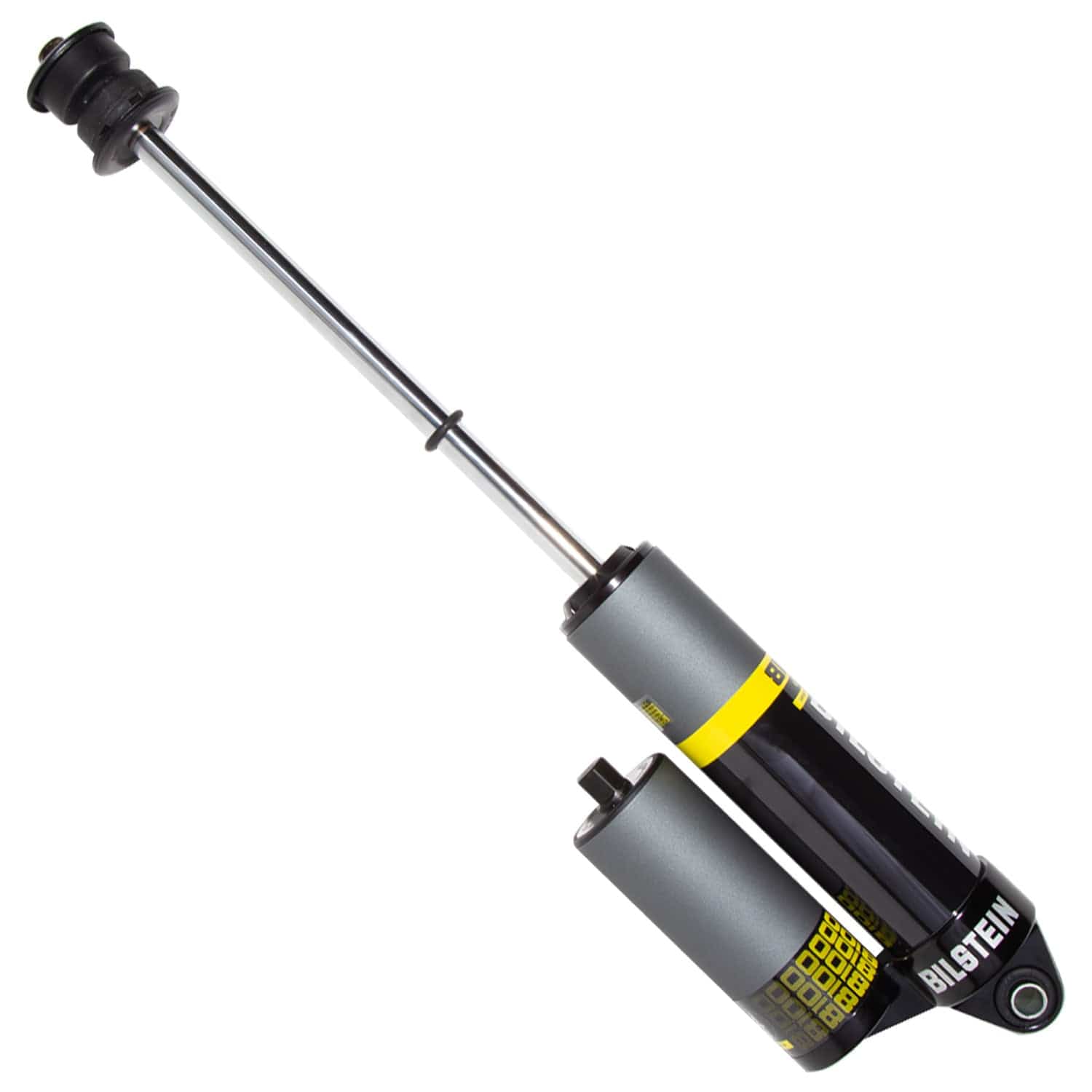

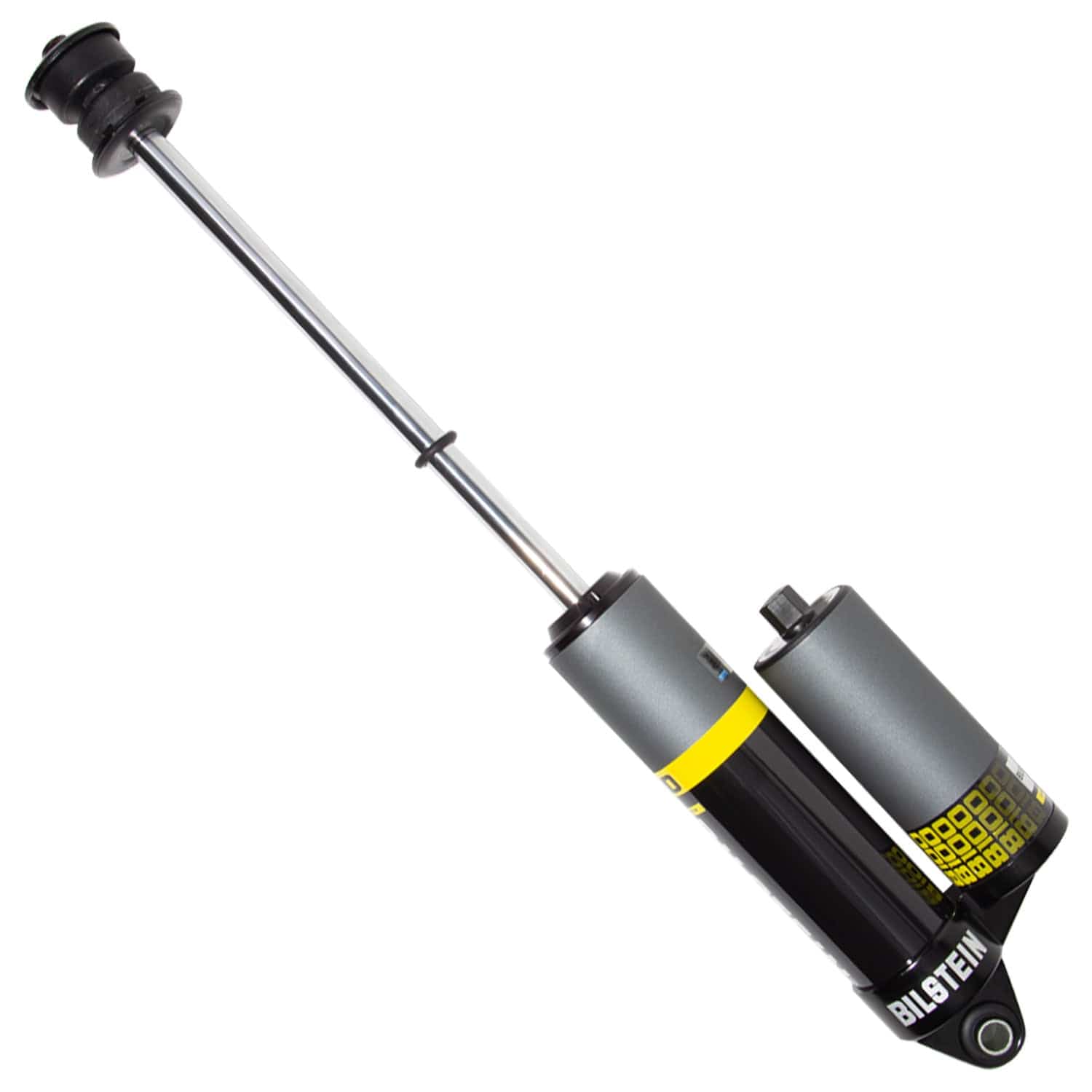

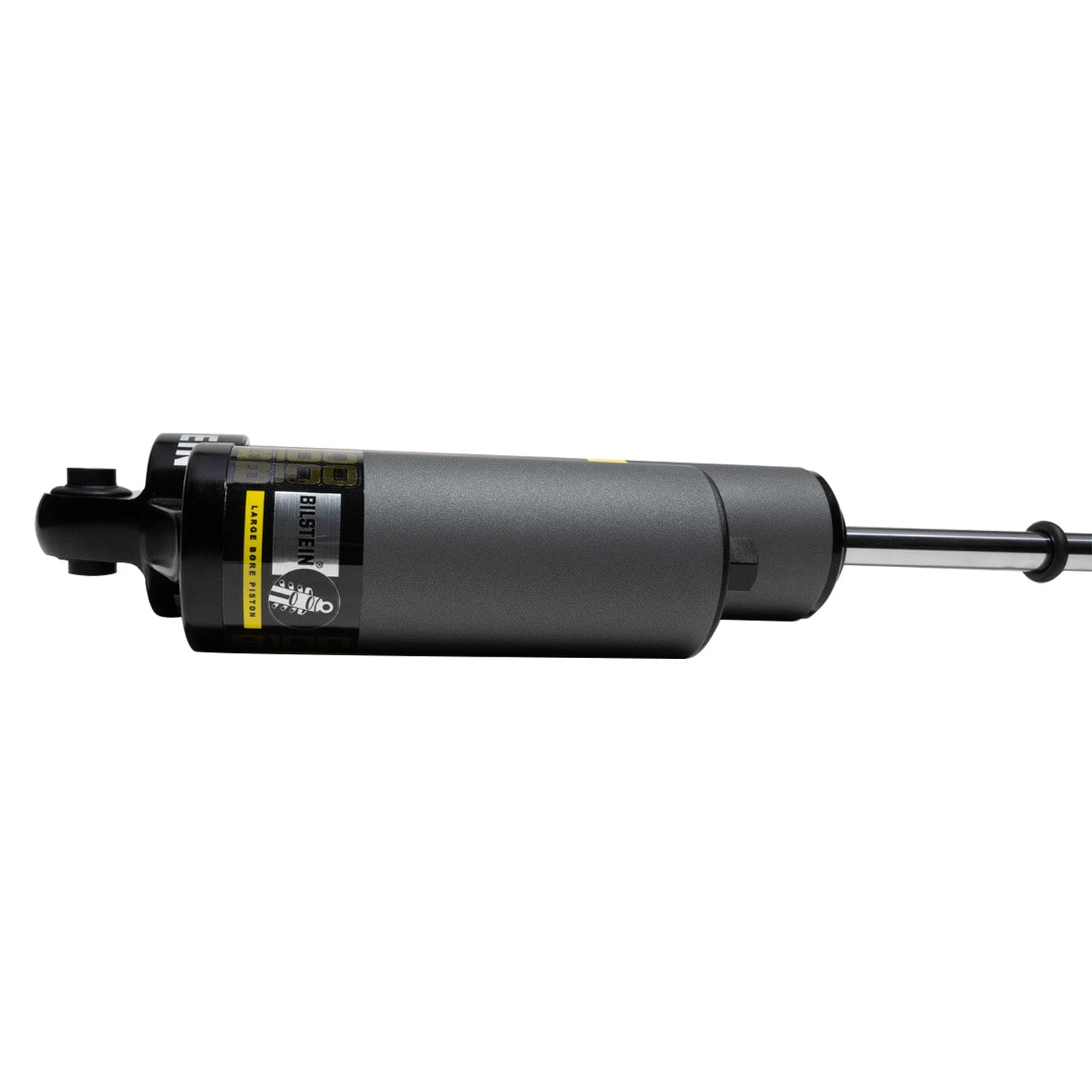

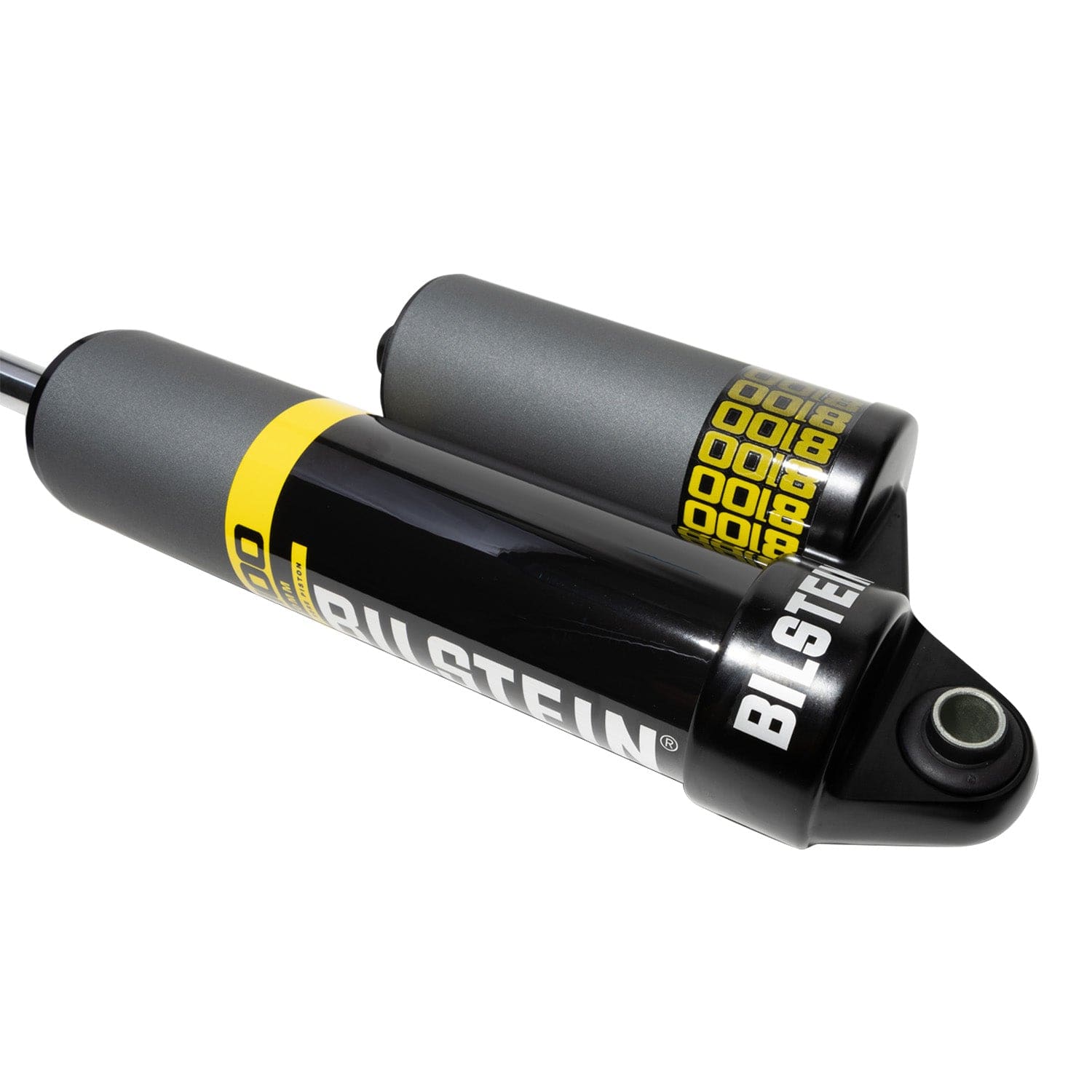

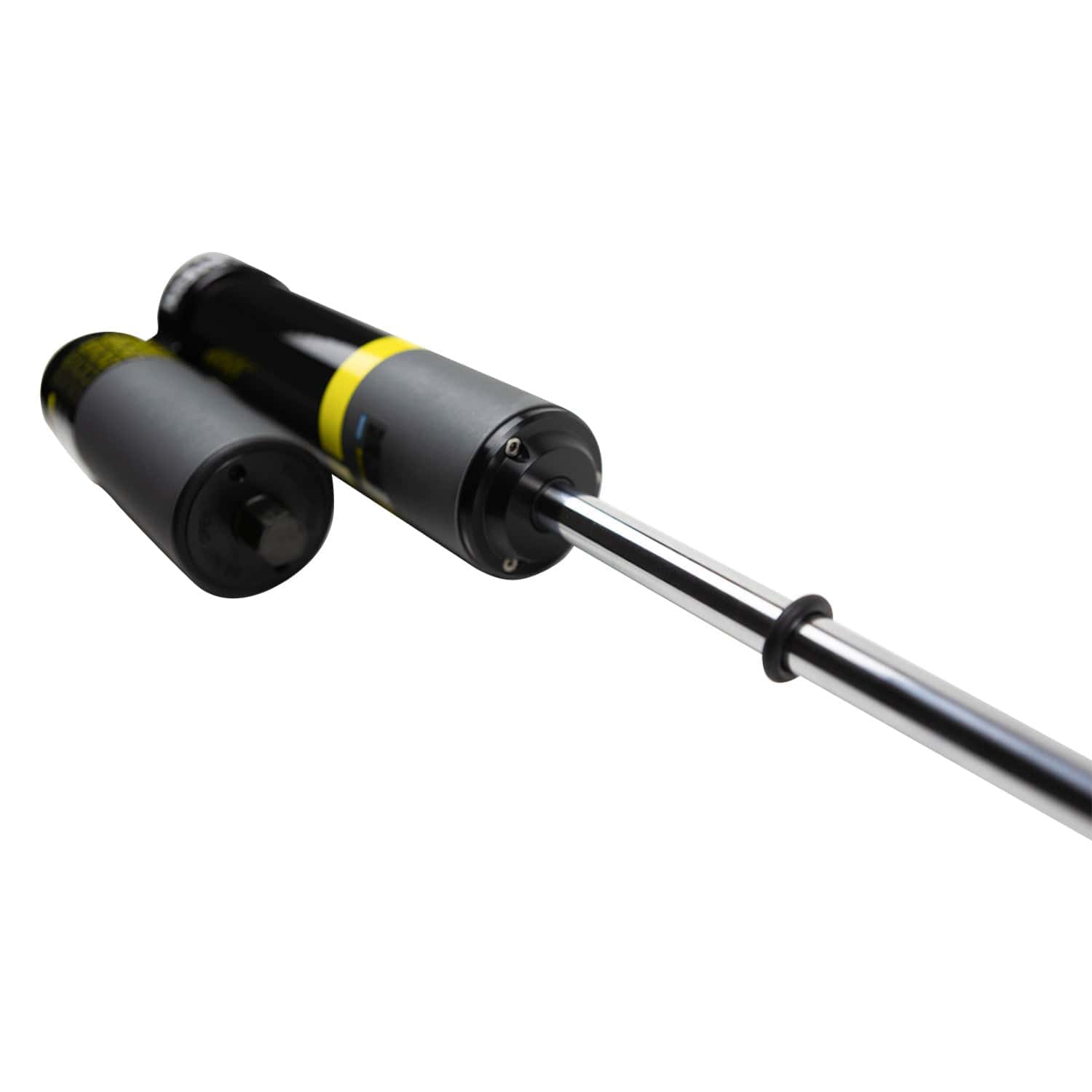

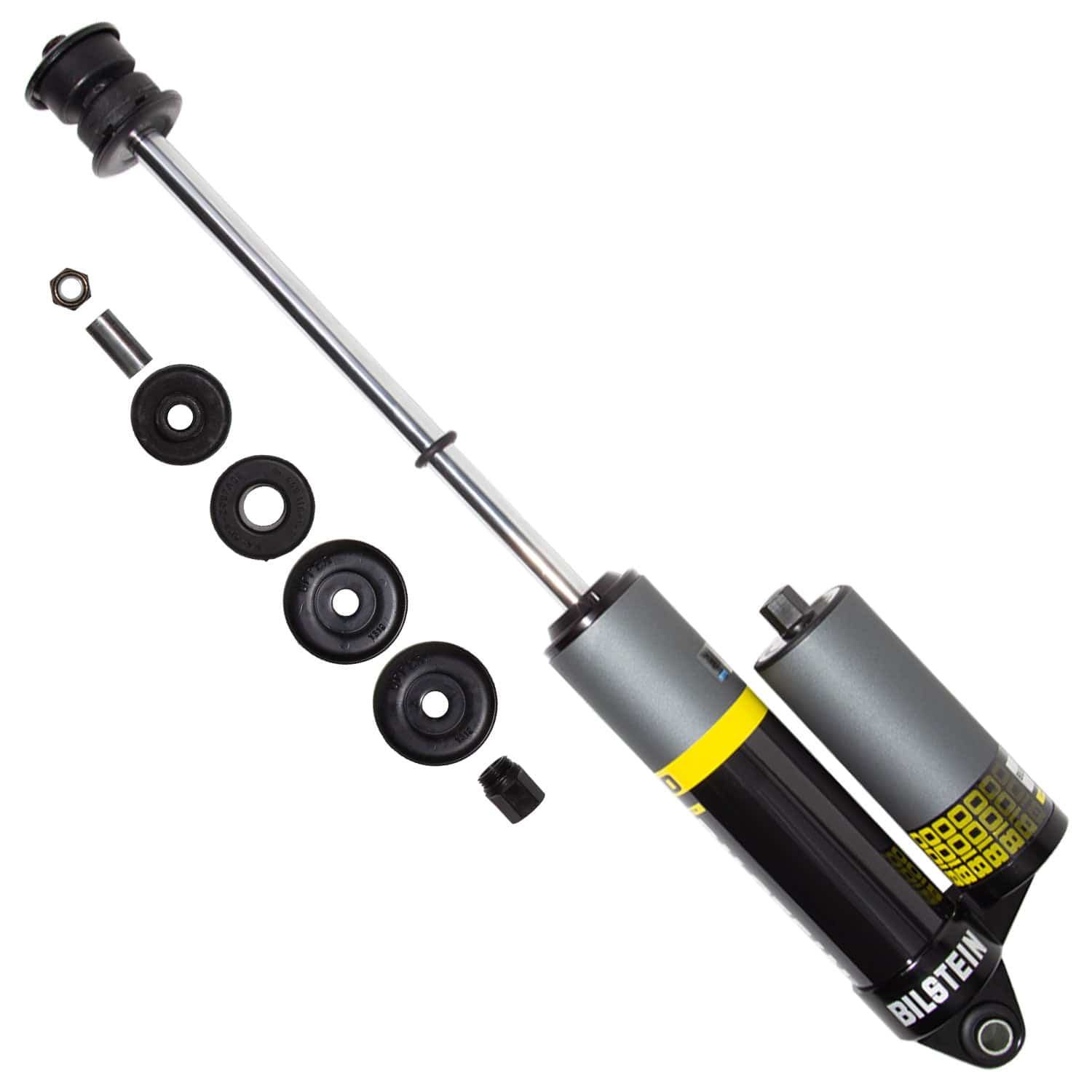

Bilstein B8 8100 Reservoir Shock Absorbers for the 2019-2024 Ram 2500 are a large bore 60mm direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 60mm ID shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Each B8 8100 offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These Shock Absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 will allow you to tame the terrain in comfort.
Standard Features
- 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
- Direct fit for an easy installation
- 60mm remote reservoir offers increased oil capacity for consistent performance over rough terrain
Specifications
| Part Number | 25-302233 |
| Part Name | Shock Absorber |
| Vehicle | 2019-2024 Ram 2500 |
| UPC | 651860911076 |
| Rear Lift Height | 0 - 1 in. |
| Body Design | Smooth Body (Non-Coilover) |
| Body Diameter (ID) | 60 mm |
| Boot Included | No |
| Collapsed Length | 16.75 in. |
| Collapsed Length | 425.5 mm |
| Damping Adjustable | No |
| Extended Length | 24.77 in. |
| Extended Length | 629.2 mm |
| Finish | EVO Grey |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1 mm |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8100 |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Notes | Without Air Leveling Suspension |
Vehicle Fitment
- 2019 Ram 2500
- 2020 Ram 2500
- 2021 Ram 2500
- 2022 Ram 2500
- 2023 Ram 2500
- 2024 Ram 2500
