Product Details

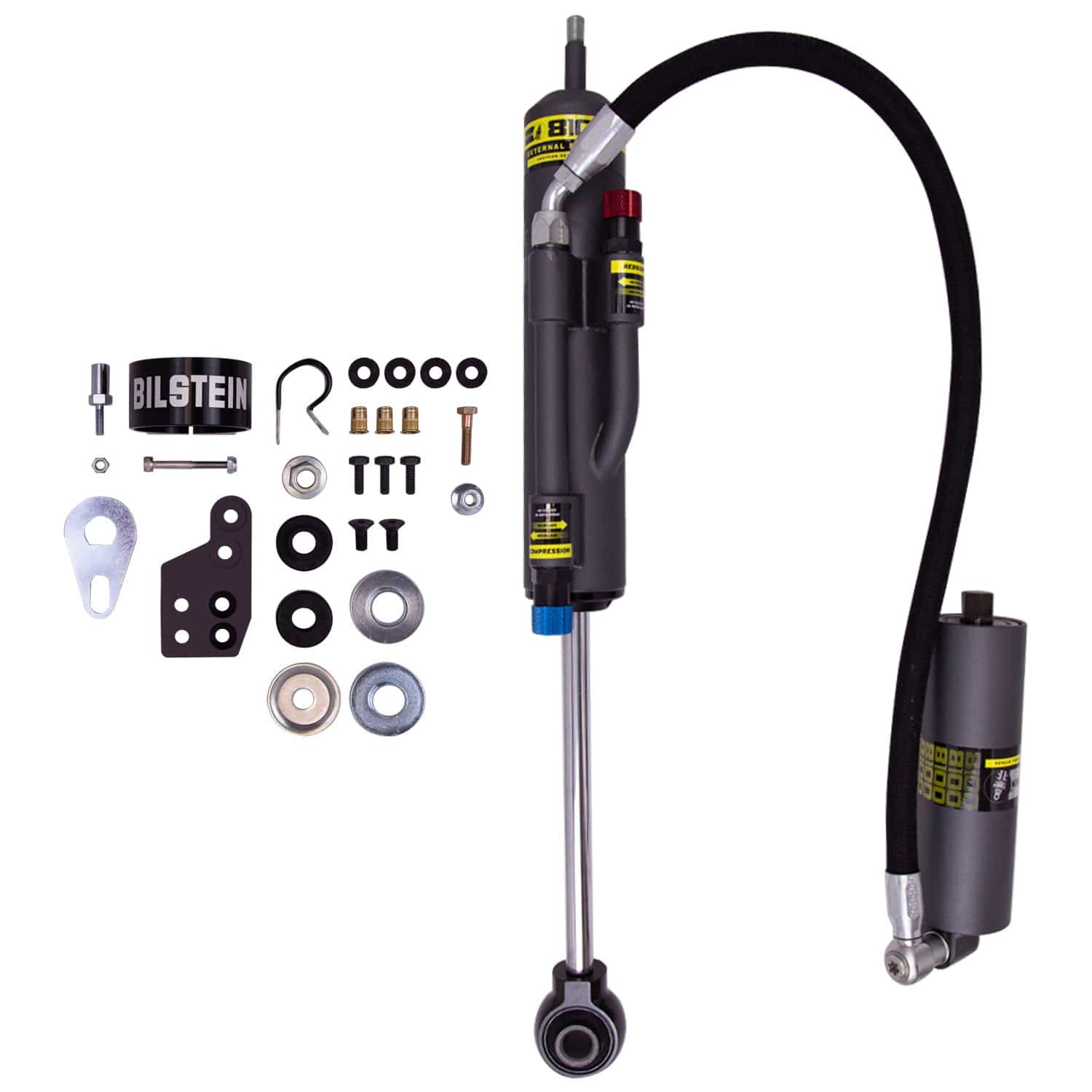

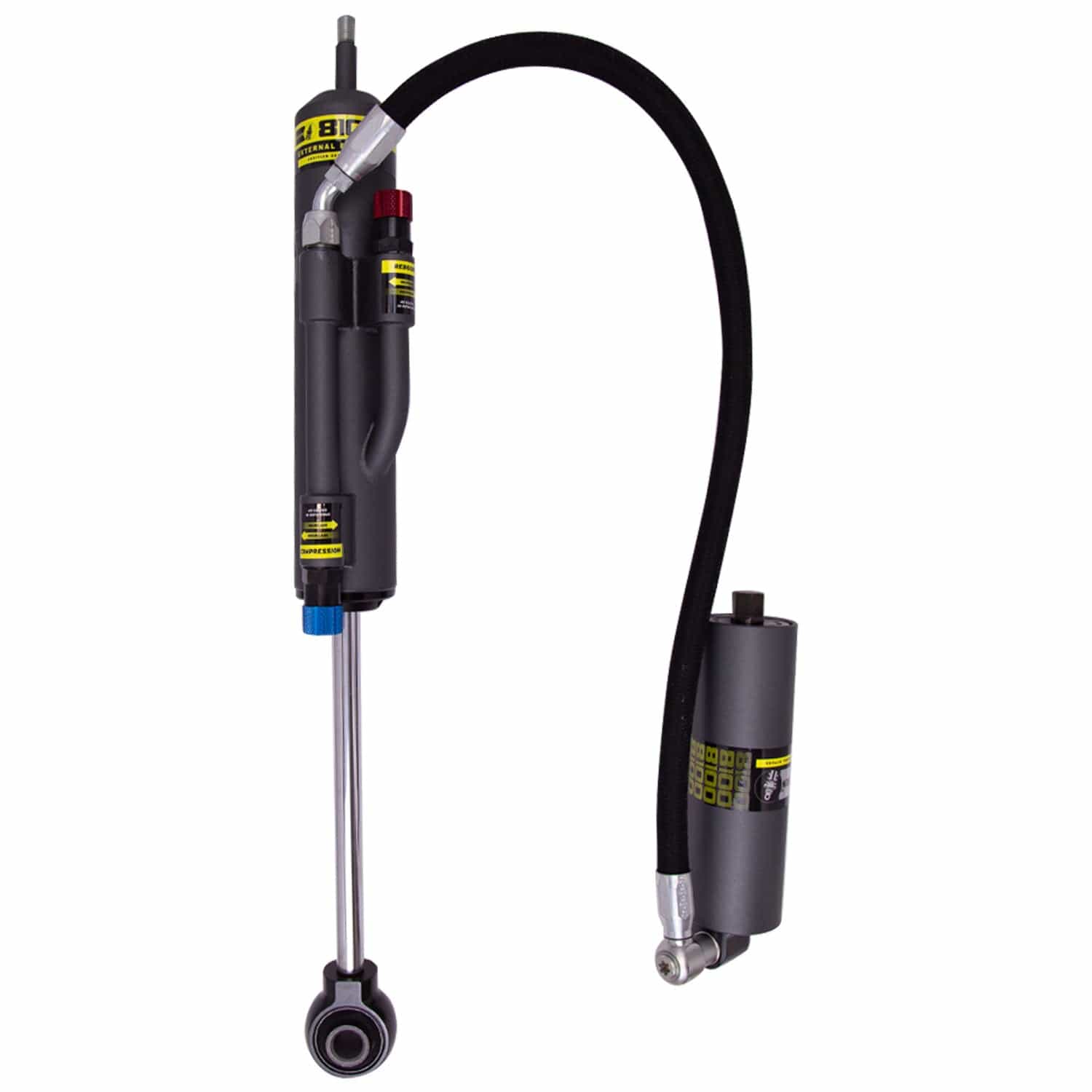

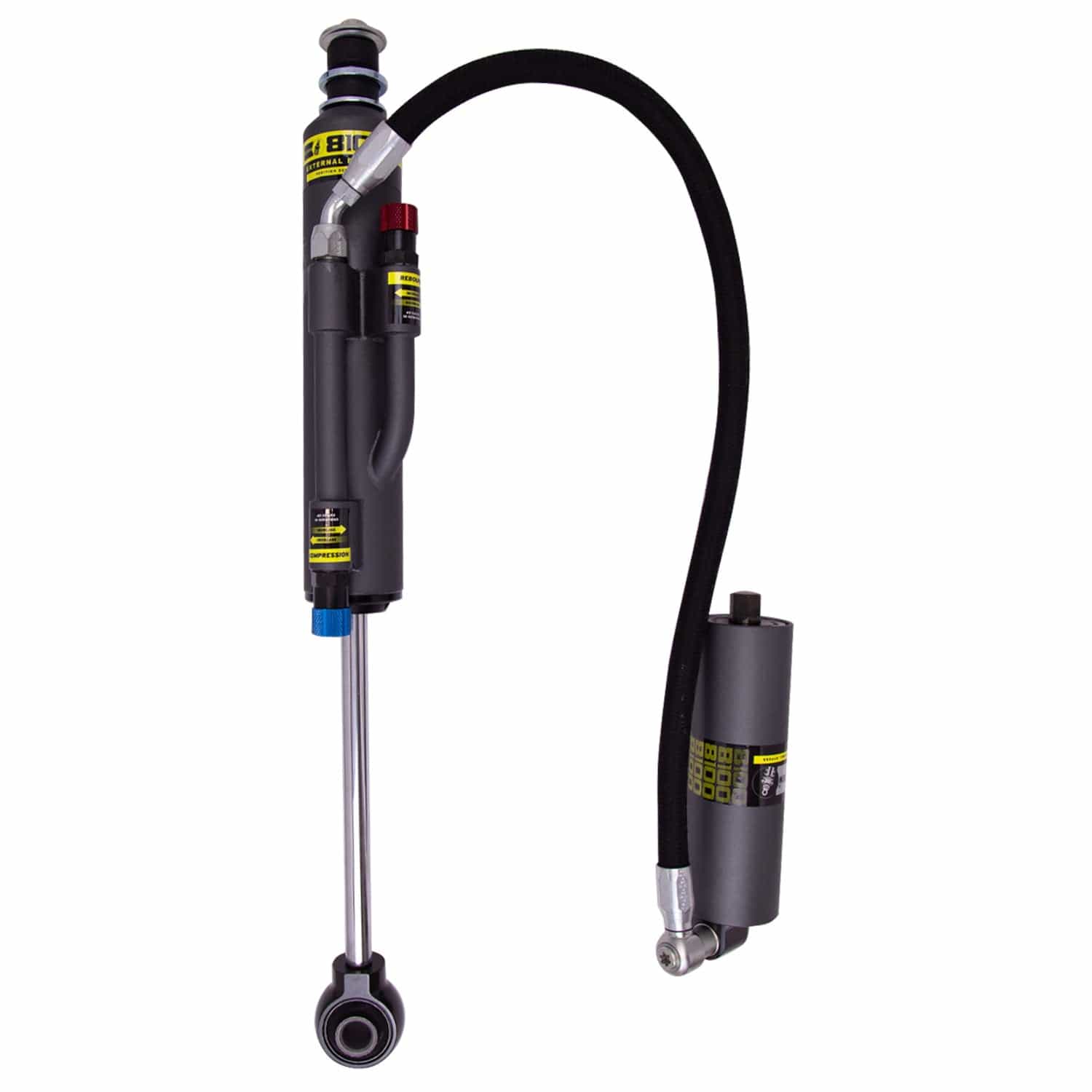

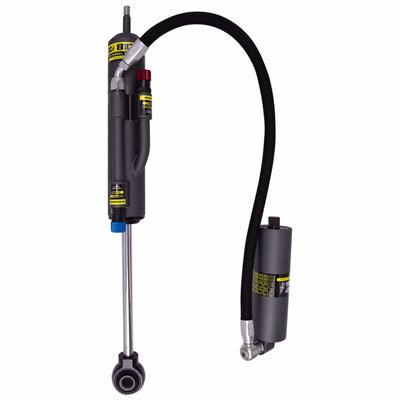

Bilstein B8 8100 (Bypass) for the 2007-2014 Toyota FJ Cruiser is a direct fit, position sensitive, damper for light trucks and SUV's. These motorsports inspired Shock Absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature "Incremental Flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Standard Features
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Specifications
| Part Number | 25-288155 |
| Part Name | Shock Absorber |
| Vehicle | 2007-2014 Toyota FJ Cruiser |
| UPC | 651860878645 |
| Rear Lift Height | 0 - 2 in. |
| Body Design | Bypass Body (Non-Coilover) |
| Body Diameter (ID) | 60 mm |
| Boot Included | No |
| Collapsed Length | 14.72 in. |
| Collapsed Length | 374.0 mm |
| Damping Adjustable | Yes |
| Extended Length | 24.09 in. |
| Extended Length | 612.0 mm |
| Finish | EVO Grey |
| Internal Design | Monotube |
| Lower Mount Type | Eye 19.25 mm |
| Reservoir | Yes |
| Segment | Light Truck |
| Series | B8 8100 (Bypass) |
| Spring Seat Included | No |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
Vehicle Fitment
- 2007 Toyota FJ Cruiser
- 2008 Toyota FJ Cruiser
- 2009 Toyota FJ Cruiser
- 2010 Toyota FJ Cruiser
- 2011 Toyota FJ Cruiser
- 2012 Toyota FJ Cruiser
- 2013 Toyota FJ Cruiser
- 2014 Toyota FJ Cruiser
