Product Details

The Bilstein B8 suspension are built for a 2019-2024 Ram 1500 4WD that has been lifted or leveled, valved for the taller ride height rather than fighting it.

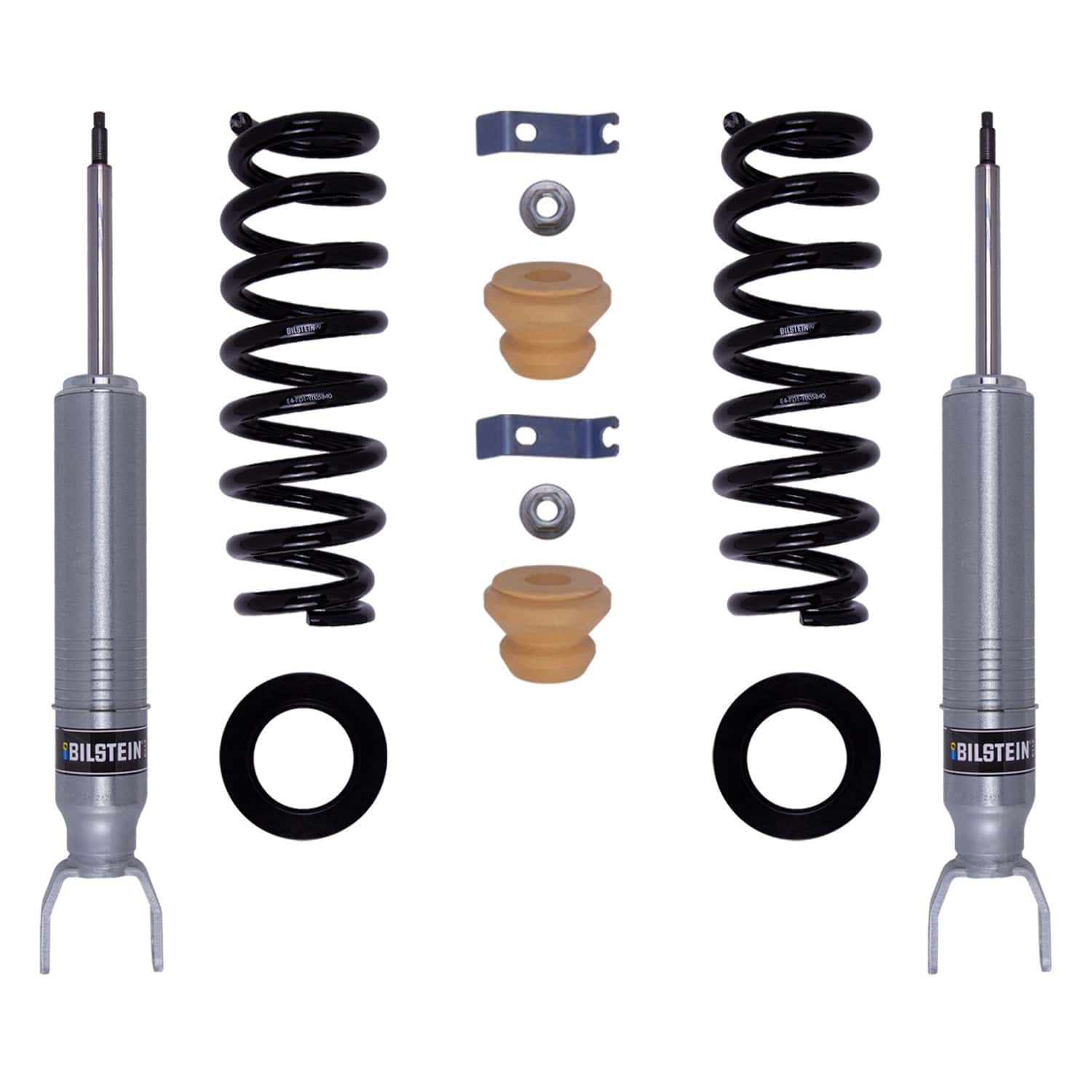

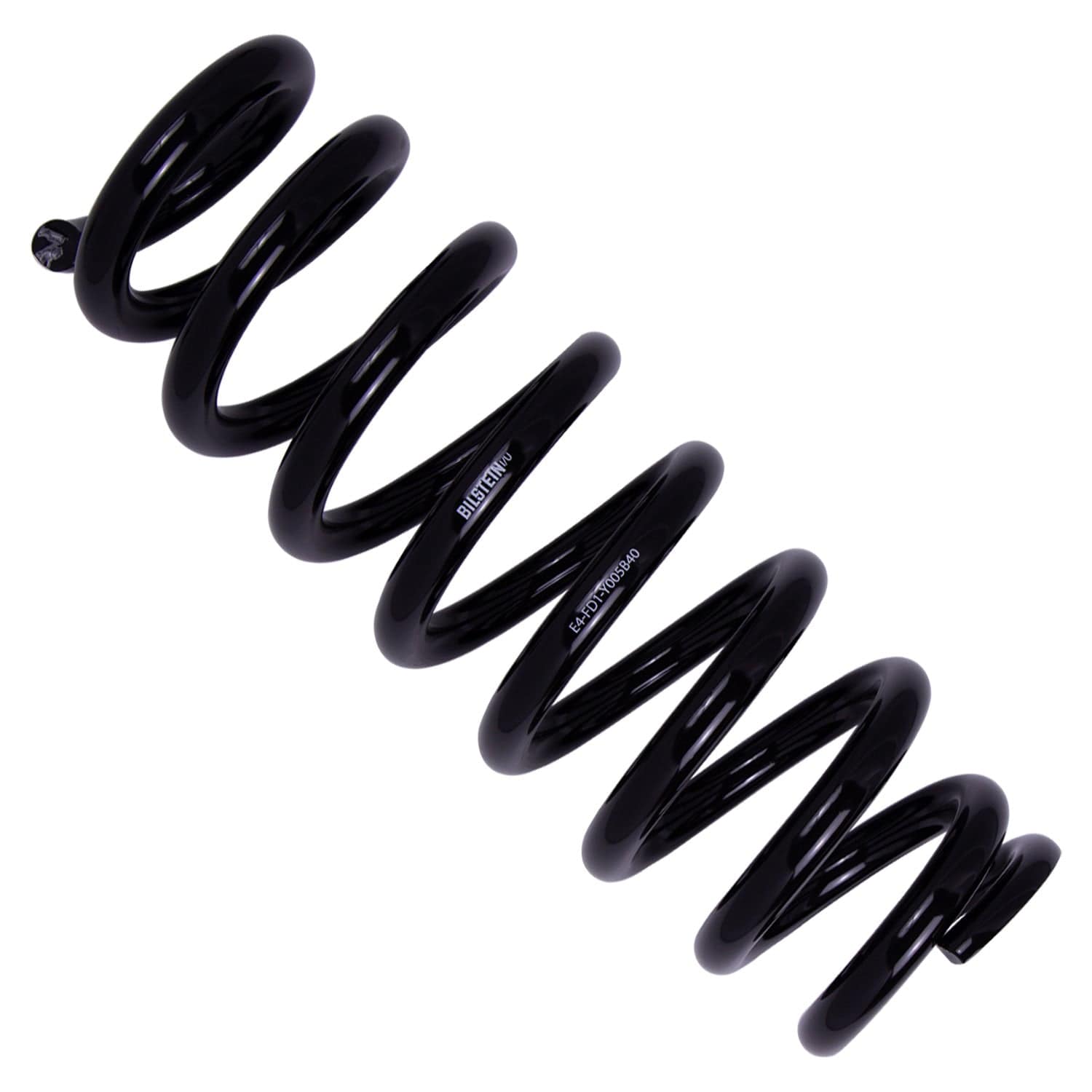

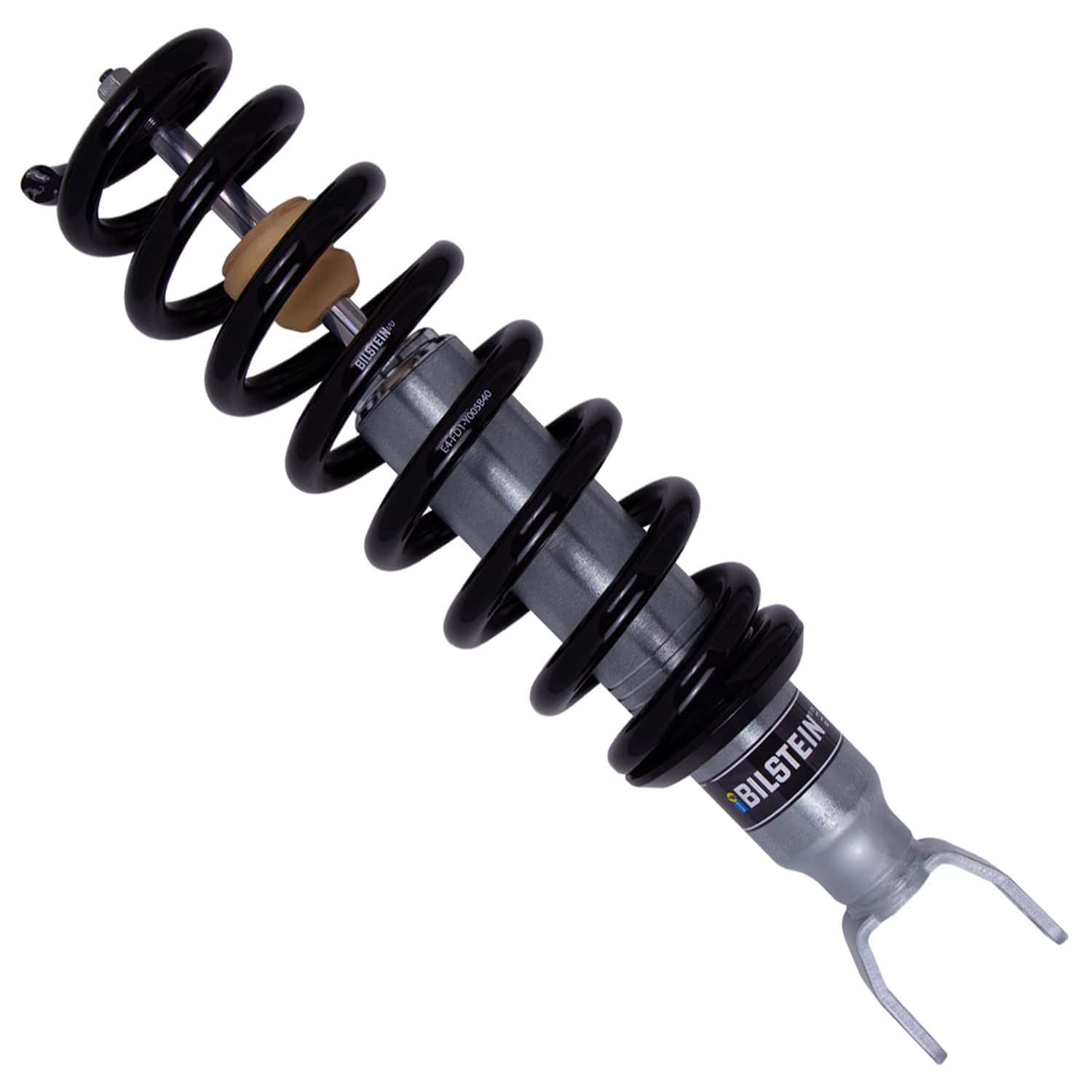

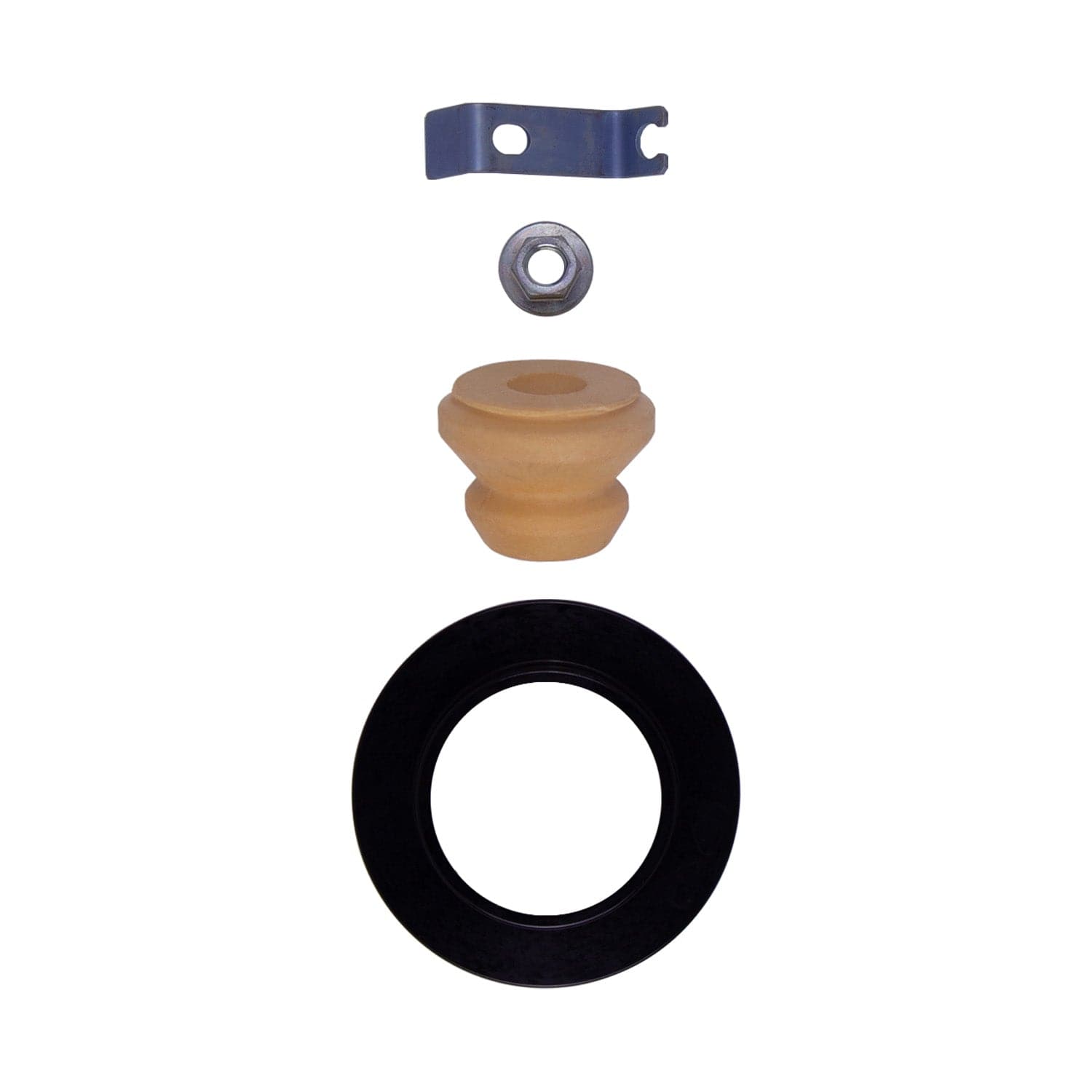

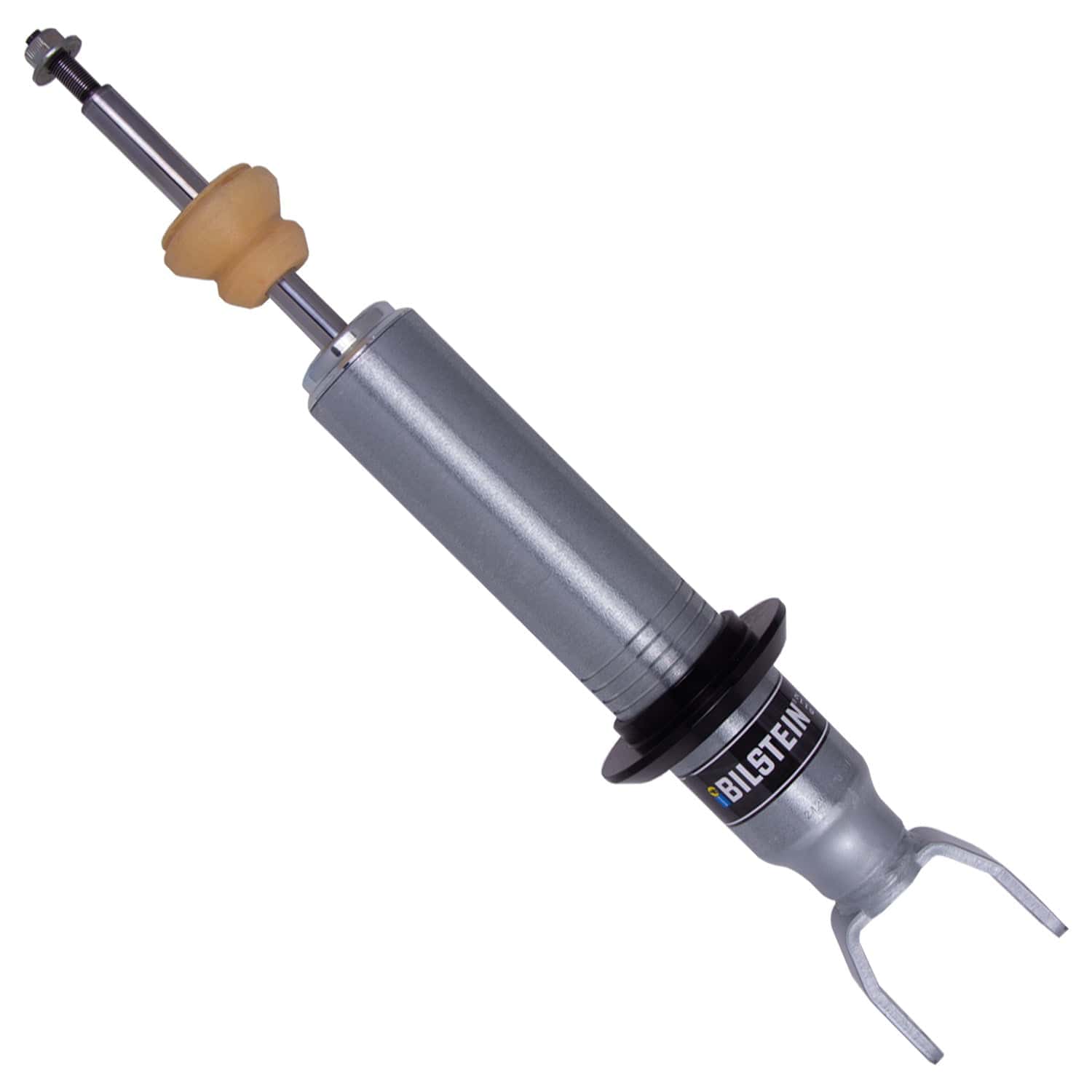

The B8 6112 is a front leveling kit with 60mm shocks, matched cold wound coil springs and billet aluminum spring seats. Snap-ring grooves in the 2.65 in. body set the spring seat height for front lift, the amount depending on the truck.

Bilstein invented the monotube gas damper and has been building suspension in Germany since 1954. Every unit is built to the same standard the company supplies to the manufacturers themselves, and it is backed by a limited lifetime warranty.

Features

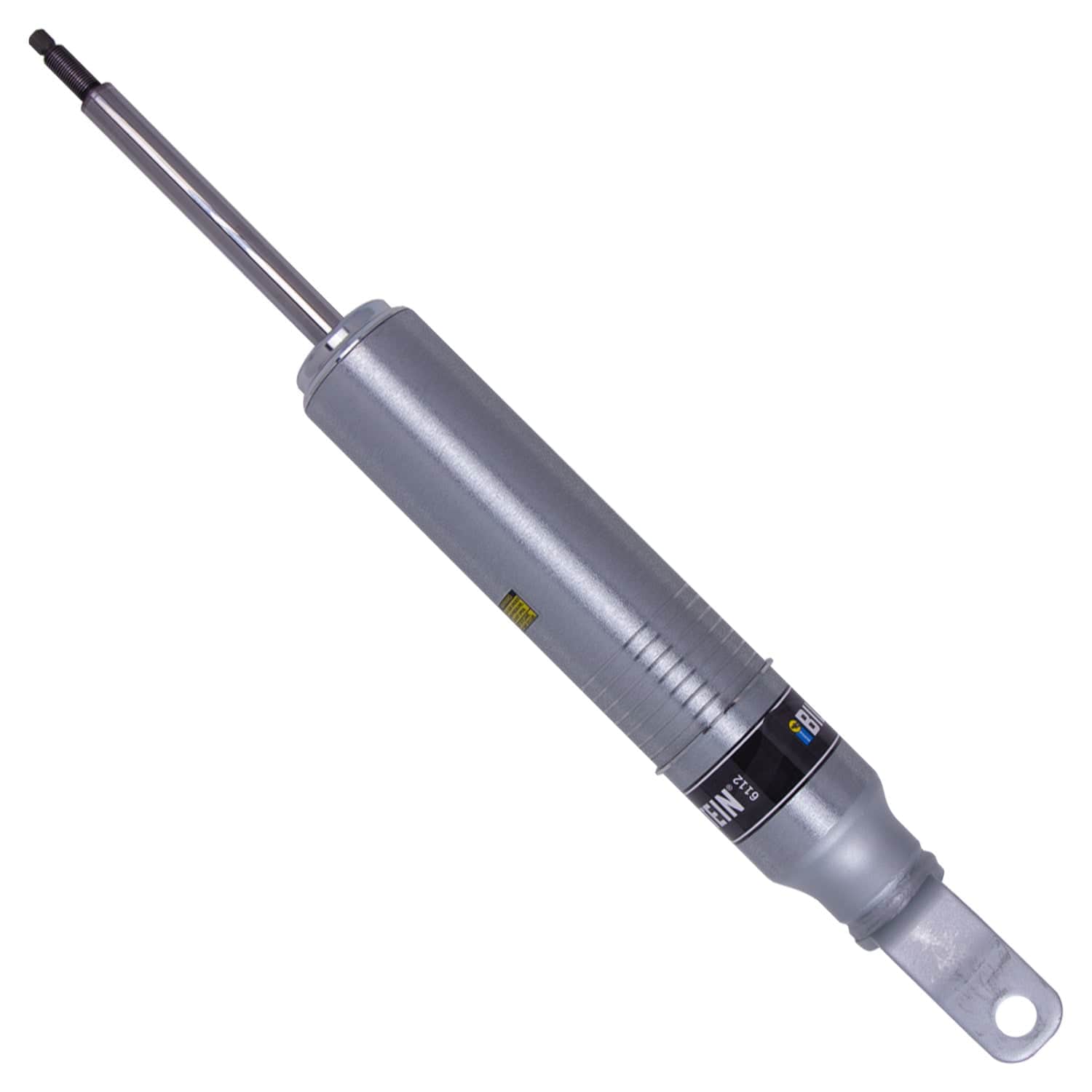

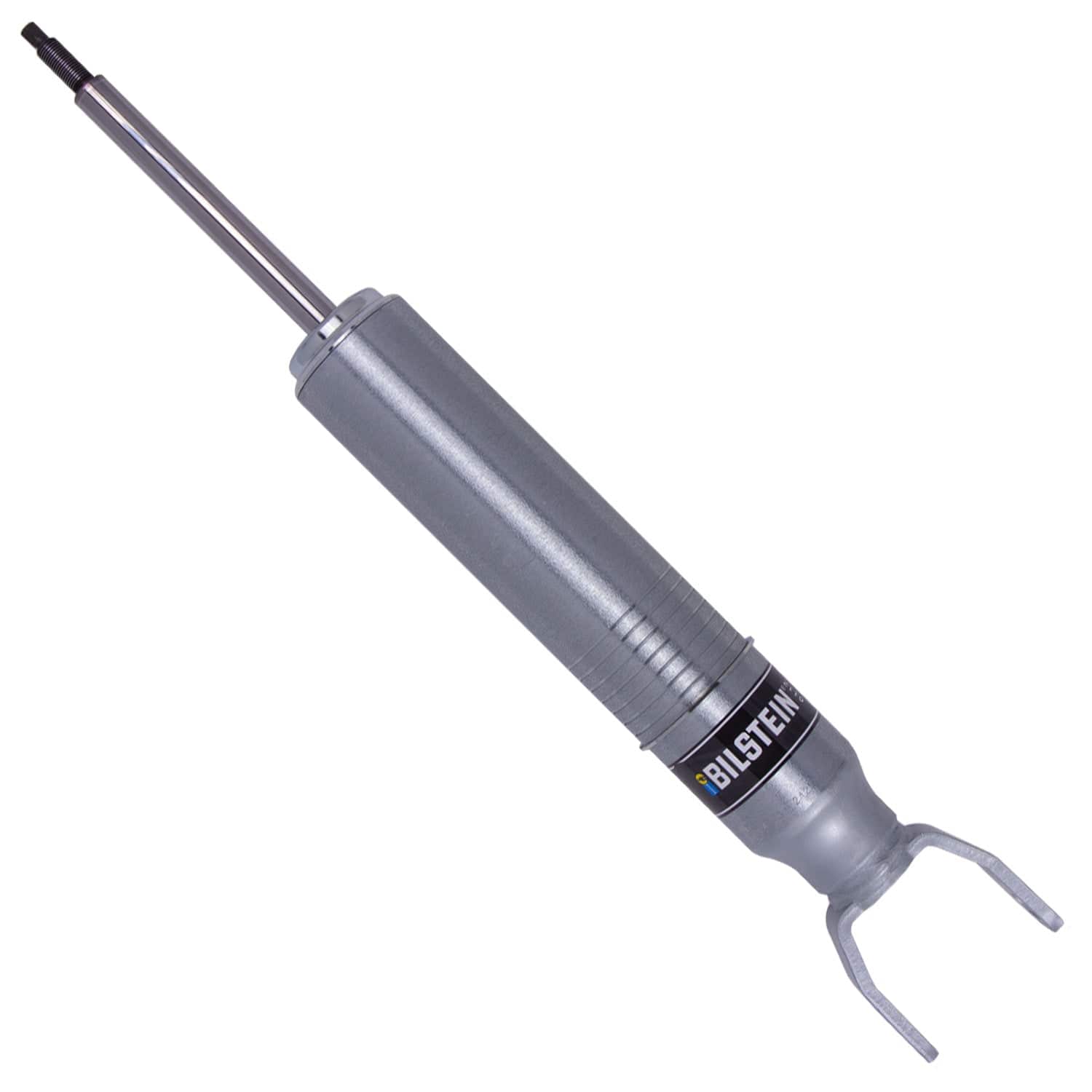

  • Large 60mm body for increased oil capacity, cooling, and long-term durability
  • 60mm digressive piston improves ride comfort and control over rough terrain
  • Vehicle specific tuning
Specifications
Part Number 47-293540
Part Name Suspension Kit
Vehicle 2019-2024 Ram 1500
Drivetrain 4WD
UPC 651860855998
Front Lift Height 0.6 - 2.6 in.
Body Design Snap Ring Grooved Body (Coilover)
Body Diameter (ID) 60 mm
Boot Included No
Finish Dampers: Zinc Plated / Springs: Black
Internal Design Monotube
Reservoir No
Segment Light Truck
Series B8 6112
Spring Seat Included Yes
Collapsed Length 16.08 in.
Extended Length 22.06 in. (560.4mm)
Stroke 5.98 in. (151.9mm)
Piston Diameter 60mm
Shaft Diameter 18mm
Notes Including factory Off-Road Package; Without Air Suspension

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2019Ram15004WDIncluding factory Off-Road Package; Without Air Suspension
2020Ram15004WDIncluding factory Off-Road Package; Without Air Suspension
2021Ram15004WDIncluding factory Off-Road Package; Without Air Suspension
2022Ram15004WDIncluding factory Off-Road Package; Without Air Suspension
2023Ram15004WDIncluding factory Off-Road Package; Without Air Suspension
2024Ram15004WDIncluding factory Off-Road Package; Without Air Suspension
