Product Details

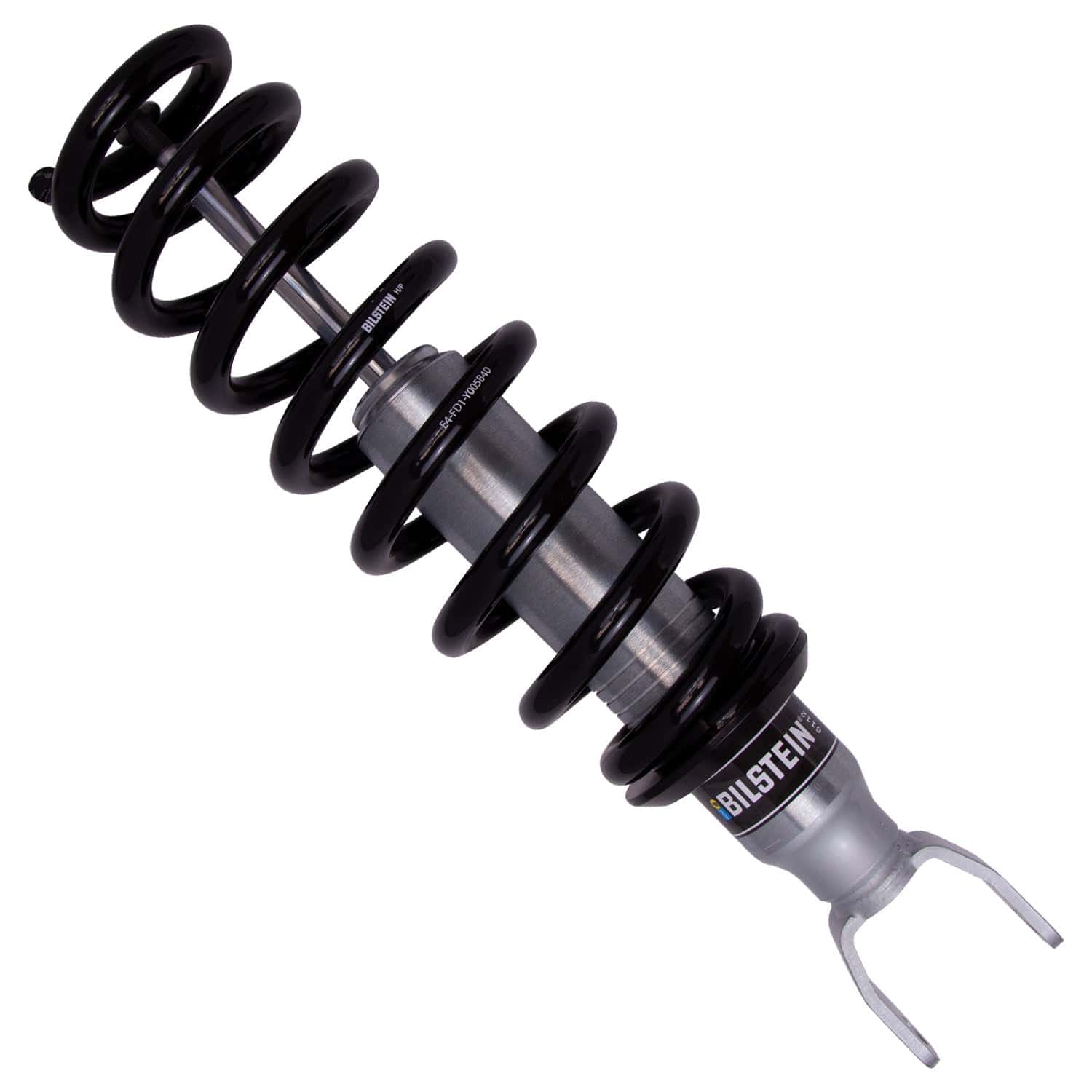

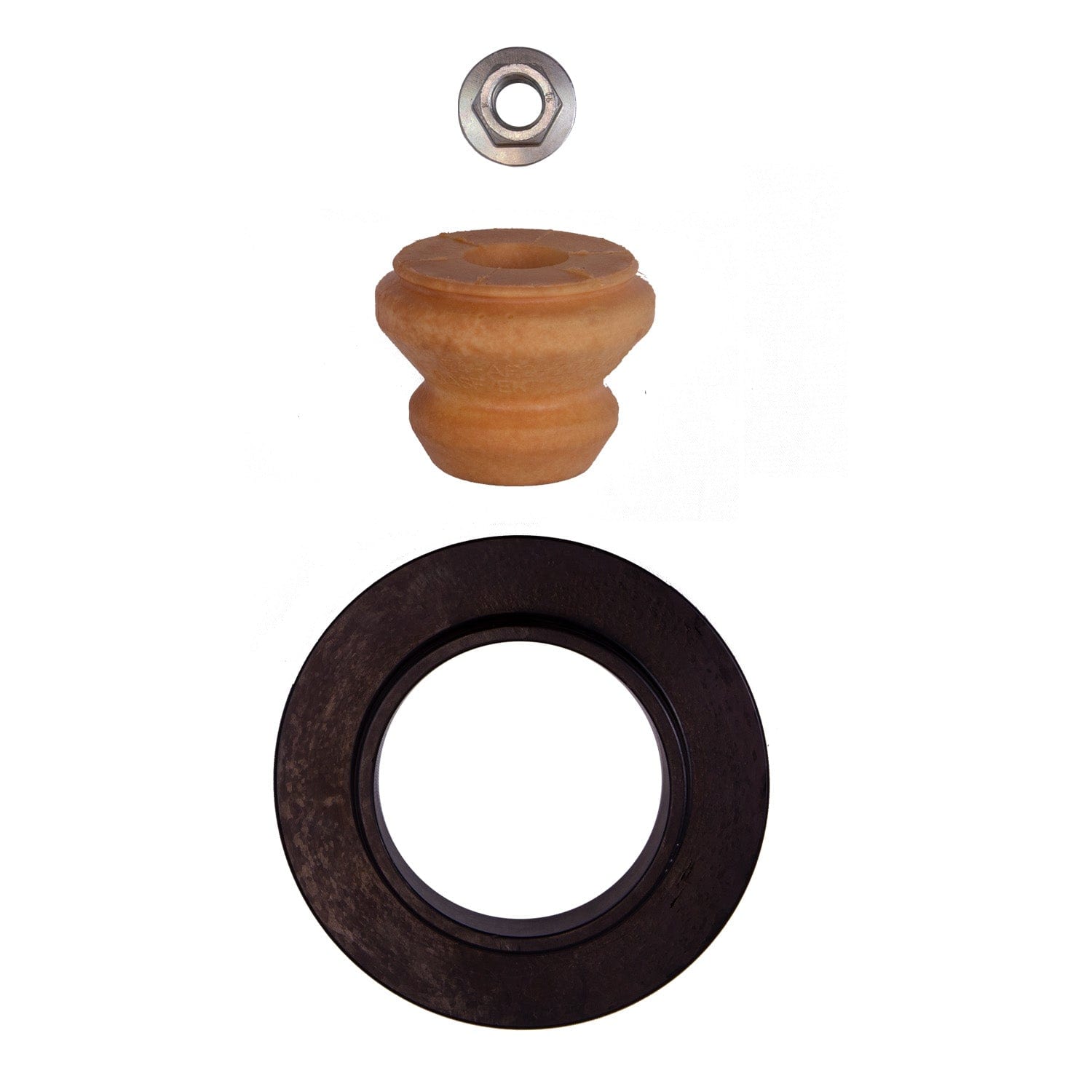

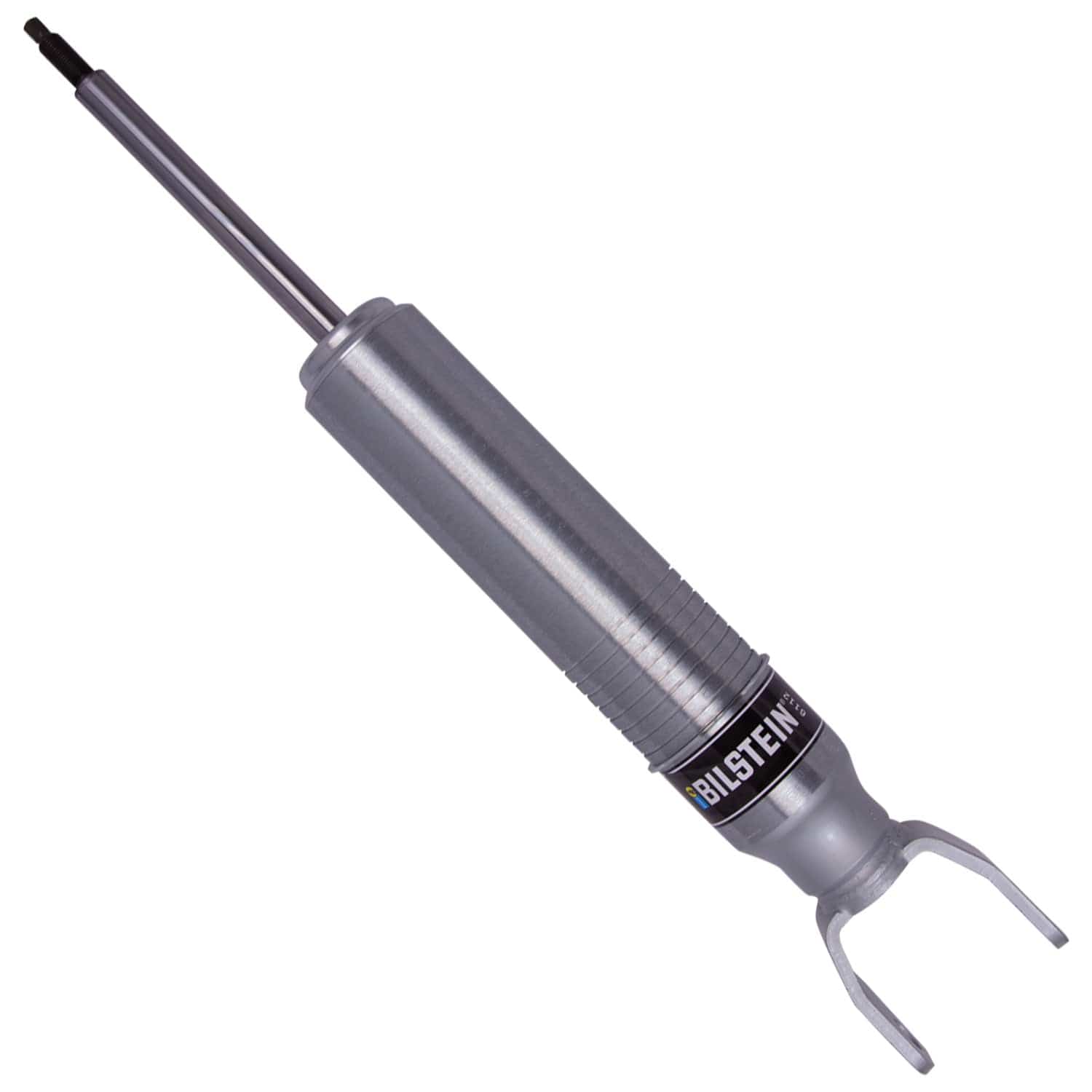

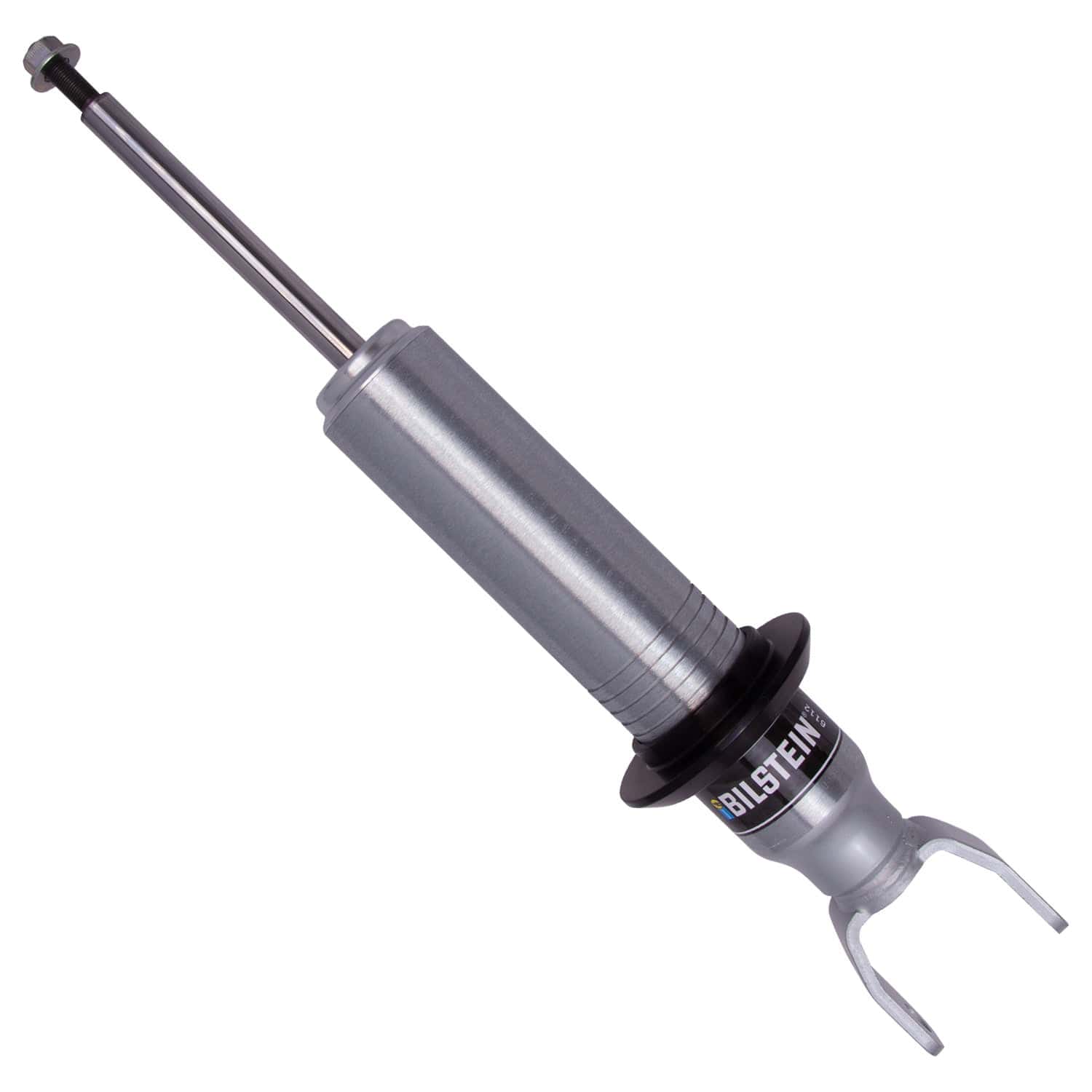

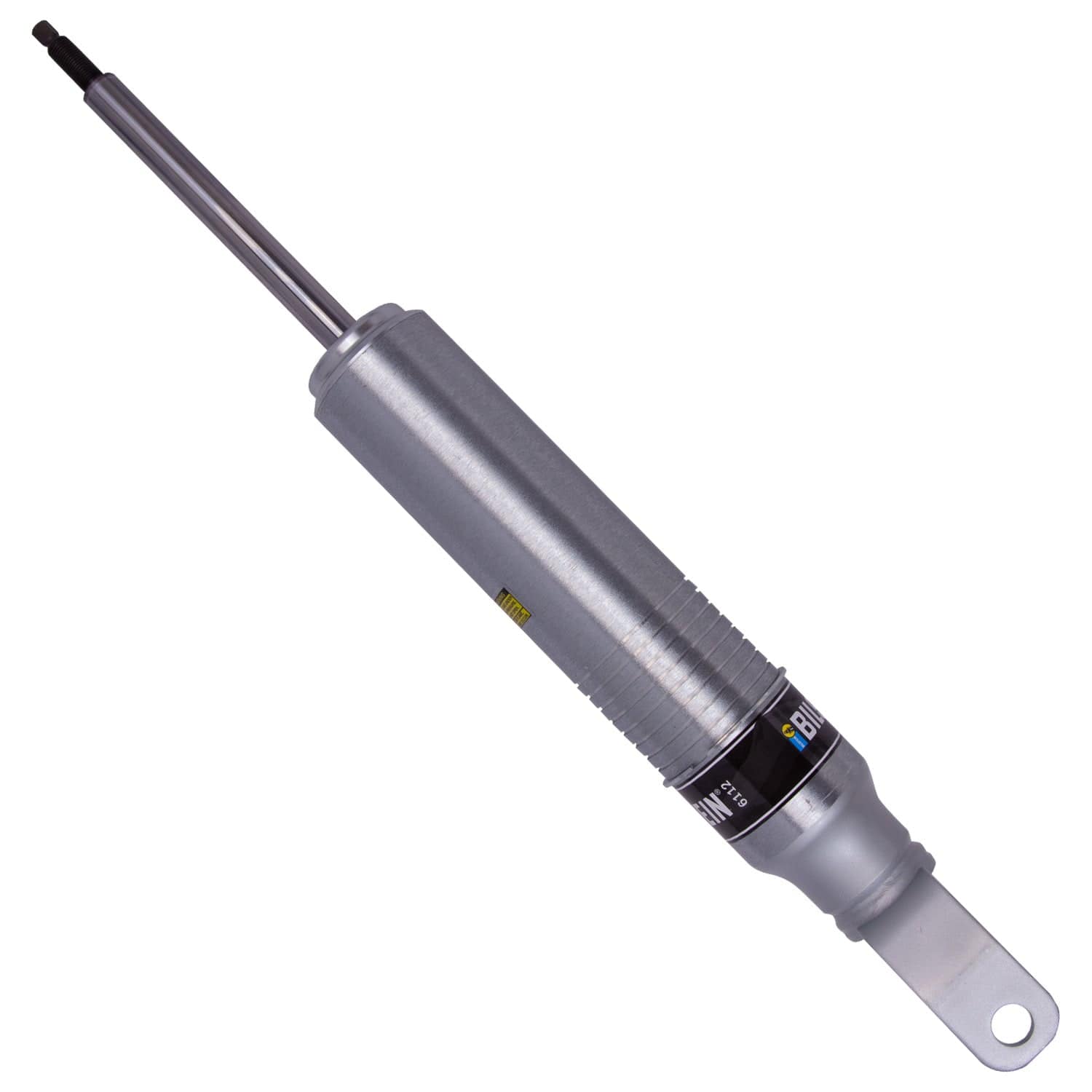

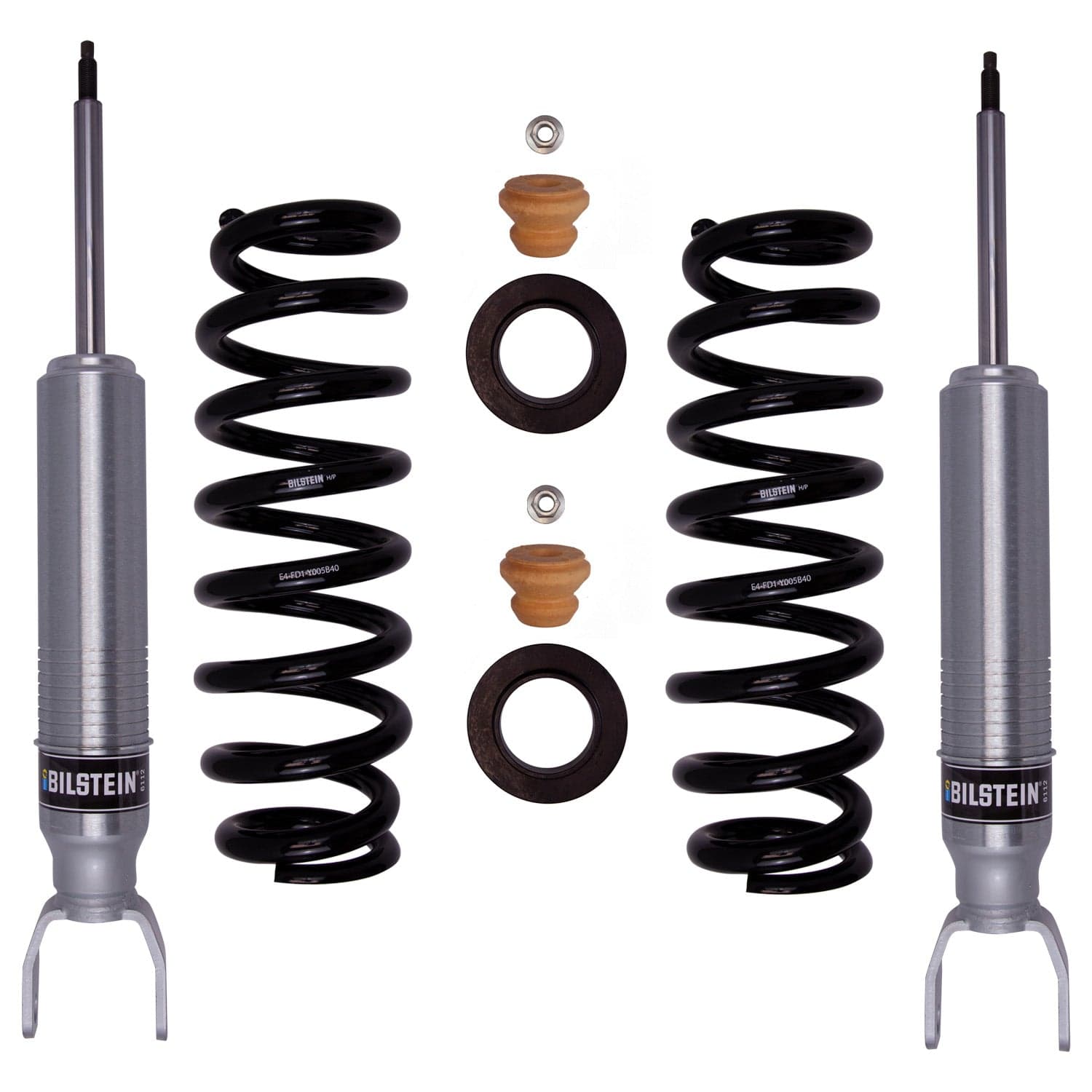

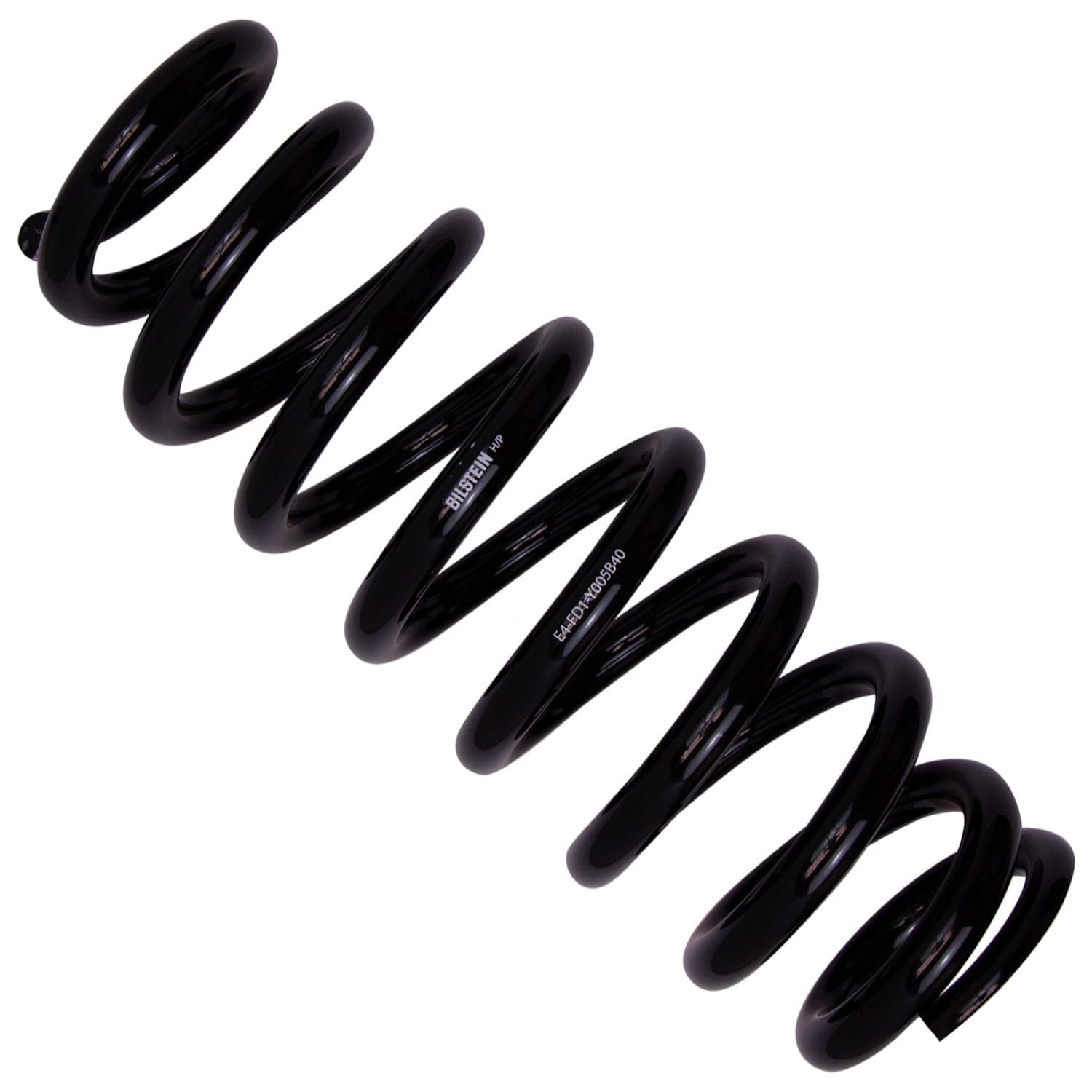

Bilstein B8 6112 leveling Kit for the 2009-2024 Dodge Ram 1500 (DS/DT) are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm Shock Absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Standard Features
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Specifications
| Part Number | 47-311015 |
| Part Name | Suspension Kit |
| Vehicle | 2009-2024 Dodge Ram 1500 |
| Chassis Code | DS/DT |
| UPC | 651860868936 |
| Front Lift Height | 0.8 - 2.8 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Boot Included | No |
| Finish | Dampers: Zinc Plated / Springs: Black |
| Internal Design | Monotube |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 6112 |
| Spring Seat Included | Yes |
| Notes | Without Air Suspension |
Vehicle Fitment
- 2009 Dodge Ram 1500 (DS/DT)
- 2010 Dodge Ram 1500 (DS/DT)
- 2011 Dodge Ram 1500 (DS/DT)
- 2012 Dodge Ram 1500 (DS/DT)
- 2013 Dodge Ram 1500 (DS/DT)
- 2014 Dodge Ram 1500 (DS/DT)
- 2015 Dodge Ram 1500 (DS/DT)
- 2016 Dodge Ram 1500 (DS/DT)
- 2017 Dodge Ram 1500 (DS/DT)
- 2018 Dodge Ram 1500 (DS/DT)
- 2019 Dodge Ram 1500 (DS/DT)
- 2020 Dodge Ram 1500 (DS/DT)
- 2021 Dodge Ram 1500 (DS/DT)
- 2022 Dodge Ram 1500 (DS/DT)
- 2023 Dodge Ram 1500 (DS/DT)
- 2024 Dodge Ram 1500 (DS/DT)
