Product Details

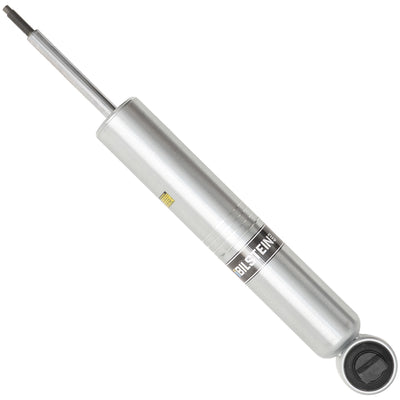

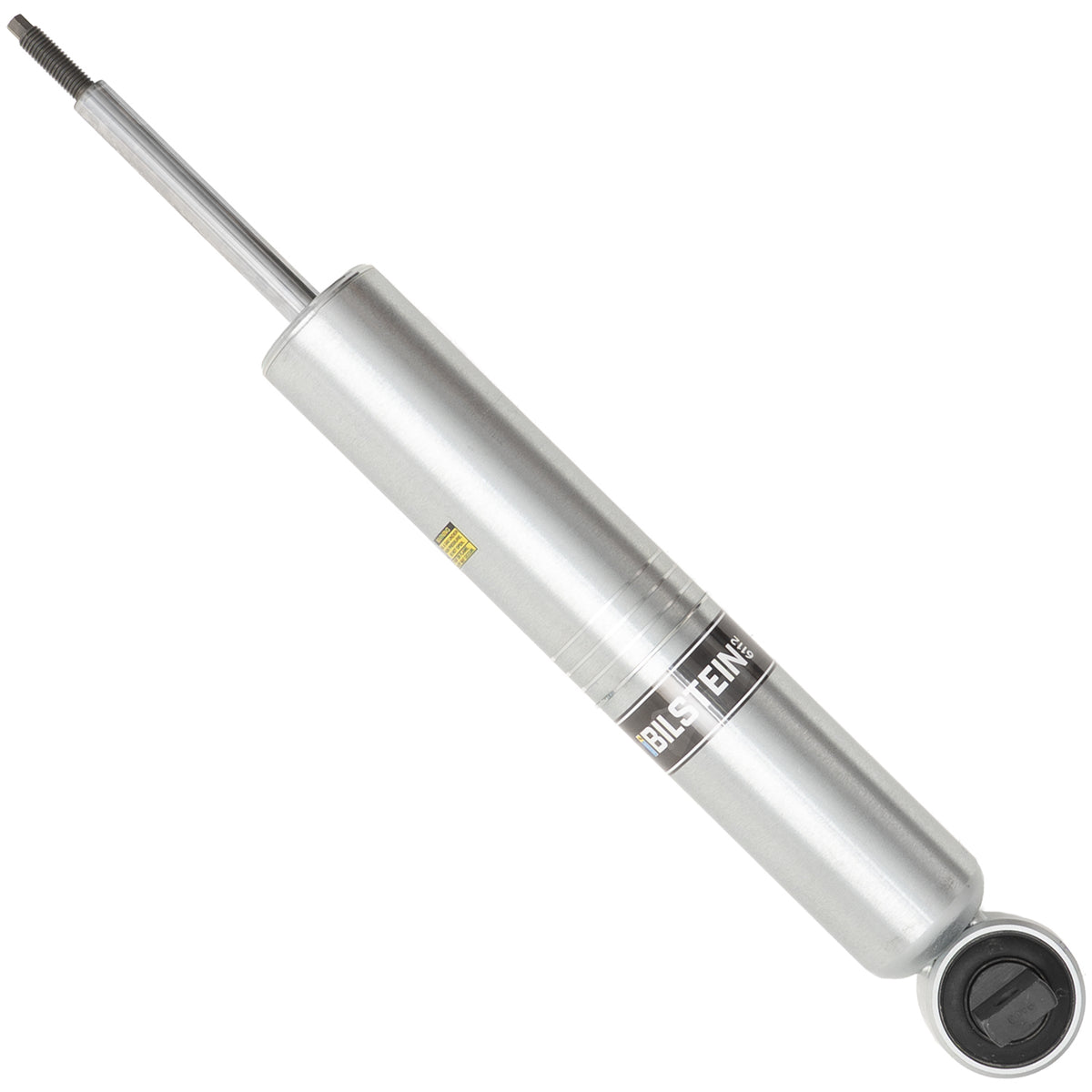

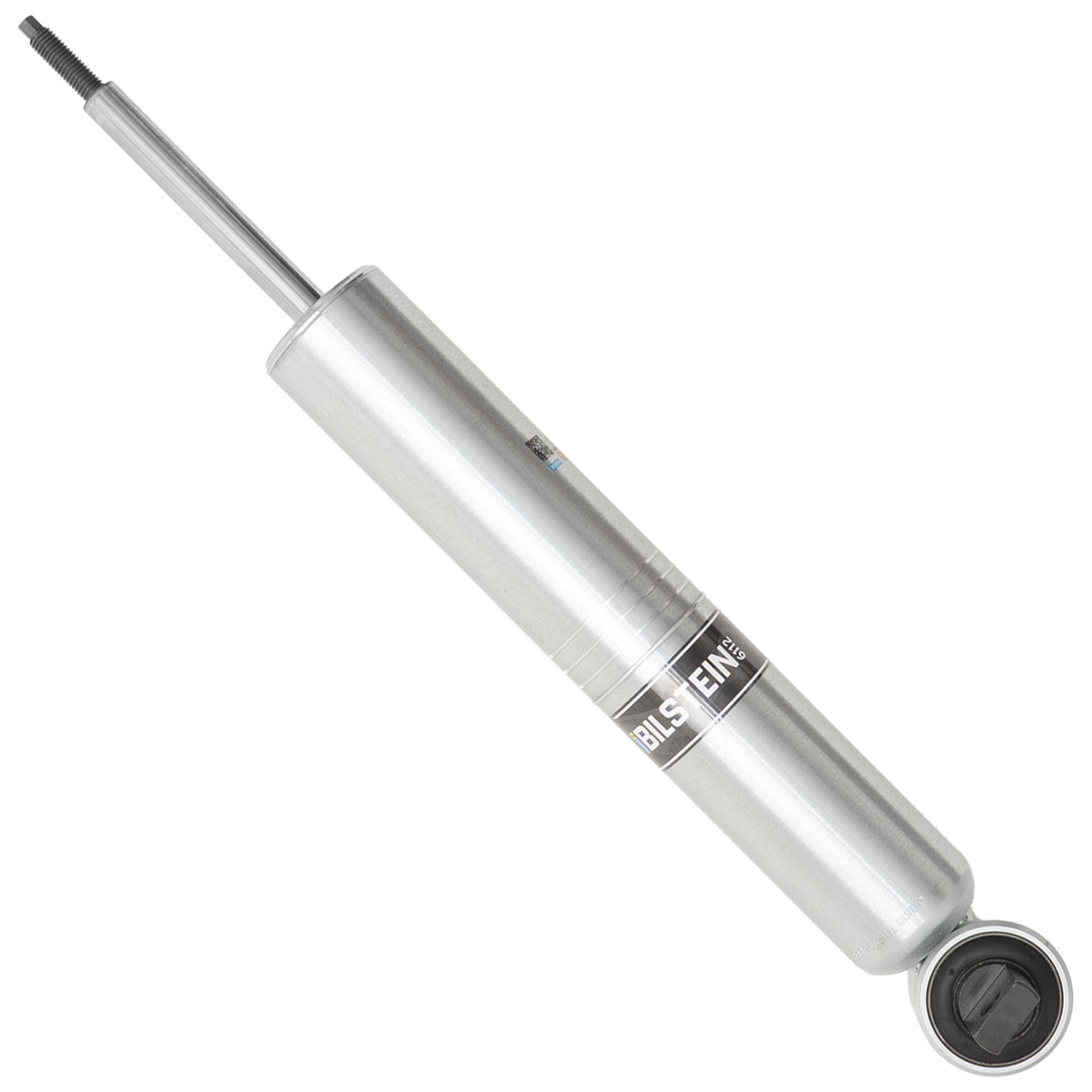

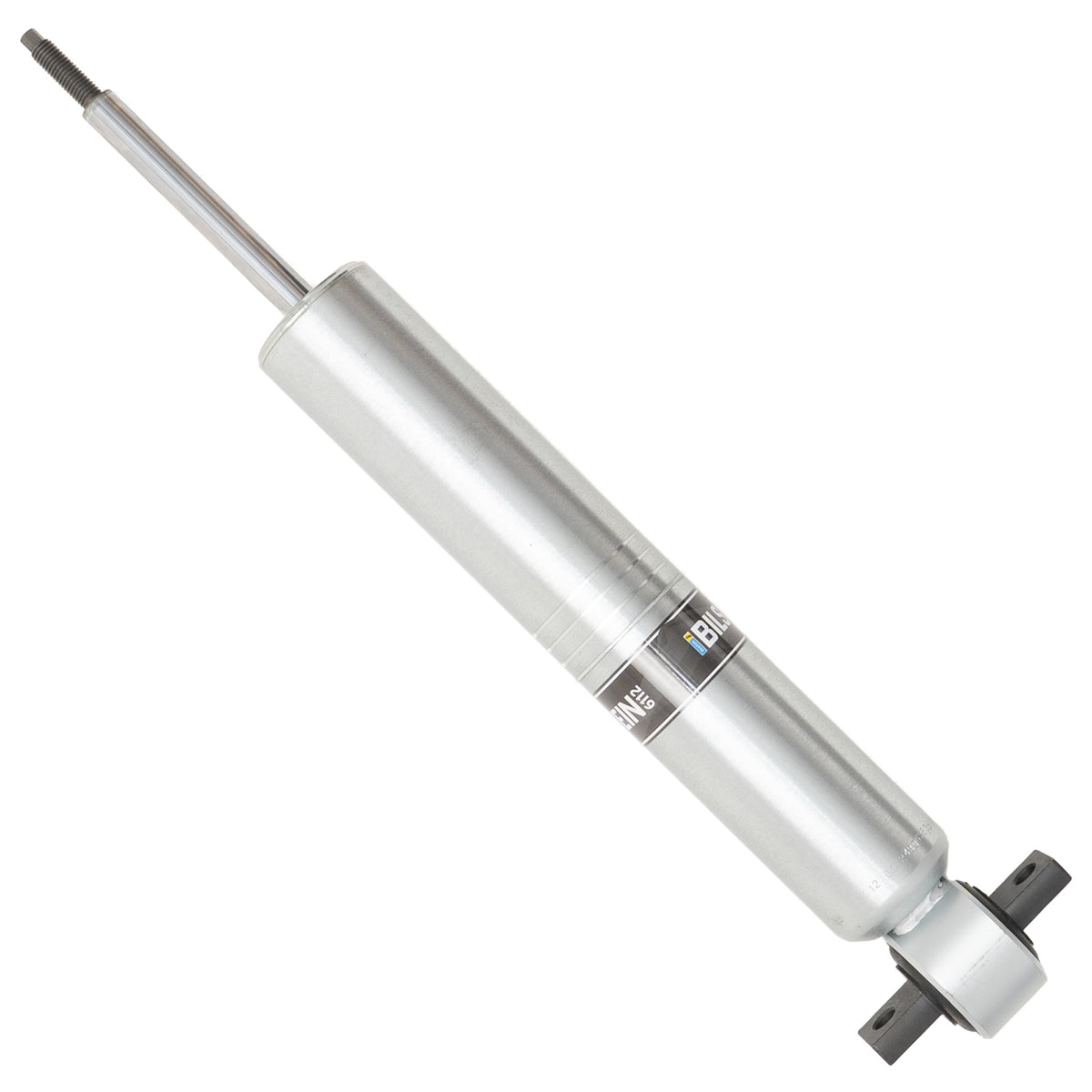

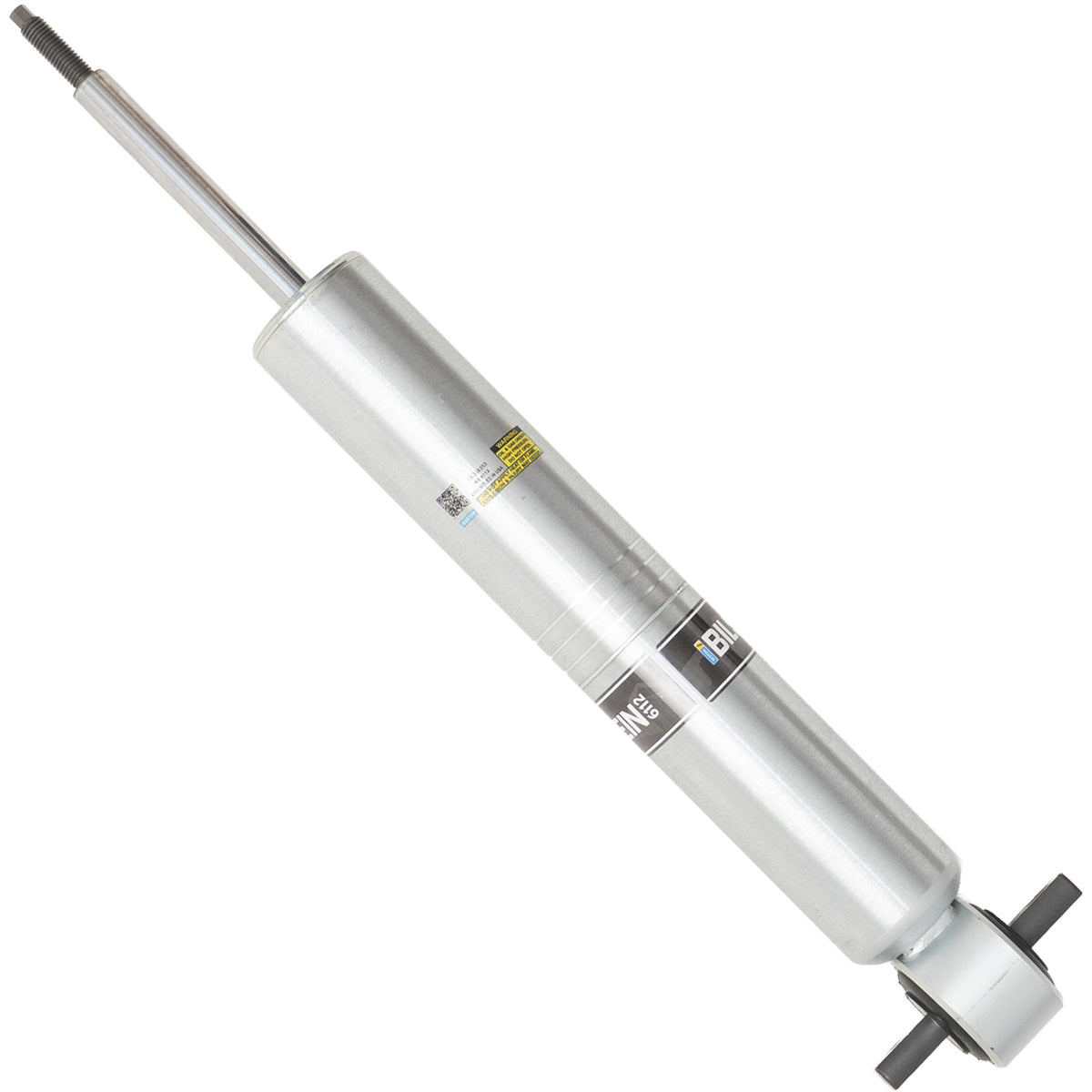

The Bilstein B8 front suspension kit is valved for a lifted or leveled 2024-2026 Ford Ranger 4WD, built for the taller stance rather than fighting it.

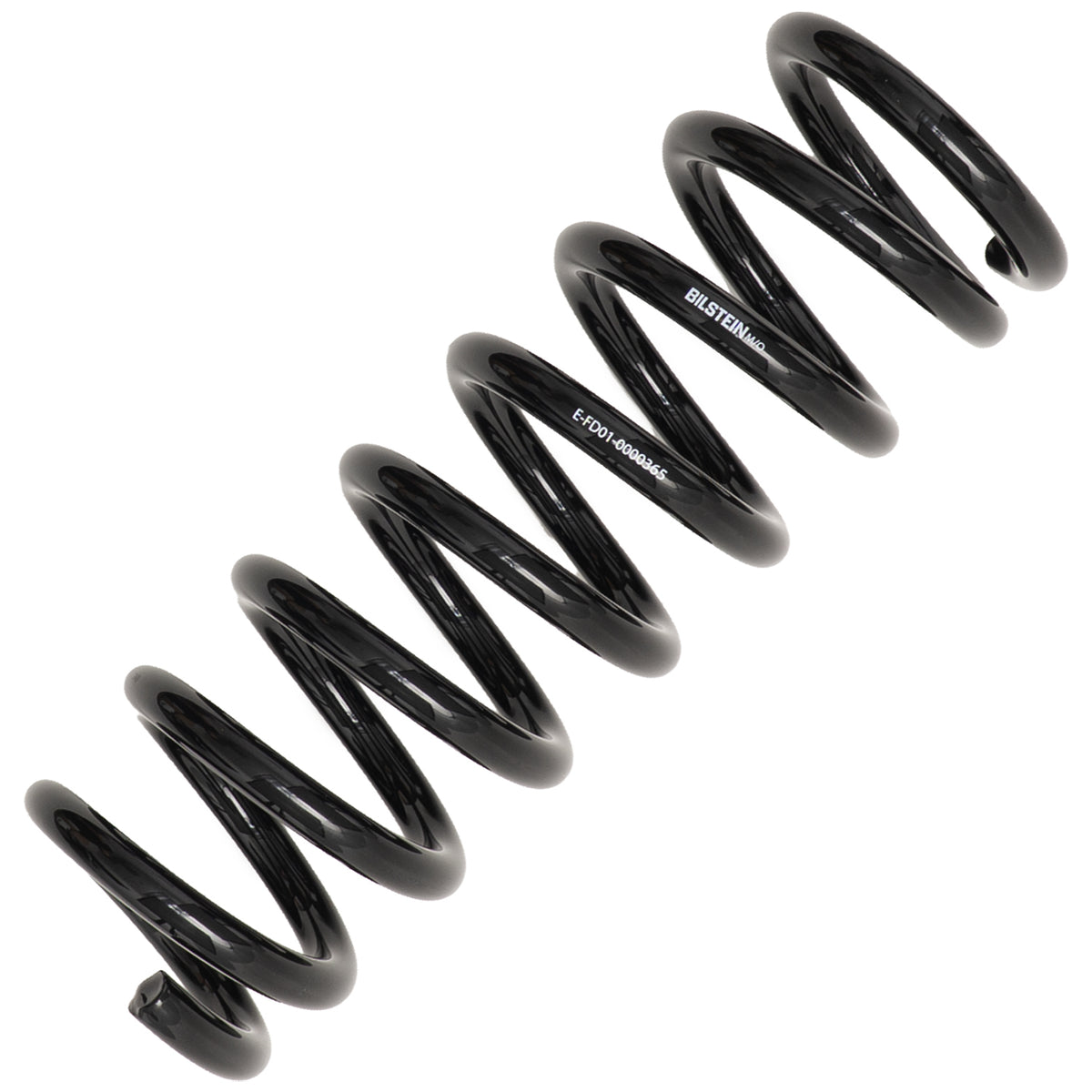

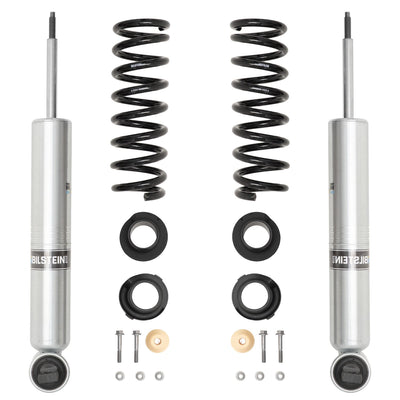

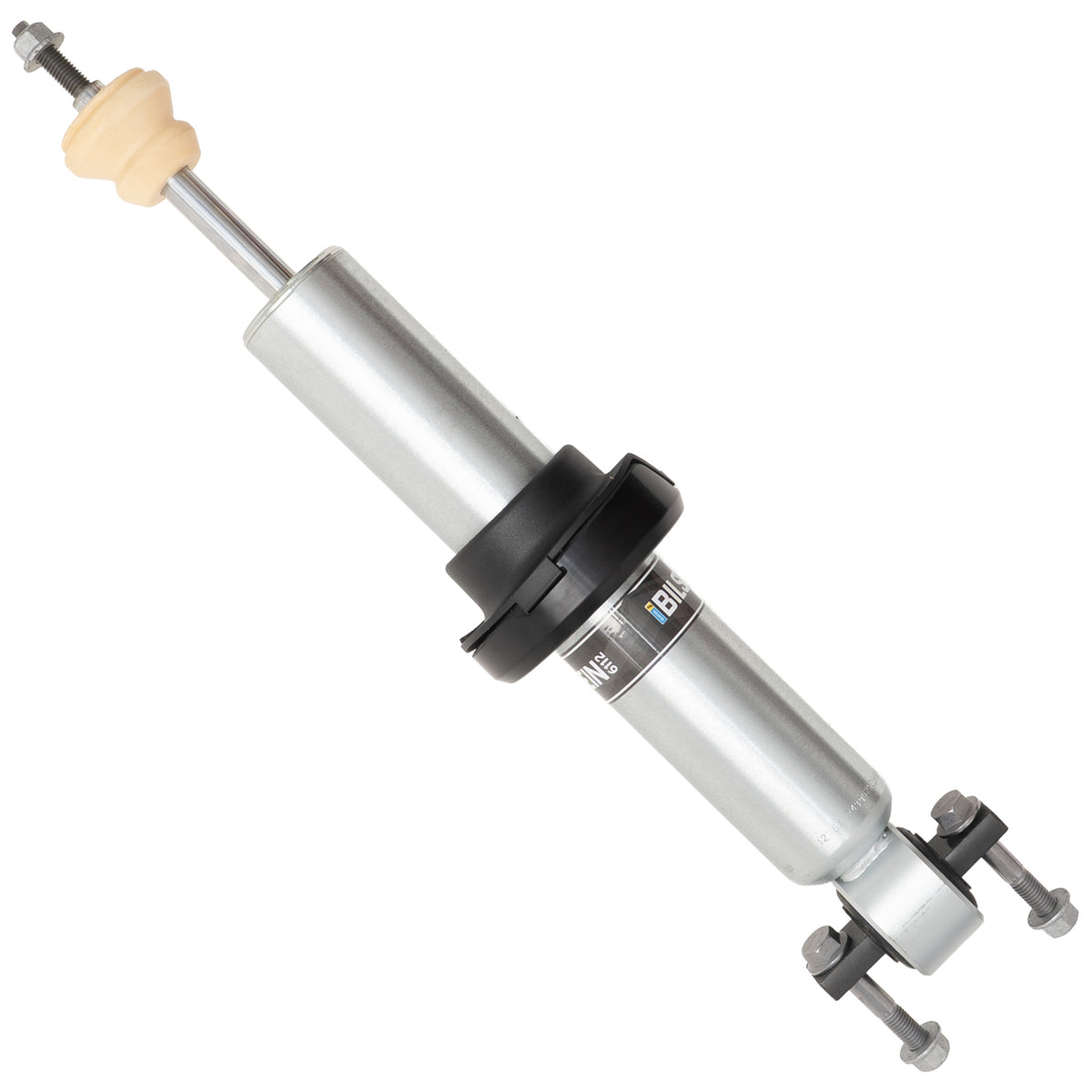

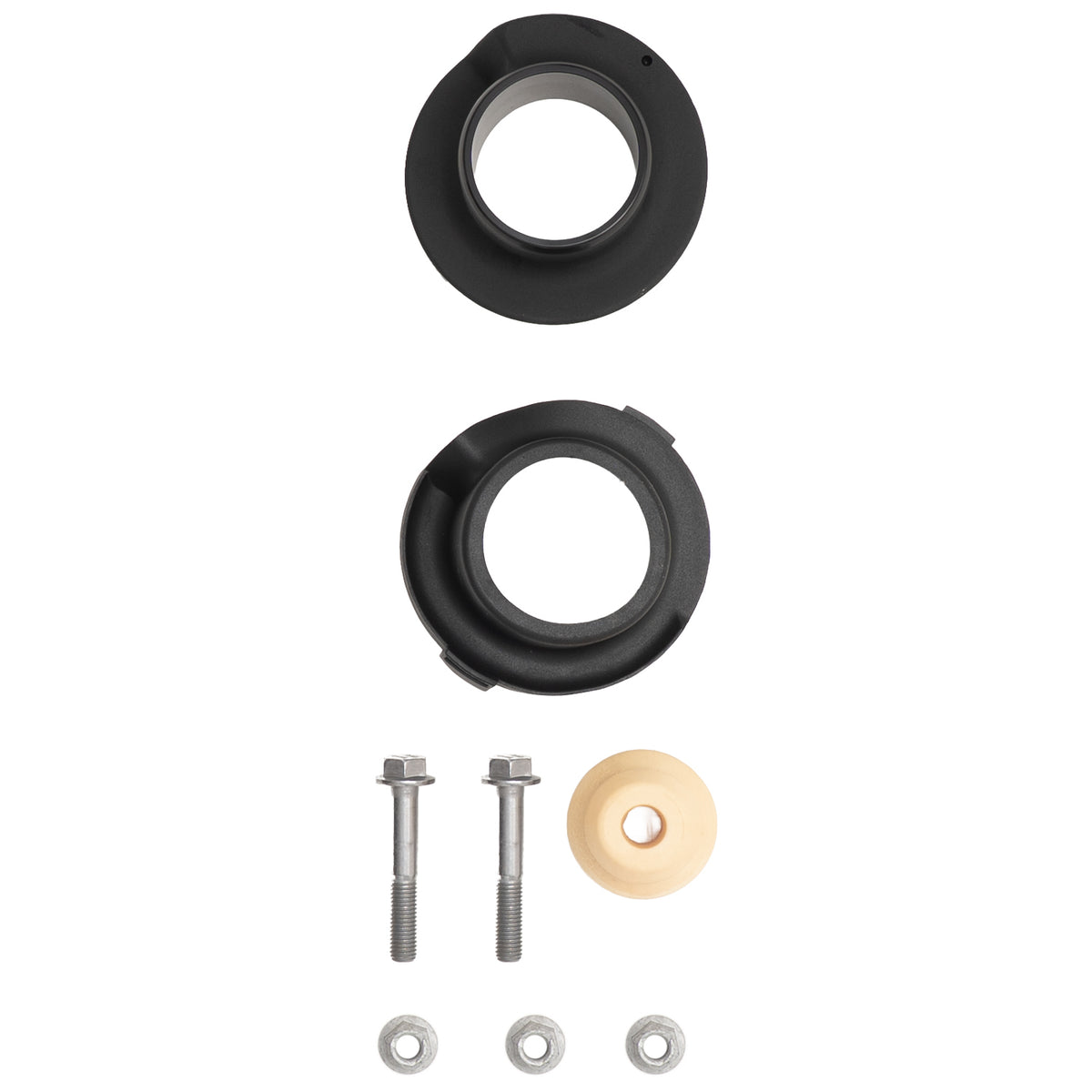

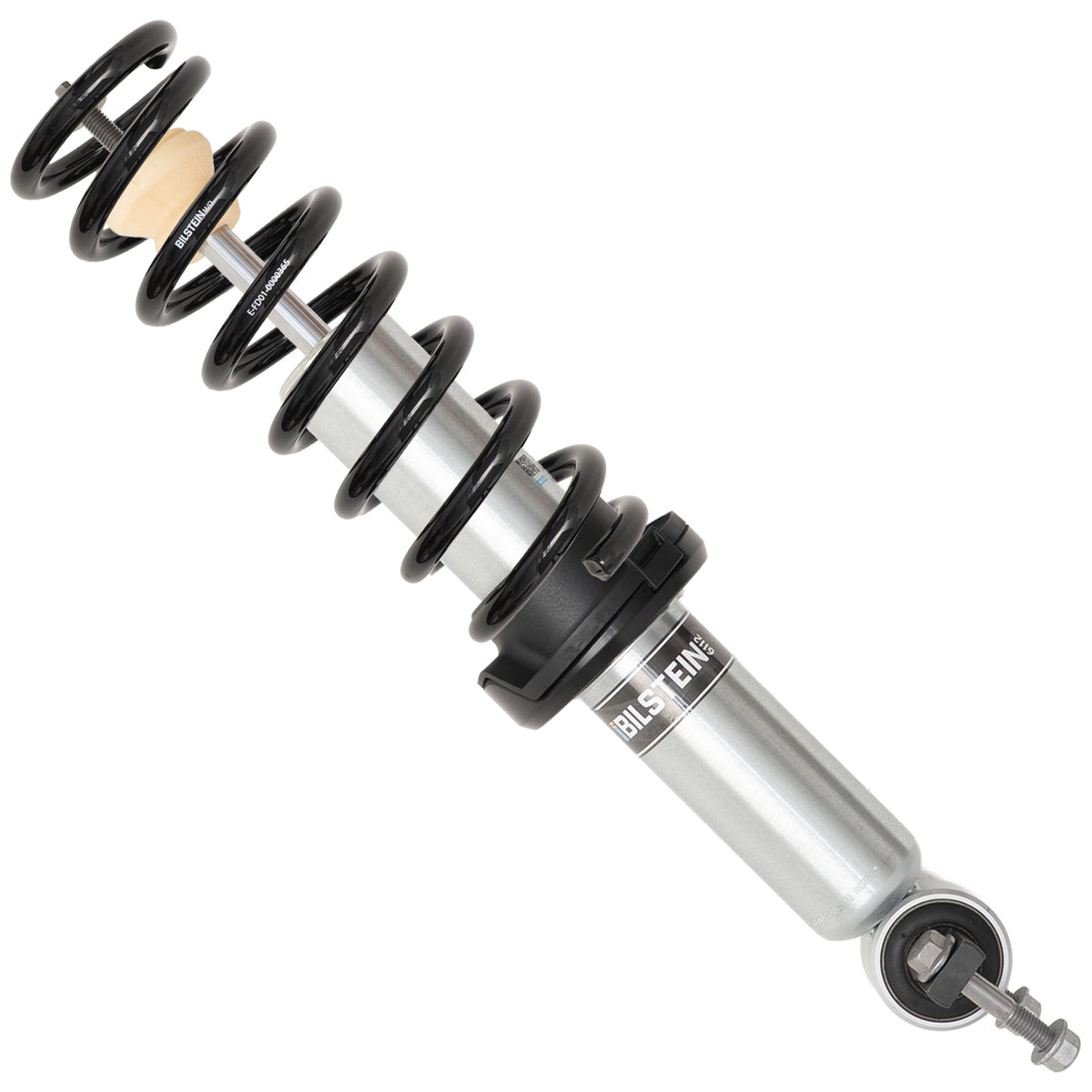

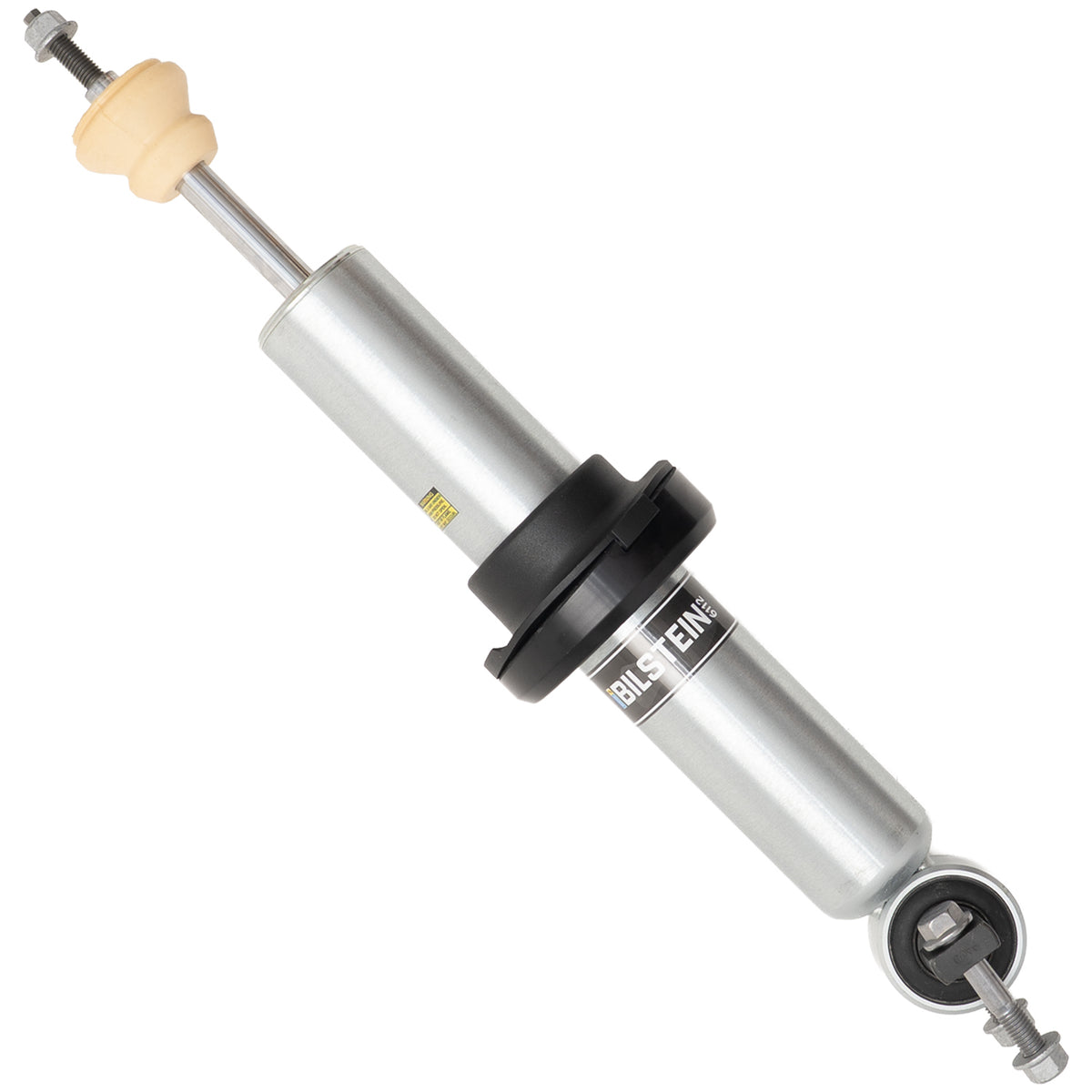

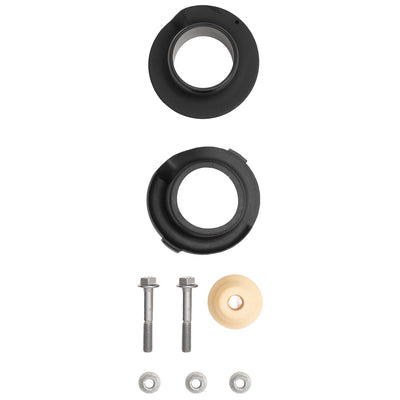

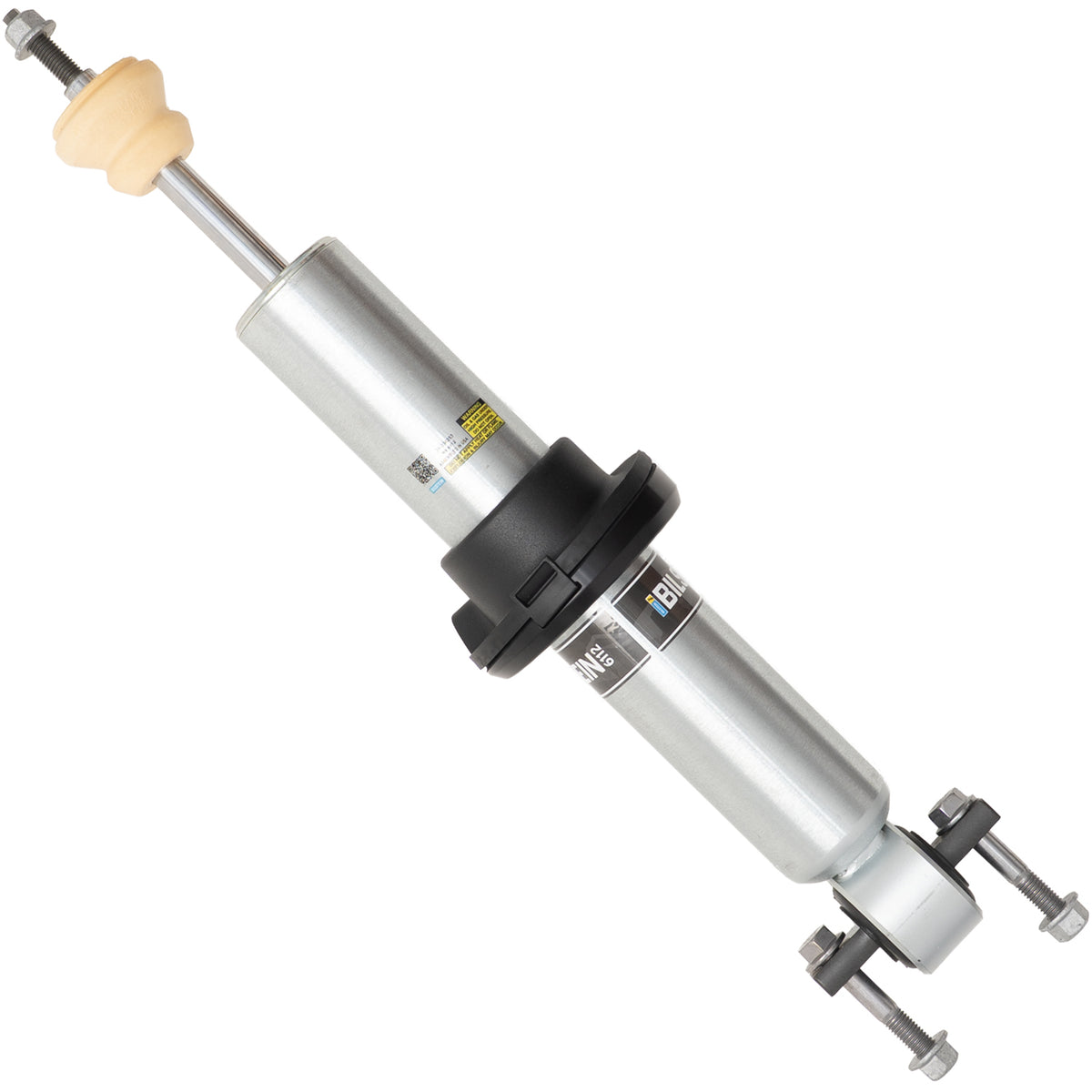

The B8 6112 is a front leveling kit with 60mm shocks, matched cold wound coil springs and billet aluminum spring seats. Snap-ring grooves in the 2.65 in. body set the spring seat height for front lift, the amount depending on the truck.
Bilstein supplies suspension as original equipment to manufacturers worldwide and applies the same engineering here. It fits the factory mounting points exactly and is covered by a limited lifetime warranty.
Features
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Specifications
| Part Number | 47-336261 |
| Part Name | Front Suspension Kit |
| Vehicle | 2024-2026 Ford Ranger |
| Drivetrain | 4WD |
| Vehicle Placement | Front |
| Series | B8 6112 |
| Weight | 50.10 lb |
| Collapsed Length | 16.90 in. |
| Extended Length | 21.30 in. (541.1mm) |
| Stroke | 4.40 in. (111.8mm) |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Internal Design | Monotube |
| Piston Diameter | 60mm |
| Shaft Diameter | 18mm |
| Boot Included | No |
| Spring Seat Included | Yes |
| Reservoir | No |
| Finish | Dampers: Zinc Plated/Springs: Black |
| Segment | Light Truck |
| Notes | 1-2.5 in. Front Lift. |
