Product Details

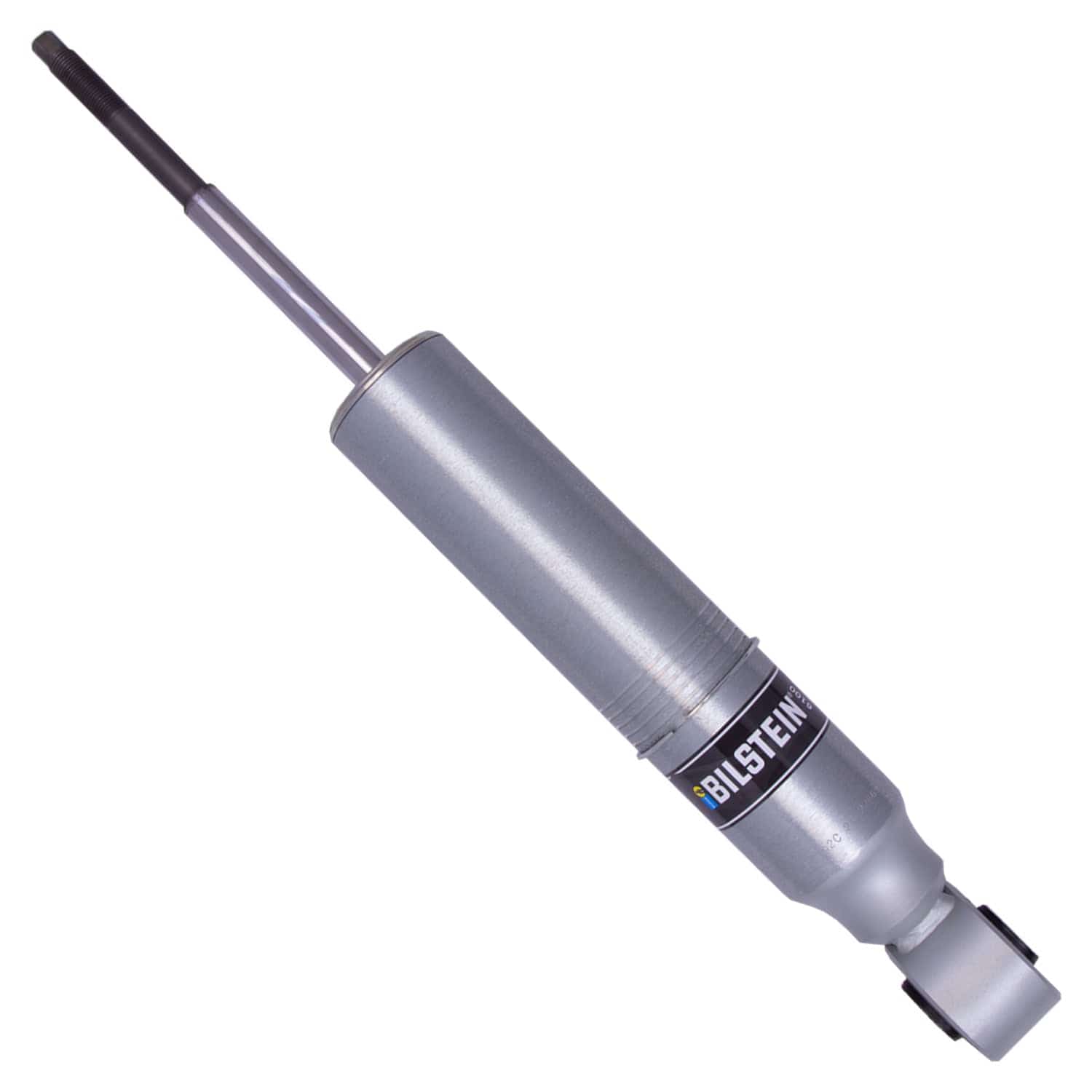

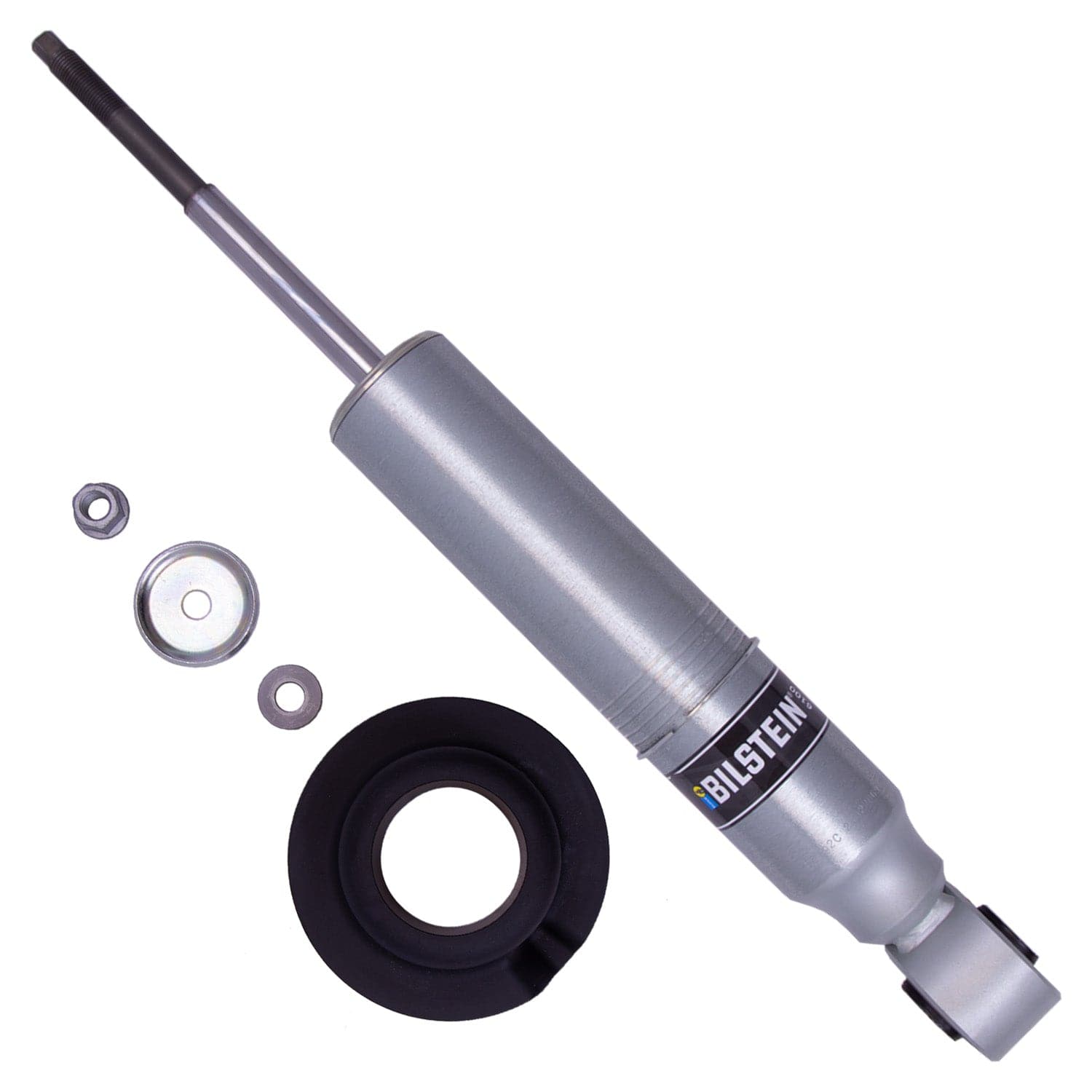

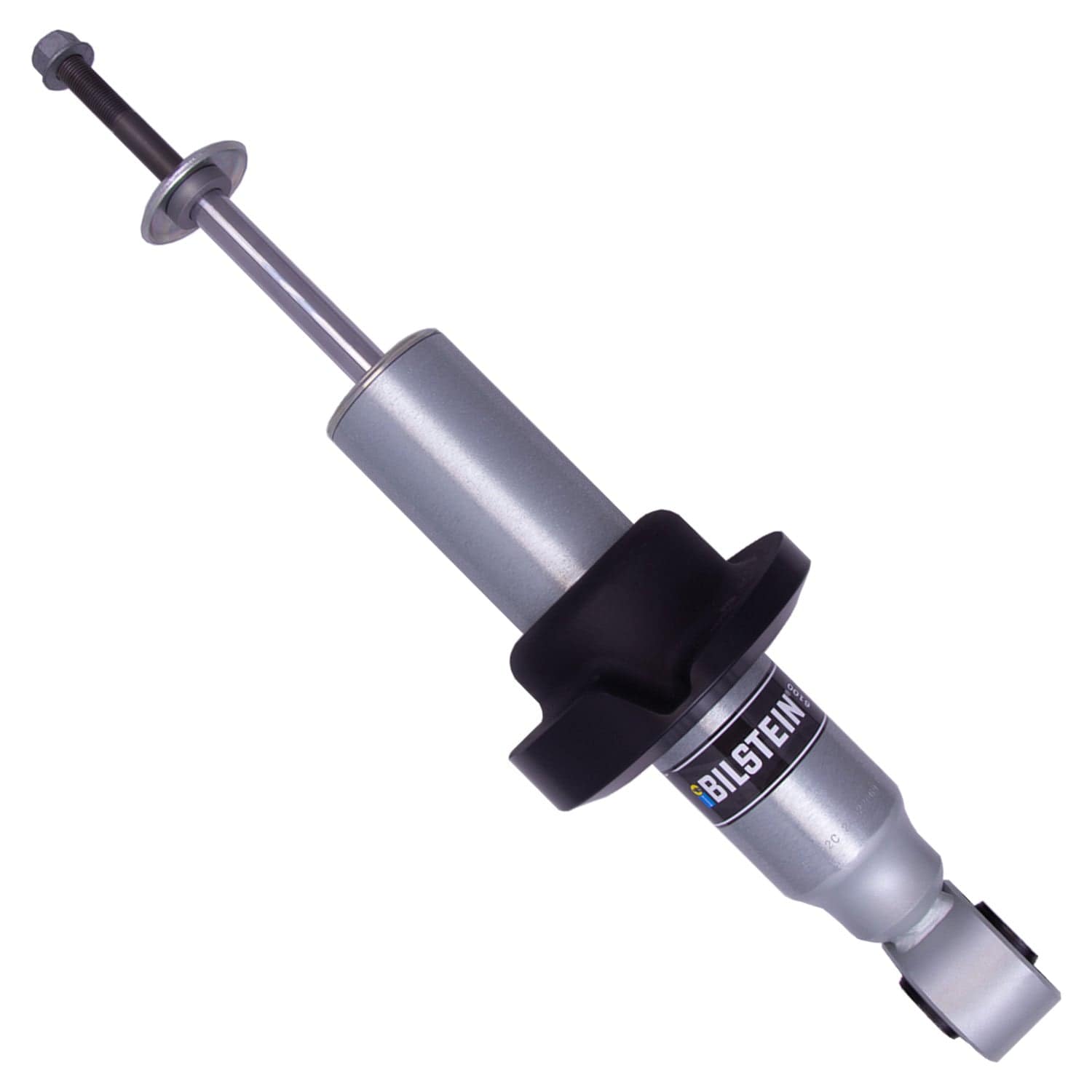

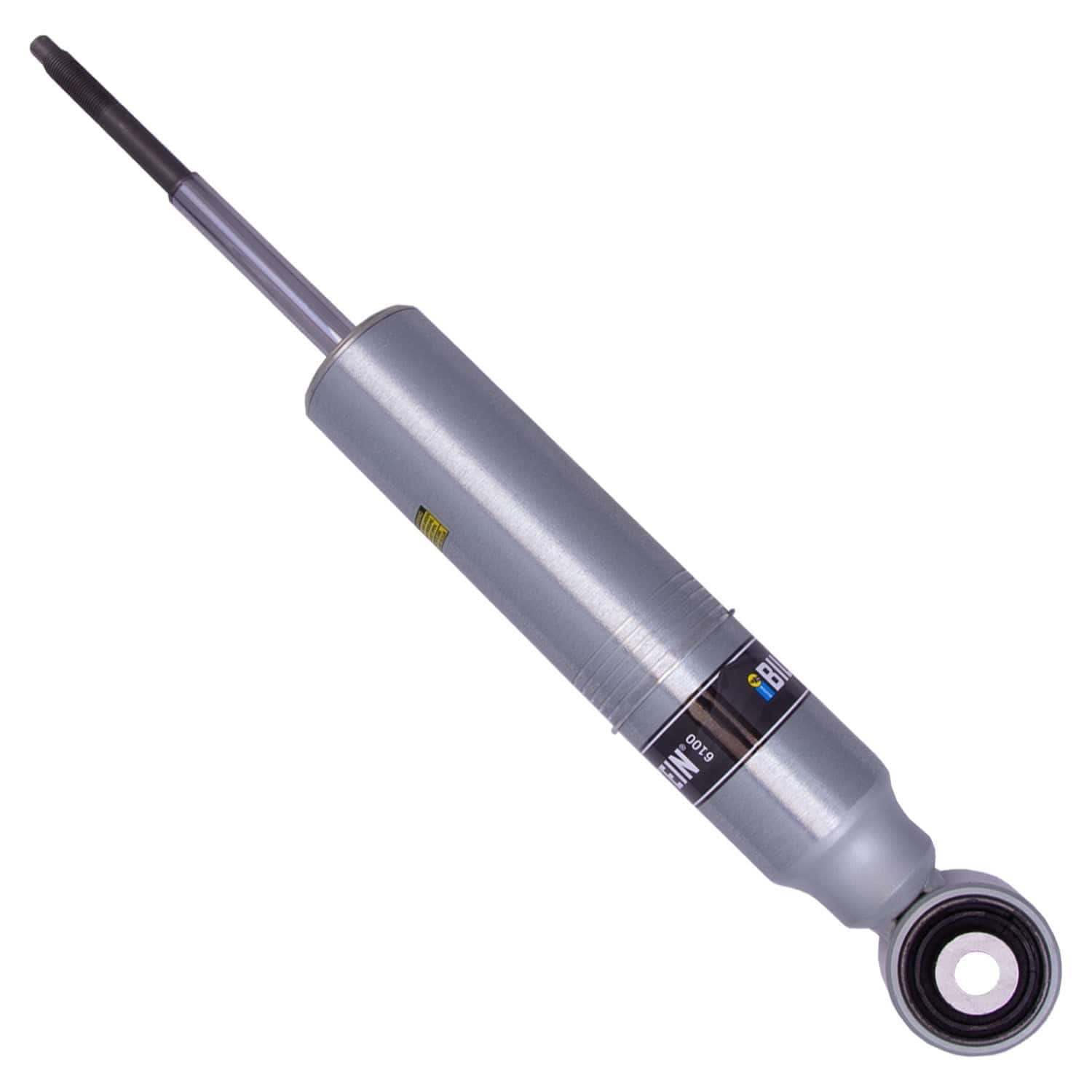

Lifting or leveling a 2016-2024 Nissan TITAN XD (A61) changes what the dampers have to do. The Bilstein B8 shocks are built for that taller stance and stay composed on rough ground.
Inside is Bilstein's monotube design, with the gas and oil separated by a floating piston. That keeps damping consistent when the road turns rough and the unit gets hot, where a lesser damper would go soft.
Features
- Large 60mm body for increased oil capacity, cooling, and long-term durability
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
Specifications
| Part Number | 24-322669 |
| Part Name | Shock Absorber |
| Vehicle | 2016-2024 Nissan TITAN XD |
| Chassis Code | A61 |
| Drivetrain | RWD |
| UPC | 651860882482 |
| Front Lift Height | 0 - 2 in. |
| Body Design | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID) | 60 mm |
| Boot Included | No Boot Supplied or Needed |
| Collapsed Length | 14.42 in. (366.2 mm) |
| Damping Adjustable | No |
| Extended Length | 18.43 in. (468.0 mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 16 mm |
| Reservoir | No |
| Segment | Light Truck |
| Series | B8 6100 (Ride Height Adjustable) |

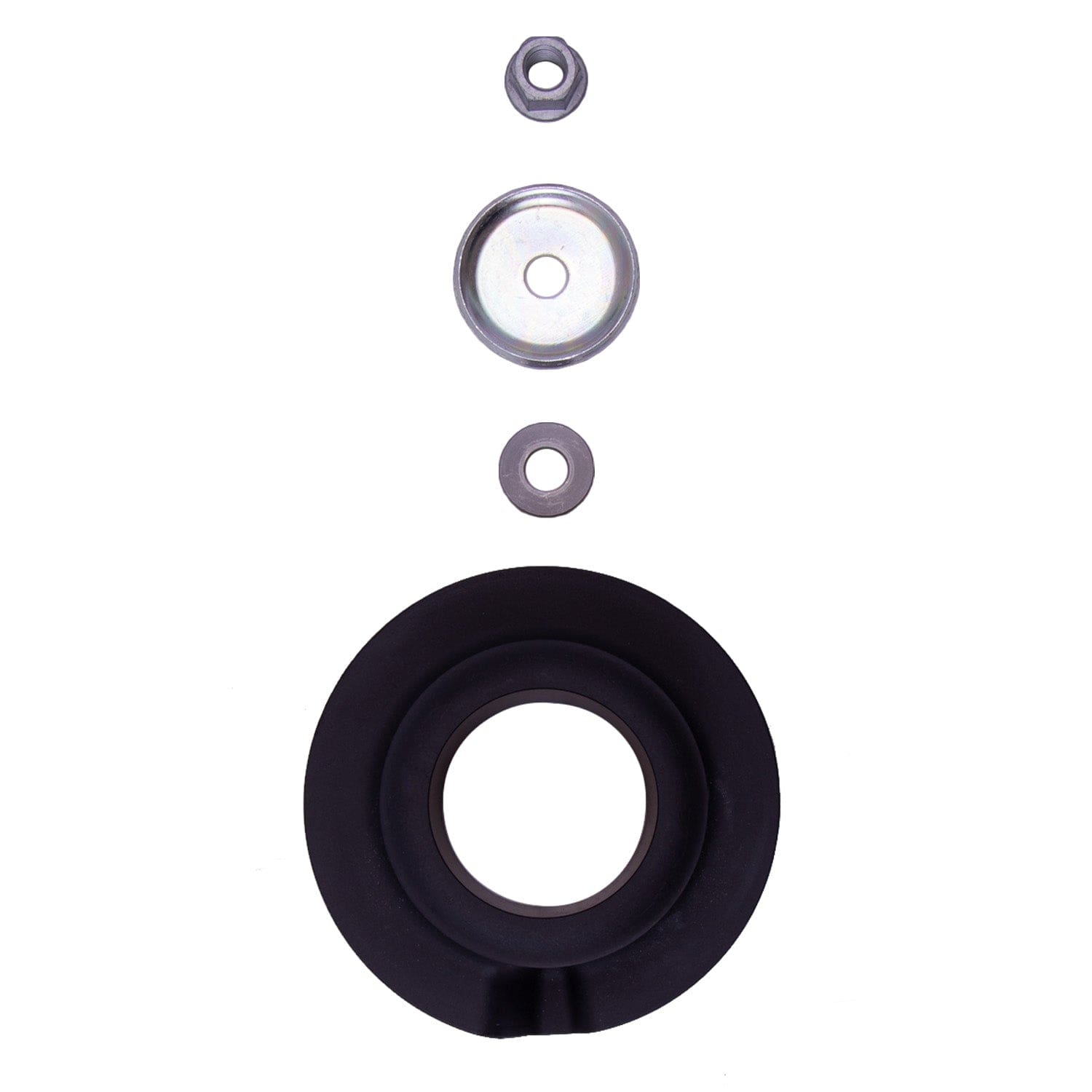

| Spring Seat Included | Yes |
| Upper Mount Type | Stem |
| Quantity | Sold Individually |
| Notes | - |
